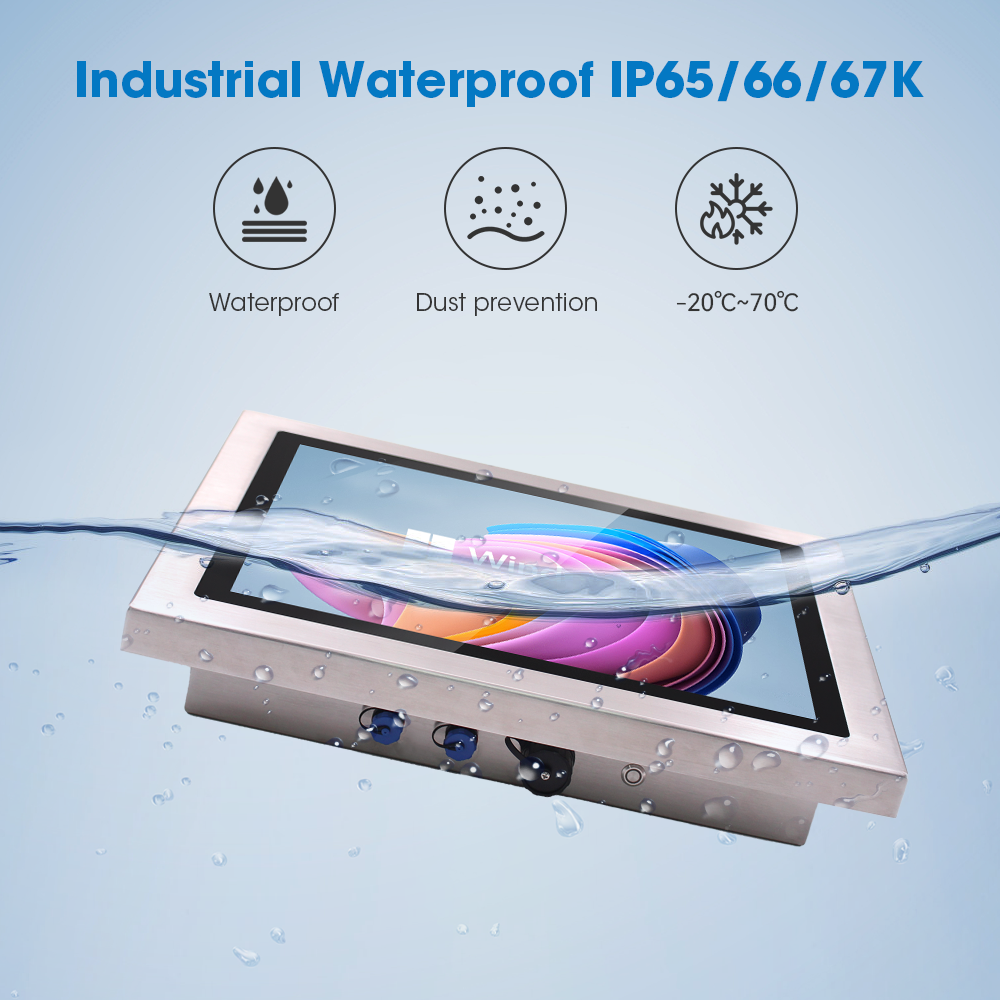

Stainless steel SS304, Full IP67 waterproof, M 16 metal waterproof connector
Industrial grade LCD screen, full viewing angle
10-point capacitive touch screen, cover 2mm tempered glass (chemically strengthened), the hardness reaches 7H
EETI touch control solution, can touch well with ｄｒｏｐ water
Front build in 12MP pixel camera
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
The touch screen and LCD screen are optical bond
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| LCD Panel Charateristics | |||||
| Screen Size | 21.5'' LCD/LED Panel(7-55inch is supported) | ||||
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | ||||
| Resolution | 1920(H)*1080(V) | ||||
| Aspect Ratio | 16：9 | ||||
| Brightness | 1000-1500cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 700：1 | ||||
| Touch screen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |
| I/O Interface(optional) | |||||
| USB2.0(optional USB3.0) | 1 | ||||
| HDMI | 1 | ||||
| DC | 12V | ||||
| Audio I/O | |||||
| VGA | 1 | ||||
| Other Information | |||||
| Frame Material | Aluminum Alloy/Stainless Steel/Metal | ||||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||||
| Color | Default balck,also can choose white,silvery or other colour | ||||
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | ||||
| Weight | 7KG | ||||
PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:

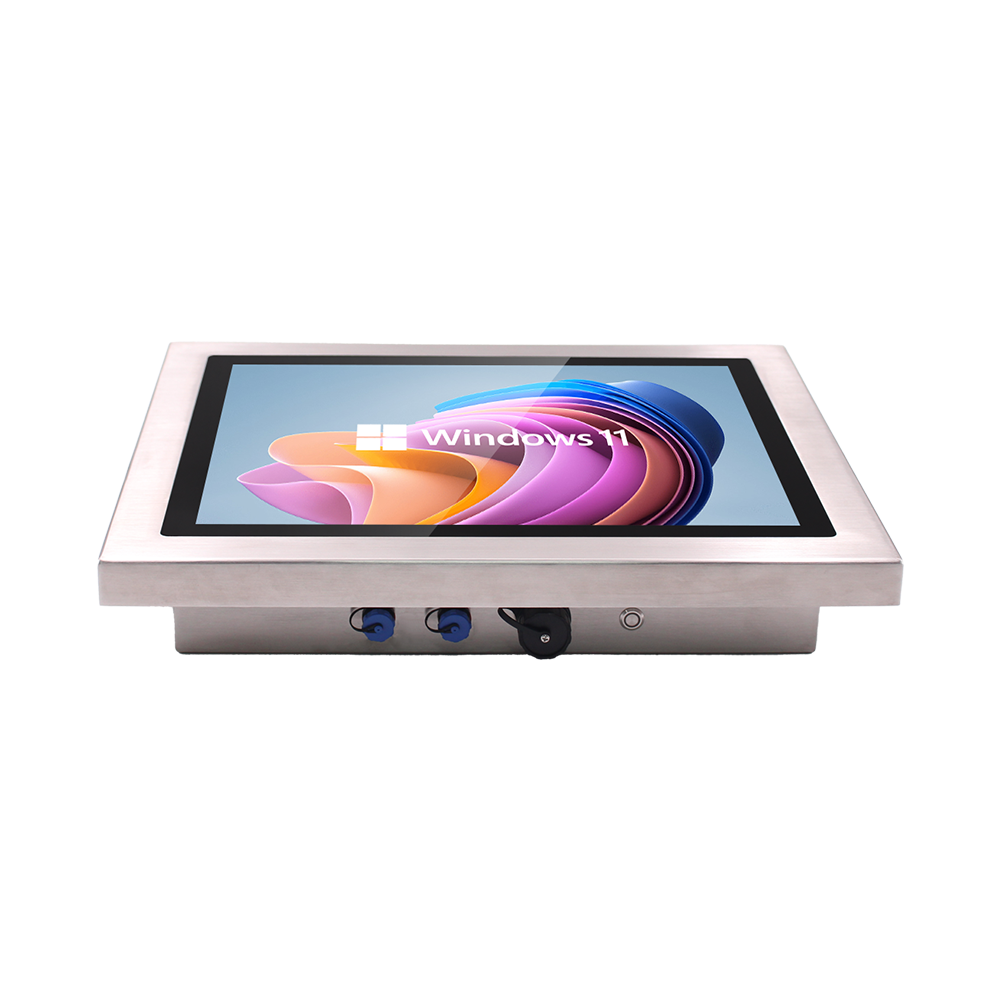

The Waterproof LCD Monitor is a versatile and rugged display designed specifically for industrial applications. With a size of 15 inches and a stainless steel construction, this monitor is built to withstand harsh environments and ensure reliable performance in demanding settings.

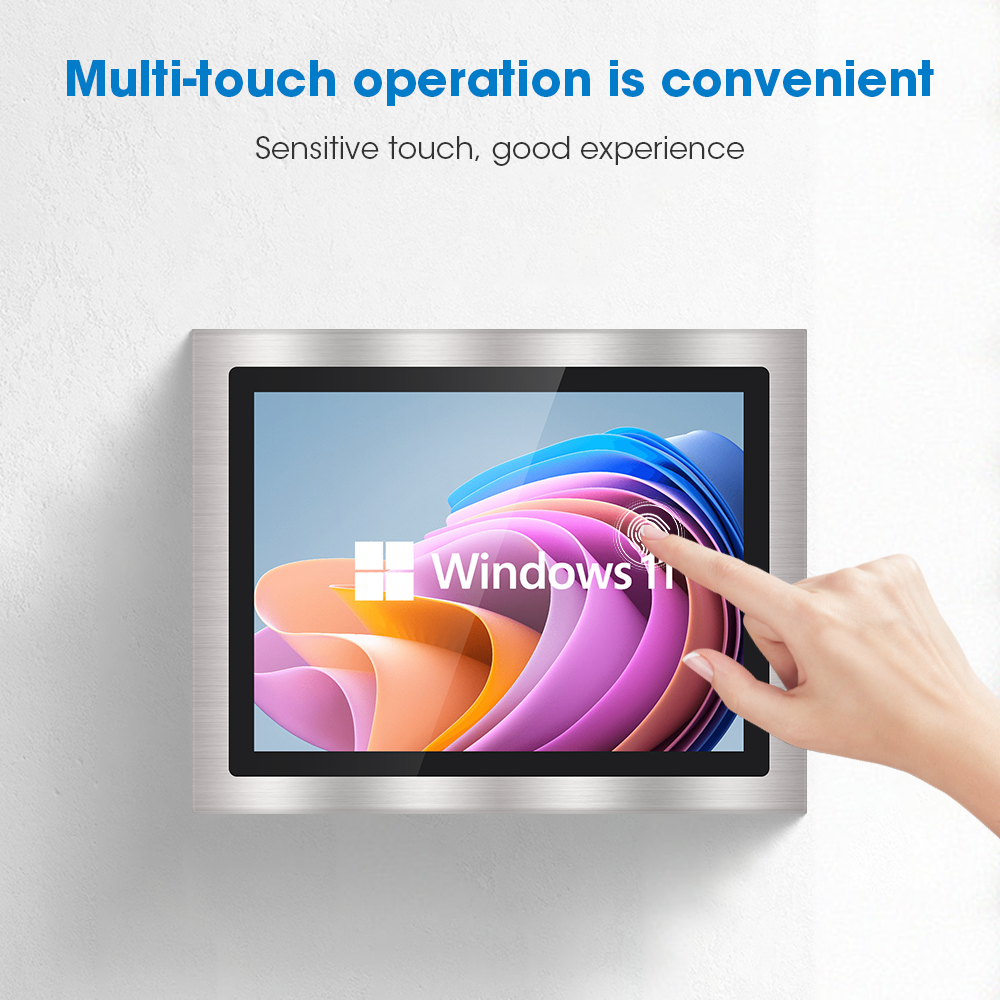

Equipped with a 10-point capacitive touch screen, this Industrial Touch Screen Monitor offers precise and responsive touch functionality, allowing users to interact with the display with ease and efficiency. The high touch point capacity enhances usability and enables multi-touch gestures for enhanced user experience.
Featuring a brightness range of 350 to 1500 nits, this Industrial Monitor delivers clear and vivid visuals even in bright or outdoor environments. The adjustable brightness levels make it suitable for various lighting conditions, ensuring optimal visibility at all times.
Designed for industrial applications, this Waterproof LCD Monitor is ideal for use in manufacturing facilities, control rooms, outdoor installations, and other industrial settings where durability and performance are crucial. The stainless steel material not only provides robust protection against water and dust but also offers resistance to corrosion and damage, making it a reliable choice for industrial environments.
Whether used for monitoring production processes, displaying critical data, or controlling machinery, this Industrial Monitor offers dependable performance and durability. Its rugged construction and industrial-grade components make it a reliable and long-lasting solution for industrial applications requiring a high-quality display.
Experience the reliability and versatility of the Waterproof LCD Monitor for your industrial operations. With its 10-point capacitive touch screen, stainless steel construction, 15-inch size, and brightness range of 350-1500 nits, this Industrial Touch Screen Monitor is the perfect choice for demanding industrial environments that require a durable and high-performance display solution.
Features:
· Product Name: Waterproof LCD Monitor
· Material: Stainless Steel
· Size: 15 Inch
· Resolution: 1280*1024

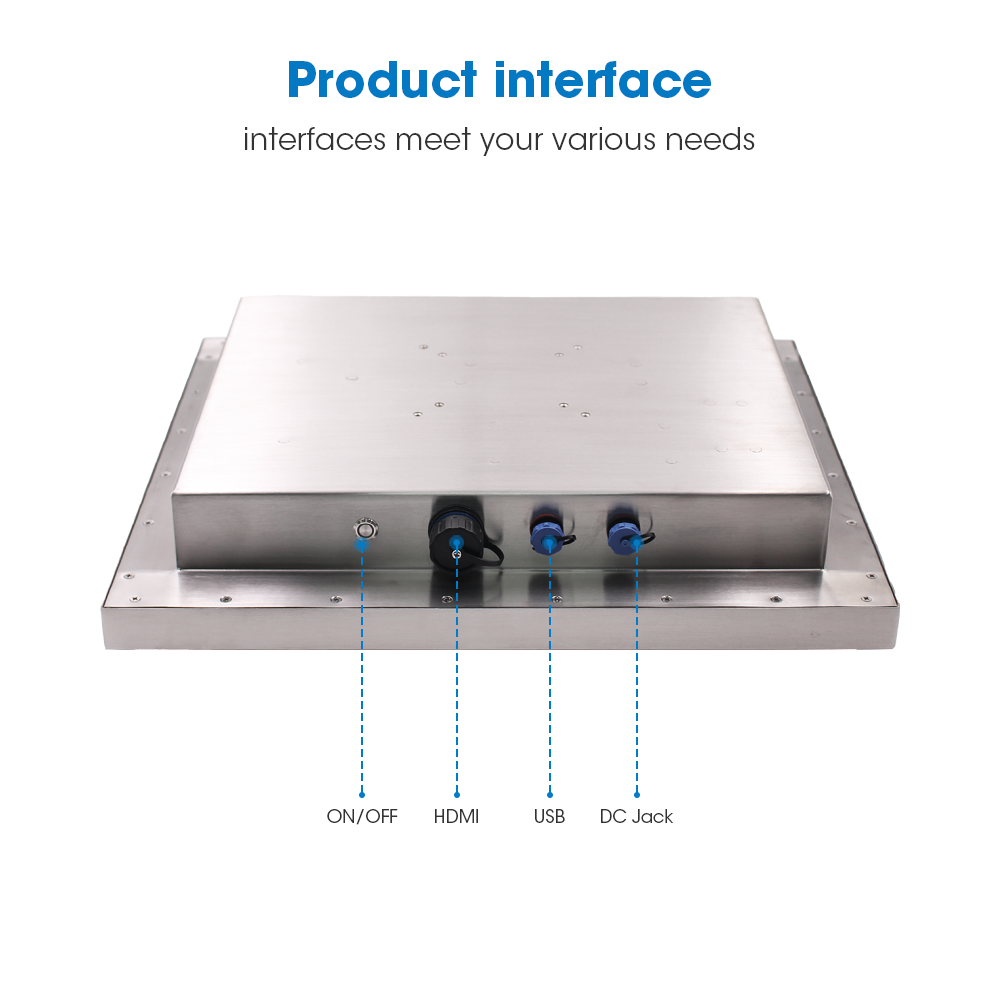

· Interface: RS232 POWER HDMI/Customizable Optional
· Installation: VESA Wall Mount/Yoke
Technical Parameters:
Resolution | 1280*1024 |
Installation | VESA Wall Mount/Yoke |
Size | 15 Inch |
Brightness | 350-1500Nits |
Interface | RS232 POWER HDMI/Customizable Optional |
Product name | Industrial Monitor |
Touch points | 10 Points Capacitive Touch |
Material | Stainless Steel |
Application | Industrial Application |
Applications:
The INNODA IND150M Waterproof LCD Monitor is a versatile and reliable product suitable for a wide range of product application occasions and scenarios due to its industrial-grade features and specifications.
As an Industrial Touch screen Waterproof Monitor, the IND150M is perfect for use in harsh environments such as factories, warehouses, outdoor settings, and other industrial settings where dust, moisture, and other elements may be present. Its IP65 certification ensures that it is protected against water and dust ingress, making it ideal for use in challenging conditions.
With a resolution of 1280*1024 and a size of 15 inches, the Industrial Monitor provides crisp and clear visuals, making it suitable for various industrial applications that require detailed monitoring and control. The touchscreen functionality adds convenience and ease of use, allowing users to interact with the monitor efficiently.
The IND150M can be easily installed using VESA Wall Mount or Yoke, giving users flexibility in positioning the monitor for optimal viewing angles. The interface options, including RS232, POWER HDMI, and customizable options, ensure seamless connectivity with other devices and systems, making it versatile for different industrial setups.
Whether it is used for monitoring production processes, displaying critical information, or controlling machinery, the INNODA IND150M Waterproof LCD Monitor delivers reliable performance and durability. Its certification by CE, RoHS, FCC further assures users of its quality and compliance with industry standards.
With a minimum order quantity of 1 piece and a supply ability of 2000 pieces per month, the IND150M offers flexibility in purchasing options. The packaging details of 1pc/carton with a weight of 5kgs/pc make it easy to handle and transport, while the delivery time of 25 working days ensures timely availability upon payment.
Payment terms such as T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram provide convenient options for customers to complete transactions, making the procurement process efficient and hassle-free.
In conclusion, the INNODA IND150M Industrial Touch screen Waterproof Monitor is a reliable and high-performance product designed to meet the demands of industrial applications. Its robust features, certifications, and specifications make it a versatile solution for various product application occasions and scenarios where a durable and efficient monitor is required.
Customization:
Product Customization Services for the Industrial Touch screen Waterproof Monitor:
- Brand Name: INNODA
- Model Number: IND150M
- Place of Origin: Shenzhen, China
- Certification: CE, RoHS, FCC, IP65
- Minimum Order Quantity: 1 piece
- Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
- Delivery Time: 25 working days upon receive the payment
- Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
- Supply Ability: 2000 pieces per month
- Resolution: 1280*1024
- Interface: RS232, POWER, HDMI/Customizable Optional
- Size: 15 Inch
- Installation: VESA Wall Mount/Yoke
- Product Name: Industrial Monitor
Support and Services:
The Waterproof LCD Monitor product offers comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated team of technical experts is available to assist with any inquiries, troubleshooting, or maintenance needs that may arise. From initial setup and installation guidance to ongoing technical support, we are committed to providing a seamless and efficient support experience.
Packing and Shipping:
Product Packaging for Waterproof LCD Monitor:
- The waterproof LCD monitor is carefully packaged in a sturdy cardboard box to ensure safe transportation.
- The monitor is wrapped in protective foam to prevent any damage during shipping.
Shipping Information:
- Shipping Method: We use a reliable courier service to deliver your waterproof LCD monitor to your doorstep.
- Estimated Delivery Time: Please allow 3-5 business days for delivery within the United States.
