Stainless steel SS304, Full IP67 waterproof, M 16 metal waterproof connector
Industrial grade LCD screen, full viewing angle
10-point capacitive touch screen, cover 2mm tempered glass (chemically strengthened), the hardness reaches 7H
EETI touch control solution, can touch well with ｄｒｏｐ water
Front build in 12MP pixel camera
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
The touch screen and LCD screen are optical bond
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| LCD Panel Charateristics | |||||
| Screen Size | 19'' LCD/LED Panel(7-55inch is supported) | ||||
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | ||||
| Resolution | 1280(H)*1024(V) | ||||
| Aspect Ratio | 4：3 | ||||
| Brightness | 1000-1500cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 700：1 | ||||
| Touch screen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |
| I/O Interface(optional) | |||||
| USB2.0(optional USB3.0) | 1 | ||||
| HDMI | 1 | ||||
| DC | 12V | ||||
| Audio I/O | |||||
| VGA | 1 | ||||
| Other Information | |||||
| Frame Material | Aluminum Alloy/Stainless Steel/Metal | ||||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||||
| Color | Default balck,also can choose white,silvery or other colour | ||||
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | ||||
| Weight | 5KG | ||||

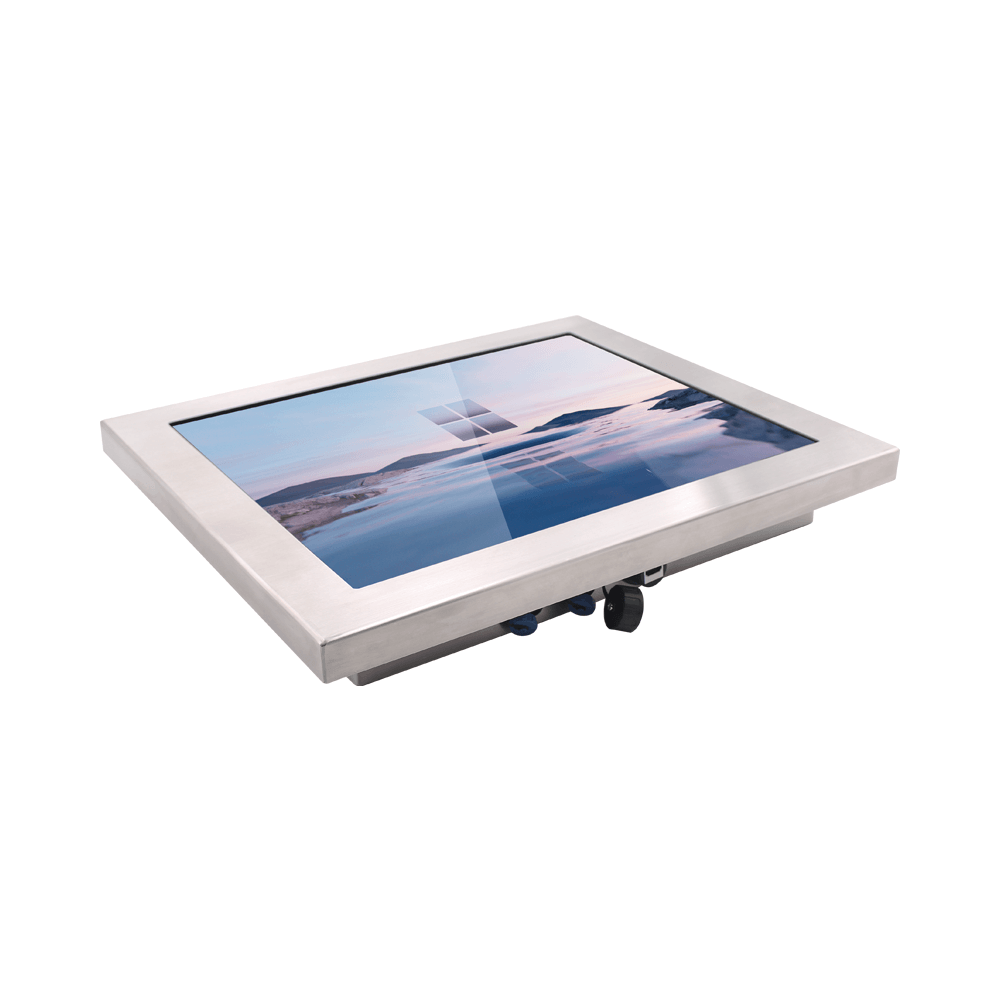

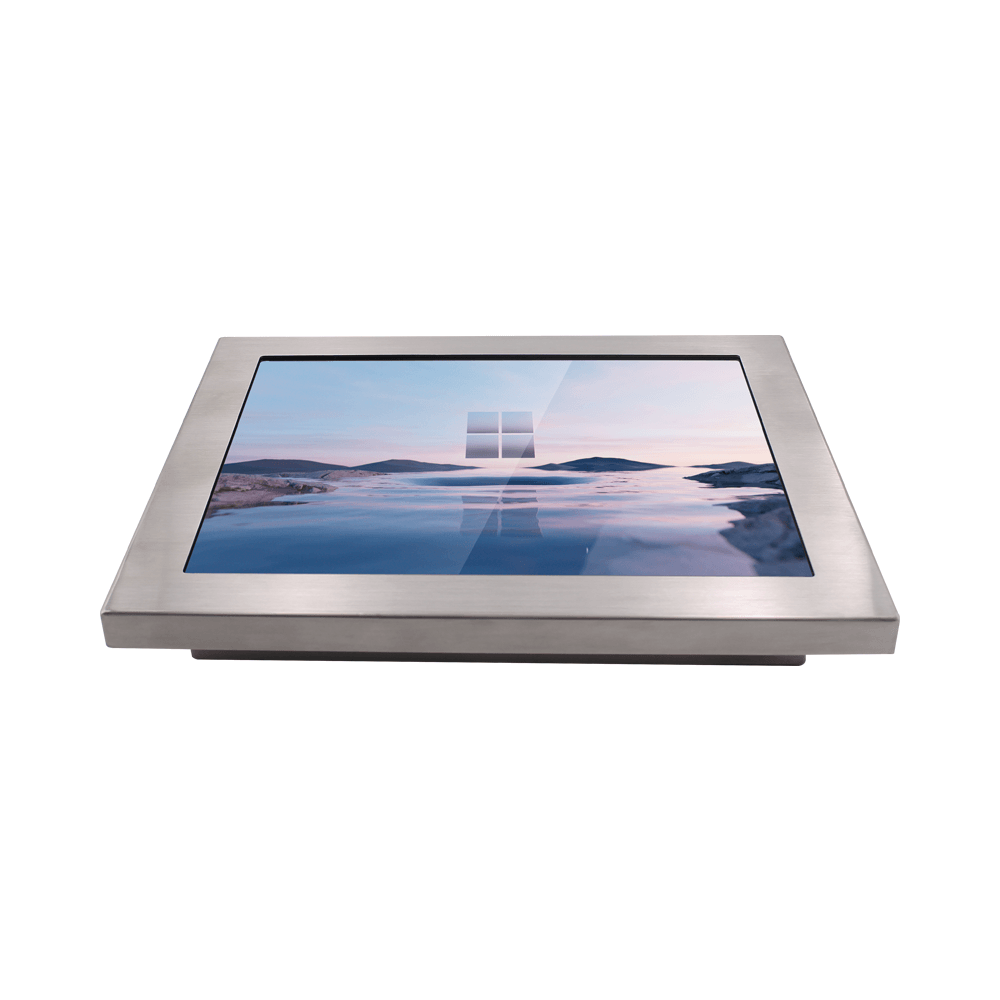

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Waterproof LCD Monitor is a durable and high-performance display designed for industrial applications. With its rugged construction and advanced features, this monitor is ideal for use in demanding environments where reliability and durability are paramount.
Designed to withstand harsh conditions, the Waterproof LCD Monitor is constructed from high-quality stainless steel, making it resistant to water, dust, and other contaminants. Its waterproof design ensures that it can be used safely in wet or humid conditions without risk of damage.
Equipped with a high-resolution 1280*1024 display, this monitor delivers crisp and clear images for detailed viewing of critical data and visuals. Whether used for monitoring processes, displaying information, or controlling equipment, the high-resolution screen ensures that every detail is visible with clarity.
With its 10 points capacitive touch technology, the Waterproof LCD Monitor offers intuitive and responsive touch control for seamless interaction with on-screen content. Users can easily navigate menus, input data, and interact with applications using touch gestures, providing a user-friendly interface for enhanced productivity and efficiency.

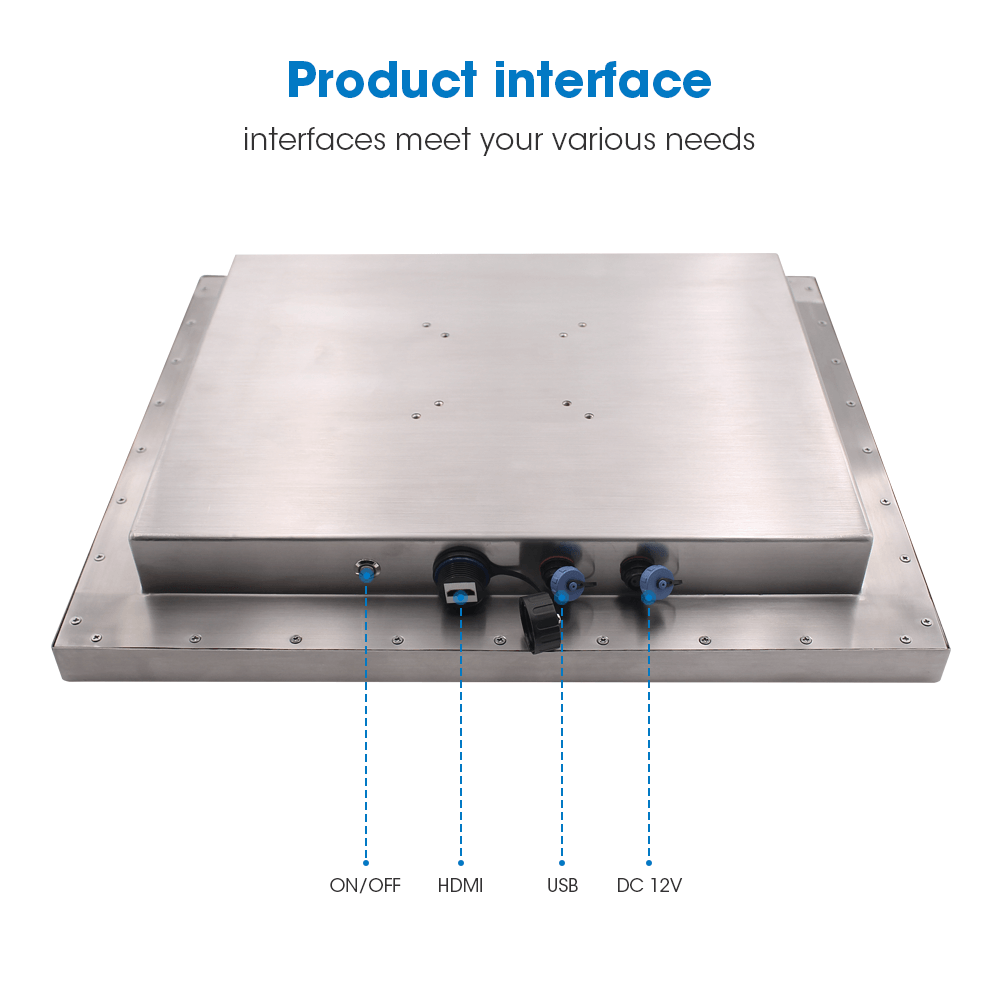

Featuring multiple interface options including RS232, POWER HDMI, and customizable optional ports, the Waterproof LCD Monitor offers versatile connectivity for seamless integration into industrial systems. Whether connecting to monitoring equipment, control systems, or other devices, the monitor can be easily configured to meet specific requirements and adapt to different communication protocols.
Designed for reliability and longevity, the Waterproof LCD Monitor is built to withstand the rigors of industrial environments. Its durable construction and robust components ensure consistent performance even in challenging conditions, making it a dependable solution for mission-critical applications.
Whether used in manufacturing facilities, processing plants, control rooms, or outdoor installations, the Industrial Waterproof Monitor delivers reliable performance and durability in any environment. Its waterproof design, high-resolution display, capacitive touch technology, and versatile interface options make it a versatile solution for a wide range of industrial applications.
Overall, the Waterproof LCD Monitor is a versatile and reliable display solution for industrial environments, offering durability, performance, and flexibility for demanding applications. With its rugged construction, advanced features, and high-quality display, this monitor provides a dependable solution for monitoring, control, and visualization in industrial settings.
Features:
· Product Name: Waterproof LCD Monitor
· Installation: VESA Wall Mount/Yoke
· Touch points: 10 Points Capacitive Touch
· Material: Stainless Steel
· Product name: Industrial Monitor
· Interface: RS232 POWER HDMI/Customizable Optional
Technical Parameters:
Size | 15 Inch |
Application | Industrial Application |
Interface | RS232 POWER HDMI/Customizable Optional |
Touch points | 10 Points Capacitive Touch |
Installation | VESA Wall Mount/Yoke |
Product name | Industrial Monitor |
Material | Stainless Steel |
Brightness | 350-1500Nits |
Resolution | 1280*1024 |
Applications:
INNODA Waterproof LCD Monitor is a versatile and durable display solution suitable for a wide range of product application occasions and scenarios. With its robust construction and advanced features, this Industrial Monitor is ideal for demanding environments where reliability and performance are paramount.
The Stainless Steel monitor from INNODA, model number IND150M, is designed to withstand harsh conditions, making it perfect for industrial settings such as factories, warehouses, and manufacturing plants. Its IP65 certification ensures protection against water and dust, allowing it to function seamlessly even in challenging environments.
This 15-inch Industrial Monitor is equipped with 10 Points Capacitive Touch technology, providing a responsive and intuitive user experience. The high-resolution display (1280*1024) delivers crisp and clear visuals, making it suitable for applications that require precise image quality and detail.
The versatile interface options, including RS232, POWER HDMI, and customizable inputs, allow for seamless integration with a variety of devices and systems. Whether used for monitoring production processes, displaying critical information, or controlling machinery, this Industrial Monitor offers flexibility and convenience in diverse industrial applications.
INNODA's Industrial Monitor is not only reliable and functional but also easy to install and operate. The product's compact packaging details (1pc/carton, weight: 5kgs/pc, packing size: 45×35×12cm) make transportation and handling convenient. With a minimum order quantity of just 1 piece and a delivery time of 25 working days upon receipt of payment, customers can quickly acquire this high-quality display solution.
Certified with CE, RoHS, and FCC, the INNODA Waterproof LCD Monitor meets international quality and safety standards. Customers can choose from various payment terms, including T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram, ensuring a smooth purchasing process. With a monthly supply ability of 2000 pieces, businesses can rely on a steady and consistent source of this Industrial Monitor for their operations.
Customization:
Product Customization Services for the Stainless Steel Touch Monitor - Industrial Monitor
Brand Name: INNODA
Model Number: IND150M
Place of Origin: Shenzhen, China
Certification: CE, RoHS, FCC, IP65
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receiving the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 2000 pieces per month
Product Name: Industrial Monitor
Material: Stainless Steel
Touch points: 10 Points Capacitive Touch
Size: 15 Inch
Brightness: 350-1500Nits
Support and Services:
The Waterproof LCD Monitor product comes with comprehensive Product Technical Support and Services to ensure a seamless user experience. Our team of experts is dedicated to assisting customers with any product-related inquiries, troubleshooting, and technical issues. Whether you require setup guidance, maintenance tips, or software updates, our support services are designed to meet your needs promptly and efficiently.
Packing and Shipping:
Product Packaging:
- The waterproof LCD monitor will be carefully packaged in a sturdy cardboard box to ensure safe transportation.
- The monitor will be wrapped in bubble wrap to prevent any damage during shipping.
- Included in the packaging will be a user manual and all necessary cables for easy setup.
Shipping:
- We offer worldwide shipping for the waterproof LCD monitor.
- Orders will be processed within 1-2 business days after payment is received.
- Delivery times may vary depending on the destination, but typically range from 5-10 business days.
- Customers will receive a tracking number to monitor the status of their shipment.
