Stainless steel SS304, Full IP67 waterproof
Industrial grade LCD screen, full viewing angle
10-point capacitive touch screen, cover 2mm tempered glass (chemically strengthened), the hardness reaches 7H
EETI touch control solution, can touch well with drop water
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
The touch screen and LCD screen are optical bond
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| LCD Panel Charateristics | |||||
| Screen Size | 27'' LCD/LED Panel(7-55inch is supported) | ||||
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | ||||
| Resolution | 1920(H)*1080(V) | ||||
| Aspect Ratio | 16：9 | ||||
| Brightness | 1000-1500cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 700：1 | ||||
| Touch screen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |
| I/O Interface(optional) | |||||
| USB2.0(optional USB3.0) | 1 | ||||
| HDMI | 1 | ||||
| DC | 12V | ||||
| Audio I/O | |||||
| VGA | 1 | ||||
| Other Information | |||||
| Frame Material | Aluminum Alloy/Stainless Steel/Metal | ||||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||||
| Color | Default balck,also can choose white,silvery or other colour | ||||
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | ||||
| Weight | 7KG | ||||

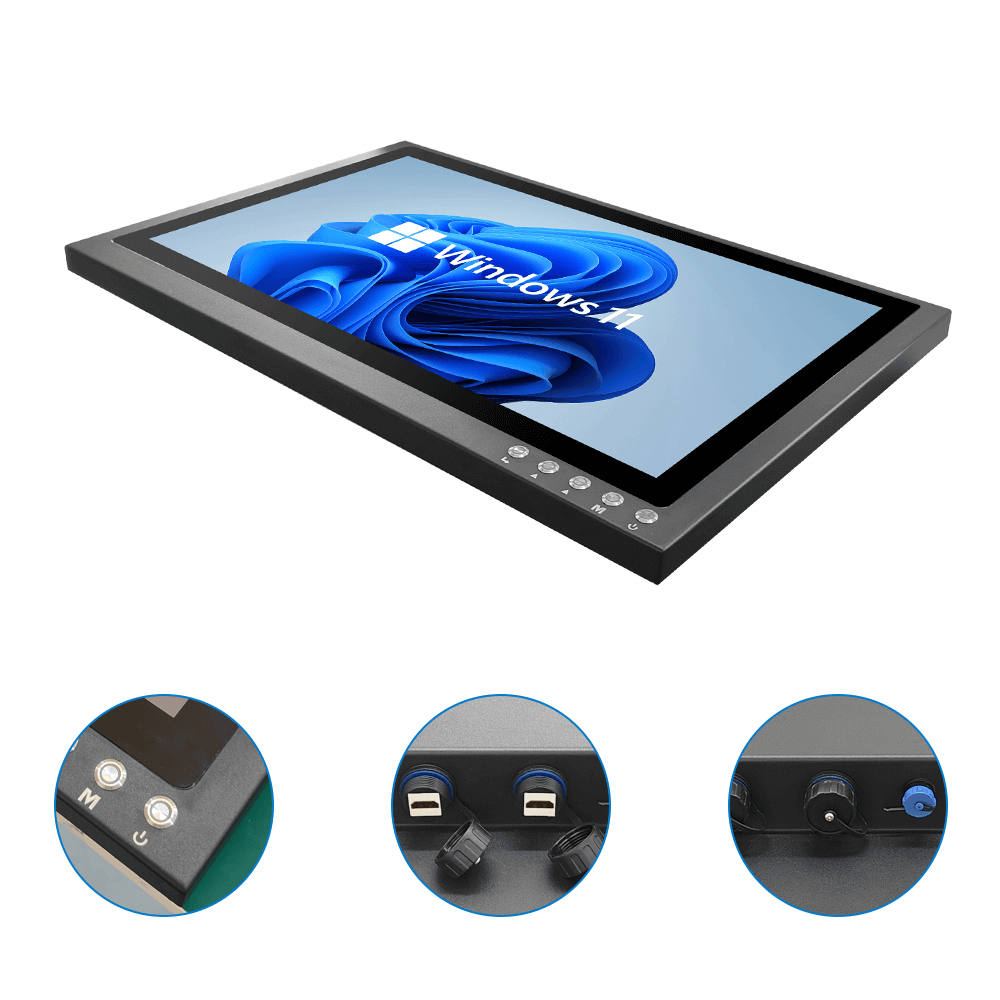

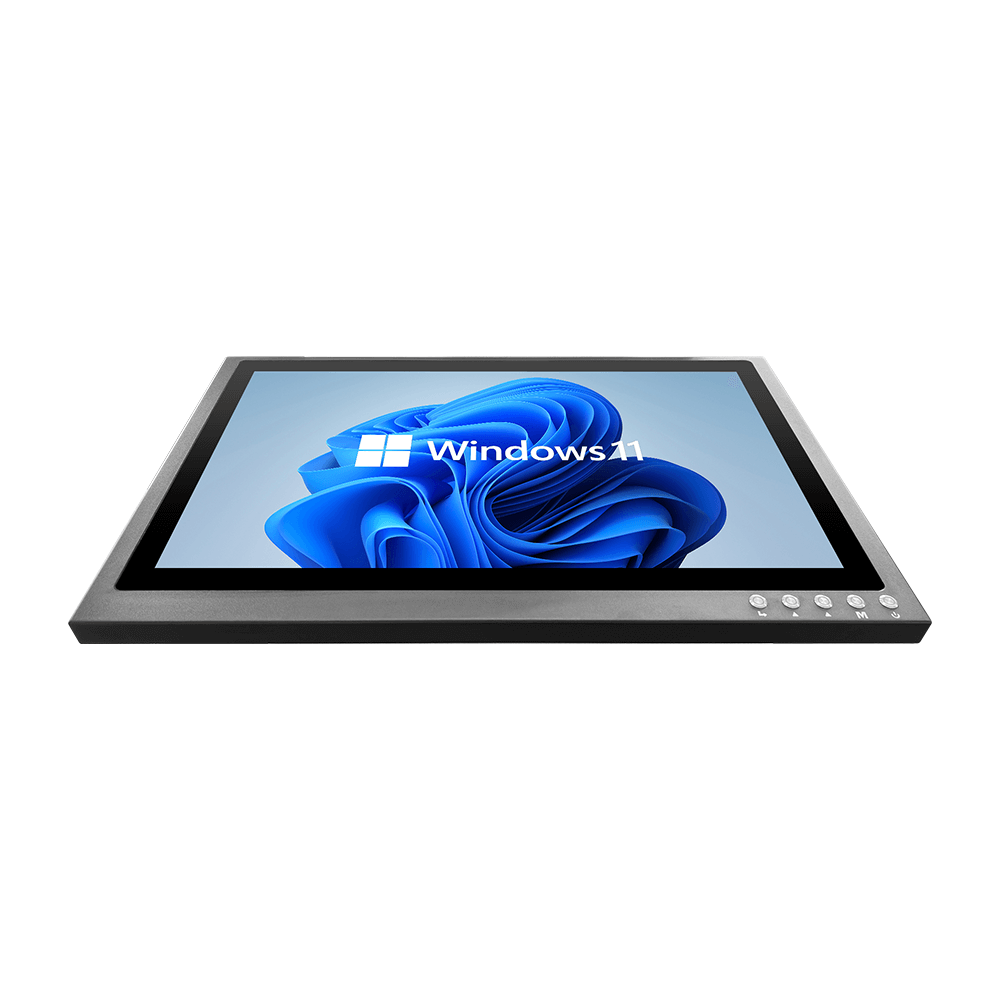

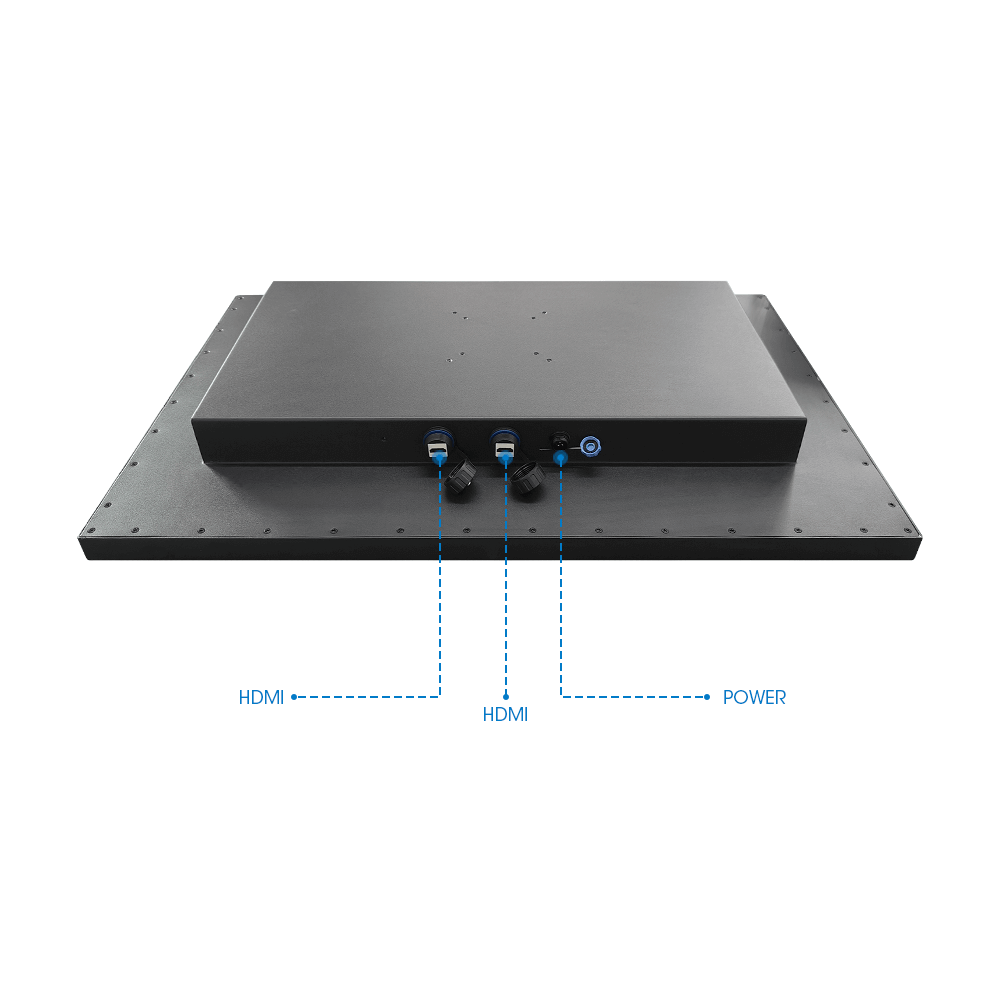

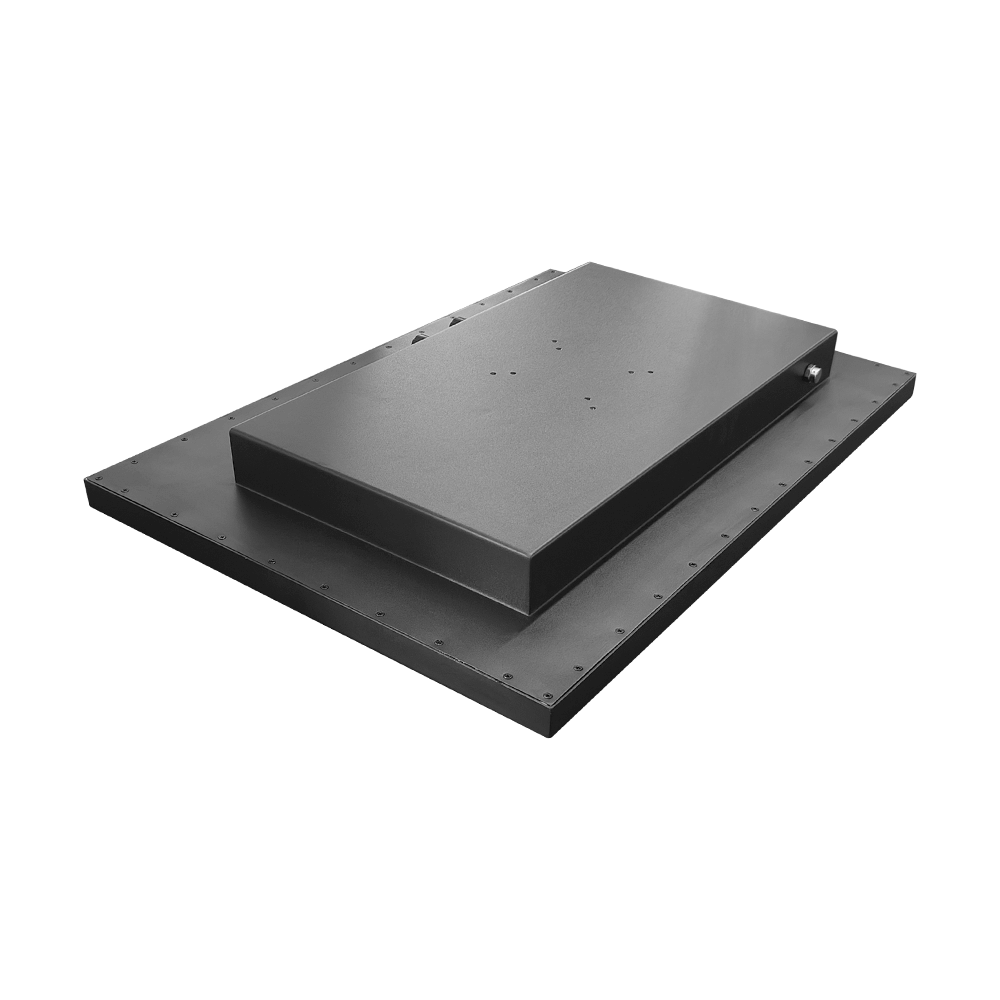

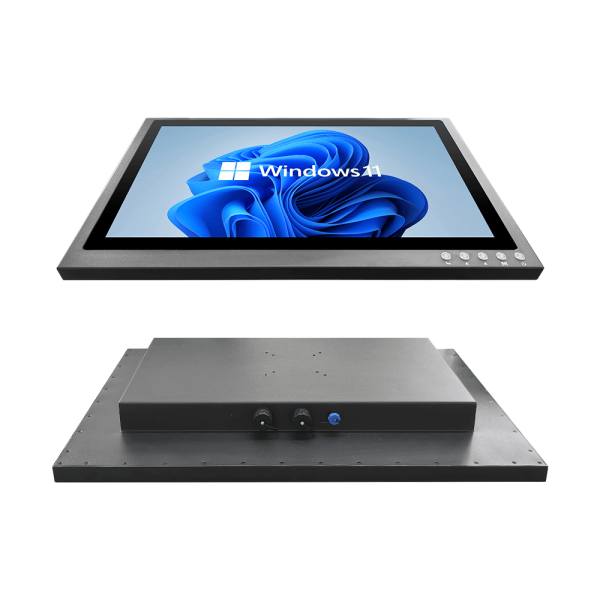

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Features:
· Product Name: Waterproof LCD Monitor
· Size: 15 Inch
· Touch points: 10 Points Capacitive Touch
· Interface: RS232 POWER HDMI/Customizable Optional
· Application: Industrial Application
· Installation: VESA Wall Mount/Yoke
Technical Parameters:
Interface | RS232 POWER HDMI/Customizable Optional |
Brightness | 350-1500Nits |
Touch points | 10 Points Capacitive Touch |
Material | Stainless Steel |
Resolution | 1920*1080 |
Installation | VESA Wall Mount/Yoke |
Product name | Industrial Waterproof Monitor |
Application | Industrial Application |
Size | 27 Inch |
Applications:
INNODA's IND150M Waterproof LCD Monitor is a versatile display solution designed for a wide range of industrial applications. The product's durable stainless steel construction makes it ideal for use in harsh environments where regular monitors may not withstand the conditions.
With its IP65 certification, the IND150M is guaranteed to be dust-tight and protected against water jets, making it suitable for outdoor use or in areas exposed to moisture and dirt. The high brightness range of 350-1500Nits ensures excellent visibility even in bright sunlight or low-light conditions, making it perfect for applications where clear visibility is essential.
Whether used in manufacturing plants, warehouses, outdoor work sites, or control rooms, the IND150M Stainless Steel Touch monitor provides reliable performance and durability. The VESA Wall Mount/Yoke installation option allows for flexible mounting configurations to suit various working environments.
INNODA's IND150M Industrial Monitor is not only rugged and reliable but also certified with CE, RoHS, FCC, and IP65 standards, ensuring compliance with international quality and safety regulations. The product is manufactured in Shenzhen, China, a hub for technological innovation and quality manufacturing.
Customers can benefit from the product's minimum order quantity of 1 piece, allowing for easy procurement for both small and large-scale industrial setups. The convenient packaging details of 1pc/carton with a weight of 5kgs/pc and packing size of 45×35×12cm make shipping and handling hassle-free.
With a supply ability of 2000 pieces per month, customers can rely on INNODA for consistent availability of the IND150M Waterproof LCD Monitor. The product delivery time of 25 working days upon receiving payment ensures timely fulfillment of orders.
Payment terms including T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram offer flexibility for customers to choose the most convenient option for their transactions. The IND150M is the go-to solution for industrial applications requiring a durable, high-performance Stainless Steel monitor with waterproof capabilities.
Customization:
Product Customization Services for the Stainless Steel Touch Monitor:
Brand Name: INNODA
Model Number: IND270M
Place of Origin: Shenzhen, China
Certification: CE, RoHS, FCC, IP65
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receiving the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 2000 pieces per month
Installation: VESA Wall Mount/Yoke
Brightness: 350-1500Nits
Application: Industrial Application
Product Name: Industrial Monitor
Touch Points: 10 Points Capacitive Touch
Support and Services:
Our Product Technical Support and Services team for the Waterproof LCD Monitor is dedicated to providing you with assistance for any issues or questions you may have regarding the product. Whether you need troubleshooting help, installation guidance, or advice on maximizing the performance of your monitor, our team is here to help.
We offer comprehensive technical support services to ensure that your Waterproof LCD Monitor functions optimally and meets your expectations. Our team of experts is knowledgeable about the product specifications, features, and functionalities, and can provide you with the assistance you need to address any technical issues you may encounter.
Additionally, we provide services such as repair and maintenance to help you keep your Waterproof LCD Monitor in top condition. Our goal is to ensure that you have a positive experience with our product and that you can rely on its performance for your specific needs.
For any technical support or service inquiries related to the Waterproof LCD Monitor, please do not hesitate to reach out to our dedicated team for prompt and reliable assistance.
Packing and Shipping:
Product Packaging and Shipping:
Our Waterproof LCD Monitor is carefully packaged to ensure its safe delivery to your doorstep. Each monitor is securely wrapped in bubble wrap and placed in a sturdy cardboard box with ample padding to prevent any damage during transit.
For shipping, we partner with reliable courier services to deliver your order in a timely manner. You can track your package using the provided tracking number to know the status of your delivery.
