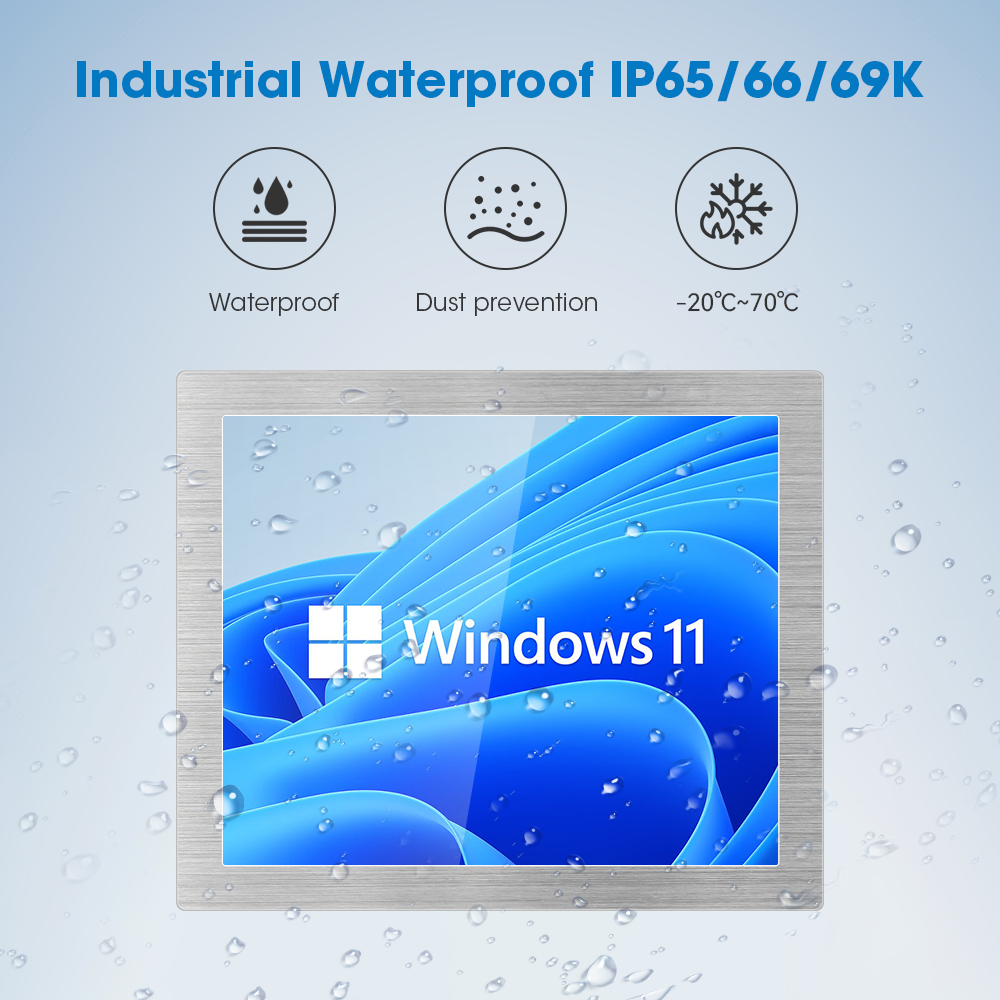

Aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment, Full IP67 waterproof and dustproof.

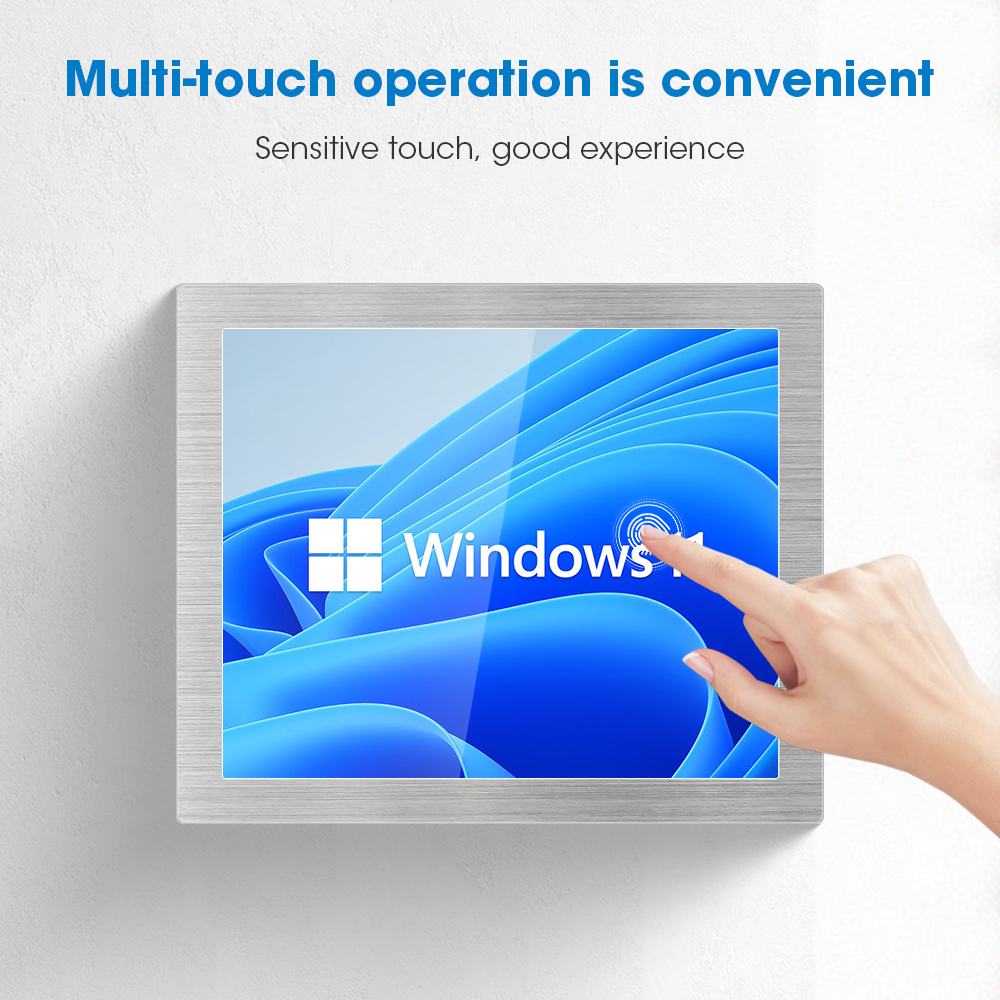

10 points capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H.
EETI touch control solution, can touch when water dropl on the touch screen.
The PC is built with industrial-grade components, 7x24 continuous operation, wide operation temperature -20 to 70ºC.
Optical bonding between touch screen and LCD screen
The front frame and back shell are sealed with waterproof adhesive strips, which can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |

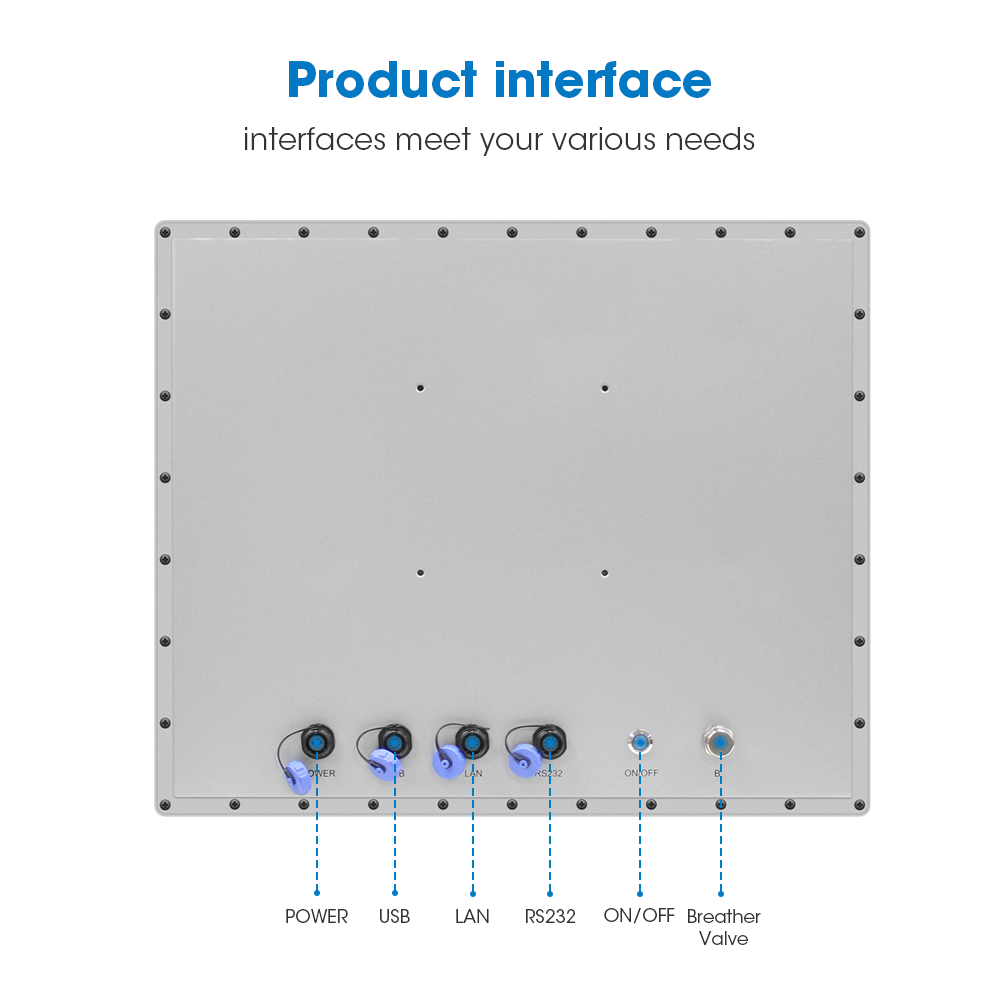

| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 17'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1280(H)*1024(V) |
| Aspect Ratio | 4：3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 4KG |

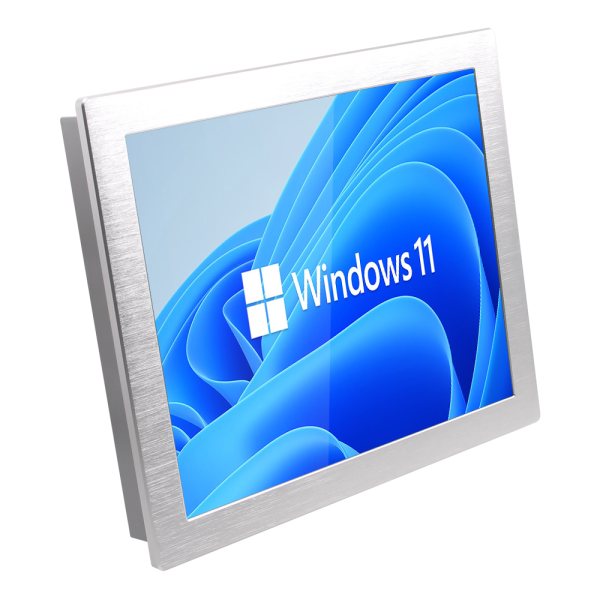

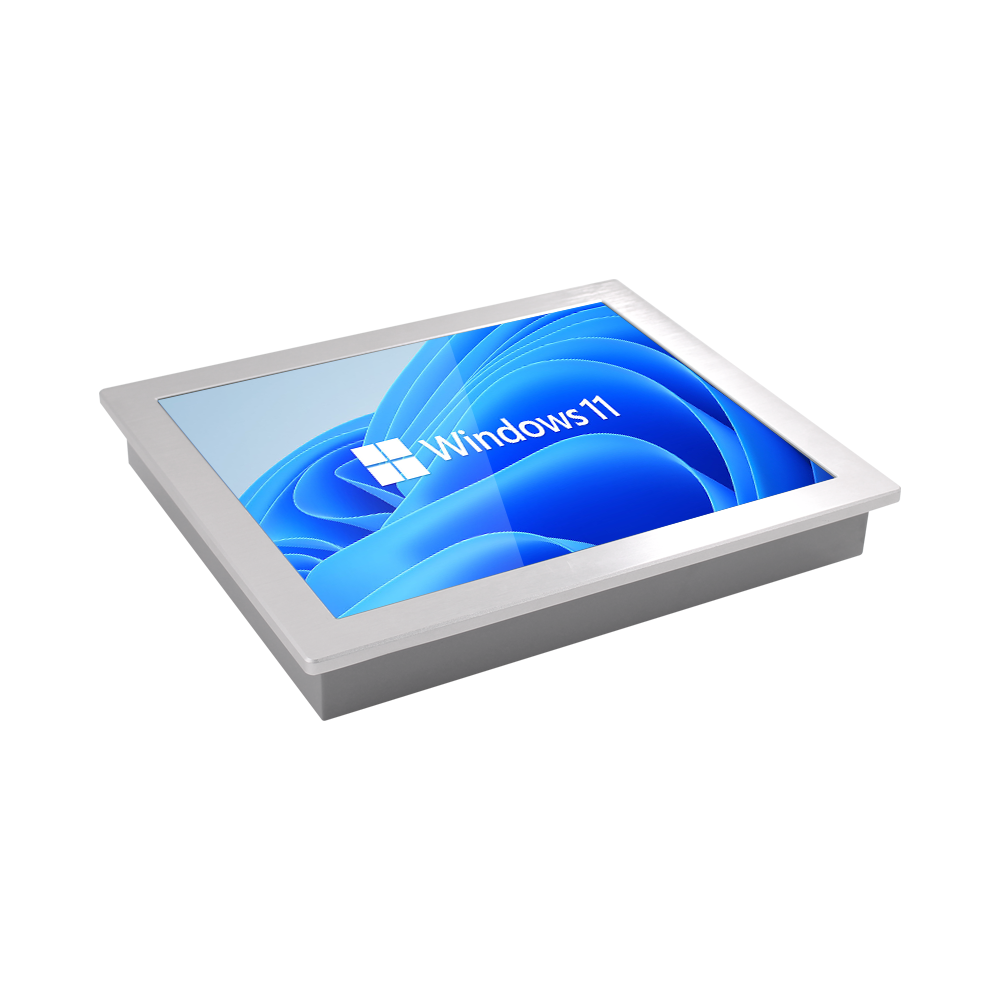

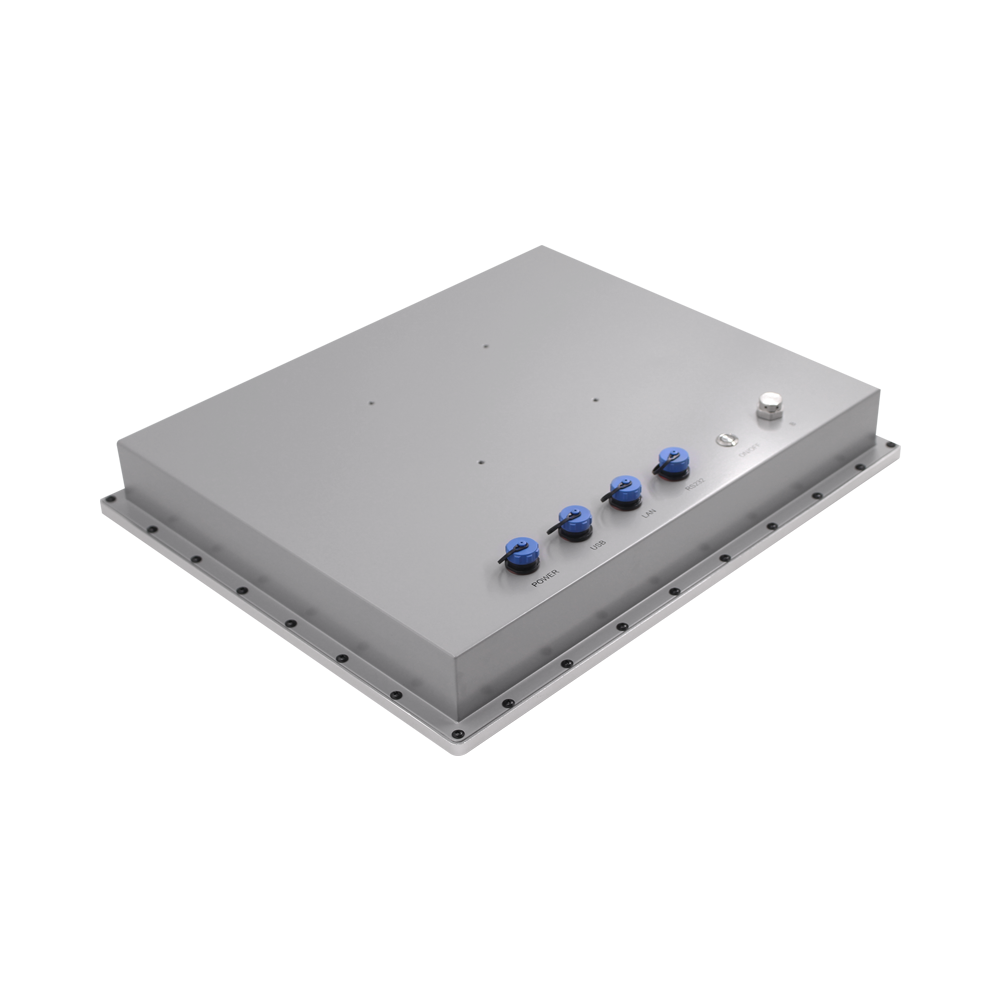

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
A Rugged Watertight Panel PC, the Waterproof Panel PC is a top-of-the-line Sealed Waterproof Display Computer designed to meet the demanding requirements of industrial and outdoor environments. With a power supply of 12V/9-36v DC, this Panel PC is optimized for versatile power input options, ensuring reliable operation in various settings.
Featuring a 15-inch panel size, the Waterproof Panel PC offers a spacious display area suitable for a wide range of applications. The high-quality resolution of 1280X1024 ensures crisp and clear visuals, making it ideal for tasks that require detailed viewing such as data monitoring and control.
With a brightness of 350cd/m², this Panel PC delivers vibrant and easily readable content even in challenging lighting conditions, enhancing visibility and user experience. The IP65/66/67 rating guarantees robust protection against water and dust, making it suitable for use in harsh environments where exposure to moisture and debris is a concern.
The Waterproof Panel PC is a versatile and reliable solution for industries that require a rugged and durable computing device. Its sealed design ensures protection against water ingress, enabling seamless operation even in wet or dusty conditions. The robust construction of the Panel PC enhances its durability, making it a long-lasting investment for your industrial computing needs.
Equipped with advanced features and built to withstand tough environments, the Waterproof Panel PC is an excellent choice for applications that demand reliable performance under challenging conditions. The combination of high-resolution display, optimal brightness, and superior IP rating makes this Panel PC a reliable and efficient solution for industrial automation, outdoor kiosks, marine applications, and more.
Experience the convenience and reliability of the Waterproof Panel PC, a Sealed Waterproof Display Computer that offers exceptional performance and durability in demanding environments. Whether you need a rugged computing solution for outdoor use or industrial automation, this Panel PC is designed to meet your requirements and exceed your expectations.
Features:
· Product Name: Waterproof Panel PC
· Mounting: VESA Mount
· Brightness: 350cd/m²
· Power Supply: 12V/9-36v DC
· Operating System: Windows 10/11
· IP Rating: IP65/66/67
Technical Parameters:
IP Rating | IP65/66/67 |
Touch Screen | Resistive/Capacitive Touch |
Resolution | 1280X1024 |
Operating System | Windows 10/11 |
Product Name | Waterproof Panel PC |
Mounting | VESA Mount |
Panel Size | 15 Inch |
Working Temperature | -20℃ to +70℃ |
Memory | 4GB DDR3 |
Brightness | 350cd/m² |
Applications:
The IND150PC Waterproof Panel PC, model number INNODAPC , originating from China, is a versatile and durable device designed for various industrial applications. With certifications including CEE, FCC, IP65, and RoHS, this panel PC is suitable for demanding environments where reliability and performance are paramount.
With a minimum order quantity of 2 units and packaging details of 1pc/carton weighing 5kgs/pc, with a packing size of 45×35×12cm, the IND150PC Waterproof Panel PC is convenient to transport and install. It boasts a delivery time of 25 working days upon receiving the payment, with flexible payment terms such as T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram. Additionally, with a supply ability of 5000 pieces per month, this device ensures a consistent availability for your industrial needs.
The IND150PC Waterproof Panel PC features a 15-inch panel size with a resistive/capacitance touch screen for user-friendly interaction. With an IP rating of IP65/66/67, this panel PC is suitable for a wide range of applications where protection against dust, water, and harsh weather conditions is required. The high brightness of 350cd/m² ensures clear visibility in various lighting conditions, making it ideal for outdoor and indoor use.
Powered by 12V/9-36v DC, the IND150PC Waterproof Panel PC is a reliable and energy-efficient solution for your industrial computing needs. Its rugged construction and IP68 waterproof rating make it suitable for weatherproof industrial panel computer applications, marine-grade waterproof touch panel PC scenarios, and other demanding environments where performance and durability are essential.
Customization:
Product Customization Services for the Waterproof Panel PC:
Brand Name: IND150PC
Model Number: INNODAPC
Place of Origin: China
Certification: CEE, FCC, IP65, RoHS
Minimum Order Quantity: 2
Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Panel Size: 15 Inch
Operating System: Windows 10/11
Mounting: VESA Mount
CPU: Intel J6412/Intel J6413/I3/I5/I7
IP Rating: IP/65/66/67
Support and Services:
Our Waterproof Panel PC product comes with comprehensive Product Technical Support and Services to assist our customers with any questions or issues they may encounter. Our dedicated technical support team is available to provide guidance on product installation, troubleshooting, and maintenance. Additionally, we offer services such as software updates, product customization, and on-site support to ensure that our customers have a seamless experience with our Waterproof Panel PC.
Packing and Shipping:
Product Packaging:
The Waterproof Panel PC will be carefully packaged in a sturdy cardboard box to ensure safe delivery. It will be surrounded by protective cushioning materials to prevent any damage during transit. The packaging will also include clear labeling for easy identification.
Shipping:
Once your order is confirmed, the Waterproof Panel PC will be shipped using a reliable courier service. You will receive a tracking number to monitor the delivery status of your package. We strive to deliver your product in a timely manner while ensuring it reaches you in perfect condition.
