Aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment, Full IP67 waterproof and dustproof.
10 points capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H.
EETI touch control solution, can touch when water dropl on the touch screen.
The PC is built with industrial-grade components, 7x24 continuous operation, wide operation temperature -20 to 70ºC.
Optical bonding between touch screen and LCD screen
The front frame and back shell are sealed with waterproof adhesive strips, which can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |

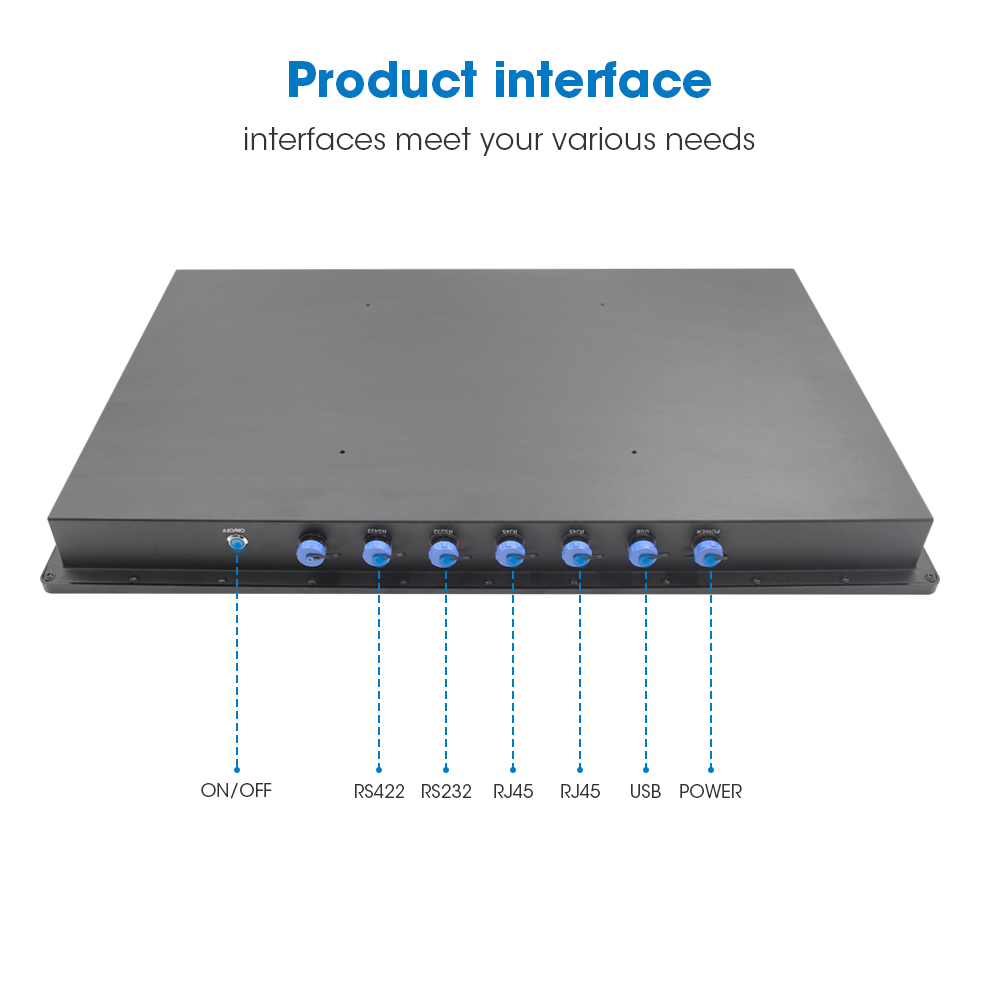

| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 23.8'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1920(H)*1080(V) |
| Aspect Ratio | 16：9 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 7KG |

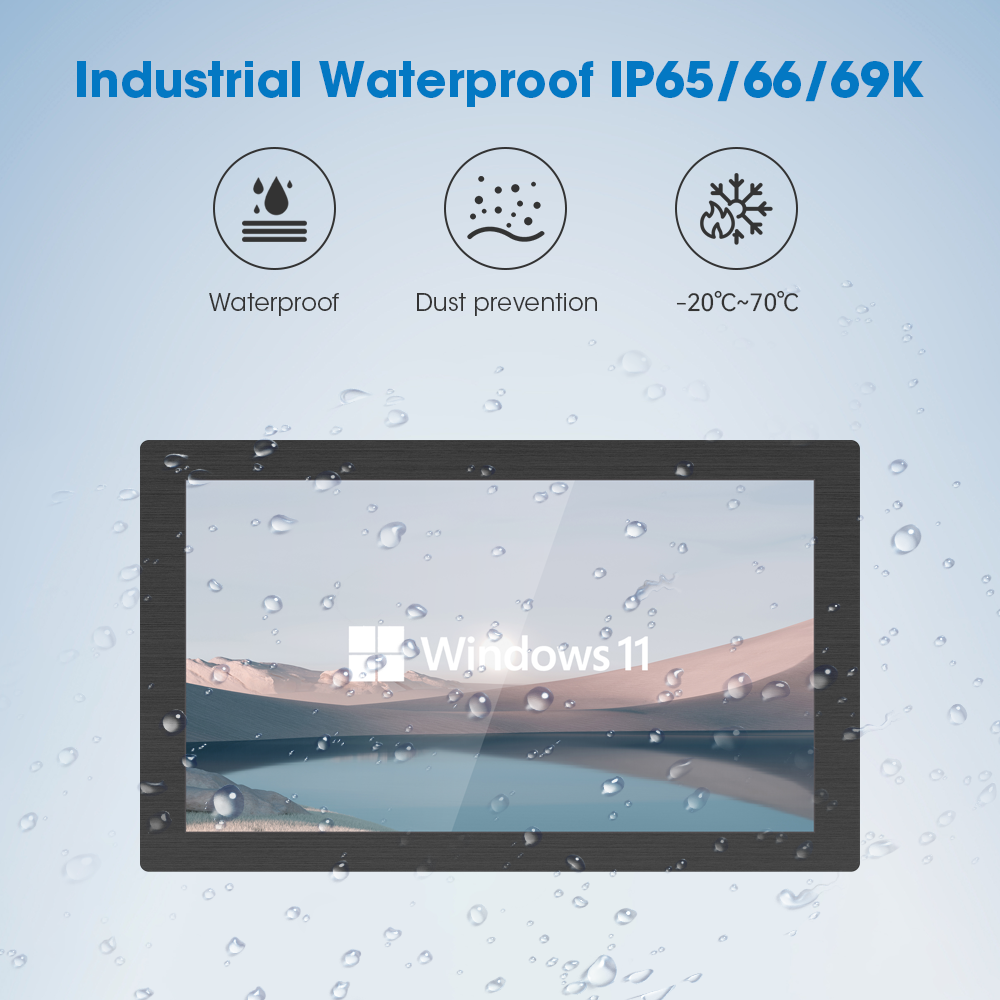

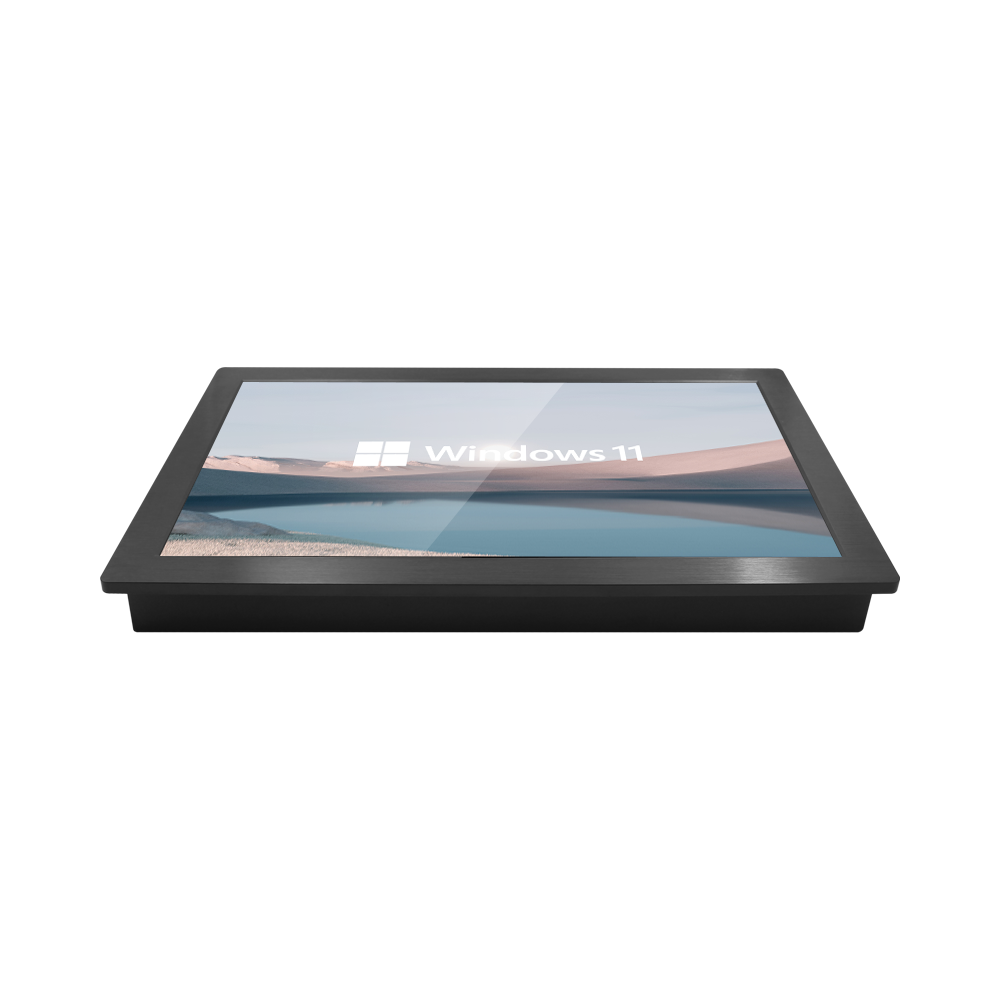

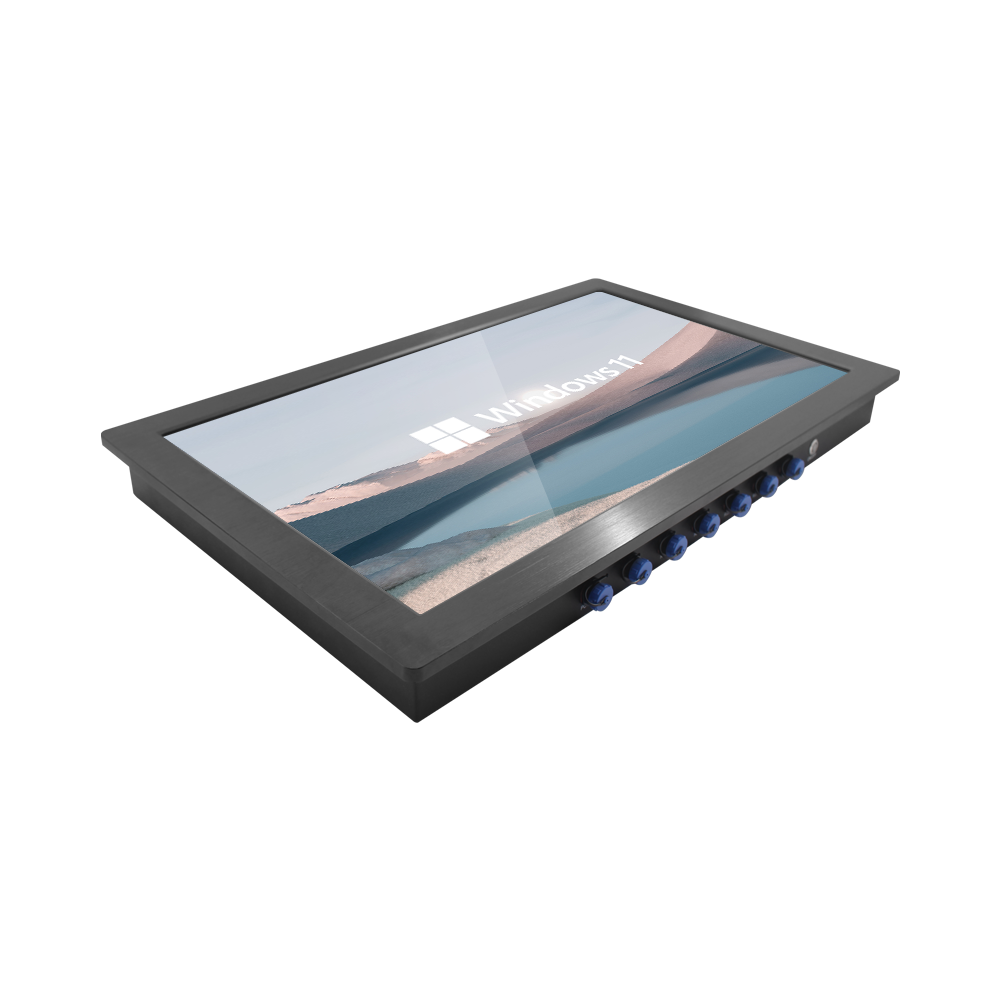

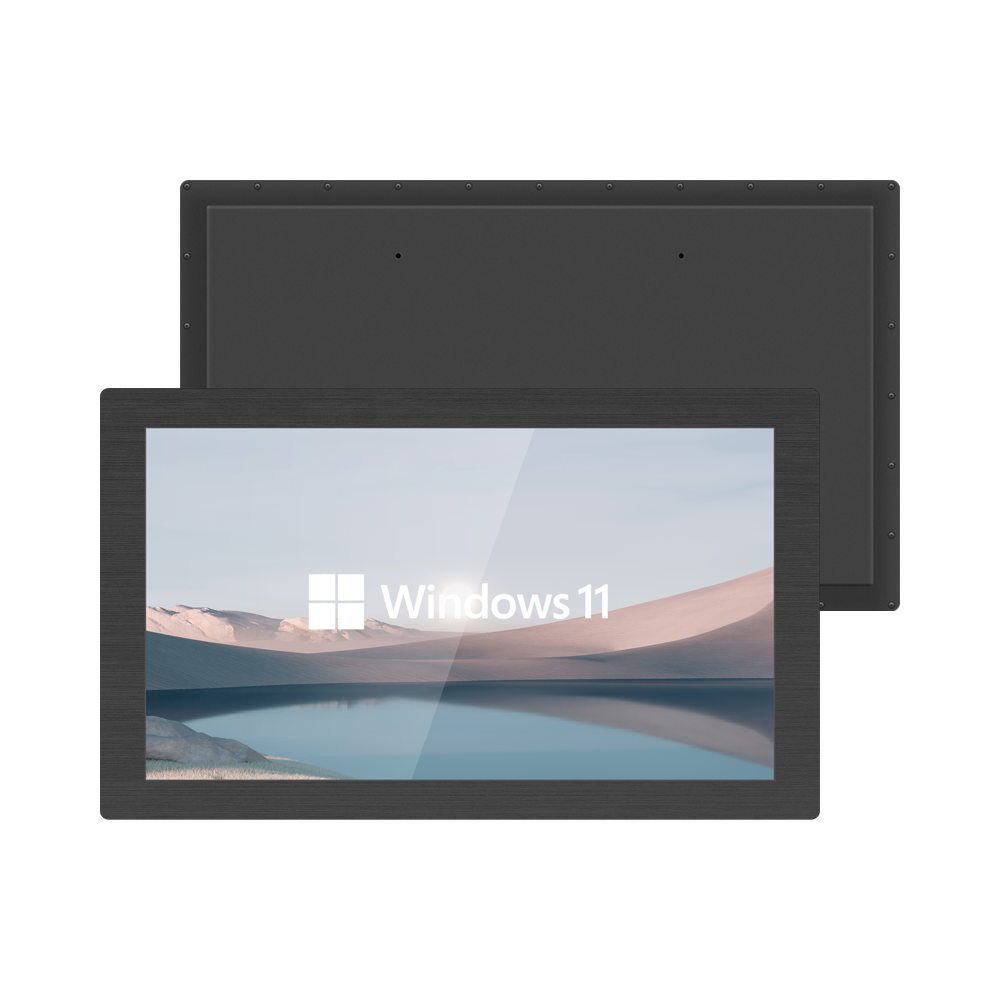

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
Introducing our Waterproof Industrial Panel PC, a versatile and robust solution designed to withstand various environmental conditions. This All-Weather Touch Panel Computer is equipped with powerful features to meet the demands of industrial applications.
Powering this rugged panel PC is a reliable 12V/9-36v DC power supply, ensuring consistent performance even in challenging settings. The choice of CPUs, including Intel J6412, Intel J6413, I3, I5, and I7 processors, provides flexibility and scalability to suit diverse operational requirements.
Running on the latest Windows operating systems, such as Windows 10 and Windows 11, this panel PC offers a familiar interface and seamless integration with existing software and systems. Whether you require compatibility with legacy applications or the latest software, this device delivers optimal performance.
For convenient installation and positioning, the Waterproof Industrial Panel PC features VESA mounting capability. This versatile mounting option allows you to securely attach the panel PC to various surfaces, ensuring stability and flexibility in deployment.
Enhancing user interaction and productivity, this All-Weather Touch Panel Computer is equipped with a touch screen interface. Choose between resistive or capacitance touch technology based on your specific needs and preferences. The touch screen functionality adds convenience and efficiency to your operations, enabling intuitive navigation and control.
With its durable construction and advanced features, the Waterproof Industrial Panel PC is ideal for a wide range of industrial applications. From manufacturing facilities to outdoor environments, this rugged panel PC delivers reliable performance in challenging conditions.
Experience the reliability and versatility of our All-Weather Touch Panel Computer today. Invest in a solution that combines durability, functionality, and performance to meet the demands of your industrial operations.
Features:
· Product Name: Waterproof Panel PC
· IP Rating: IP/65/66/67
· Panel Size: 23.8 Inch
· Resolution: 1920X 1080
· CPU: Intel J6412/Intel J6413/I3/I5/I7
· Working Temperature: -20℃ To +70℃
Technical Parameters:
Operating System | Windows 10/11 |
Touch Screen | Resistive/Capacitance Touch |
IP Rating | IP65/66/67 |
Panel Size | 23.8 Inch |
Memory | 4GB DDR3 |
Working Temperature | -20℃ to +70℃ |
Brightness | 350cd/m² |
CPU | Intel J6412/Intel J6413/I3/I5/I7 |
Resolution | 1280 x 1024 |
Storage | 128GB SSD (128G/512G Optional) |
Applications:
Manufactured in China, the Waterproof Embedded Panel PC boasts certifications such as CEE, FCC, IP65, and RoHS, ensuring quality and compliance with industry standards. Its minimum order quantity is 2 units, and each unit comes in secure packaging with a weight of 5kgs and dimensions of 45×35×12cm.
Delivery of the Waterproof Embedded Panel PC takes approximately 25 working days upon receipt of payment, with various payment terms accepted including T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram. The product's supply ability is 5000 pieces per month, making it readily available for businesses and organizations.
Featuring a 128GB SSD storage capacity and Windows 10/11 operating system, this Waterproof Embedded Panel PC offers reliable performance for various computing tasks. The display resolution of 1920X 1080ensures clear and crisp visuals, while the IP65/66/67 rating guarantees protection against water and dust ingress.
Equipped with resistive or capacitive touch screen options, the Waterproof Embedded Panel PC provides intuitive and user-friendly interaction for different usage scenarios. Whether used in industrial automation, outdoor kiosks, marine applications, or other challenging environments, this product delivers reliable performance and durability.
Customization:
Product Customization Services for the Waterproof Panel PC:
Brand Name: IND238PC
Model Number: INNODAPC
Place of Origin: China
Certification: CEE, FCC, IP65, RoHS
Minimum Order Quantity: 2
Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Operating System: Windows 10/11
IP Rating: IP/65/66/67
CPU: Intel J6412/Intel J6413/I3/I5/I7
Brightness: 350cd/m²
Touch Screen: Resistive/capacitance Touch
Customization options available for the All-Weather Touch Panel Computer, Waterproof Industrial Panel PC, and IP68 Waterproof Panel PC.
Support and Services:
Our Waterproof Panel PC product comes with comprehensive Product Technical Support and Services to ensure smooth operation and customer satisfaction. Our support services include troubleshooting assistance, software updates, and product maintenance. Our dedicated technical support team is available to address any questions or concerns you may have regarding the operation or functionality of the Waterproof Panel PC. Additionally, we offer on-site servicing and repair options for added convenience and peace of mind.
Packing and Shipping:
Product Packaging:
The Waterproof Panel PC will be carefully packaged in a sturdy cardboard box with ample protective padding to prevent any damage during transportation.
Shipping:
We offer fast and reliable shipping services for the Waterproof Panel PC. Once your order is confirmed, the product will be dispatched within 1-2 business days and delivered to your specified address within the estimated timeframe provided by the shipping carrier.
