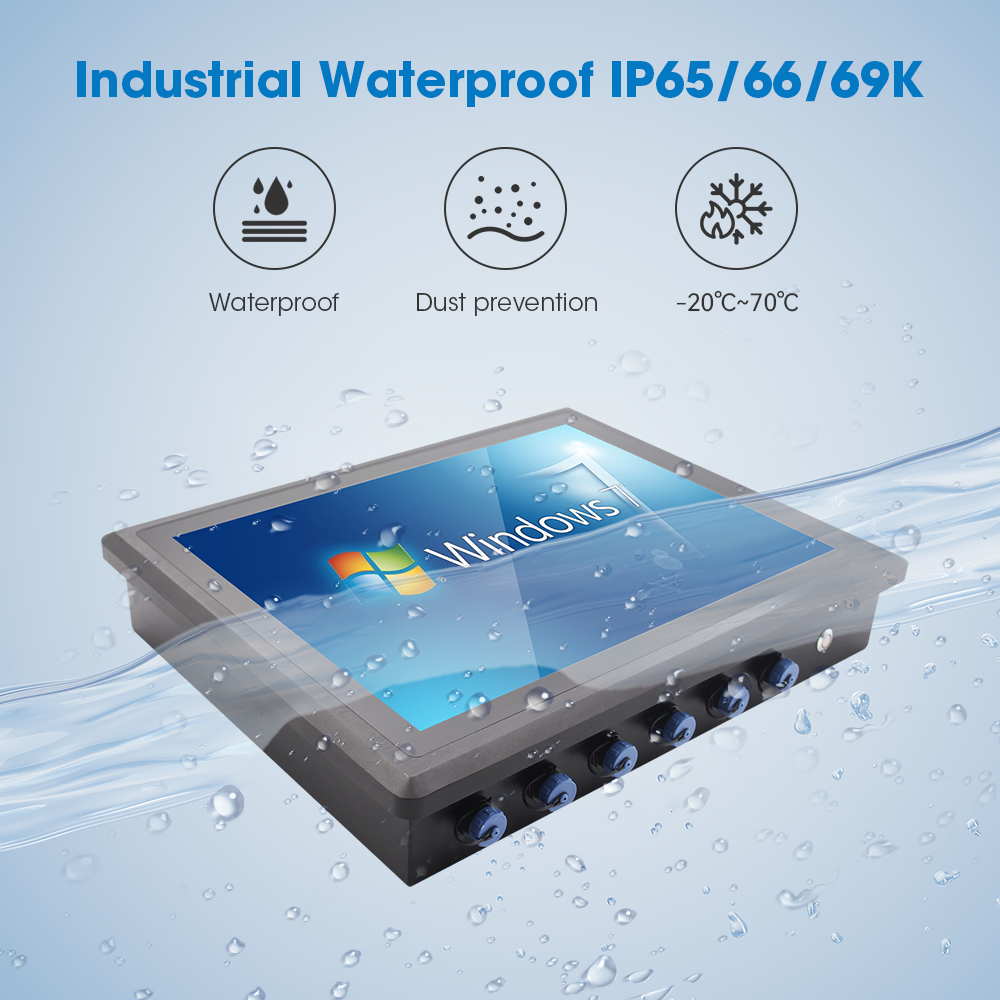

Aluminum alloy surface frame and heat sink plate are sandblasted and oxidized, anti-UV and anti-discoloration treatment, and the whole machine is IP68 waterproof
Industrial-grade LCD screen, full viewing angle, 1000 brightness, can be used in sunlight, PWM software can adjust the brightness

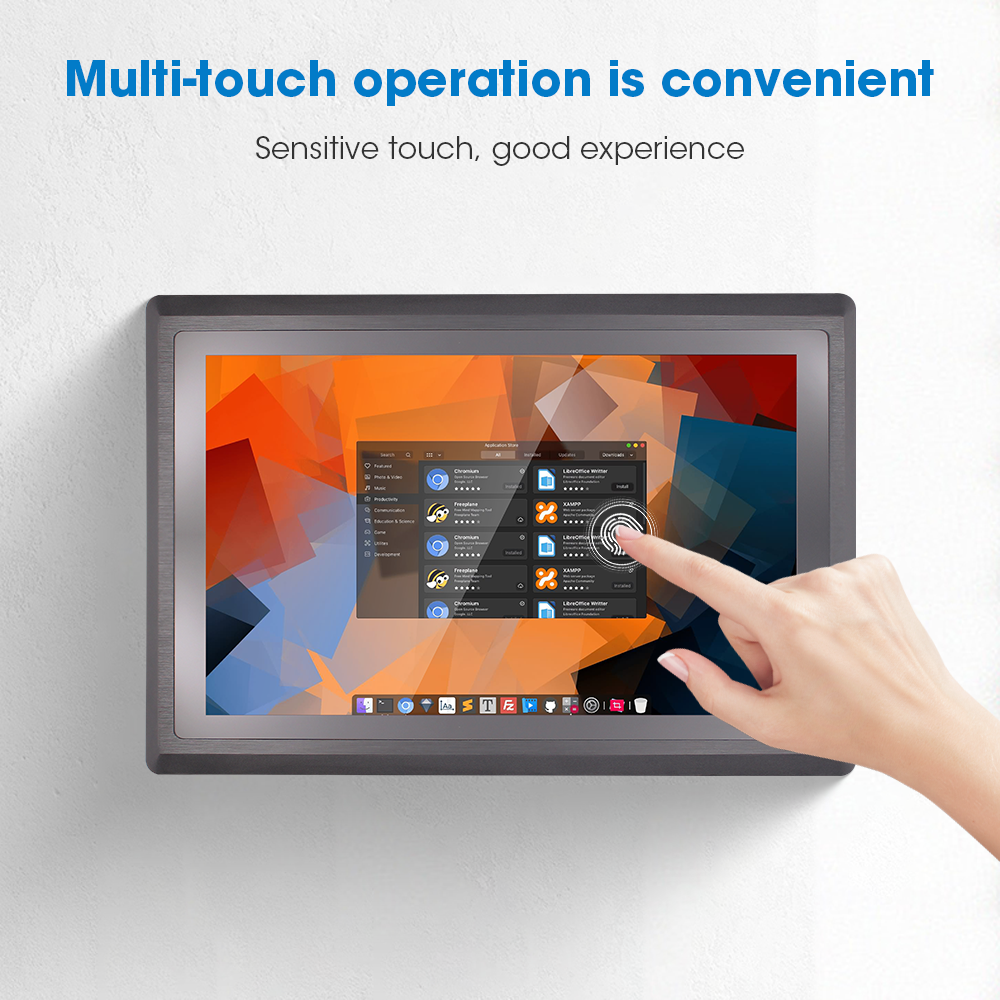

10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H, and the surface is treated with AG anti-glare treatment
EETI touch control solution, normal touch when there are water droplets on the touch screen
The touch screen and LCD screen are bonded using a full bonding process.
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |

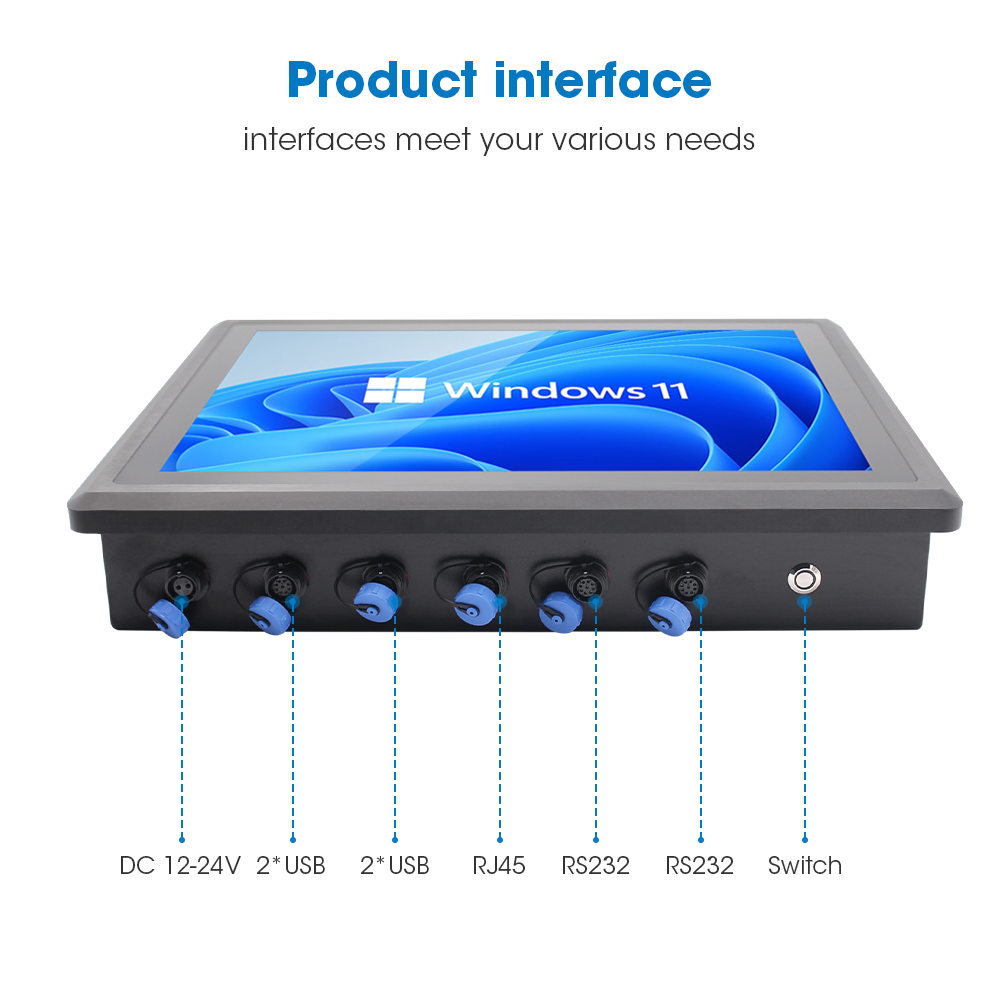

| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1024(H)*768(V) |
| Aspect Ratio | 4：3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |

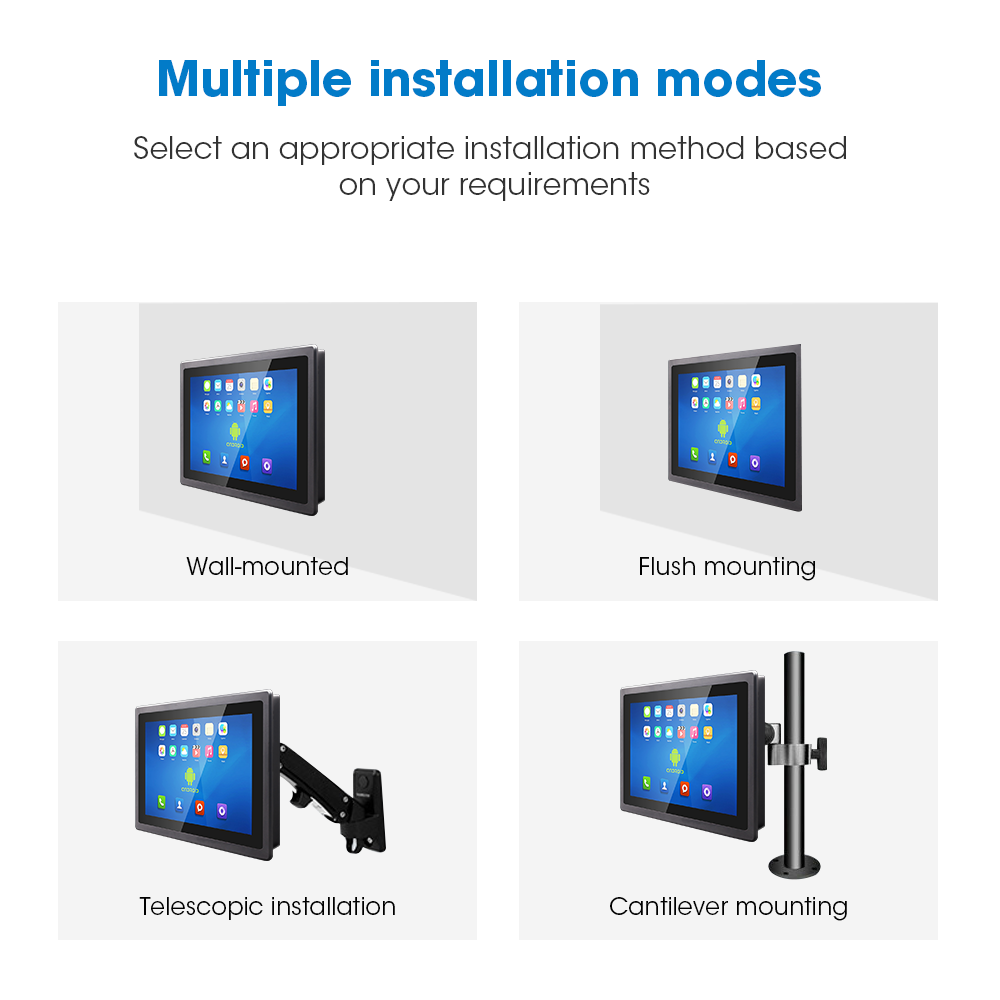

| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 4KG |

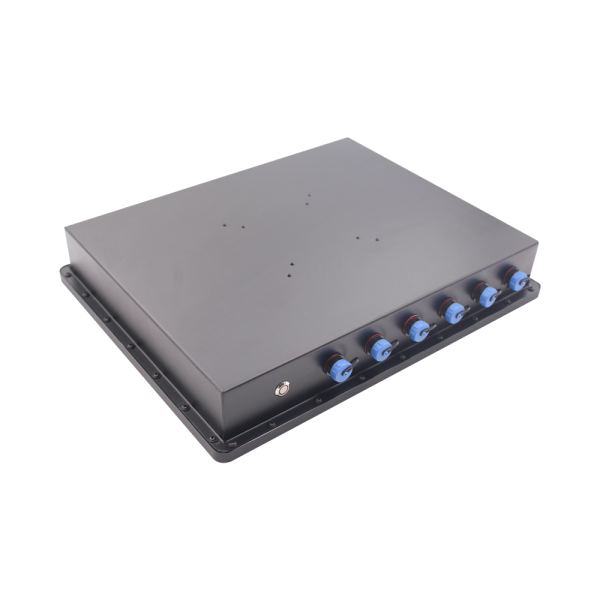

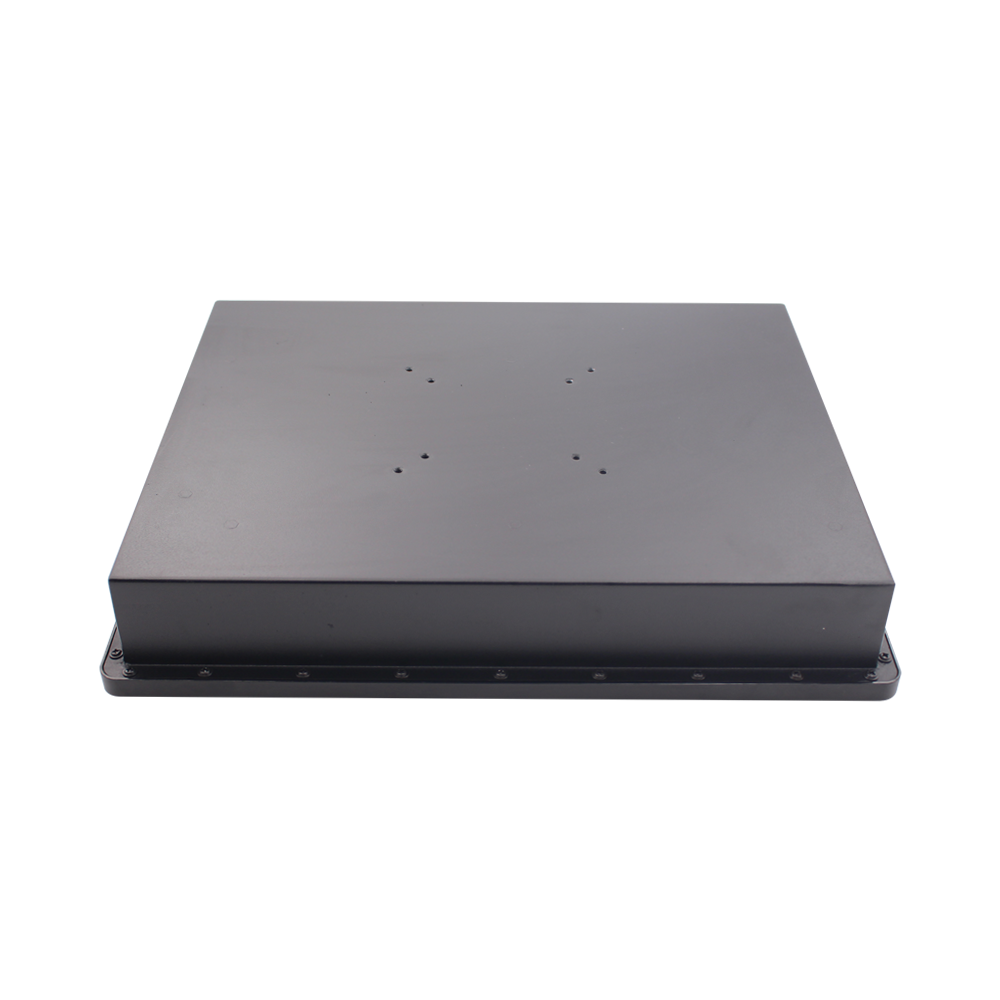

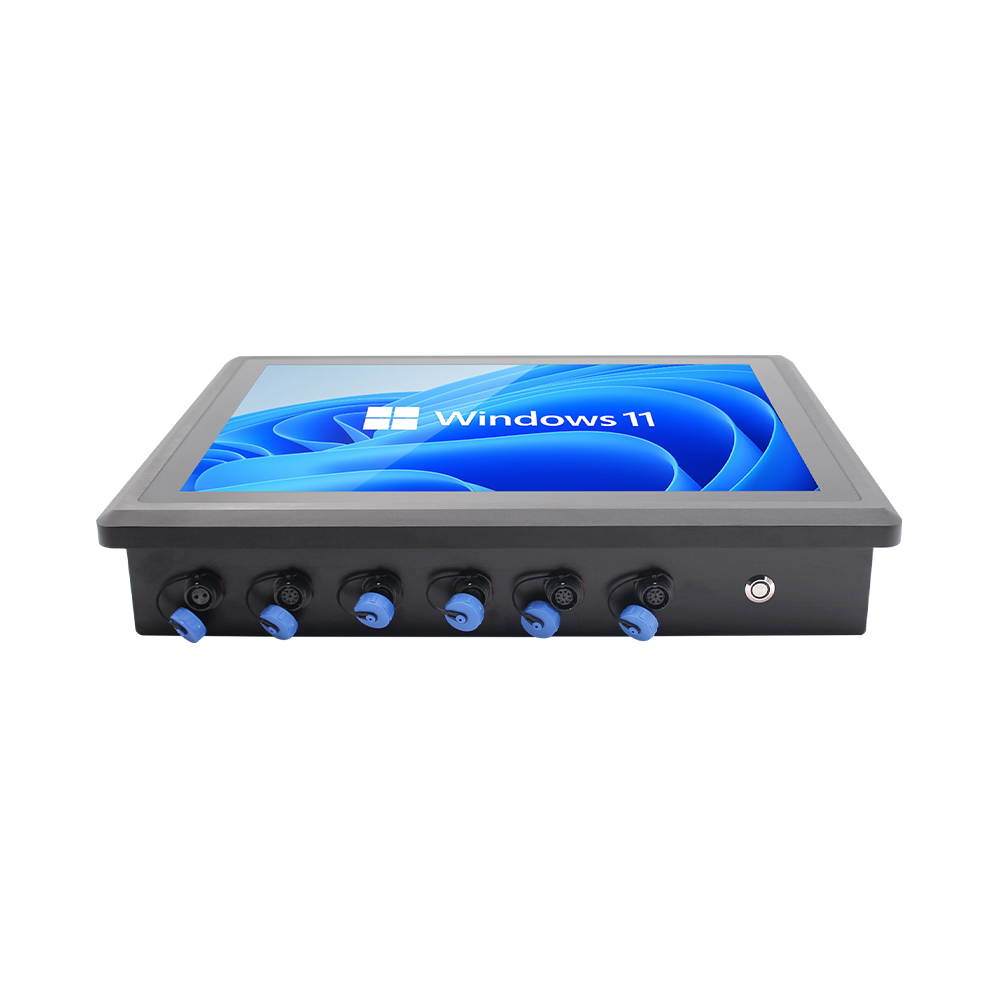

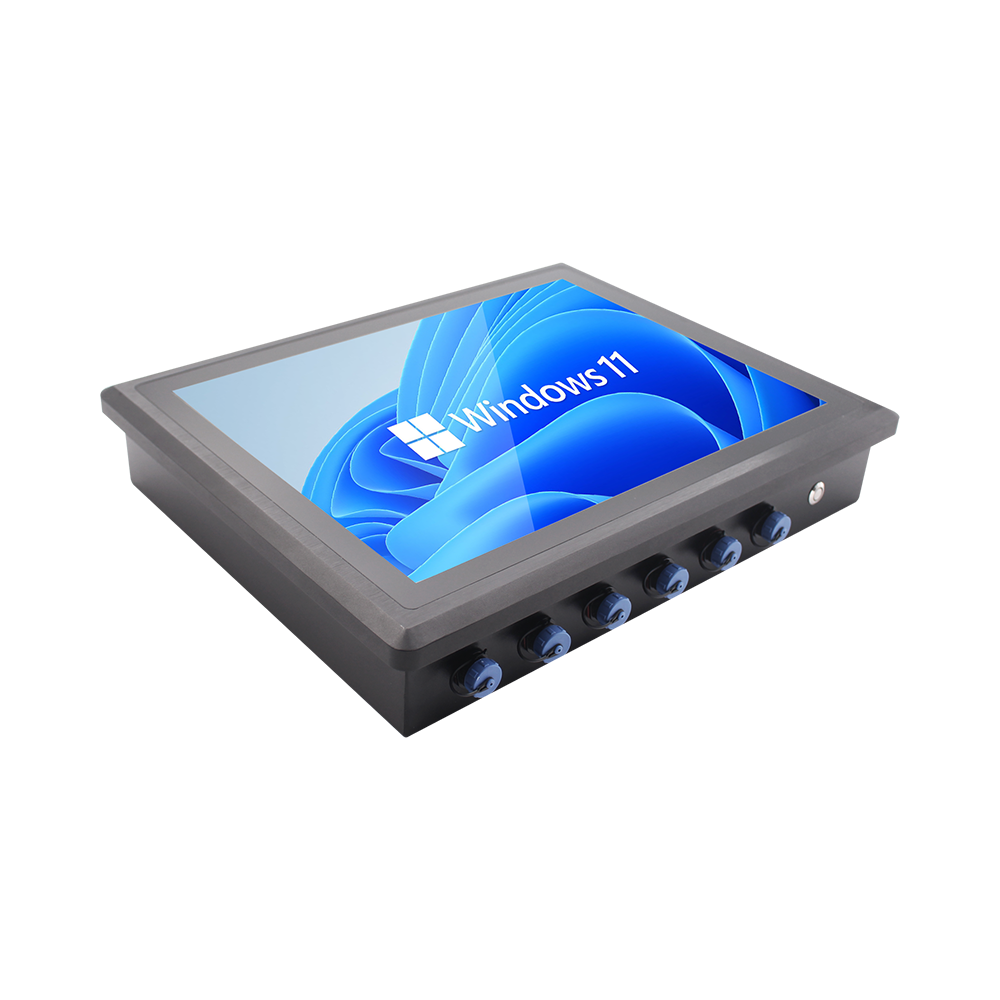

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Weatherproof Industrial Panel Computer is a state-of-the-art device that is designed to withstand harsh environmental conditions, making it the ideal solution for industrial settings. This Shockproof Waterproof Industrial PC is built to last, offering reliable performance even in challenging situations. With its Dustproof Waterproof PC Panel design, this product ensures durability and longevity.
Featuring a spacious 128GB SSD storage capacity, the Waterproof Panel PC provides ample space for storing your important data and files. Additionally, users have the option to choose between the 128GB or 512GB SSD configuration based on their specific needs and requirements.
Equipped with a reliable 12V/9-36v DC power supply, this industrial-grade computer ensures stable and consistent power delivery, allowing for uninterrupted operation in demanding industrial environments. Whether it's a fluctuating power source or voltage variations, this Waterproof Panel PC can handle it all with ease.
The high-definition display of the Waterproof Panel PC boasts a crystal-clear resolution of 1280X1024, delivering sharp and vibrant visuals for an enhanced user experience. Whether you are viewing detailed schematics or analyzing critical data, the clarity of the display ensures optimal visibility and precision.
Running on the versatile Windows 10/11 operating system, the Waterproof Panel PC offers a familiar interface and robust functionality for seamless operation. Users can leverage the advanced features and compatibility of Windows OS to streamline their tasks and maximize productivity in industrial environments.
With a responsive touch screen interface, the Waterproof Panel PC supports both resistive and capacitance touch technologies, providing users with flexible interaction options based on their preferences. Whether you prefer the accuracy of resistive touch or the multi-touch capabilities of capacitance touch, this industrial-grade computer caters to your specific needs.
Features:
· Product Name: Waterproof Panel PC
· Brightness: 350cd/m²
· Operating System: Windows 10/11
· Memory: 4GB DDR3
· Panel Size: 15 Inch
· Shockproof Waterproof Industrial PC
· Dustproof Waterproof PC Panel
· Weatherproof Industrial Panel Computer
Technical Parameters:
Memory | 4GB DDR3 |
Product Name | Waterproof Panel PC |
Mounting | VESA Mount |
Touch Screen | Resistive/capacitance Touch |
Storage | 128GB SSD(128G/512G Optional) |
Brightness | 350cd/m² |
Operating System | Windows 10/11 |
CPU | Intel J6412/Intel J6413/I3/I5/I7 |
Working Temperature | -20℃ To +70℃ |
IP Rating | IP65/66/67 |
Applications:
IND150PC Waterproof Panel PC is a rugged and reliable device designed for use in demanding environments. With its IP68 waterproof rating, this Weatherproof Industrial Panel Computer is suitable for a wide range of applications across various industries.
Manufactured in China, the INNODAPC is certified with CEE, FCC, IP65, and RoHS compliance, ensuring high quality and safety standards. Its 15-inch panel size and VESA mounting capability make it versatile for different installation scenarios.
Whether you need a durable solution for outdoor use, industrial settings, or harsh working conditions, the IND150PC Waterproof Panel PC is the ideal choice. Its storage options include a 128GB SSD, with the flexibility to choose between 128GB or 512GB capacity.
Equipped with Intel processor options such as J6412, J6413, i3, i5, and i7, this Panel PC delivers powerful performance for multitasking and demanding applications. The device is suitable for minimum orders of 2 units, with packaging details of 1pc per carton weighing 5kgs, and a compact packing size of 45×35×12cm.
Orders are processed efficiently, with a delivery time of 25 working days upon payment receipt. Payment terms include T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram, providing flexibility for customers worldwide. With a supply ability of 5000 pieces per month, the IND150PC Waterproof Panel PC ensures consistent availability for your business needs.
Customization:
Product Customization Services for the Rugged Watertight Panel PC:
- Brand Name: IND150PC
- Model Number: INNODAPC
- Place of Origin: China
- Certification: CEE, FCC, IP65, RoHS
- Minimum Order Quantity: 2
- Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
- Delivery Time: 25 working days upon receive the payment
- Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
- Supply Ability: 5000 pieces per month
- Panel Size: 15 Inch
- Power Supply: 12V/9-36v DC
- Storage: 128GB SSD(128G/512G Optional )
- Memory: 4GB DDR3
- Brightness: 350cd/m²
- Additional Keywords: IP68 Waterproof Panel PC, Shockproof Waterproof Industrial PC
Support and Services:
Our Product Technical Support and Services for the Waterproof Panel PC include:
- Installation guidance and troubleshooting
- Software setup and configuration assistance
- Hardware maintenance and repair services
- Firmware updates and compatibility checks
- Technical consultations for custom integration
- Remote diagnostics and support
Packing and Shipping:
Product Packaging:
The Waterproof Panel PC will be carefully packaged in a sturdy cardboard box with ample protective padding to ensure safe transportation.
Shipping Information:
Once your order is confirmed, the Waterproof Panel PC will be shipped within 1-2 business days via a reliable courier service. You will receive a tracking number to monitor the status of your delivery.
