Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , front IP65 waterproof and dustproof.
Industrial LCD panel, full view angle, 1000nits sunlight readable, with light sensor for auto dimming.
10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment.
EETI waterproof solution, the touch function can work well with ｄｒｏｐ water on the screen.
The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation
-20 °C ~ 70°C (-4°F ~158°F).
Optical bonding, Prevent condensation and fogging inside the screen and increase transmittance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1024(H)*768(V) |
| Aspect Ratio | 4：3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 5KG |

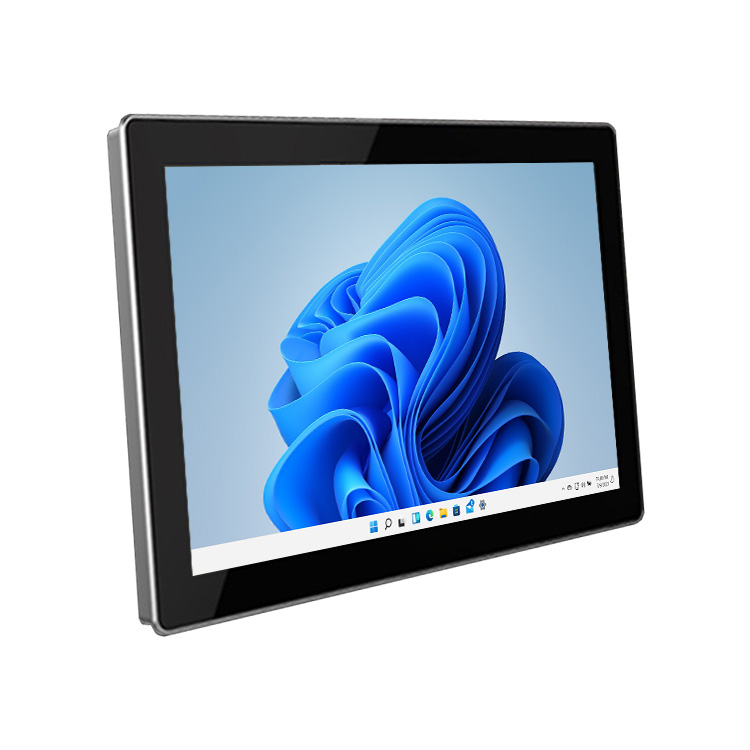

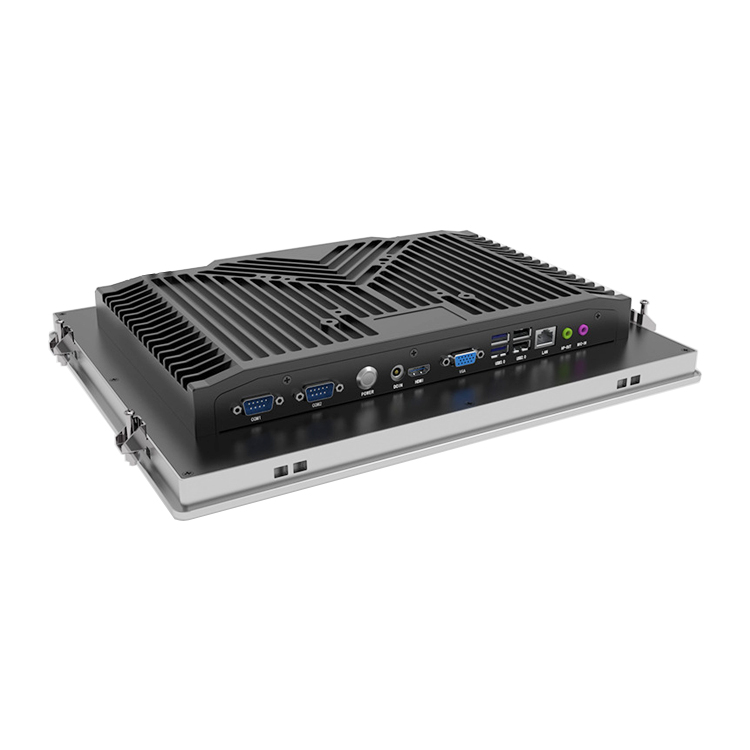

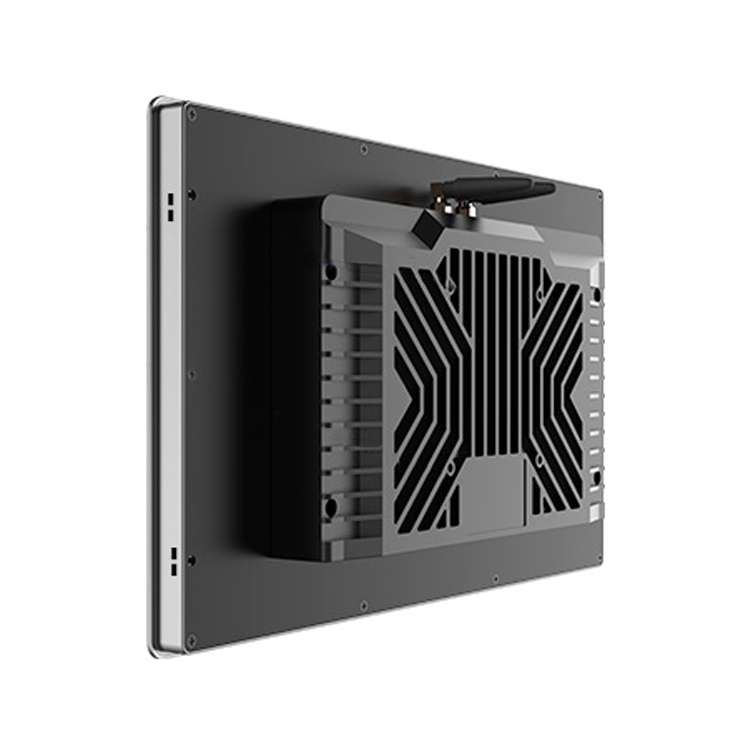

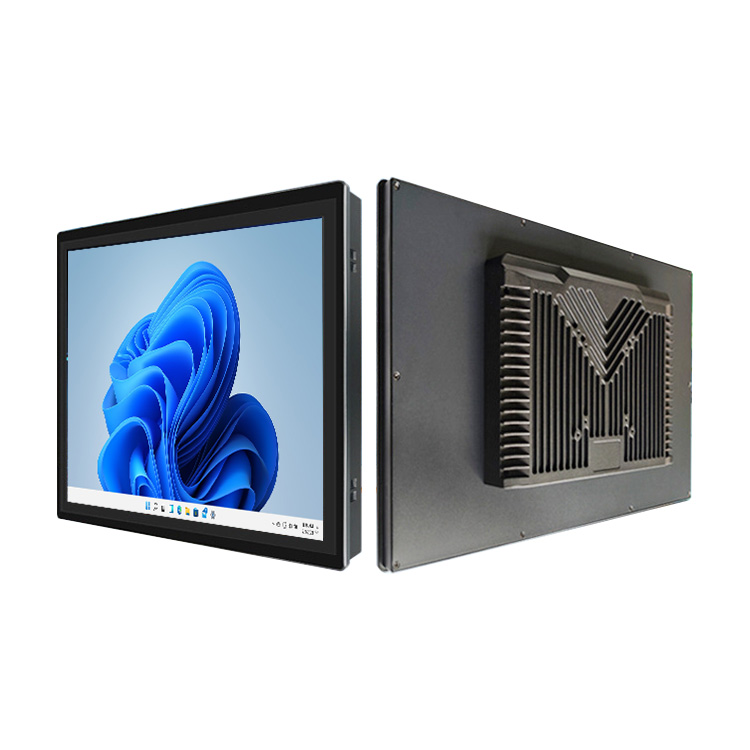

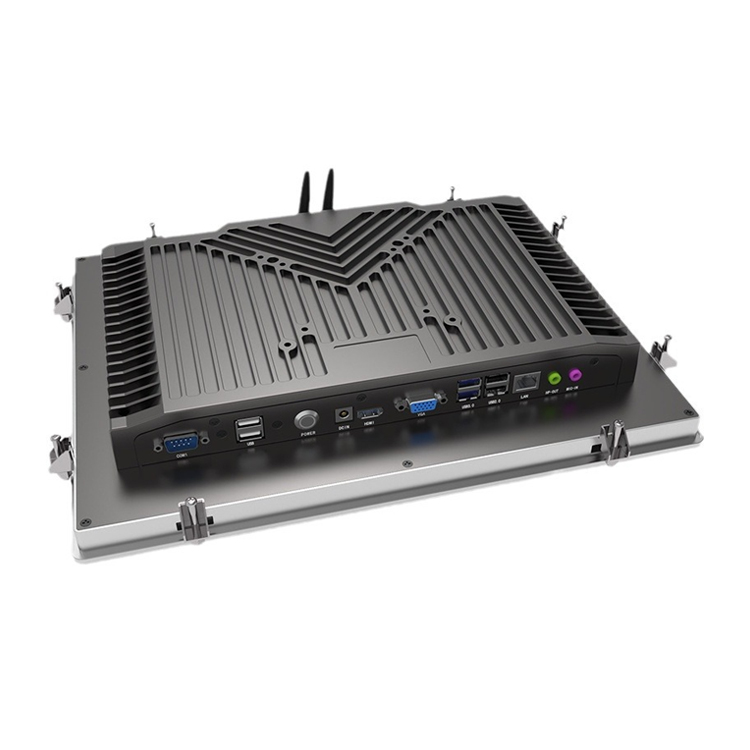

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The 15 Inch Embedded Touch Panel PC is a top-of-the-line product designed for industrial applications that require high performance and reliability. With a sleek design and powerful features, this Embedded Panel PC is perfect for a wide range of industrial settings.
Featuring a range of CPU options including J1900, J6412, J6413, i3, i5, and i7, this Embedded Touch Panel PC is capable of handling even the most demanding tasks with ease. Whether you need a robust system for data processing or a responsive interface for control applications, this panel PC has you covered.
The 15-inch screen size of this industrial panel pc with touch screen provides ample viewing area for monitoring processes, analyzing data, or interacting with applications. The touch screen functionality adds a layer of convenience and efficiency, allowing users to easily navigate menus, input data, and interact with software without the need for additional peripherals.
Backed by a 1-year warranty, you can trust that this Embedded Panel PC is built to last and will provide consistent performance in challenging industrial environments. Whether you are deploying it in a factory, warehouse, laboratory, or other industrial setting, you can rely on this panel PC to meet your needs day in and day out.
Experience the power and versatility of the 15 Inch Embedded Touch Panel PC for yourself. Ideal for use in industrial automation, process control, monitoring systems, and more, this panel PC is the perfect solution for businesses looking to enhance their operations with cutting-edge technology.
Features:
· Product Name: Embedded Touch Panel PC
· Operating System: Window10/11/Linux
· Key Words: Industrial Embedded Touch Panel PC, industrial touch panel pc, industrial panel pc with touch screen, fanless industrial panel pc
· Input Voltage: 12-36V
· Screen Size: 15 Inch
· CPU: J1900/ J6412/ J6413/ I3/ I5/ I7
Technical Parameters:
Operating System | Window10/11/Linux |
Input Voltage | 12-36V |
Key Words | Industrial Embedded Touch Panel PC |
Warranty | 1 Year |
CPU | J1900/J6412/J6413/I3/I5/I7 |
Interface | USB/RJ45/COM/VGA/HDMI/DC12V |
Memory | Memory |
Screen Size | 15 Inch |
Product Name | 15 Inch Embedded Touch Panel PC |
Storage | 32G/64G/128G/256G SSD |
Applications:
INNODAPC Embedded Touch Panel PC, model IND150PC, is a versatile and reliable solution designed for various industrial applications. With its origins in China, this product boasts certifications in RoHS, CCC, SRRC, FCC, and IP65, ensuring compliance with quality and safety standards.
The IND150PC is suitable for a wide range of product application occasions and scenarios due to its robust features and specifications. As an industrial panel PC, it is ideal for use in factory automation, industrial control systems, smart manufacturing, and other industrial environments requiring a rugged and durable computing solution.
Thanks to its fanless design, the IND150PC is well-suited for dusty or harsh operating conditions where traditional cooling systems may not be practical. This feature enhances the product's reliability and longevity, making it a dependable choice for demanding industrial settings.
With a 15-inch screen size and support for Windows 10/11 and Linux operating systems, this Embedded Touch Panel PC offers a user-friendly interface for various applications. The availability of interfaces such as USB, RJ45, COM, VGA, HDMI, and DC12V further enhances its versatility, allowing seamless integration with different devices and peripherals.
Customers can benefit from the convenience of a minimum order quantity of 1 piece and a one-year warranty, ensuring peace of mind and quality assurance. The IND150PC is packaged securely for shipping, with each unit weighing 5kgs and measuring 45×35×12cm.
For those interested in procuring this product, INNODAPC offers flexible payment terms including T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram. With a supply ability of 5000 pieces per month, customers can rely on timely deliveries, with a standard lead time of 25 working days upon receipt of payment.
Customization:
Product Customization Services for the Embedded Touch Panel PC
Brand Name: INNODAPC
Model Number: IND150PC
Place of Origin: China
Certification: RoHS, CCC, SRRC, FCC, IP65
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Storage: 32G/64G/128G/256G SSD
Key Words: Industrial Embedded Touch Panel PC, industrial touch panel pc, fanless industrial touch panel pc
Screen Size: 15 Inch
Product Name: 15 Inch Embedded Touch Panel PC
Memory: Memory
Support and Services:
Our Embedded Touch Panel PC product comes with comprehensive technical support and services to ensure smooth operation and user satisfaction. Our team of experts is available to assist with any product-related inquiries, troubleshooting, and technical issues that may arise.
We offer a range of services including installation support, software updates, and maintenance to enhance the performance and longevity of the product. Our goal is to provide a seamless user experience and address any concerns promptly to minimize downtime.
Packing and Shipping:
Product Packaging:
The Embedded Touch Panel PC is carefully packaged in a sturdy cardboard box to ensure its safe delivery. The product is wrapped in protective bubble wrap to prevent any damage during transportation.
Shipping:
Once your order is confirmed, the Embedded Touch Panel PC will be shipped within 1-2 business days. We use reliable shipping services to deliver the product to your doorstep in a timely manner. You will receive a tracking number to monitor the status of your shipment.
