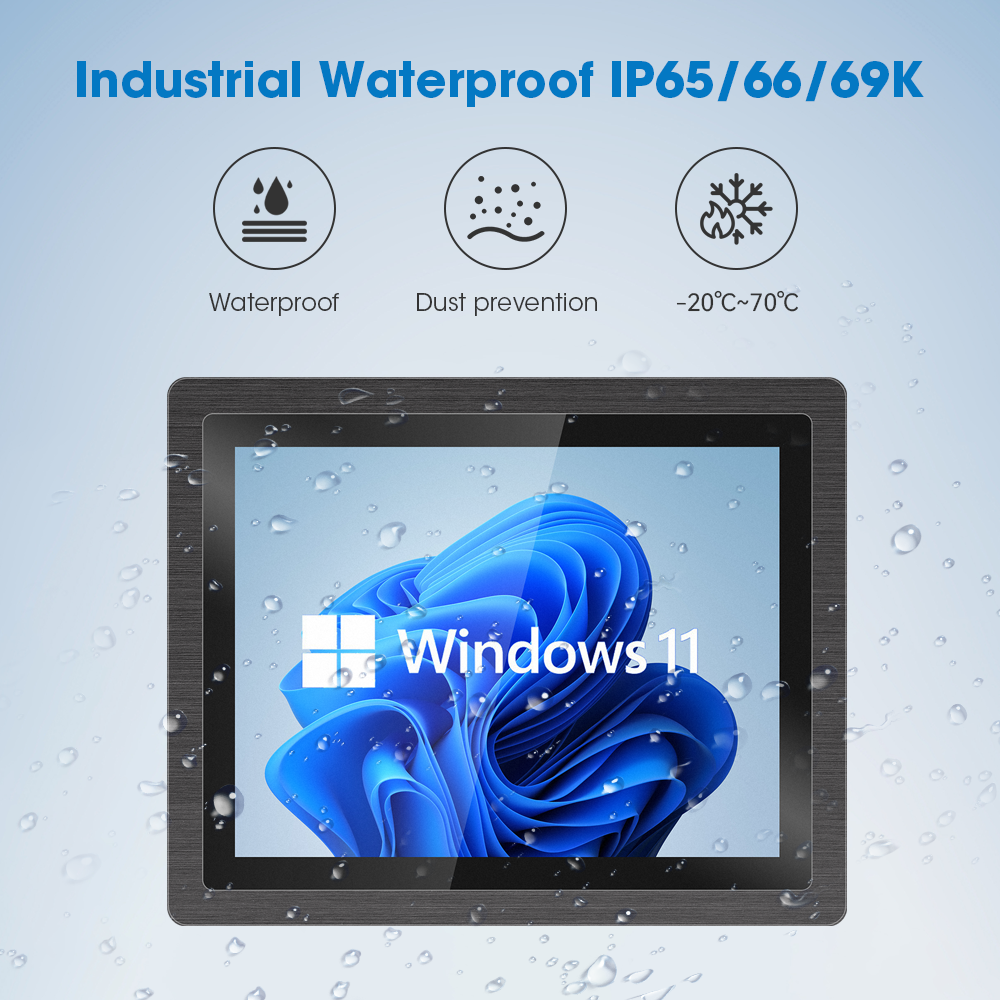

Aluminum alloy surface frame and heat sink plate are sandblasted and oxidized, anti-UV and anti-discoloration treatment, and the whole machine is IP68 waterproof
Industrial-grade LCD screen, full viewing angle, 1000 brightness, can be used in sunlight, PWM software can adjust the brightness

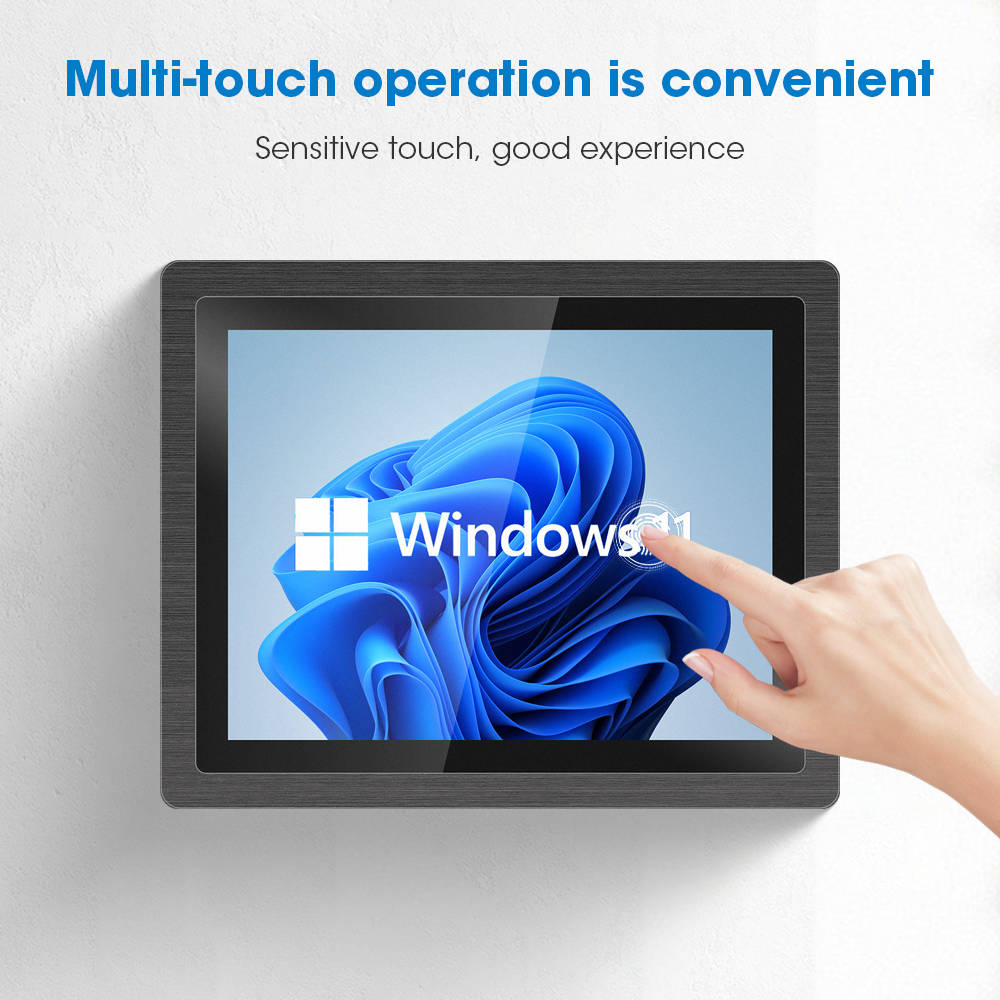

10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H, and the surface is treated with AG anti-glare treatment
EETI touch control solution, normal touch when there are water droplets on the touch screen
The touch screen and LCD screen are bonded using a full bonding process.
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1024(H)*768(V) |
| Aspect Ratio | 4：3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |

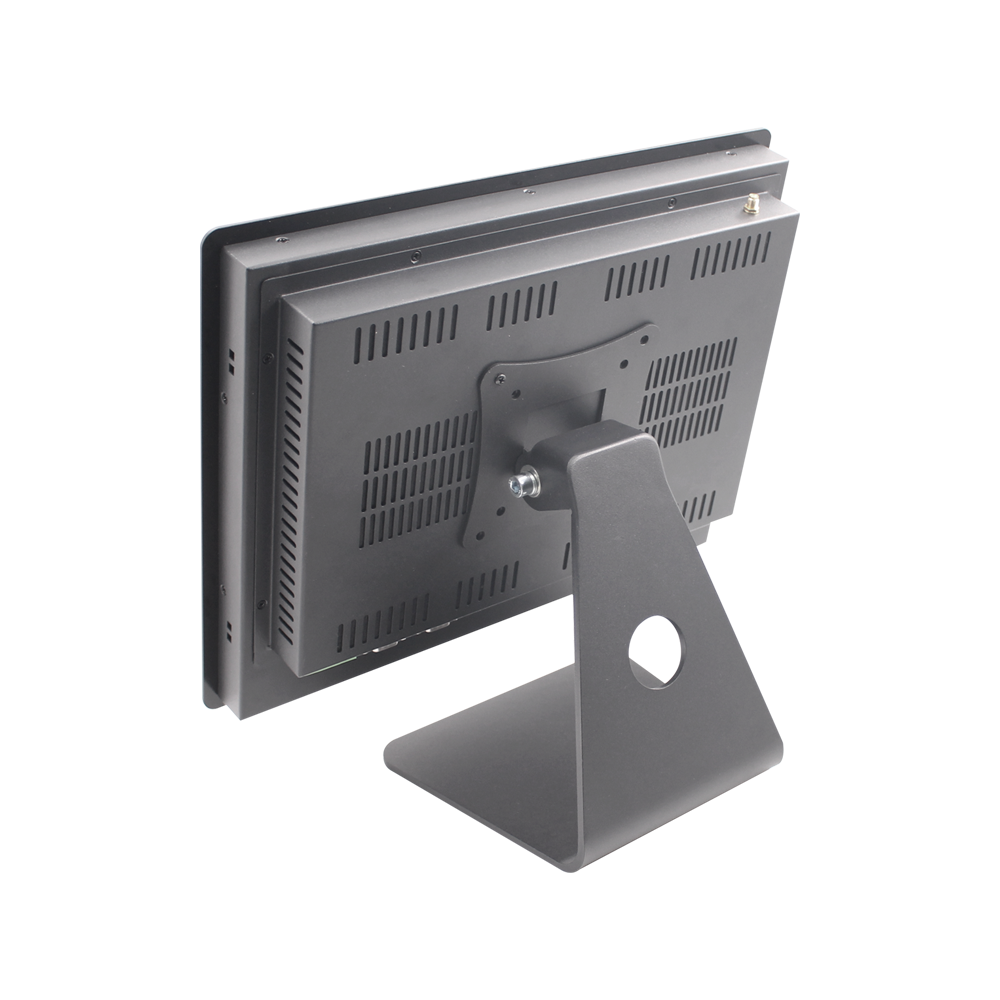

| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 4KG |

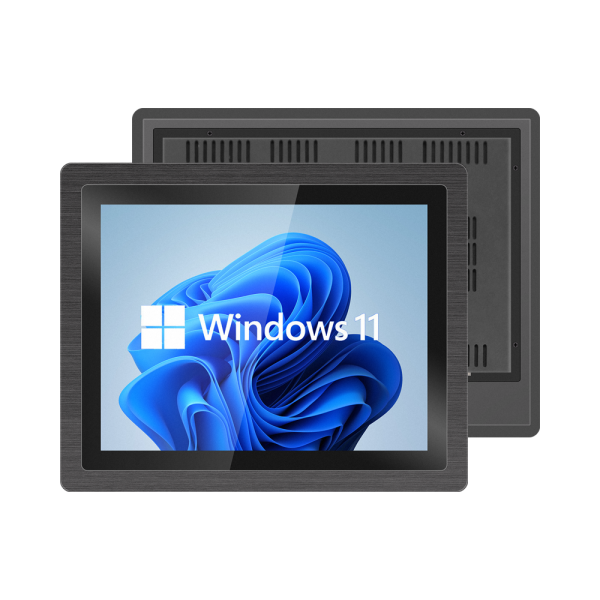

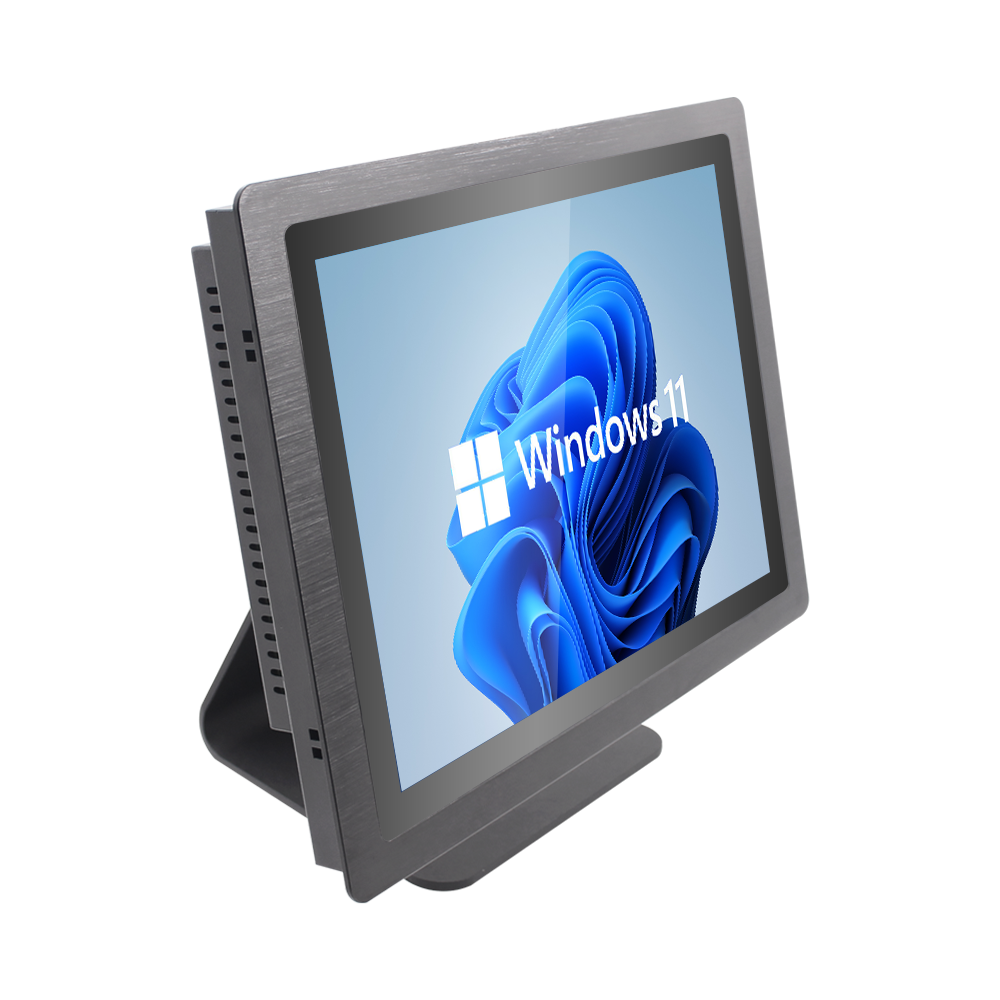

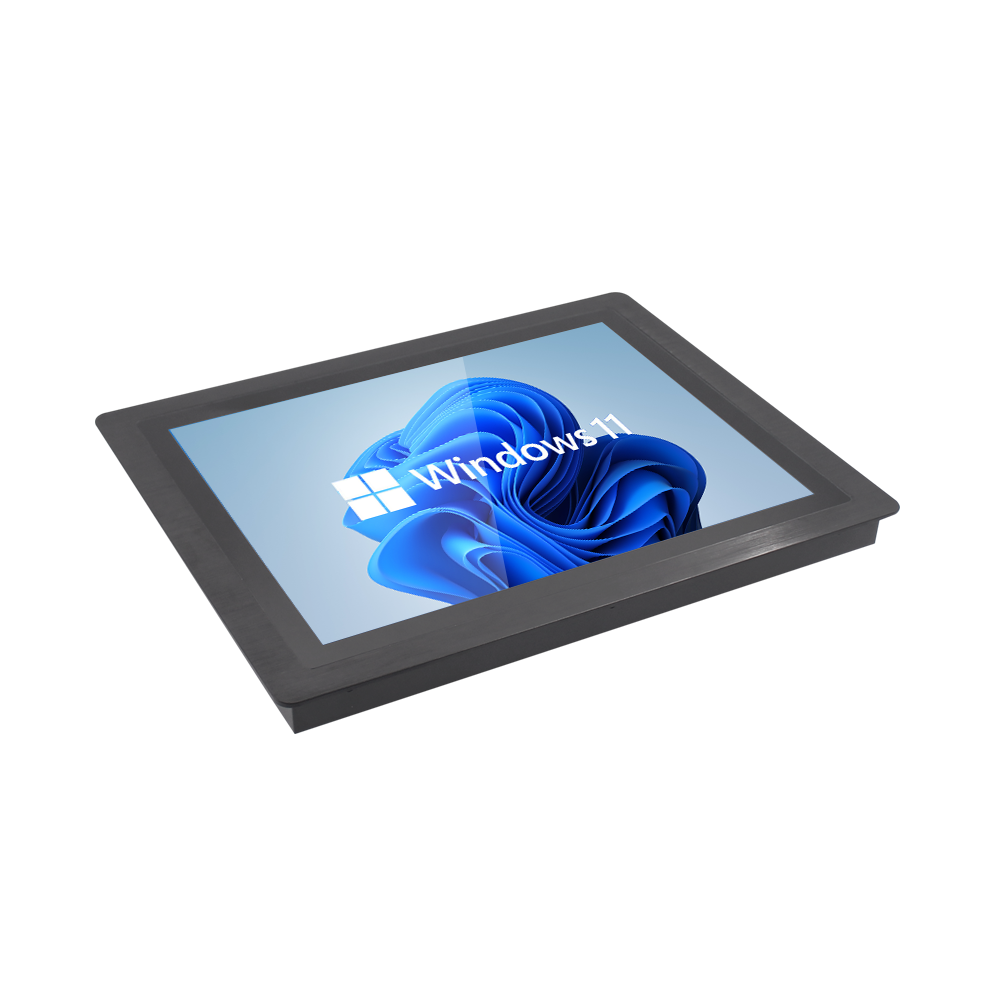

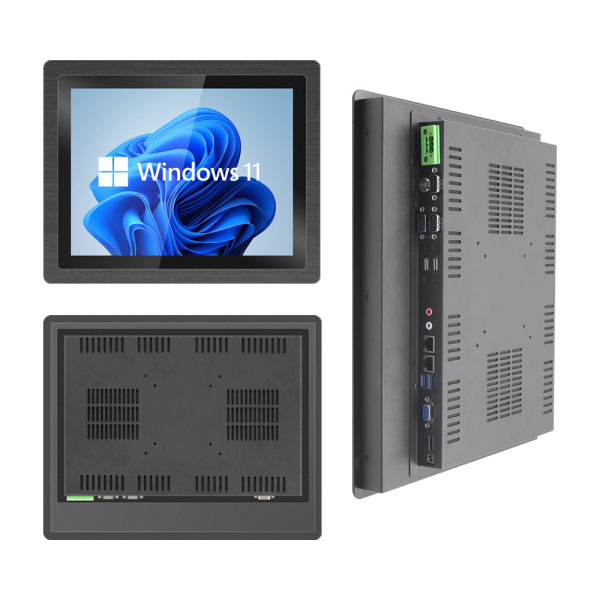

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The 15 Inch Embedded Touch Panel PC is a cutting-edge solution for industrial applications, offering a powerful and reliable computing platform in a compact form factor. With a range of CPU options including J1900, J6412, J6413, I3, I5, and I7, this Embedded Panel PC is designed to meet the demanding requirements of industrial environments.

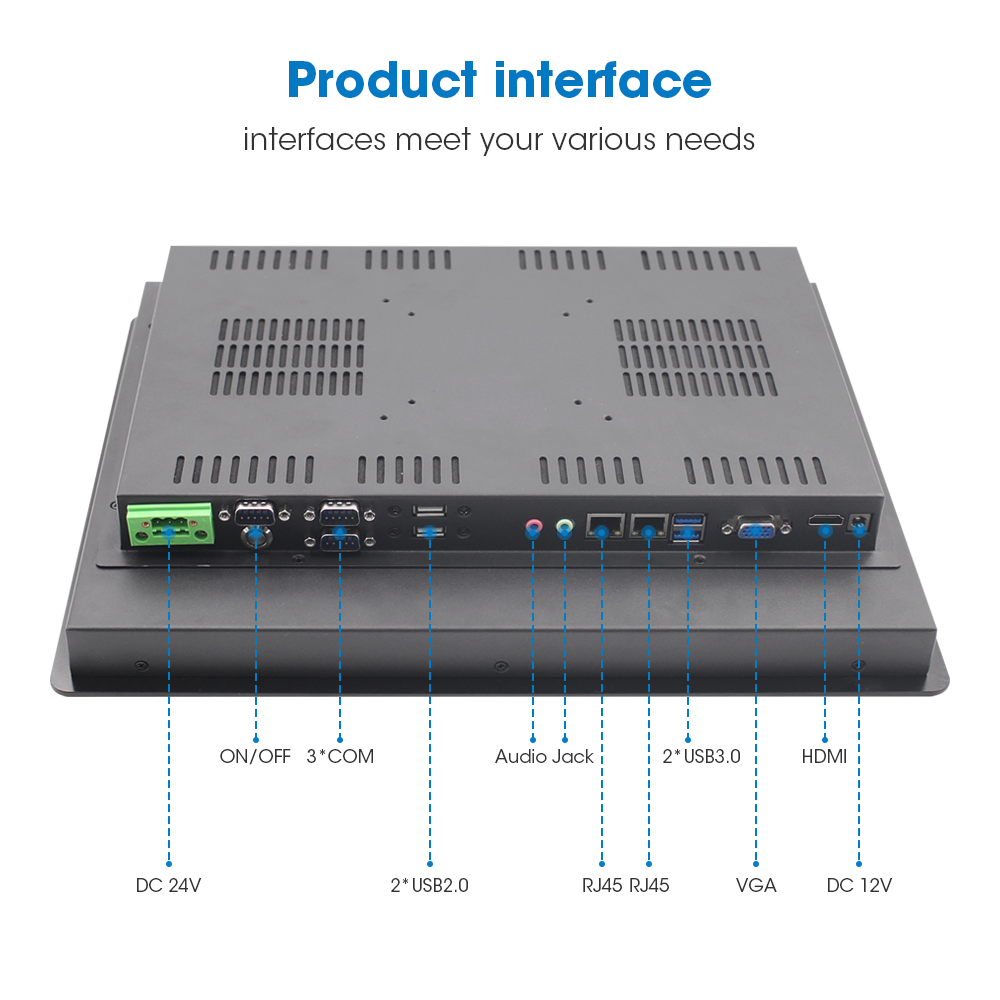

Equipped with a variety of interfaces such as USB, RJ45, COM, VGA, HDMI, and DC12V, this Embedded Touch Panel PC provides seamless connectivity to a wide range of devices and peripherals, making it ideal for integration into existing systems. Whether you need to connect external storage devices, networking equipment, or display monitors, this panel pc has you covered.
Memory is a crucial aspect of any computing device, and the Embedded Touch Panel PC does not disappoint. With ample memory capacity, you can run multiple applications simultaneously without any performance bottlenecks, ensuring smooth and efficient operation in your industrial environment.
Industrial Embedded Touch Panel PC is the perfect choice for applications that require a rugged and reliable computing solution. With its durable construction and robust design, this panel pc can withstand harsh industrial environments, ensuring uninterrupted operation even in challenging conditions.
Whether you are monitoring manufacturing processes, controlling machinery, or managing data in a warehouse setting, the Embedded Panel PC provides the performance and reliability you need to get the job done. Its versatile interface options and powerful CPU choices make it a versatile solution for a wide range of industrial applications.
Features:
· Product Name: Embedded Touch Panel PC
· Operating System: Window10/11/Linux
· Memory: Memory
· Interface: USB/RJ45/COM/VGA/HDMI/DC12V
· Product Name: 15 Inch Embedded Touch Panel PC
· Key Words: Industrial Embedded Touch Panel PC
Technical Parameters:
Operating System | Window10/11/Linux |
Memory | Memory |
CPU | J1900/ J6412/ J6413/ I3/ I5/ I7 |
Warranty | 1 Year |
Screen Size | 15 Inch |
Interface | USB/RJ45/COM/VGA/HDMI/DC12V |
Storage | 32G/64G/128G/256G SSD |
Input Voltage | 12-36V |
Product Name | 15 Inch Embedded Touch Panel PC |
Key Words | Industrial Embedded Touch Panel PC |
Applications:
INNODAPC's IND150PC Embedded Touch Panel PC is a cutting-edge technology product suitable for a wide range of applications across various industries. With its industrial-grade design and robust features, this Embedded Panel PC is ideal for demanding environments where reliability and performance are crucial.
Product Application Occasions and Scenarios:
- Industrial Automation: The IND150PC can be used in industrial automation settings for monitoring and controlling manufacturing processes. Its rugged construction and reliable performance make it a perfect fit for factories and production lines.
- Retail Point of Sale (POS): The Embedded Panel PC is well-suited for retail POS systems, providing a user-friendly interface for transactions and inventory management. Its compact size and touch-screen functionality enhance the overall shopping experience.
- Digital Signage: Businesses can leverage the IND150PC for digital signage applications to deliver engaging content to customers. Its high-resolution display and responsive touch panel enable interactive advertising and information display.
- Healthcare: In healthcare facilities, the Embedded Panel PC can be used for patient monitoring, medical imaging, and hospital information systems. Its durability and performance meet the stringent requirements of the healthcare industry.
- Transportation: The IND150PC can be integrated into transportation systems for fleet management, passenger information, and navigation. Its compact design and reliable operation make it suitable for vehicles and logistics operations.
With certifications such as RoHS, CCC, SRRC, FCC, and IP65, customers can trust the quality and compliance of the INNODAPC Embedded Touch Panel PC. The product is manufactured in China and comes with a 1-year warranty for added peace of mind.
Whether it's for industrial panel pc applications, embedded control systems, or interactive kiosks, the IND150PC offers versatility and performance to meet diverse business needs. With a variety of storage options, CPU configurations, and flexible payment terms, this Embedded Panel PC is a smart investment for businesses looking to enhance their operations.
Order your IND150PC today with a minimum order quantity of 1 piece and experience the reliability and innovation that the INNODAPC brand is known for. With a supply ability of 5000 pieces per month, timely delivery within 25 working days is guaranteed upon payment receipt. The packaging details ensure safe transportation, with each unit weighing 5kgs and measuring 45×35×12cm.
Customization:
Product Customization Services for the Embedded Touch Panel PC:
- Brand Name: INNODAPC
- Model Number: IND150PC
- Place of Origin: China
- Certification: RoHS, CCC, SRRC, FCC, IP65
- Minimum Order Quantity: 1 piece
- Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
- Delivery Time: 25 working days upon receiving the payment
- Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
- Supply Ability: 5000 pieces per month
- Storage: 32G/64G/128G/256G SSD
- Operating System: Window10/11/Linux
- Keywords: Industrial Embedded Touch Panel PC
- Interface: USB/RJ45/COM/VGA/HDMI/DC12V
- Input Voltage: 12-36V
Support and Services:
Our Product Technical Support and Services for the Embedded Touch Panel PC include:
- Expert assistance with product setup and installation
- Troubleshooting guidance for any issues that may arise
- Software updates and compatibility information
- Warranty support and repair services
- Customization options to meet specific requirements
Packing and Shipping:
Product Packaging:
The Embedded Touch Panel PC is carefully packaged to ensure its safe delivery to you. It is wrapped in protective materials and placed in a sturdy cardboard box to prevent any damage during transit.
Shipping:
Once your order is confirmed, the Embedded Touch Panel PC will be shipped using a reliable courier service. You will receive a tracking number so you can monitor the status of your shipment. Please ensure someone is available to receive the package upon delivery.
