Fully enclosed design, the whole PC is dustproof.
Seamless design flat bezel, front panel IP65 waterproof.
Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
High performance motherboard, 7x24 continuous operation.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |

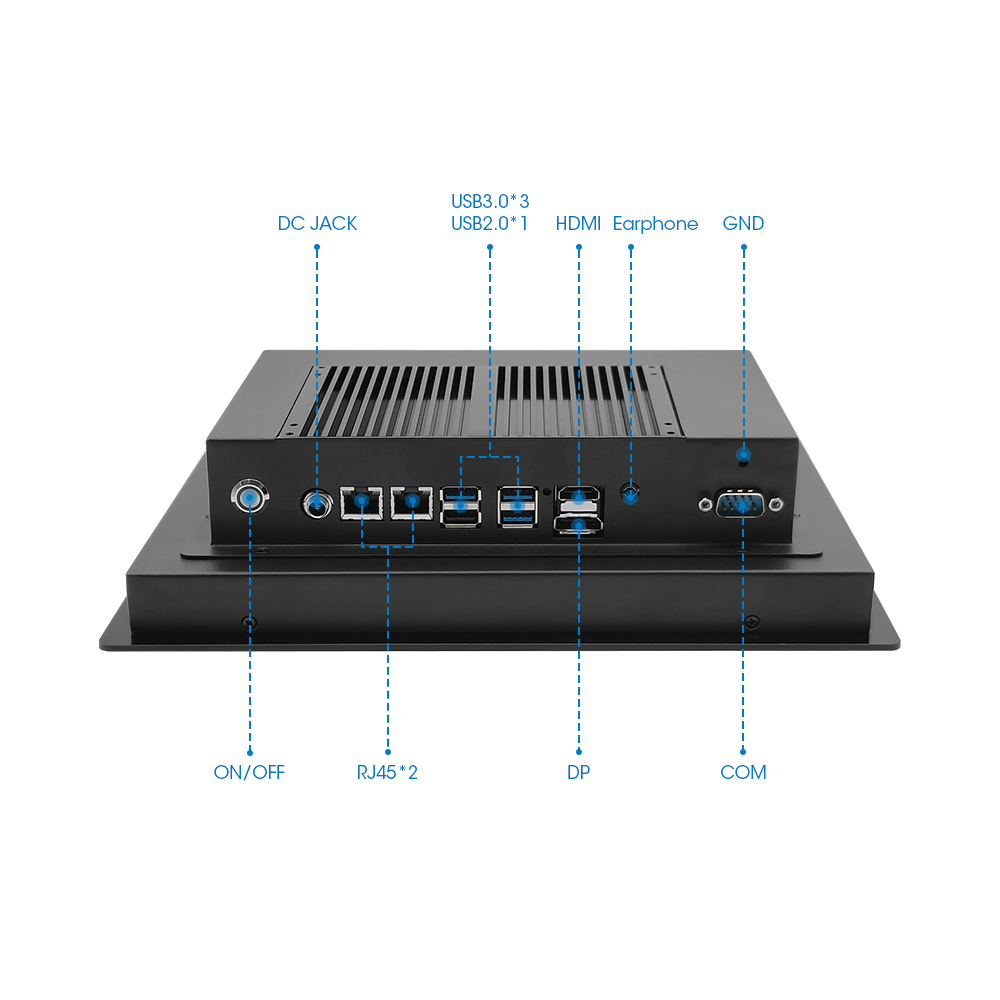

| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 10.1'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1280(H)*800(V) |
| Aspect Ratio | 16：10 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 5KG |

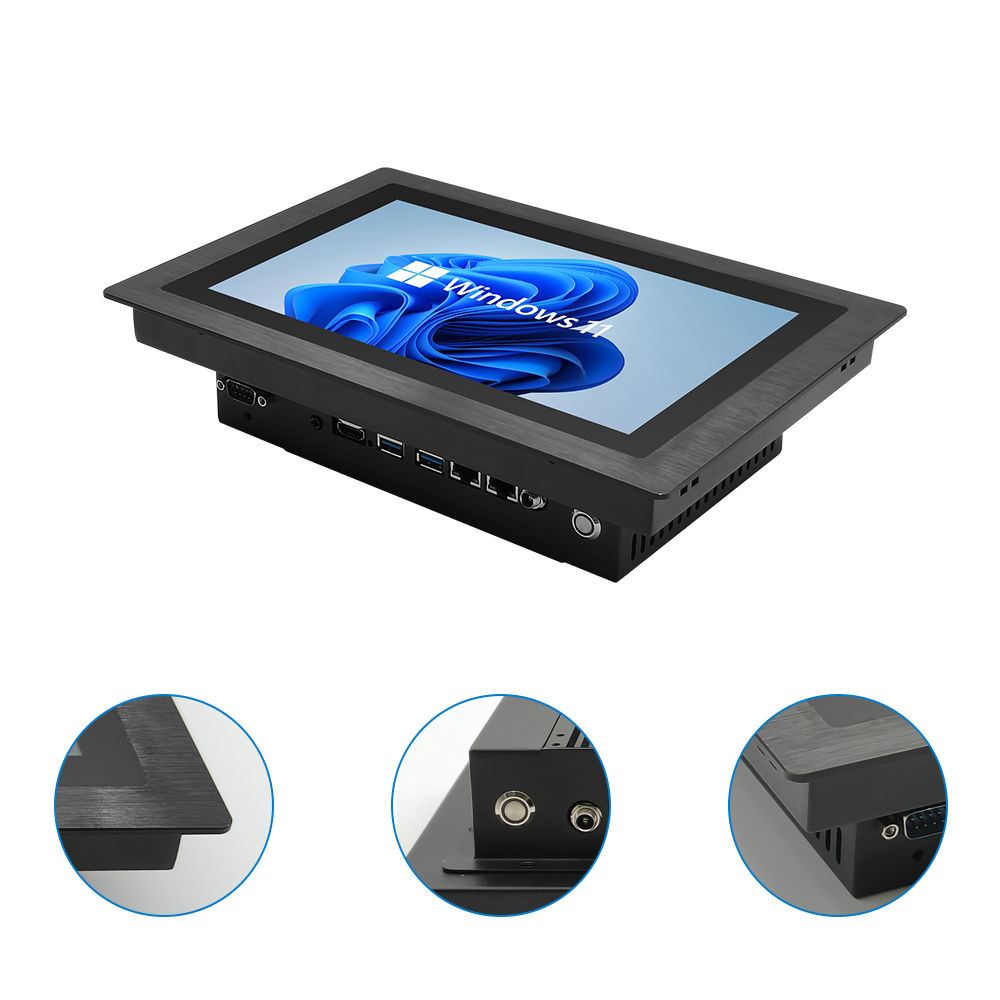

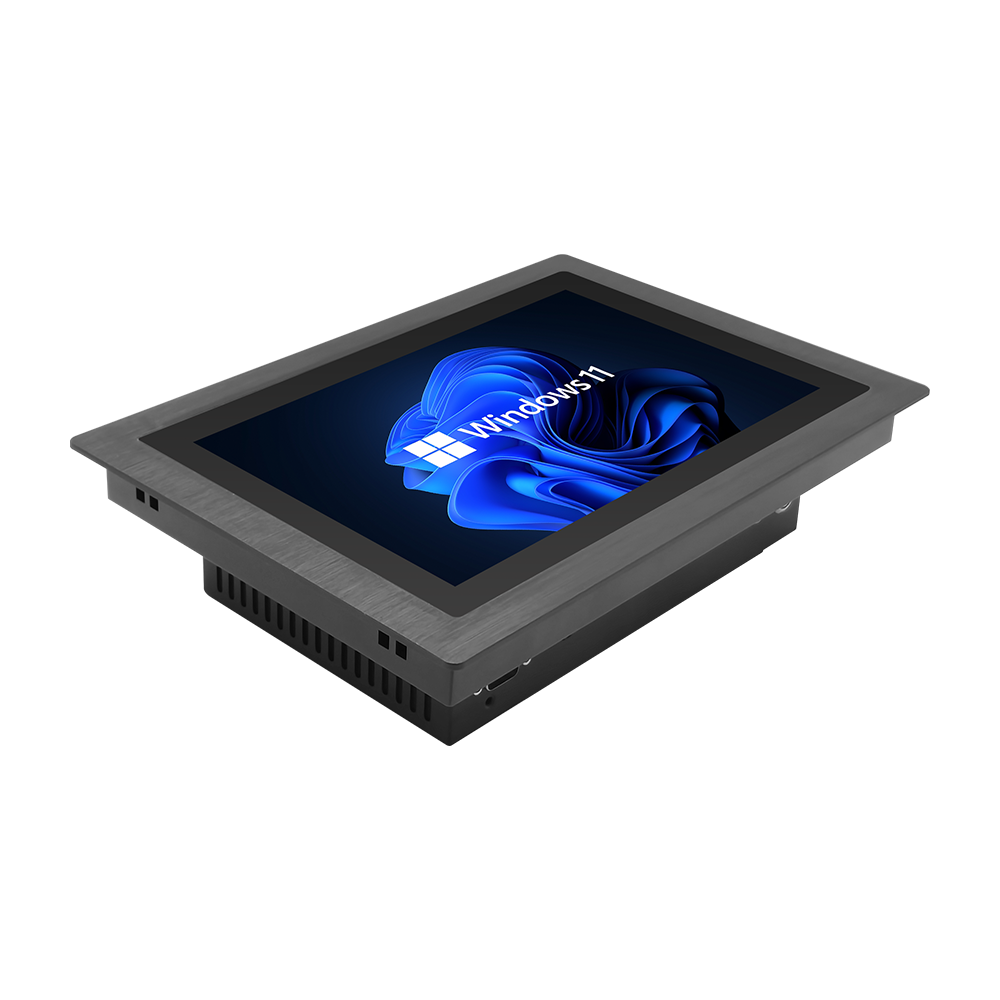

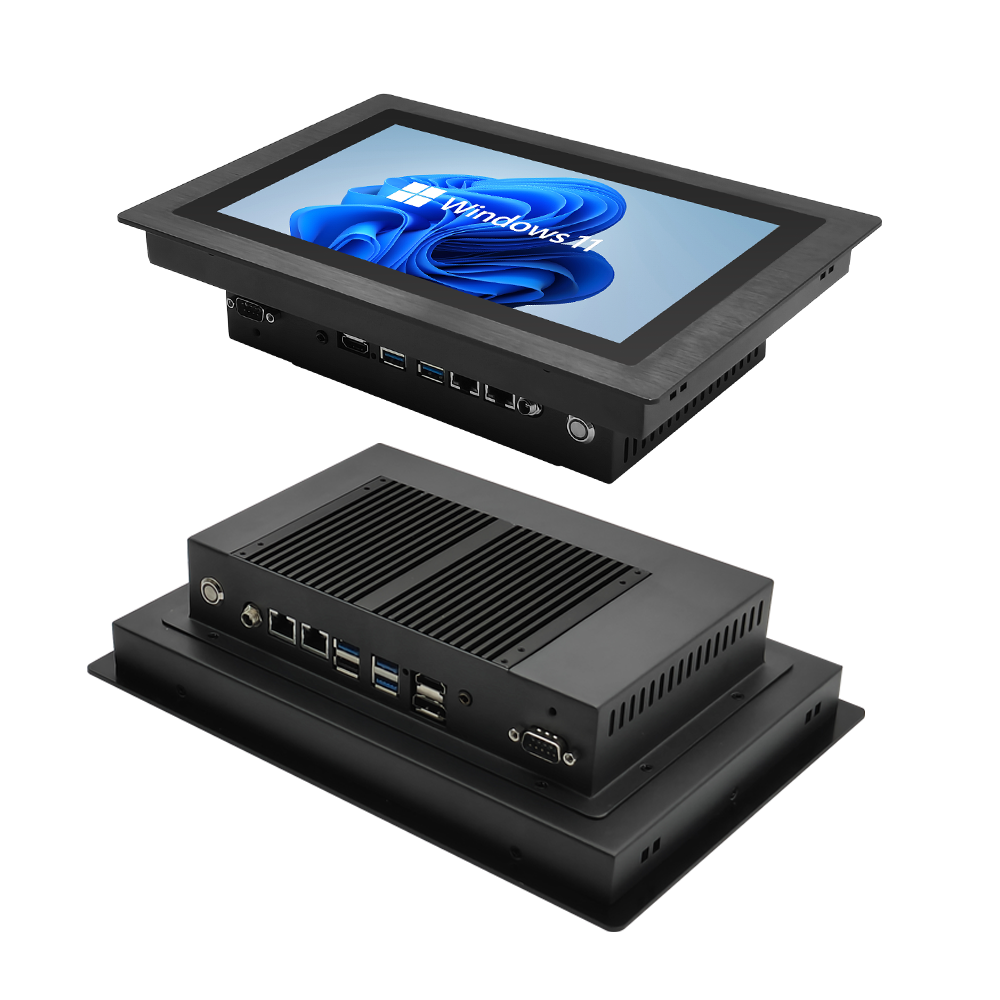

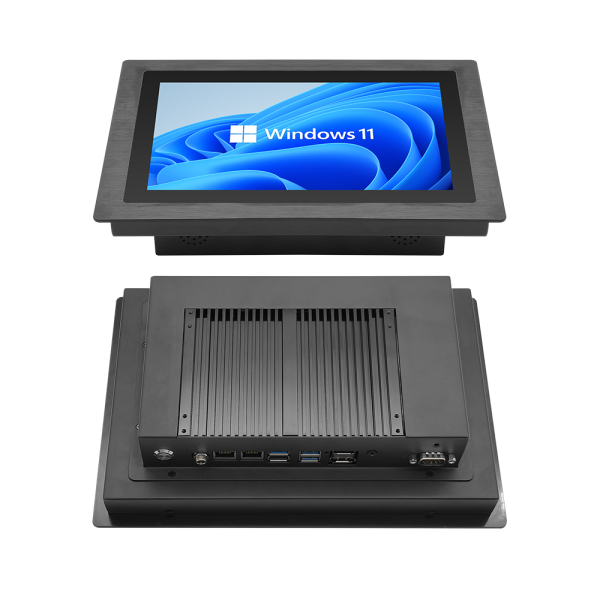

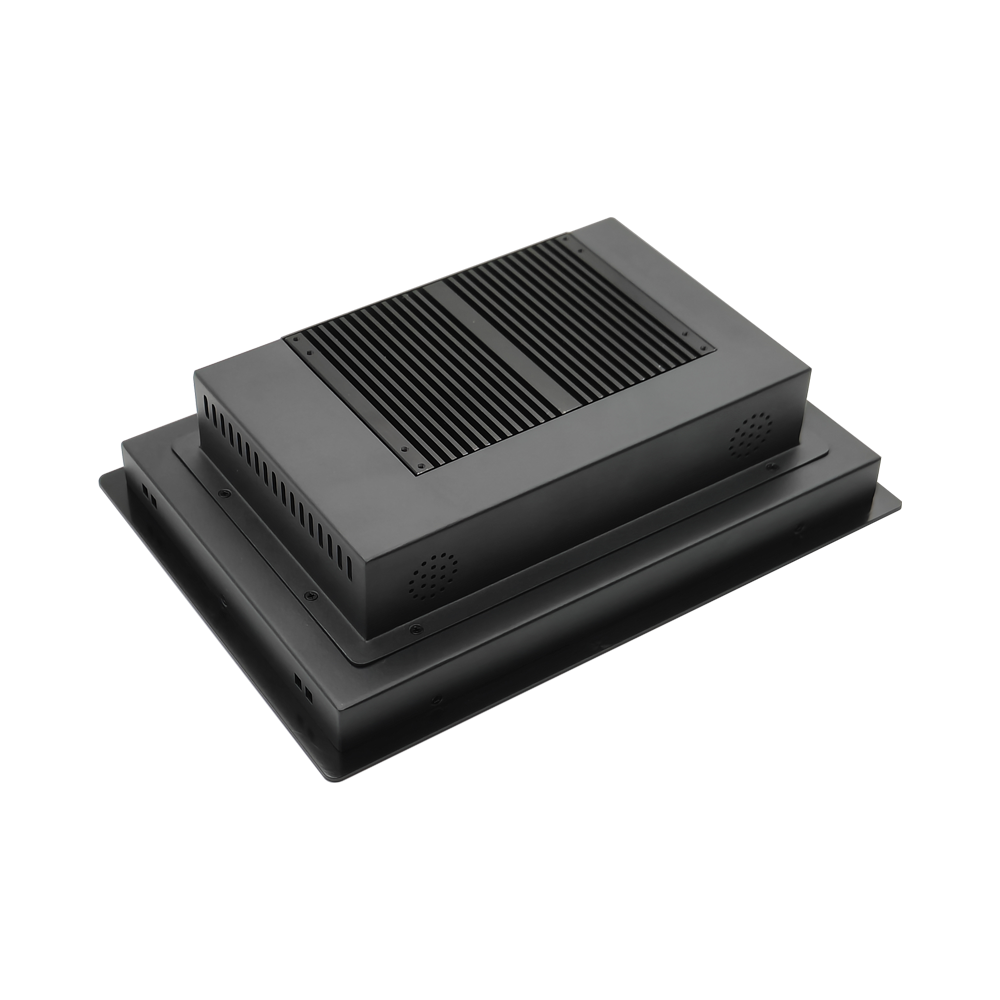

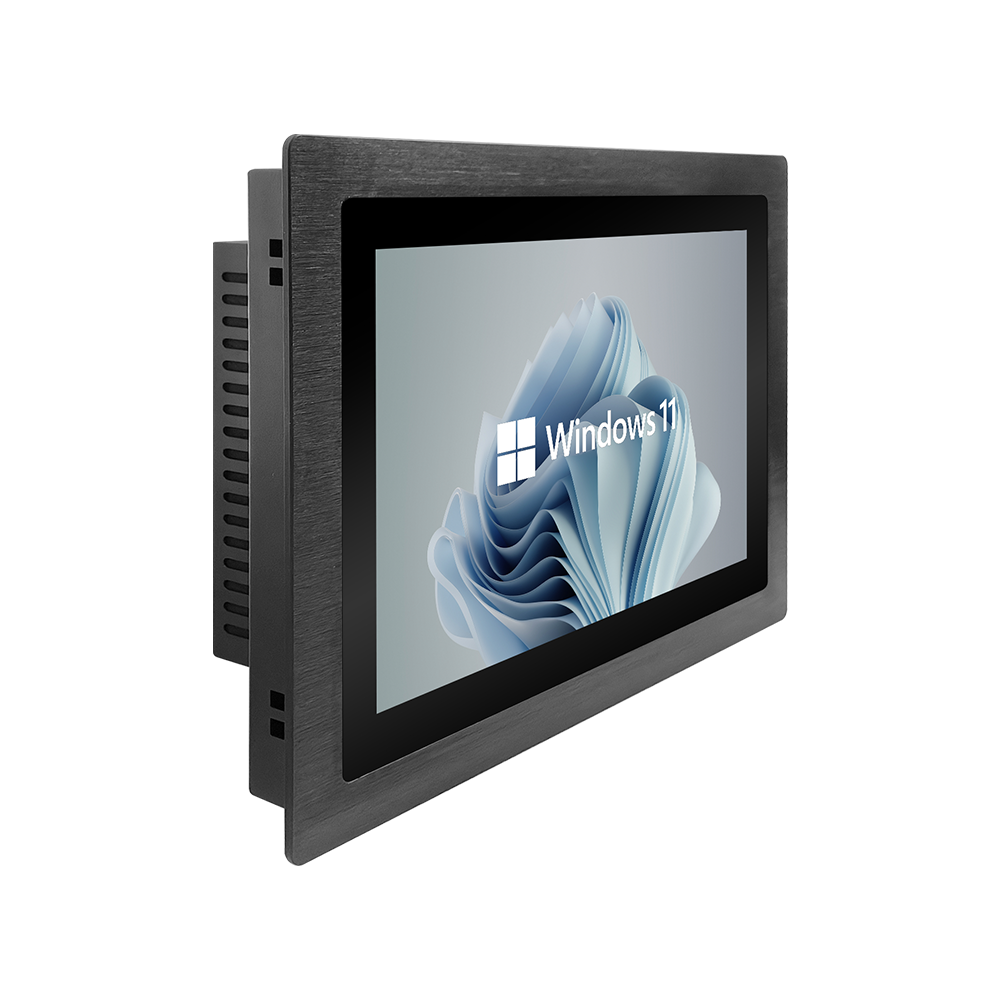

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Embedded Touch Panel PC is a high-quality industrial panel PC with a user-friendly touch screen interface, designed for various embedded applications. This versatile device runs on the Windows 10/11 or Linux operating system, providing users with a familiar and reliable platform to work on.
Featuring a large 10.1-inch screen size, the Embedded Touch Panel PC offers ample screen real estate for displaying content and interacting with applications. The touch screen functionality enhances user experience, allowing for intuitive navigation and seamless interaction with the device.
Equipped with multiple storage options, including 32GB, 64GB, 128GB, or 256GB SSD, this Embedded Touch Panel PC ensures efficient data storage and quick access to files and applications. Users can choose the storage capacity that best suits their needs, enabling them to store a variety of data and media content on the device.
With an input voltage range of 12-36V, the Embedded Touch Panel PC is designed to be compatible with a wide range of power sources, making it suitable for various industrial environments. This flexibility in power input ensures that the device can be easily integrated into different setups and configurations without compatibility issues.
Overall, the Embedded Touch Panel PC is a reliable and versatile solution for embedded applications that require a robust industrial panel PC with touch screen capabilities. Its compatibility with multiple operating systems, spacious screen size, flexible storage options, and wide input voltage range make it a valuable asset for various industries and applications.
Features:
· Product Name: 10.1 Inch Embedded Touch Panel PC
· Memory: Memory
· Operating System: Window10/11/Linux
· Key Words: Industrial Embedded Touch Panel PC, fanless industrial panel pc, industrial panel pc with touch screen, fanless industrial touch panel pc
· Interface: USB/RJ45/COM/VGA/HDMI/DC12V
Technical Parameters:
Storage | 32G/64G/128G/256G SSD |
CPU | J1900/ J6412/ J6413/ I3/ I5/ I7 |
Screen Size | 10.1 Inch |
Operating System | Window10/11/Linux |
Memory | Memory |
Warranty | 1 Year |
Product Name | 10.1 Inch Embedded Touch Panel PC |
Key Words | Industrial Embedded Touch Panel PC |
Interface | USB/RJ45/COM/VGA/HDMI/DC12V |
Input Voltage | 12-36V |
Applications:
INNODAPC's IND101PC is a versatile Embedded Touch Panel PC designed for a wide range of applications across various industries. With its fanless industrial design, this panel PC is well-suited for demanding environments where reliability and durability are key.
Product Application Occasions and Scenarios:
- Industrial Automation: The IND101PC can be used in industrial automation settings to monitor and control manufacturing processes efficiently. Its rugged design and multiple interfaces make it ideal for factory floors and production facilities.
- Retail Point-of-Sale (POS) Systems: The 10.1Inch Embedded Touch Panel Pc is perfect for retail POS systems, providing a user-friendly interface for transactions and inventory management. Its compact size and touch screen capabilities enhance the overall shopping experience.
- Digital Signage: Businesses can utilize the IND101PC for digital signage applications to deliver engaging content to customers in various settings such as retail stores, restaurants, and public spaces. The large screen size and high-definition display ensure clear and vibrant visuals.
- Healthcare Environments: In healthcare settings, the Embedded Touch Panel PC can be used for patient monitoring, medical equipment control, and electronic health record management. Its IP65 certification ensures protection against dust and water ingress.
- Transportation Systems: The IND101PC is suitable for integration into transportation systems for fleet management, vehicle monitoring, and passenger information systems. Its robust construction can withstand vibrations and temperature variations commonly encountered in vehicles.
With certifications including RoHS, CCC, SRRC, FCC, and IP65, customers can trust in the quality and safety of the INNODAPC Embedded Touch Panel PC. The minimum order quantity of 1 piece and fast delivery time of 25 working days make it convenient for both small and large-scale projects. The flexible payment terms and high supply ability of 5000 pieces per month further add to the product's appeal.
Enhance your operations with the reliable and feature-rich IND101PC Embedded Touch Panel PC from INNODAPC.
Customization:
Product Customization Services for the INNODAPC IND101PC Embedded Touch Panel PC:
Brand Name: INNODAPC
Model Number: IND101PC
Place of Origin: China
Certification: RoHS, CCC, SRRC, FCC, IP65
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Screen Size: 10.1 Inch
Product Name: 10.1 Inch Embedded Touch Panel PC
Warranty: 1 Year
Storage: 32G/64G/128G/256G SSD
Memory: Memory
Support and Services:
The Embedded Touch Panel PC product offers comprehensive technical support and services to ensure smooth operation and optimal performance. Our dedicated team of experts is available to assist with any product-related inquiries, troubleshooting, and maintenance needs. Additionally, we provide software updates, training resources, and customization services to meet specific requirements and enhance user experience.
Packing and Shipping:
Product Packaging:
The Embedded Touch Panel PC is carefully packaged in a sturdy cardboard box to ensure safe delivery. The product is securely cushioned with bubble wrap to prevent any damage during transit.
Shipping:
Orders for the Embedded Touch Panel PC are typically shipped within 1-2 business days. We offer standard and expedited shipping options to meet your delivery needs. Once your order is processed, you will receive a tracking number to monitor the status of your shipment.
