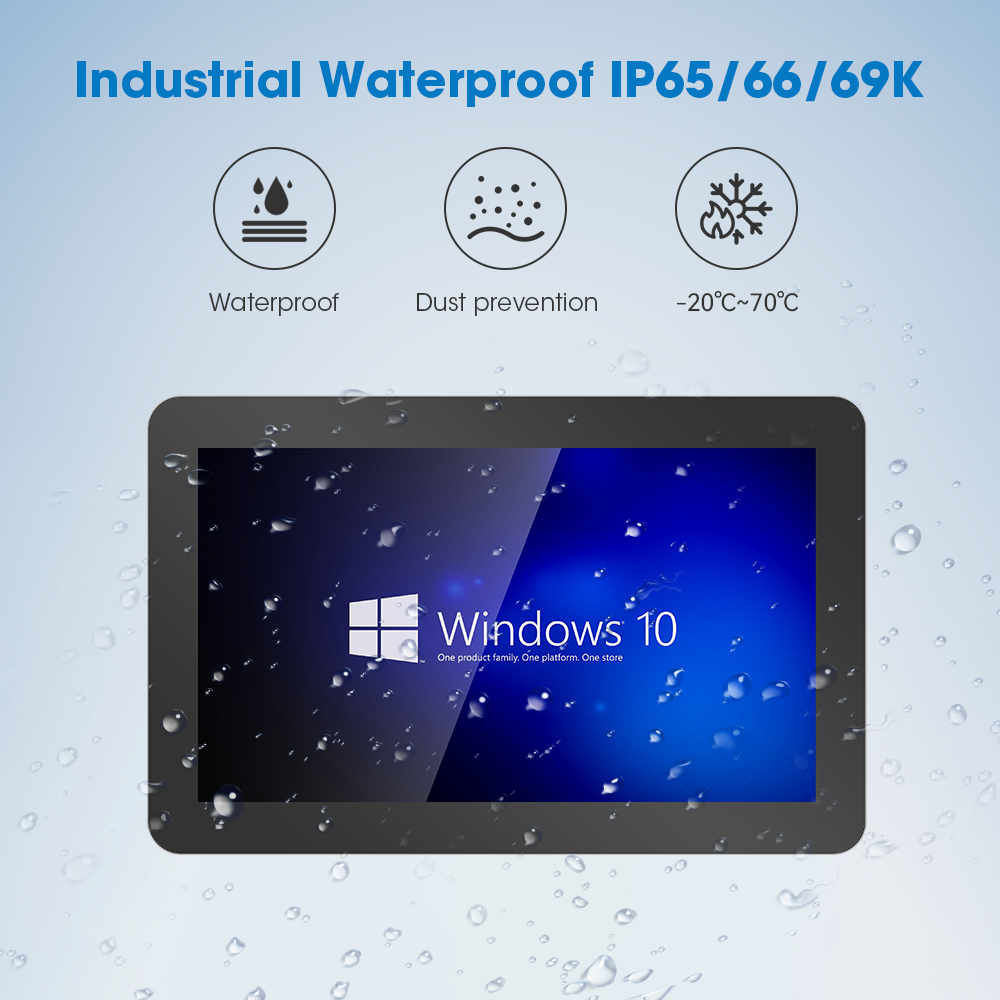

Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , front IP65 waterproof and dustproof.
Industrial LCD panel, full view angle, 1000nits sunlight readable, with light sensor for auto dimming.

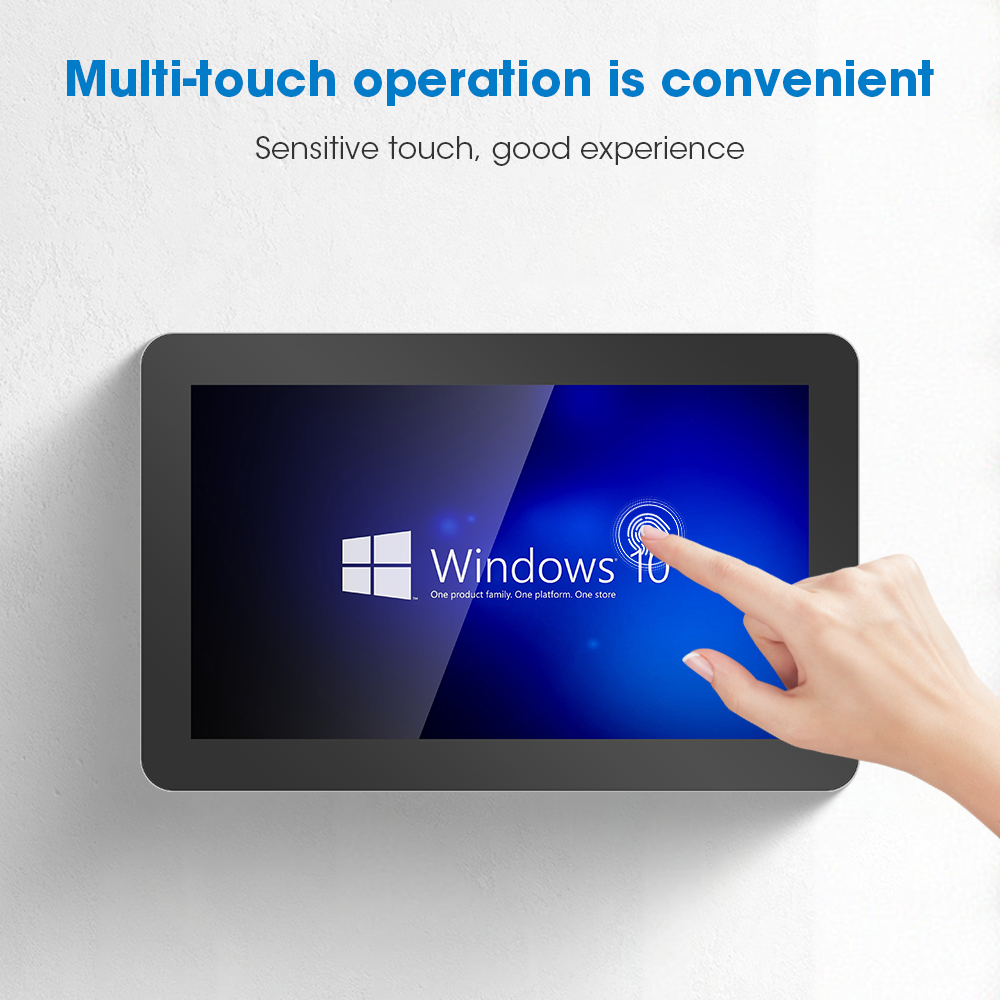

10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment.
EETI waterproof solution, the touch function can work well with ｄｒｏｐ water on the screen.
The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation
-20 °C ~ 70°C (-4°F ~158°F).
Optical bonding, Prevent condensation and fogging inside the screen and increase transmittance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 13.3'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1920(H)*1080(V) |
| Aspect Ratio | 16：9 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 4KG |

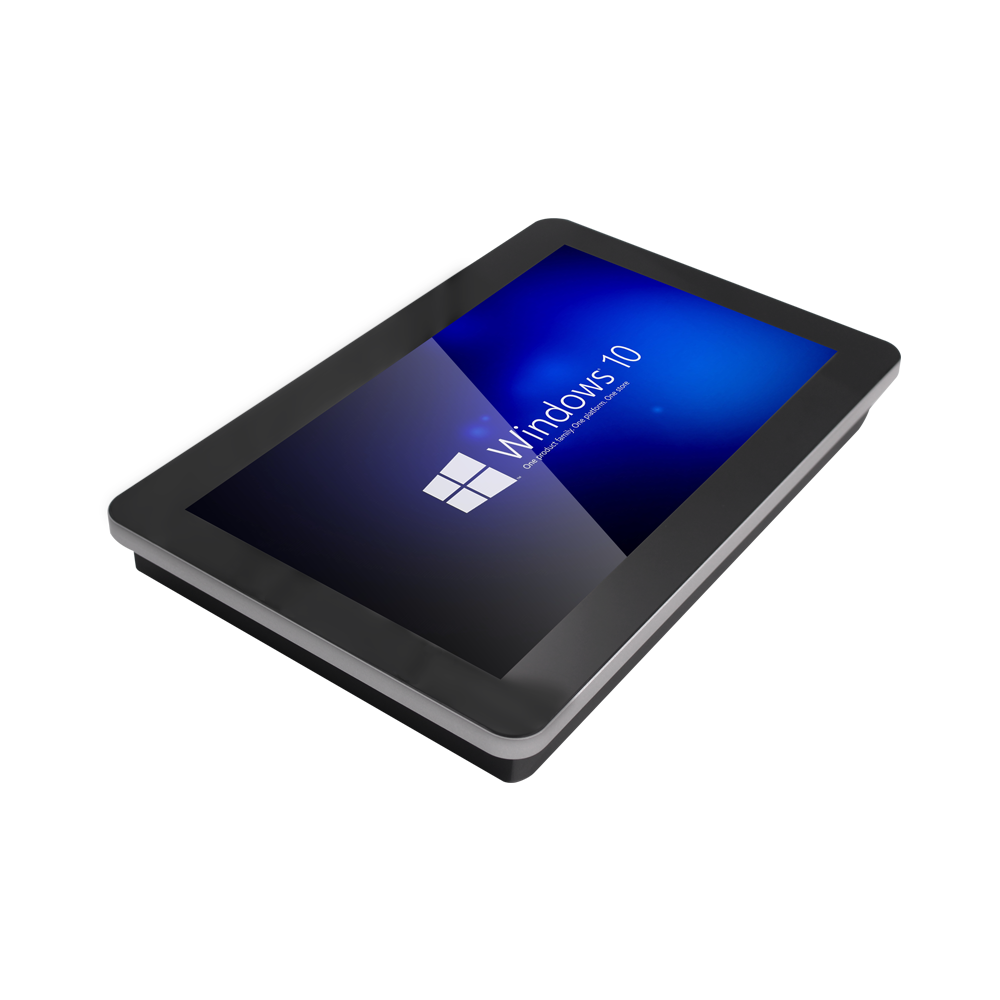

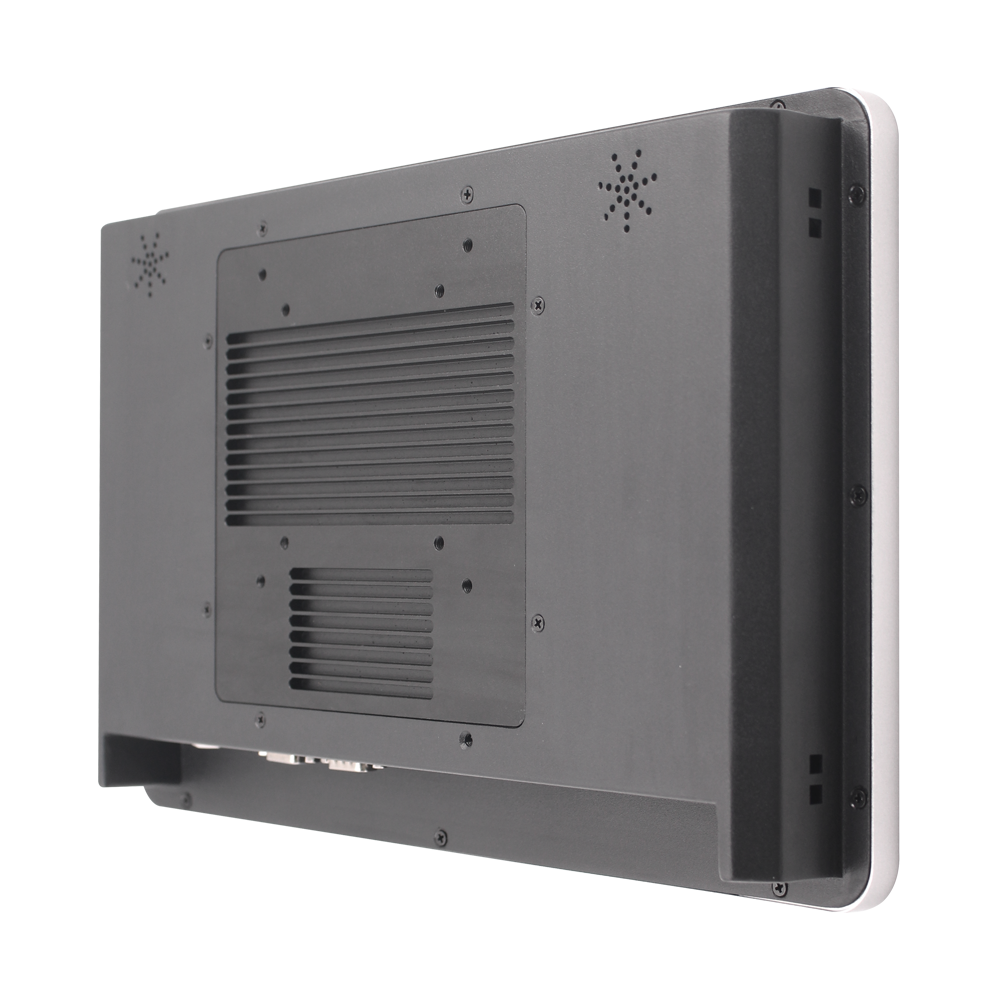

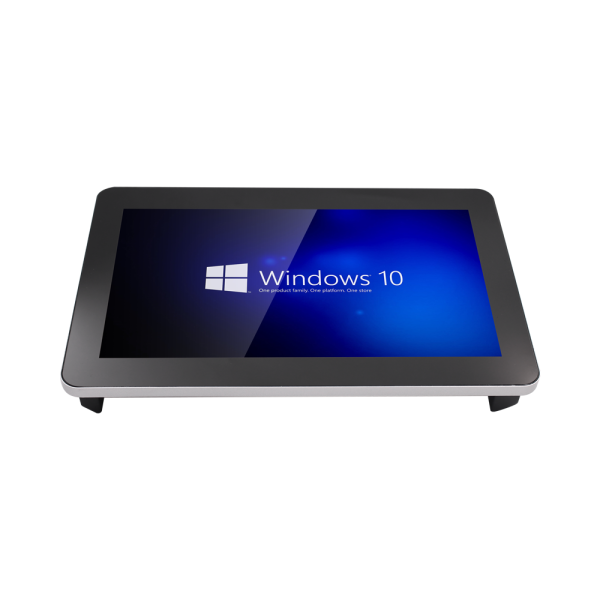

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Features:
· Product Name: Embedded Touch Panel PC
· Operating System: Window10/11/Linux
· Memory: Memory
· Screen Size: 13.3 Inch
· CPU: J1900/ J6412/ J6413/ I3/ I5/ I7
· Product Name: 13.3 Inch Embedded Touch Panel PC
Technical Parameters:
Technical Parameter | Specification |
CPU | J1900/ J6412/ J6413/ I3/ I5/ I7 |
Memory | Memory |
Warranty | 1 Year |
Product Name | 13.3 Inch Embedded Touch Panel PC |
Interface | USB/RJ45/COM/VGA/HDMI/DC12V |
Input Voltage | 12-36V |
Screen Size | 13.3 Inch |
Key Words | Industrial Embedded Touch Panel PC, Industrial Touch Panel PC, Industrial Panel PC with Touch Screen |
Operating System | Windows 10/11/Linux |
Storage | 32G/64G/128G/256G SSD |
Applications:
INNODAPC Embedded Touch Panel PC (Model: IND133PC) is a versatile and reliable industrial panel PC that can be applied to a wide range of occasions and scenarios due to its advanced features and specifications.
With its rugged design and high performance, this Embedded Touch Panel PC is ideal for industrial automation, machinery control, manufacturing processes, and other industrial applications where a durable and efficient computing solution is required.
Being from China, the place of origin, this panel PC is manufactured with strict quality standards and has received certifications such as RoHS, CCC, SRRC, FCC, and IP65, ensuring compliance with international regulations and standards.
The minimum order quantity for this product is just 1 piece, making it accessible for small-scale projects or individual users. The packaging details include 1 piece per carton, with a weight of 5kgs and a packing size of 45×35×12cm, providing secure transportation.
With a delivery time of 25 working days upon receiving the payment, customers can expect prompt delivery of their orders. The flexible payment terms accepted for this Embedded Touch Panel PC include T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram, offering convenience to buyers.
INNODAPC ensures a steady supply of this product with a supply ability of 5000 pieces per month, guaranteeing availability for various industrial projects and applications. The Embedded Touch Panel PC comes with a 1-year warranty, providing peace of mind to users.
Equipped with the Windows 10/11/Linux operating system, and compatible with input voltages ranging from 12-36V, this panel PC offers versatility and compatibility with different setups. The CPU options include J1900, J6412, J6413, i3, i5, and i7, allowing users to choose a configuration that meets their performance requirements.

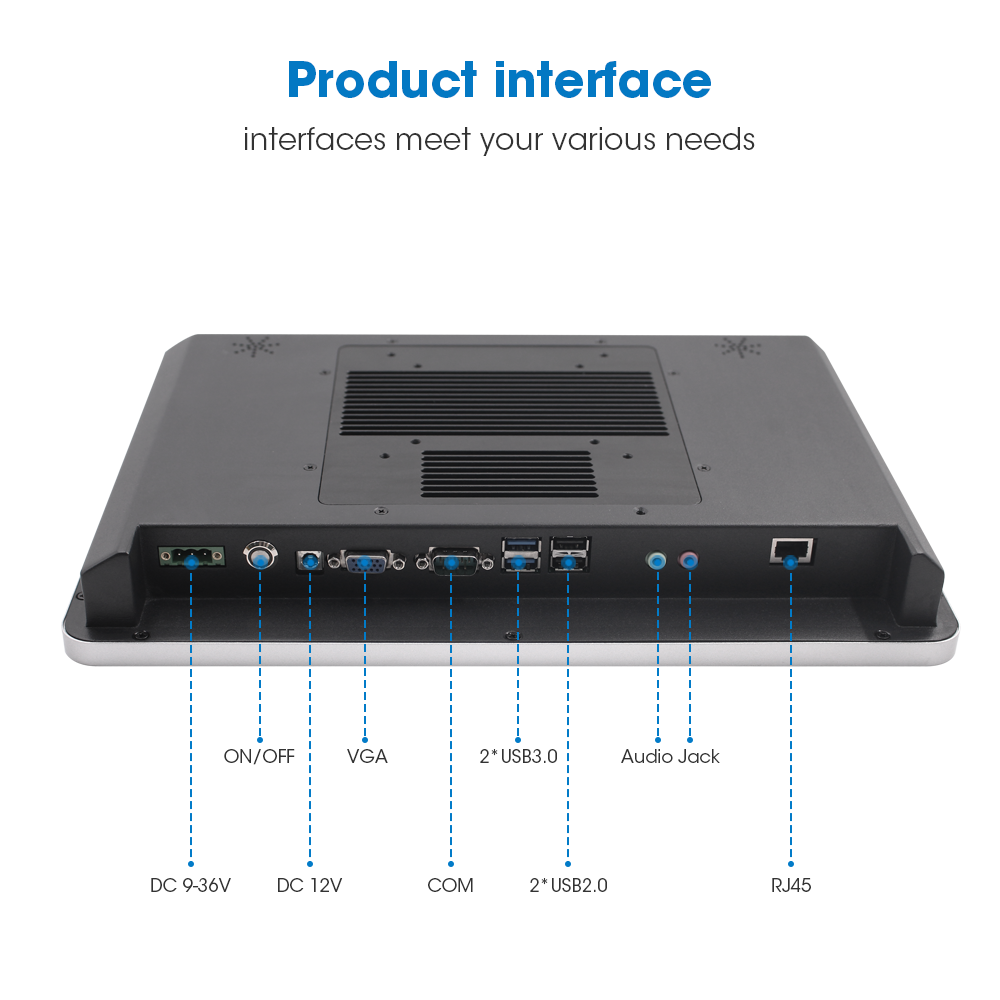

The interface features of the Embedded Touch Panel PC include USB, RJ45, COM, VGA, HDMI, and DC12V, offering connectivity options for various peripherals and devices. This makes it suitable for a wide range of applications, including industrial control systems, digital signage, interactive kiosks, and more.
Customization:
Product Customization Services for the Embedded Touch Panel PC:
Brand Name: INNODAPC
Model Number: IND133PC
Place of Origin: China
Certification: RoHS, CCC, SRRC, FCC, IP65
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
CPU: J1900/ J6412/ J6413/ I3/ I5/ I7
Key Words: Industrial Embedded Touch Panel PC, fanless industrial panel pc, Embedded Panel PC, industrial panel pc with touch screen
Storage: 32G/64G/128G/256G SSD
Screen Size: 13.3 Inch
Warranty: 1 Year
Support and Services:
Our Embedded Touch Panel PC product comes with comprehensive product technical support and services to ensure smooth operation and customer satisfaction. Our skilled technical support team is available to assist with any product-related queries, troubleshooting, and technical issues that may arise. Additionally, we offer maintenance services to keep your Embedded Touch Panel PC functioning optimally over time. Our goal is to provide reliable support and services to meet the needs of our customers and enhance their overall product experience.
Packing and Shipping:
Product Packaging:
The Embedded Touch Panel PC is carefully packaged to ensure its safe delivery. It is placed in a sturdy cardboard box with protective foam inserts to prevent any damage during transit. The product is sealed securely to avoid any dust or moisture from entering the packaging.
Shipping:
Once your order is confirmed, the Embedded Touch Panel PC will be shipped using a reliable courier service. You will receive a tracking number to monitor the status of your delivery. The product will be delivered to your specified address within the estimated shipping timeframe.
