Stainless steel front panel, IP65 waterproof and dustproof on the front.
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-point PCAP touch panel, high sensitivity and fast response speed.
High-performance motherboard, 7x24 continuous operation.
Wide temperature range: working: -20 to 70 °C, storage: -30 to 80 °C.
Support wall mounting, embedded mounting, desktop bracket mounting, etc.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1280(H)*1024(V) |
| Aspect Ratio | 4：3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 9KG |

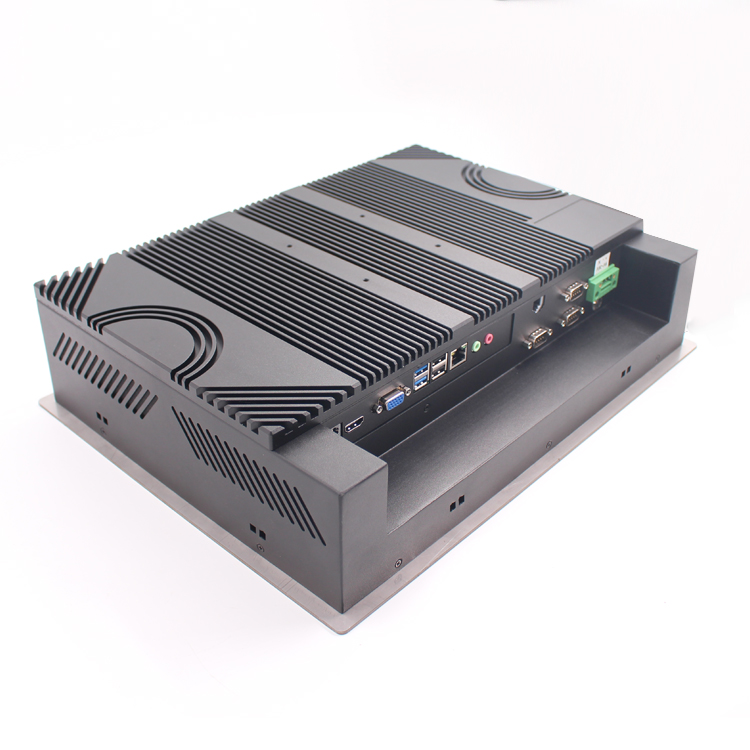

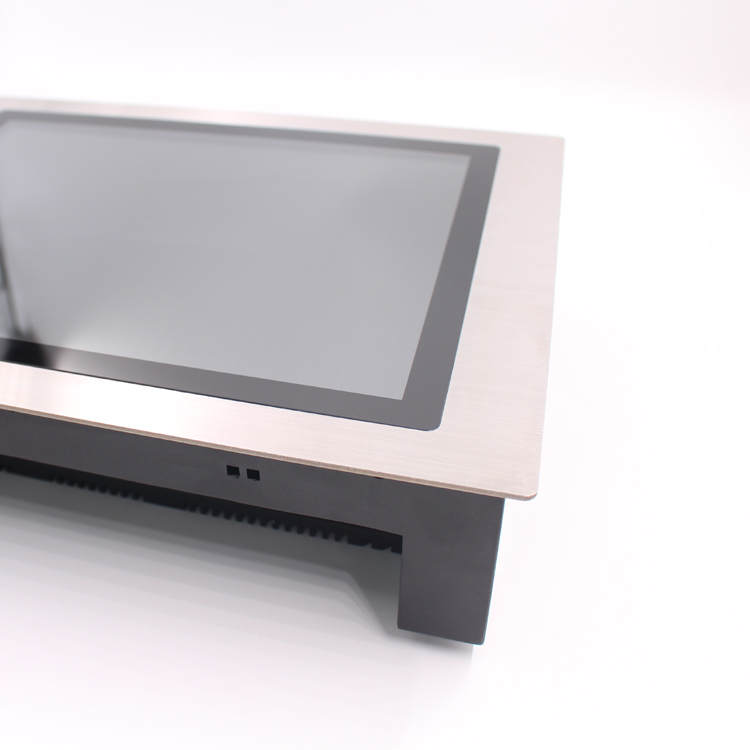

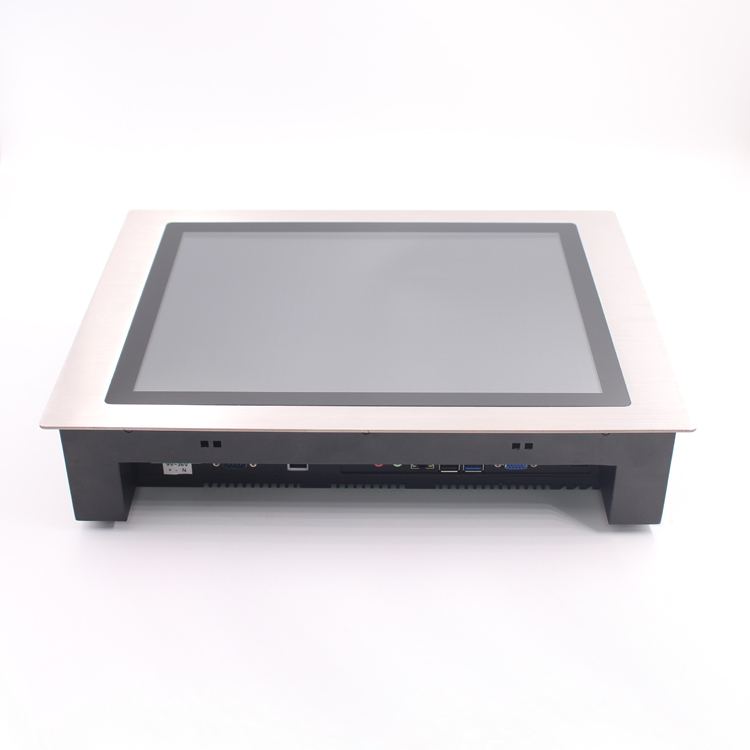

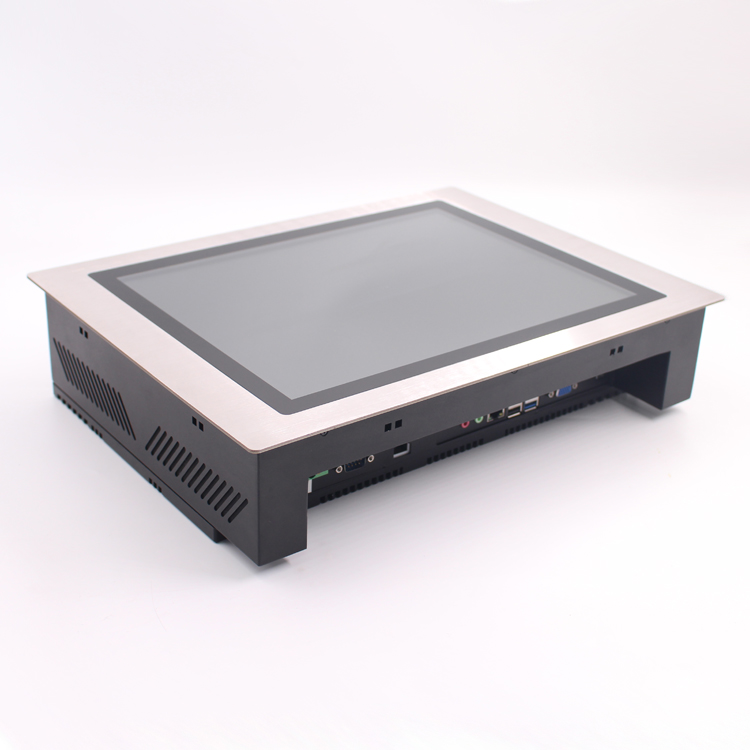

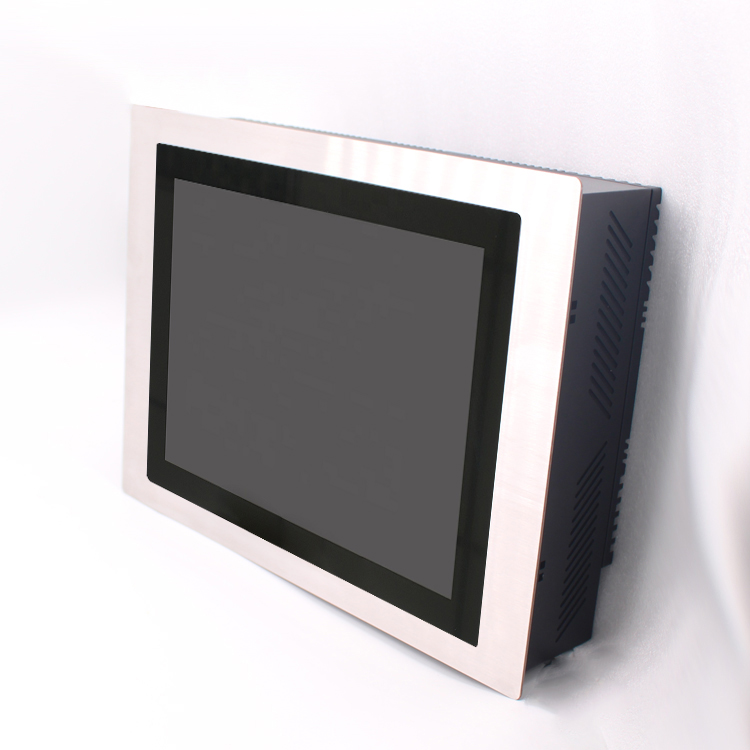

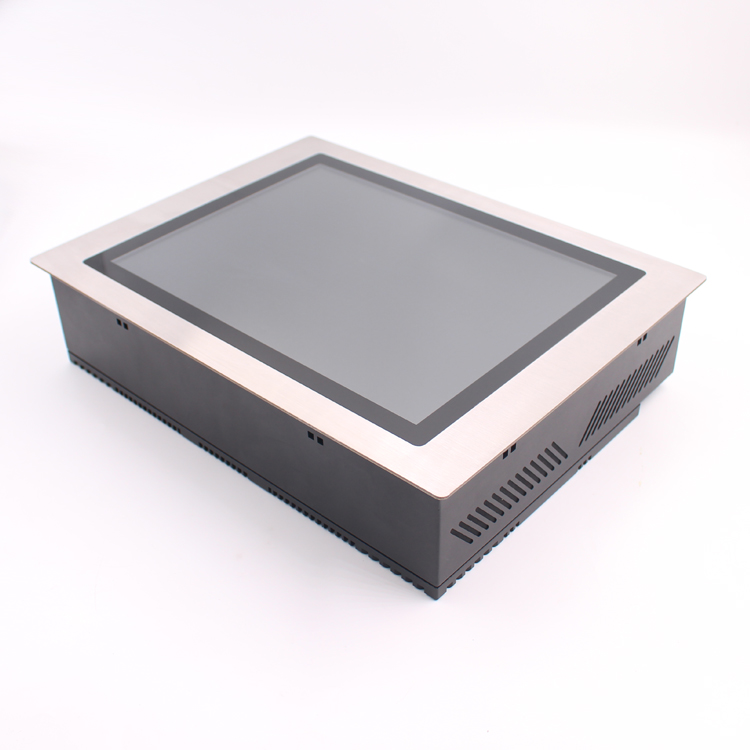

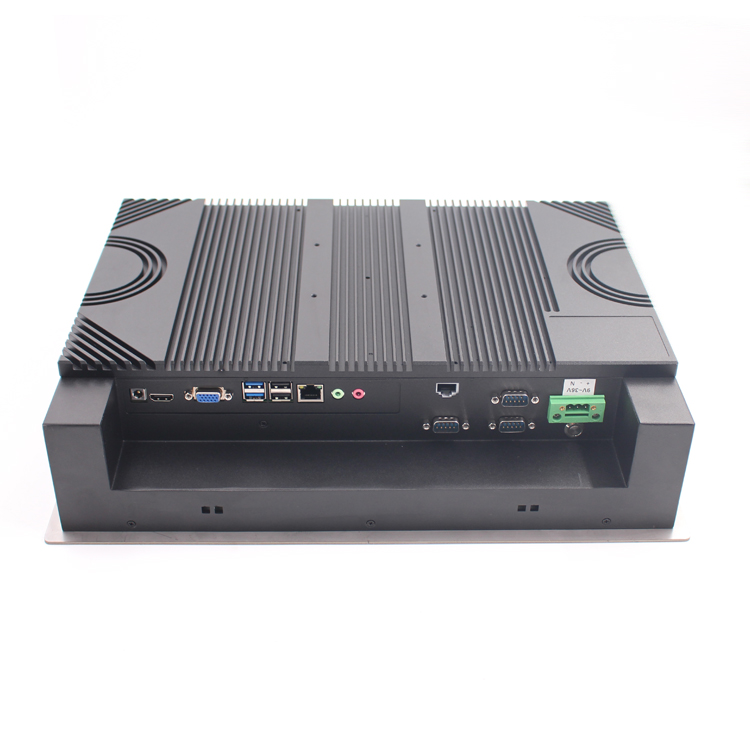

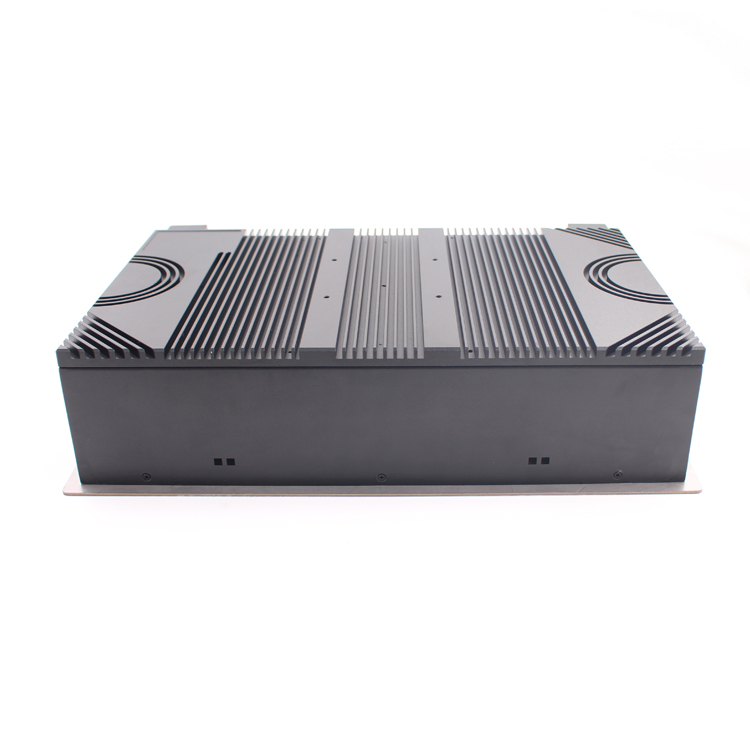

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The 15.6 Inch Embedded Touch Panel PC is a cutting-edge device that combines powerful performance with a sleek design to meet the needs of various industrial applications. This fanless industrial touch panel PC is designed to operate efficiently in demanding environments, offering reliable performance and durability.
Equipped with a wide input voltage range of 12-36V, this panel PC can be easily integrated into different setups without the need for additional power sources. This flexibility makes it an ideal solution for industrial automation, manufacturing, and other challenging environments where power sources may vary.
With storage options ranging from 32G to 256G SSD, this embedded touch panel PC provides ample space to store critical data and applications. Whether you need to run complex software programs or store large files, this panel PC can handle it with ease, ensuring smooth operation and efficient workflow.
Memory is a crucial component of any computing device, and the 15 Inch Embedded Touch Panel PC does not disappoint in this aspect. With high-quality memory modules, this panel PC delivers fast and seamless performance, allowing you to multitask and run multiple applications simultaneously without any slowdown.
The generous screen size of 15 inches offers a spacious display area for viewing your content with clarity and precision. Whether you are monitoring production processes, analyzing data, or interacting with graphical interfaces, the large touchscreen of this panel PC provides a user-friendly experience that enhances productivity and efficiency.
In conclusion, the 15 Inch Embedded Touch Panel PC is a versatile and reliable device that meets the demands of modern industrial applications. As a fanless industrial panel PC, it offers silent operation, energy efficiency, and robust performance, making it an ideal choice for various industries.
Features:
· Product Name: Embedded Touch Panel PC
· Product Name: 15 Inch Embedded Touch Panel PC
· Screen Size: 15 Inch
· CPU: J1900/ J6412/ J6413/ I3/ I5/ I7
· Operating System: Window10/11/Linux
· Input Voltage: 12-36V
Technical Parameters:
Warranty | 1 Year |
Input Voltage | 12-36V |
Interface | USB/RJ45/COM/VGA/HDMI/DC12V |
Key Words | Industrial Embedded Touch Panel PC, panel pc, fanless industrial touch panel pc |
CPU | J1900/J6412/J6413/I3/I5/I7 |
Product Name | 15 Inch Embedded Touch Panel PC |
Operating System | Windows 10/11/Linux |
Memory | Memory |
Screen Size | 15 Inch |
Storage | 32G/64G/128G/256G SSD |
Applications:
INNODAPC's IND150PC is a versatile Embedded Touch Panel PC that is designed for a wide range of industrial applications. With its reliable performance and durable construction, this industrial touch panel PC is suitable for various occasions and scenarios.
Product Application Occasions and Scenarios:
- Industrial Automation: The Embedded Panel PC can be used in industrial automation systems for monitoring and controlling manufacturing processes. Its rugged design and compatibility with different interfaces make it ideal for harsh industrial environments.
- HMI (Human-Machine Interface) Systems: The 15 Inch Embedded Touch Panel Pc is perfect for HMI applications where users interact with machines or systems. Its responsive touch screen provides a user-friendly interface for easy operation.
- IoT (Internet of Things) Integration: The industrial touch panel PC can be integrated into IoT systems for data collection, analysis, and communication. Its connectivity options such as USB, RJ45, and COM allow seamless integration with other devices.
- Digital Signage: The large screen size of the Embedded Panel PC makes it suitable for digital signage applications in retail stores, airports, and public spaces. Its high-definition display and touch capabilities enhance the interactive experience for customers.
- Smart Home Systems: The Embedded Touch Panel PC can be used in smart home automation systems for controlling lighting, security cameras, and other connected devices. Its compact size and versatile mounting options make it easy to integrate into different home environments.
INNODAPC's IND150PC is a reliable and versatile industrial touch panel PC that meets the diverse needs of various industries. With certifications such as RoHS, CCC, SRRC, FCC, and IP65, this Embedded Panel PC ensures high quality and compliance with industry standards. The minimum order quantity of 1 piece and fast delivery time of 25 working days make it convenient for businesses to procure this product. Trust INNODAPC for your industrial touch panel PC needs!
Customization:
Product Customization Services for the Embedded Touch Panel PC:
Brand Name: INNODAPC
Model Number: IND150PC
Place of Origin: China
Certification: RoHS, CCC, SRRC, FCC, IP65
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receiving payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Keywords: Industrial Embedded Touch Panel PC, Embedded Panel PC, industrial panel pc, fanless industrial panel pc
Warranty: 1 Year
CPU: J1900/ J6412/ J6413/ I3/ I5/ I7
Storage: 32G/64G/128G/256G SSD
Memory: Memory
Support and Services:
Our Embedded Touch Panel PC product comes with comprehensive product technical support and services to assist you in maximizing the functionality and performance of your device.
Our team of experts is available to provide guidance on installation, configuration, troubleshooting, and any technical queries you may have regarding the product.
Additionally, we offer software updates and maintenance services to ensure that your Embedded Touch Panel PC continues to operate smoothly and efficiently.
Rest assured that our technical support team is dedicated to delivering prompt and reliable assistance to meet your needs and help you make the most of your Embedded Touch Panel PC.
Packing and Shipping:
Product Packaging:
The Embedded Touch Panel PC is carefully packaged in a sturdy cardboard box to ensure its protection during transit. The product is sealed with bubble wrap to prevent any damage and includes a user manual for easy setup.
Shipping:
We offer fast and reliable shipping for the Embedded Touch Panel PC. Orders are typically processed within 1-2 business days and shipped via a reputable courier service. Customers will receive a tracking number to monitor the status of their delivery.
