Rugged and durable all-metal shell, shockproof, excellent heat dissipation
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-point infrared touch screen, tempered glass, anti-destruction, high stability.
High-performance motherboard, 7x24 continuous operation.
Support wall mounting, embedded mounting, desktop bracket
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15.6'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1920(H)*1080(V) |
| Aspect Ratio | 16：9 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 7KG |

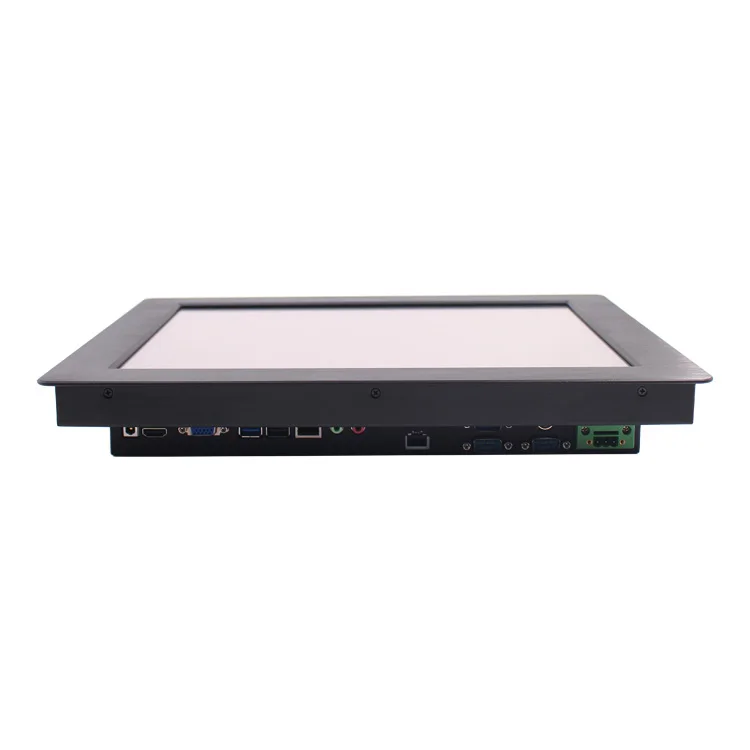

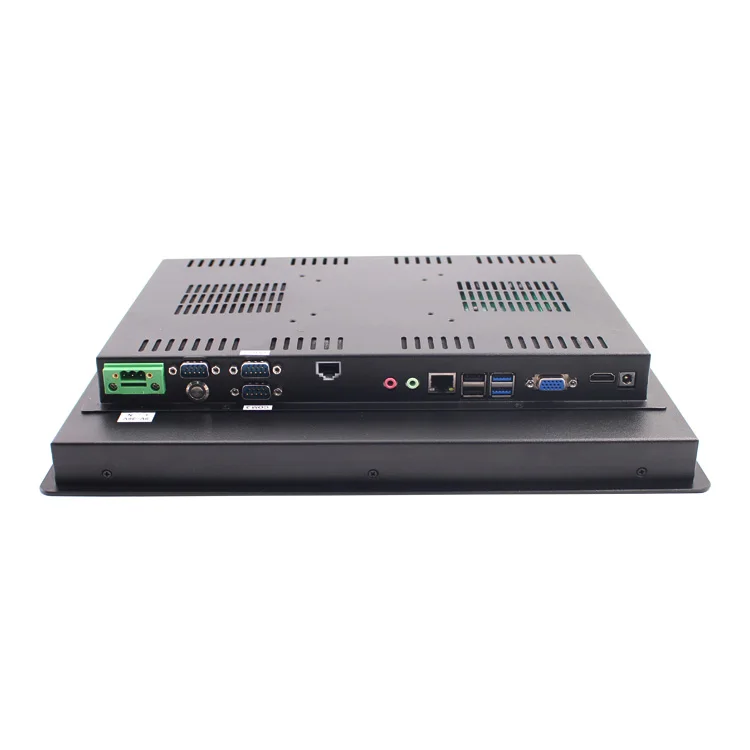

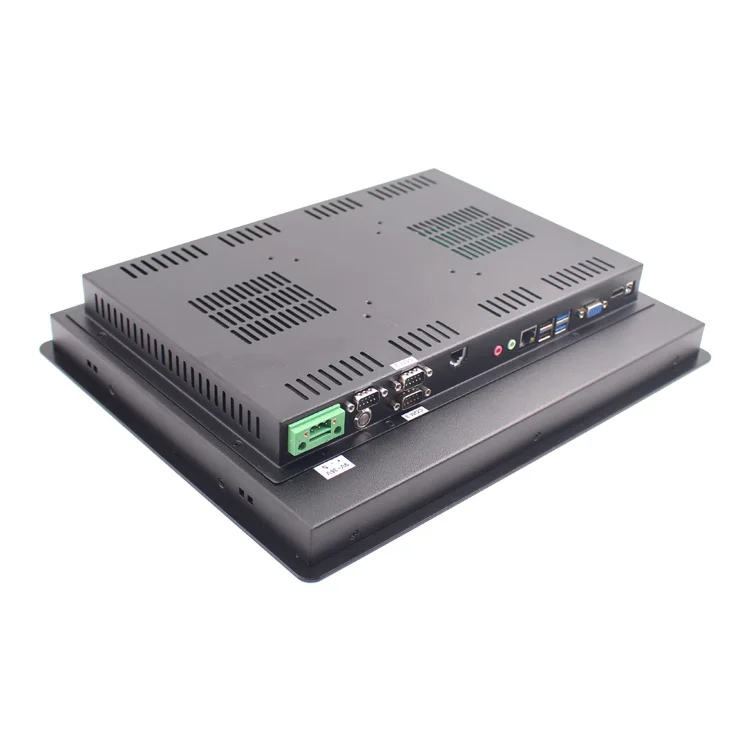

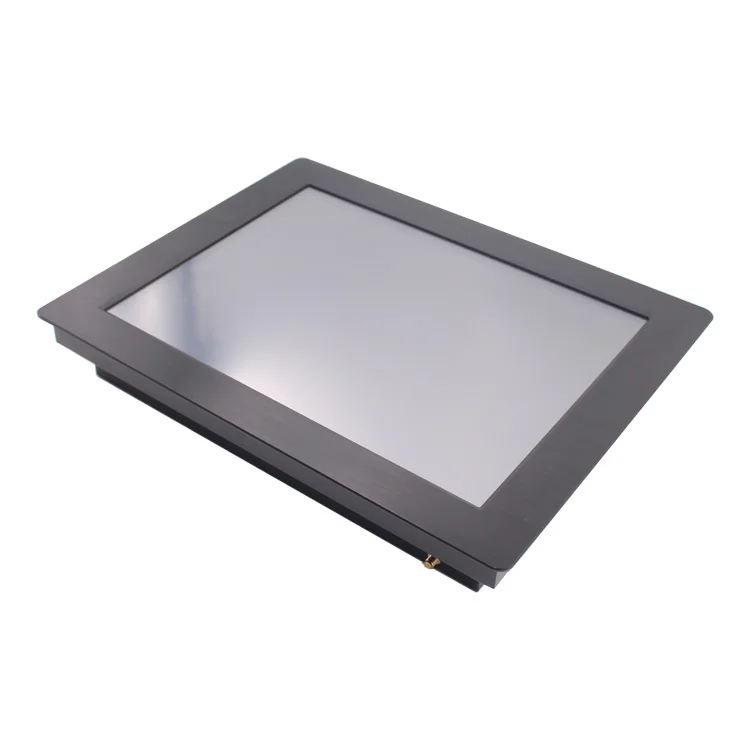

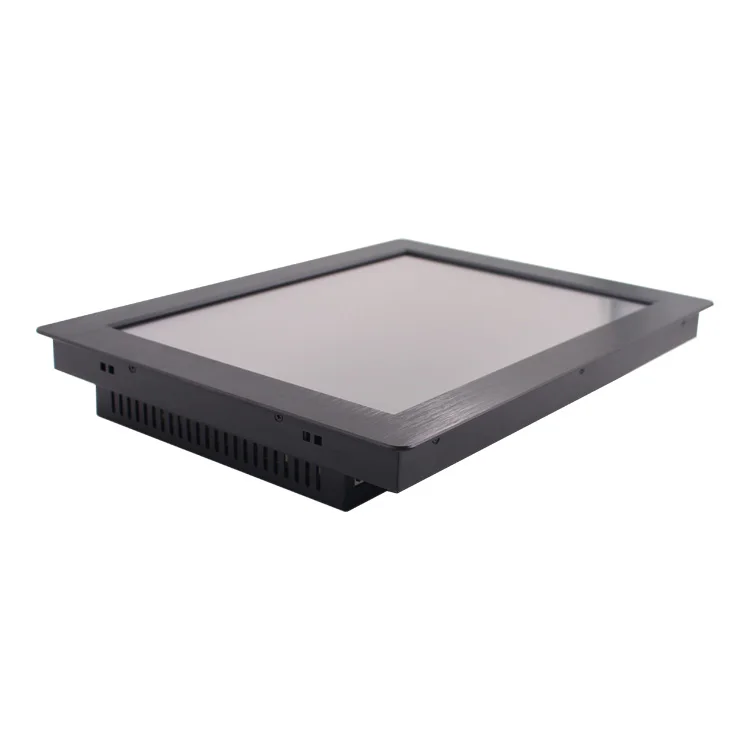

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The 15.6 Inch Embedded Touch Panel PC is a versatile and reliable solution for various industrial applications. With its robust design and advanced features, this industrial panel PC with touch screen offers exceptional performance and durability in demanding environments.
Designed to operate on an input voltage of 12-36V, this Embedded Touch Panel PC is suitable for a wide range of industrial settings. Whether used in manufacturing facilities, automation systems, or control rooms, this industrial panel PC delivers consistent and efficient performance.
Featuring storage options of 32G, 64G, 128G, or 256G SSD, this Embedded Touch Panel PC provides ample space for storing critical data and applications. With the ability to choose the storage capacity that best suits your needs, you can ensure seamless operation and efficient data management.
Equipped with the latest operating systems such as Windows 10, Windows 11, and Linux, this industrial panel PC offers compatibility with a variety of software applications and tools. Whether you require a specific operating system for your industrial processes or prefer a certain interface for ease of use, this Embedded Touch Panel PC provides flexibility and versatility.
With its responsive touch screen display, the 15.6 Inch Embedded Touch Panel PC enables intuitive interaction and efficient operation. The touch panel allows users to navigate menus, input data, and control functions with ease, enhancing productivity and user experience in industrial environments.
Designed for durability and reliability, this industrial panel PC is built to withstand harsh conditions and continuous operation. Its rugged construction and high-quality components ensure long-term performance and minimal downtime, making it an ideal solution for mission-critical applications.
Whether used for monitoring processes, controlling machinery, or managing data, the Embedded Touch Panel PC offers seamless integration and reliable performance. Its compact design and versatile mounting options allow for easy installation in various industrial settings, maximizing space efficiency and operational flexibility.
In conclusion, the 15.6 Inch Embedded Touch Panel PC is a powerful and dependable solution for industrial applications that require a reliable and efficient computing platform. With its advanced features, durable design, and responsive touch screen display, this industrial panel PC provides the performance and reliability needed to streamline operations and enhance productivity in industrial environments.
Features:
· Product Name: Embedded Touch Panel PC
· Screen Size: 15.6 Inch
· Interface: USB/RJ45/COM/VGA/HDMI/DC12V
· Warranty: 1 Year
· Operating System: Windows 10/11/Linux
· CPU: J1900/J6412/J6413/I3/I5/I7
Technical Parameters:
Product Name | 15.6 Inch Embedded Touch Panel PC |
Key Words | Industrial Embedded Touch Panel PC |
Warranty | 1 Year |
Operating System | Window10/11/Linux |
Input Voltage | 12-36V |
Memory | Memory |
Screen Size | 15.6 Inch |
Interface | USB/RJ45/COM/VGA/HDMI/DC12V |
Storage | 32G/64G/128G/256G SSD |
CPU | J1900/J6412/J6413/I3/I5/I7 |
Applications:
The INNODAPC IND156PC is a versatile 15.6 Inch Embedded Touch Panel PC designed for a wide range of industrial applications. With its robust design and advanced features, this industrial panel PC with touch screen is ideal for various industries and scenarios.
Product Application Occasions and Scenarios:
- Industrial Automation: The IND156PC is perfect for industrial automation applications such as factory automation, process control, and monitoring systems. Its reliable performance and touch interface make it easy to operate in industrial environments.
- Digital Signage: This industrial touch panel PC can be used for digital signage displays in retail stores, shopping malls, transportation hubs, and other public places. Its interactive touch screen allows for engaging user experiences and dynamic content display.
- IoT and Smart Home Control: With its compact size and powerful features, the IND156PC is suitable for IoT applications and smart home control systems. It can be used to control and monitor smart devices, home automation systems, and IoT networks with ease.
- HMI (Human-Machine Interface): The Embedded Touch Panel PC is an ideal solution for HMI applications in various industries, including manufacturing, energy, transportation, and healthcare. Its intuitive touch interface and compatibility with different operating systems make it a versatile choice for HMI control.
- Embedded Systems Development: Developers and engineers can use the IND156PC for embedded systems development, testing, and prototyping. Its multiple interface options, storage capacities, and compatibility with various operating systems make it a valuable tool for embedded systems projects.
Whether you need an industrial panel PC for automation, digital signage, IoT, HMI, or embedded systems development, the INNODAPC IND156PC offers a reliable and feature-rich solution. With certifications such as RoHS, CCC, SRRC, FCC, and IP65, a minimum order quantity of 1 piece, and a warranty of 1 year, this industrial touch panel PC from China is a versatile and high-quality product.
Customization:
Product Customization Services for the Embedded Touch Panel PC:
Brand Name: INNODAPC
Model Number: IND156PC
Place of Origin: China
Certification: RoHS, CCC, SRRC, FCC, IP65
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Warranty: 1 Year
Screen Size: 15.6 Inch
Interface: USB/RJ45/COM/VGA/HDMI/DC12V
Input Voltage: 12-36V
CPU: J1900/J6412/J6413/I3/I5/I7
Keywords: fanless industrial panel pc, Embedded Panel PC, panel pc
Support and Services:
Our Embedded Touch Panel PC product offers comprehensive technical support and services to ensure smooth operation and optimal performance. Our technical support team is available to assist with any product-related inquiries, troubleshooting, and guidance. We provide timely software updates, firmware upgrades, and documentation to keep your system up-to-date and secure. Additionally, we offer customized services such as on-site installation, training, and consulting to meet your specific requirements. Our goal is to provide you with the support you need to maximize the benefits of our Embedded Touch Panel PC.
Packing and Shipping:
Product Packaging:
The Embedded Touch Panel PC is carefully packaged to ensure safe delivery. It is securely wrapped in protective materials to prevent any damage during transit.
Shipping:
We offer fast and reliable shipping for the Embedded Touch Panel PC. Your order will be processed promptly, and you can track your shipment to know exactly when to expect delivery.
