High Brightness Monitor
11.6 15.6 Inch Embedded High Brightness 1000 Nits Sunlight Readable Surface Waterproof IP65 Capacitive Industrial Monitor

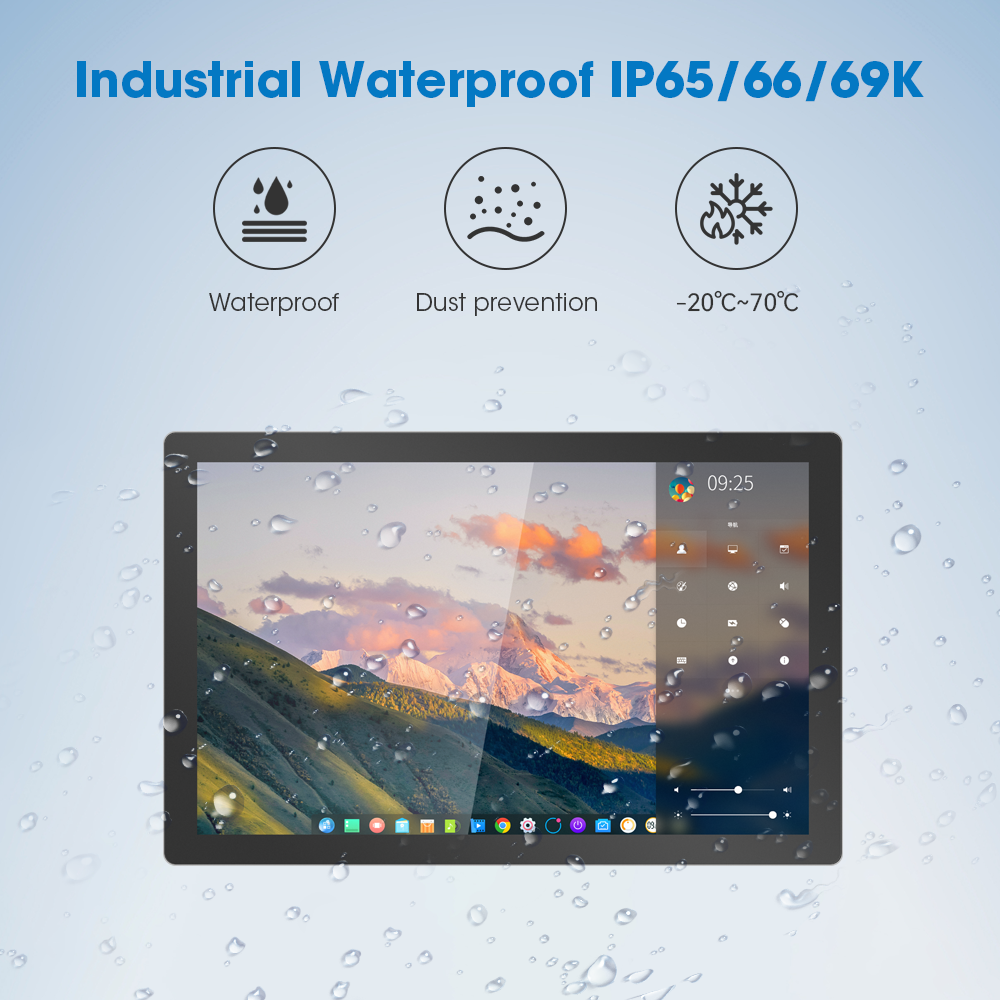

  • Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , front IP65 waterproof and dustproof.

  • Industrial LCD panel, full view angle, 1000nits sunlight readable, with light sensor for auto dimming.

  • 10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment.

  • EETI waterproof solution, the touch function can work well with drop water on the screen.

  • The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation

    -20 °C ~ 70°C  (-4°F ~158°F).

  • Optical bonding, Prevent condensation and fogging inside the screen and increase transmittance.


Download Specs:

SPECIFICATIONS

Shenzhen Innoda Technology Co., Ltd


LCD   Panel Charateristics
Screen Size15.6 '' LCD/LED Panel(7-55inch is supported)
Touchscreen TypeCapacitive   Touch(4/5Resistive/IR/SAW option)
Resolution1920(H)*1080(V)
Aspect Ratio16:9
Brightness1000-1500cd/m2
View Angle80x80(H),80x80(V)
Contrast Ratio700:1
Touch   screen Characteristics (Optional)
Touchscreen Type4-Wire   Resistive5-Wire   ResistiveProjected   CapacitiveSaw   TouchIR   Touch
Surface Hardness3H4H7H7H7H
Working Life10   millions times10   millions times10   millions times10   millions times10   millions times
Transparency82%(±3%)88%(±3%)95%(±3%)95%(±3%)95%(±3%)

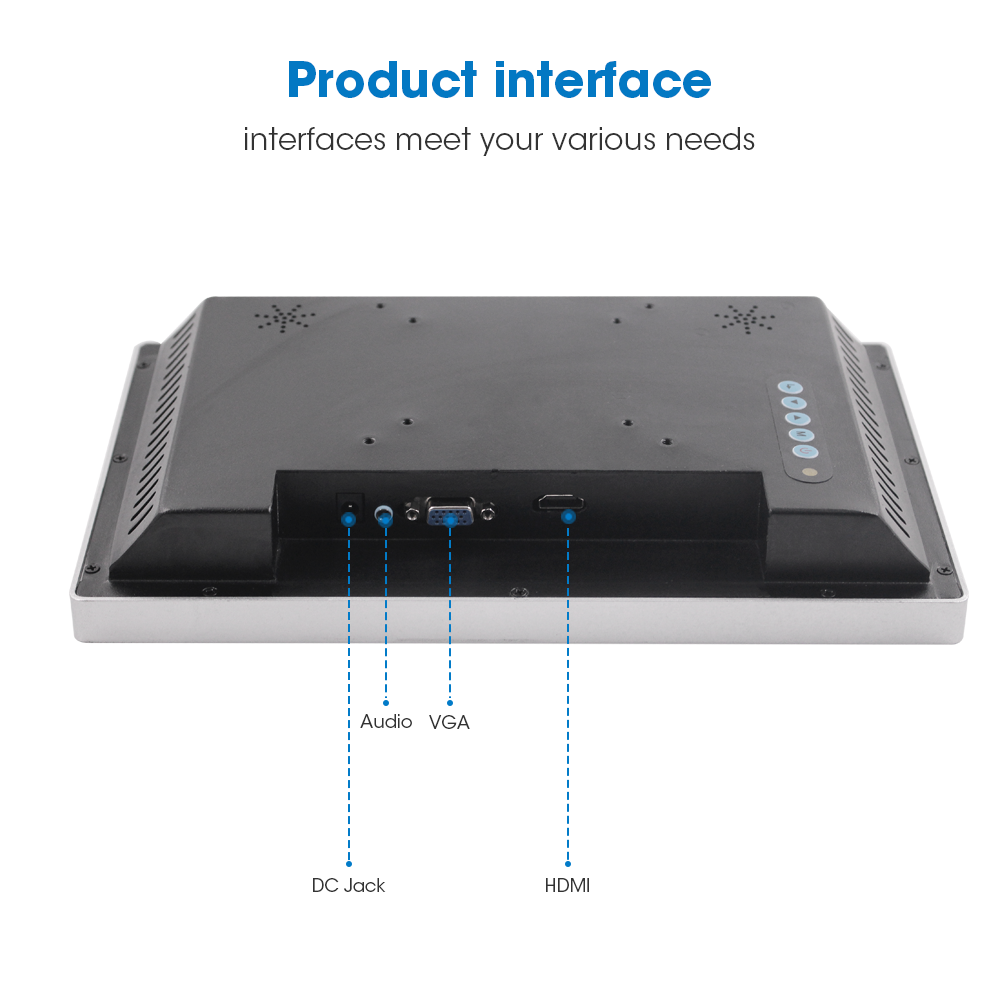

I/O Interface(optional)
USB2.0(optional USB3.0)1
HDMI1
DC12V
Audio I/O
VGA1
Other Information
Frame MaterialAluminum   Alloy/Stainless Steel/Metal
Sheel Process TechnicPowder   coated/Wire Drawing/CNC craft
ColorDefault   balck,also can choose white,silvery or other colour
VASA Mounting75*75   / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional)
Weight4KG

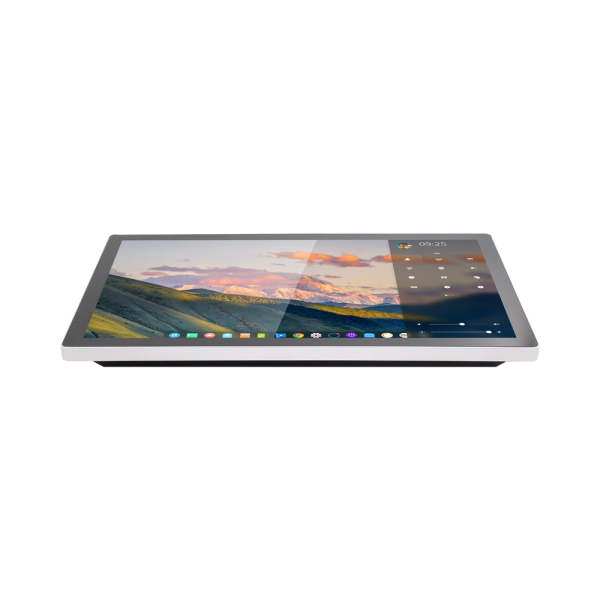

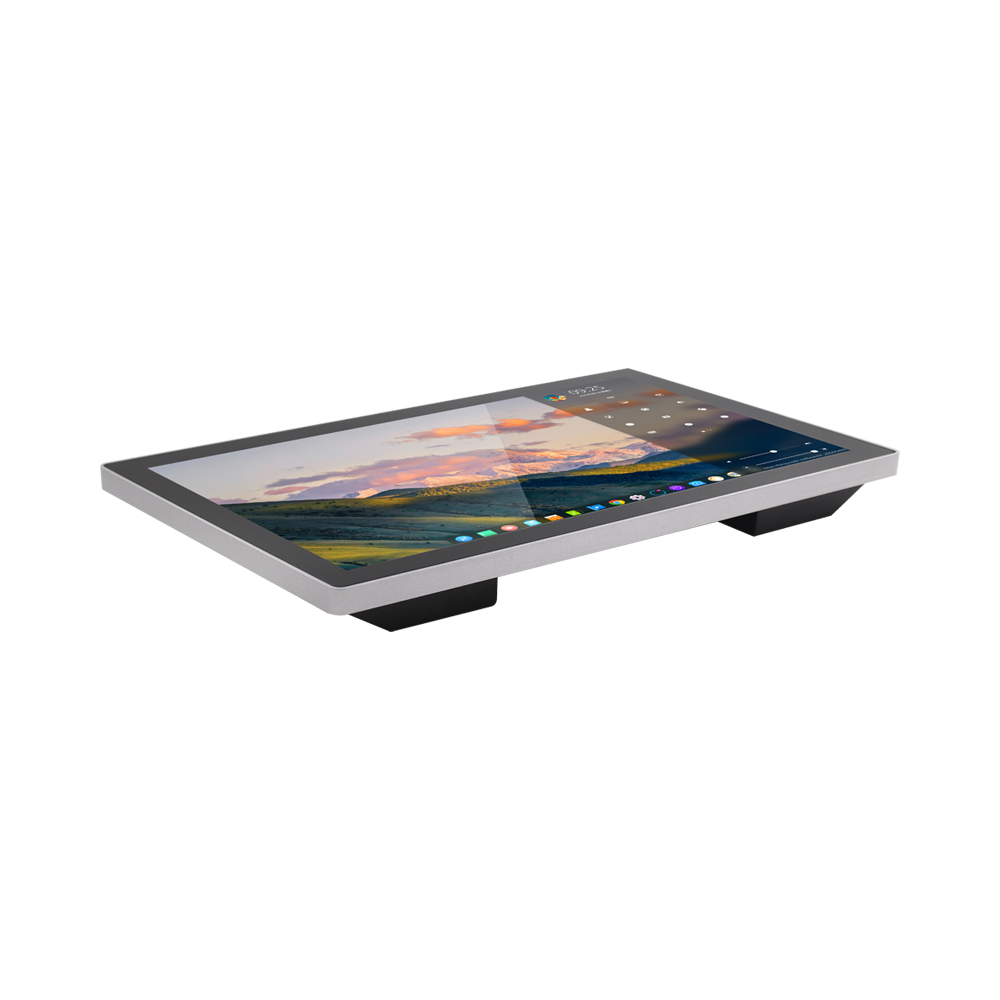

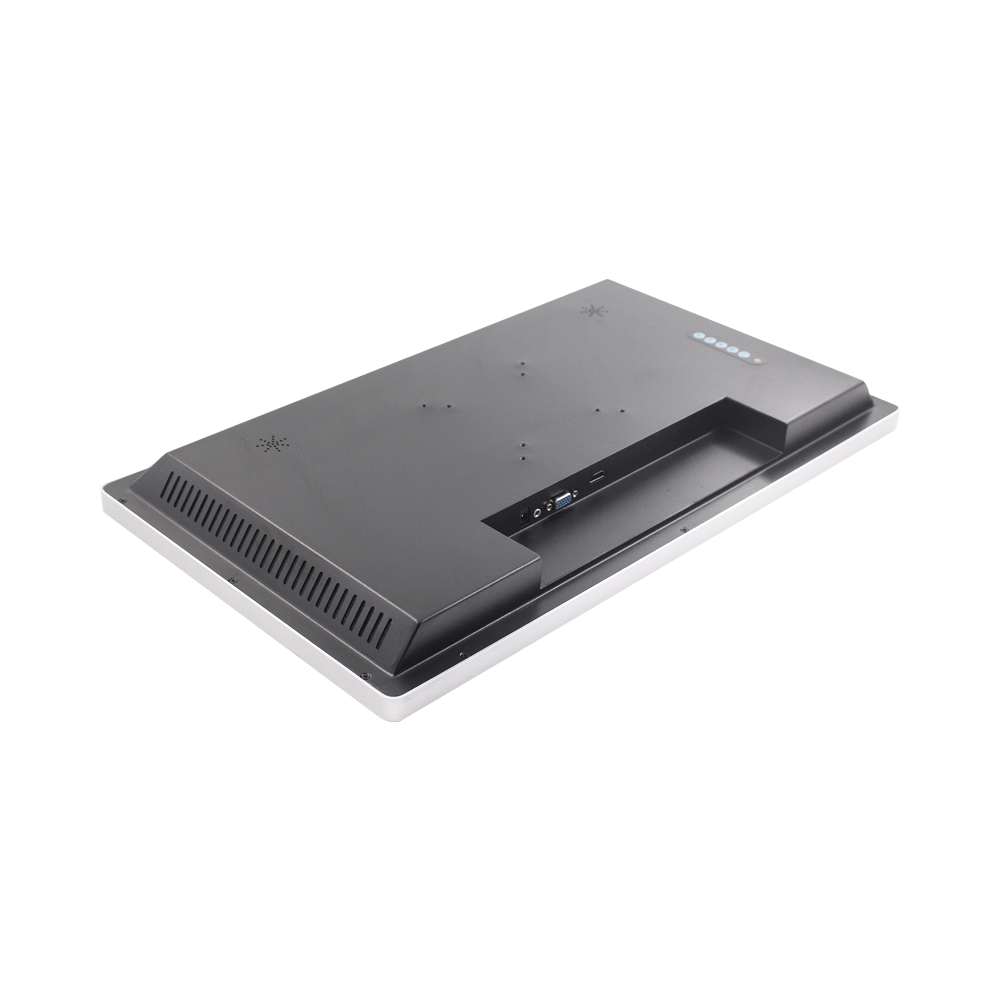

PRODUCT PICTURE

Shenzhen Innoda Technology Co., Ltd





Product Description:

Available in sizes of 15.6, 18.5, and 21.5 inches, the Sunlight Readable LCD Monitor offers versatility to suit various industrial applications. Whether you need a compact display for tight spaces or a larger screen for detailed visualization, this monitor has you covered.

Equipped with HDMI, USB, and POWER interfaces, the Sunlight Readable LCD Monitor ensures seamless connectivity with a wide range of devices, giving you the flexibility to integrate it into your existing setup with ease. Whether you need to display data from a computer, connect a USB peripheral, or power the monitor, the interface options have you covered.

Featuring 10 Points Capacitive Touch technology, this Industrial LCD Panel Display provides a responsive and intuitive touch experience. Whether you are interacting with detailed schematics, navigating menus, or inputting data, the 10 Points Capacitive Touch ensures precise and accurate touch input, enhancing user interaction.

When it comes to installation, the Sunlight Readable LCD Monitor offers multiple options to suit your preferences. Whether you prefer a VESA Wall Mount setup for a clean and space-saving installation, or a Yoke installation for added flexibility in positioning, this monitor provides the versatility you need.

In conclusion, the Sunlight Readable LCD Monitor is a versatile and high-performance display solution designed for demanding industrial environments. With its impressive brightness, range of sizes, versatile interfaces, responsive touch technology, and flexible installation options, this Industrial LCD Monitor is a reliable choice for a wide range of industrial applications.



Features:

· Product Name: Sunlight Readable LCD Monitor

· Size: 15.6/18.5/21.5 Inch

· Resolution: 1920*1080

· Brightness: 1000-1500Nits

· Interface: HDMI/USB/POWER

· Installation: VESA Wall Mount/Yoke



Technical Parameters:

Installation

VESA Wall Mount/Yoke

Touch points

10 Points Capacitive Touch

Resolution

1920*1080

Size

15.6/18.5/21.5 Inch

Interface

HDMI/USB/POWER

Brightness

1000-1500Nits



Applications:

INNODA's Sunlight Readable LCD Monitor, model number IND156M, is a versatile display solution designed for various product application occasions and scenarios. With its high brightness and industrial-grade features, this Industrial LCD Panel Display is suitable for a range of environments.

Place of Origin: China

Certified with CE, RoHS, FCC, IP65, IP66, and IP67, this Industrial LCD Monitor ensures compliance with international standards for quality and safety.

Whether used in outdoor settings, industrial facilities, or commercial applications, the IND156M offers exceptional visibility and durability. The 1920*1080 resolution delivers crisp and clear images, while the 10 Points Capacitive Touch technology provides a user-friendly interface.

Available in sizes ranging from 15.6 to 21.5 inches, this High Brightness LCD Monitor can be customized to fit specific requirements. The HDMI, USB, and POWER interfaces offer seamless connectivity options for various devices.

With VESA Wall Mount/Yoke installation, the monitor can be easily integrated into different setups. The minimum order quantity of 1 unit and packaging details of 1pc/carton make procurement convenient and cost-effective.

INNODA ensures a supply ability of 3000 pieces per month, with a delivery time of 25 working days. This makes the IND156M an ideal choice for projects requiring reliable Industrial LCD Monitors within a reasonable timeframe.



Customization:

Product Customization Services for Sunlight Readable LCD Monitor:

Brand Name: INNODA

Model Number: IND156M

Place of Origin: China

Certification: CE, RoHS, FCC, IP65, IP66, IP67

Minimum Order Quantity: 1

Packaging Details: 1pc/carton weight: 7kgs/pc, packing size: 45×35×12cm

Delivery Time: 25 working days

Supply Ability: 3000 pieces per month

Touch Points: 10 Points Capacitive Touch

Resolution: 1920*1080

Size: 15.6/18.5/21.5 Inch

Installation: VESA Wall Mount/Yoke

Brightness: 1000-1500Nits

Keywords: Indoor LED Display Screen, High Brightness LCD Display, Indoor LED Display Screen



Support and Services:

The Sunlight Readable LCD Monitor product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our team of experts is available to assist with any technical inquiries, troubleshooting, or guidance related to the product. Additionally, we offer maintenance services, software updates, and warranty support to address any issues that may arise during the product's lifecycle.



Packing and Shipping:

Product Packaging:

The Sunlight Readable LCD Monitor is carefully packaged to ensure safe delivery to our customers. Each monitor is securely wrapped in protective material to prevent any damage during transit. The packaging is sturdy and designed to withstand rough handling during shipping.

Shipping:

We offer fast and reliable shipping options for our Sunlight Readable LCD Monitor. Once your order is processed, the monitor will be shipped promptly to your specified address. Our shipping partners are experienced in handling delicate electronics to ensure that your monitor arrives in perfect condition.




    If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

  • #
  • #
  • #
