High Brightness Monitor

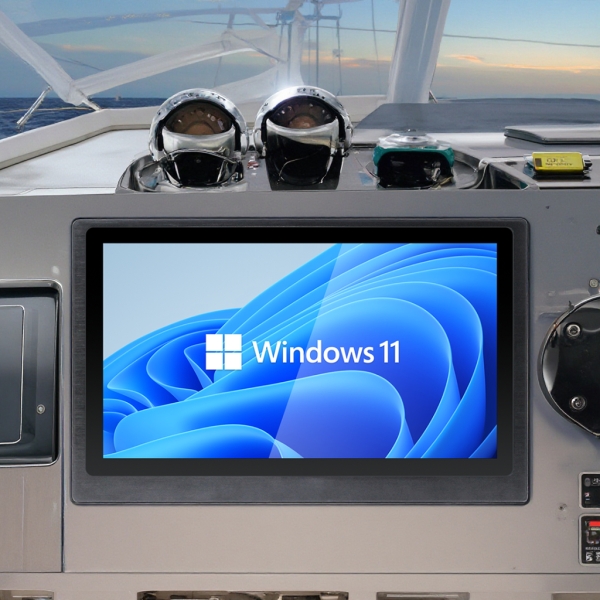

21.5 Inch Marine/yachts Displays 1000-1500Nits Outdoor Ag+glass Binding Ip66 Waterproof Industrial Touch Screen Monitor
  • Aluminum alloy frame sandblasting oxidation process, anti-UV and anti-discoloration treatment, Full IP67 waterproof, narrow frame design, Gimble Mount design, support side M10 bracket installation

  • Industrial-grade LCD screen, full viewing angle, 1500 brightness visible in the sun, knob to adjust brightness

  • Touch button OSD

  • Isolated power input, support DC9-36V

  • 10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H, and the surface AG anti-glare treatment

  • EETI touch control solution, normal touch when there are water droplets on the touch screen

  • Adopt industrial-grade components, 7x24 hours work, support wide temperature operation -20℃~70℃

  • Optical bonding between LCD and touch screen

  • With dimmer design, can adjust the brightness from 100% to 0


Download Specs:

SPECIFICATIONS

Shenzhen Innoda Technology Co., Ltd

LCD Panel Charateristics
Screen Size15.6 18.5 21.5'' LCD/LED Panel(7-55inch is supported)
Touchscreen TypeCapacitive Touch(4/5Resistive/IR/SAW option)
Resolution1920(H)*1080(V)
Aspect Ratio16:9
Brightness1000-1500cd/m2
View Angle80x80(H),80x80(V)
Contrast Ratio700:1
Touch screen   Characteristics (Optional)
Touchscreen   Type4-Wire Resistive5-Wire   ResistiveProjected CapacitiveSaw TouchIR Touch
Surface Hardness3H4H7H7H7H
Working Life10 millions times10 millions times10 millions times10 millions times10 millions times
Transparency82%(±3%)88%(±3%)95%(±3%)95%(±3%)95%(±3%)

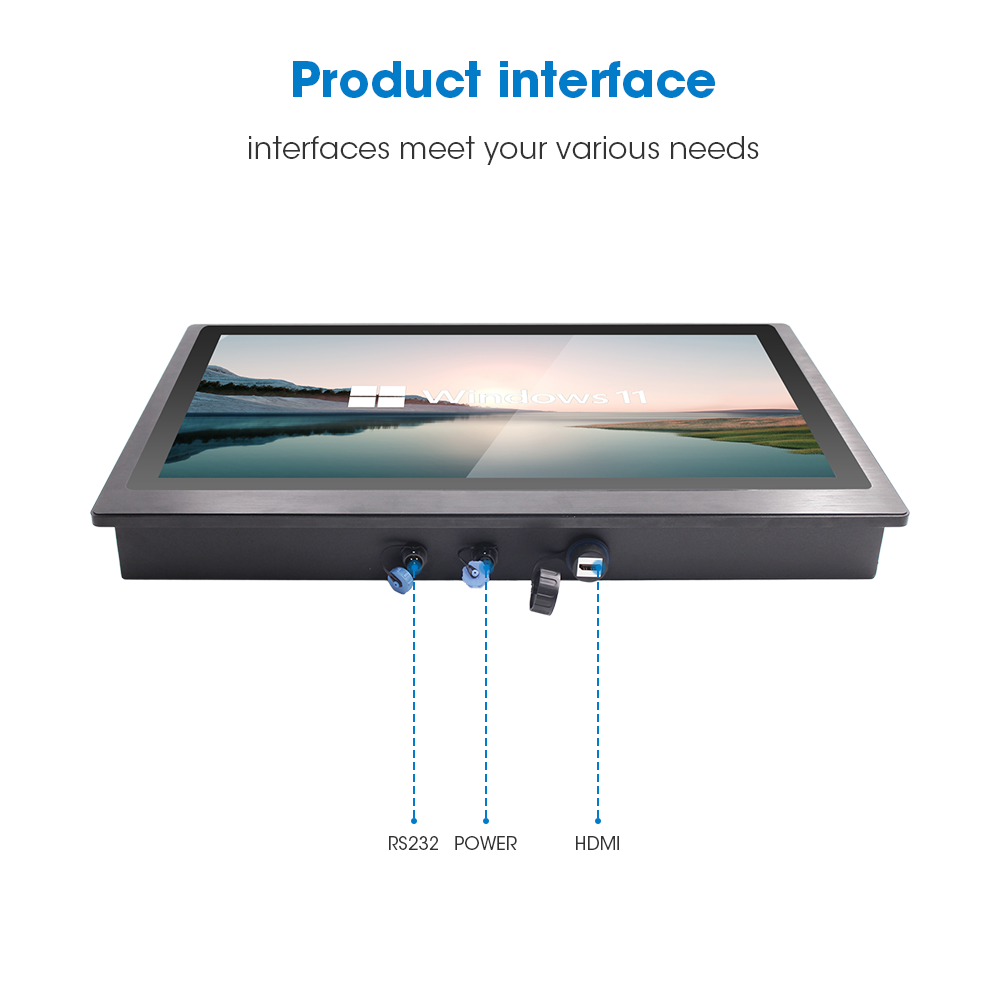

I/O Interface(optional)
USB2.0(optional USB3.0)1
HDMI1
DC12V
Audio I/O
VGA1
Other Information
Frame MaterialAluminum Alloy/Stainless Steel/Metal
Sheel   Process TechnicPowder coated/Wire Drawing/CNC craft
ColorDefault balck,also can choose white,silvery or other   colour
VASA Mounting75*75 / 100*100 mm. Wall   Mount/Desktop/Embedded/Rack-Mount(optional)
Weight7KG

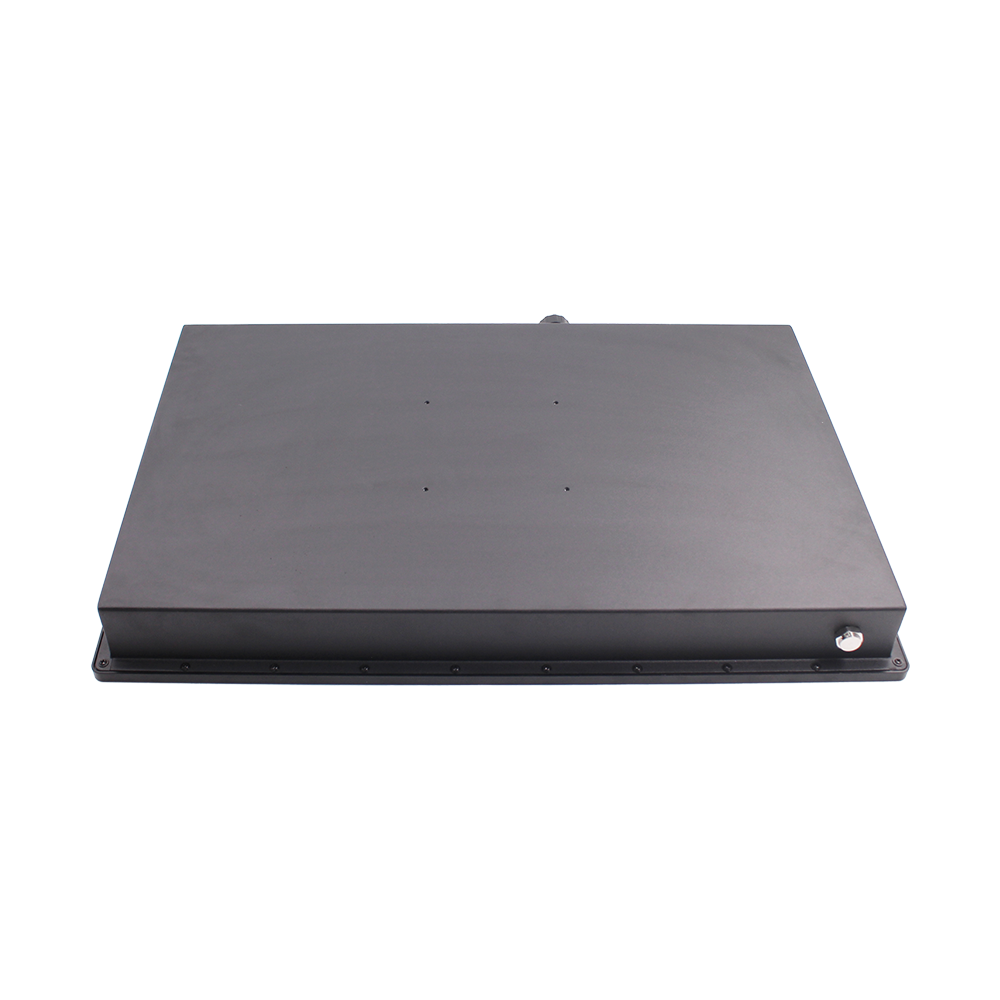

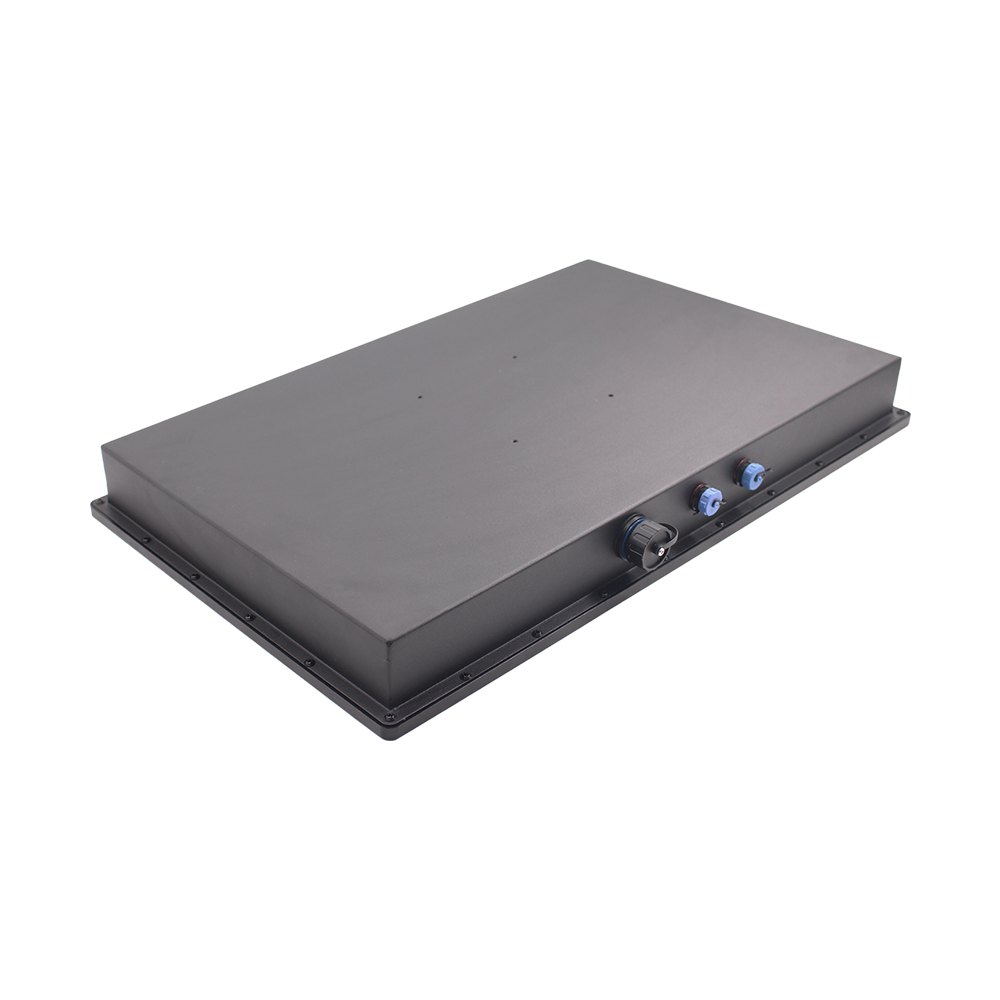

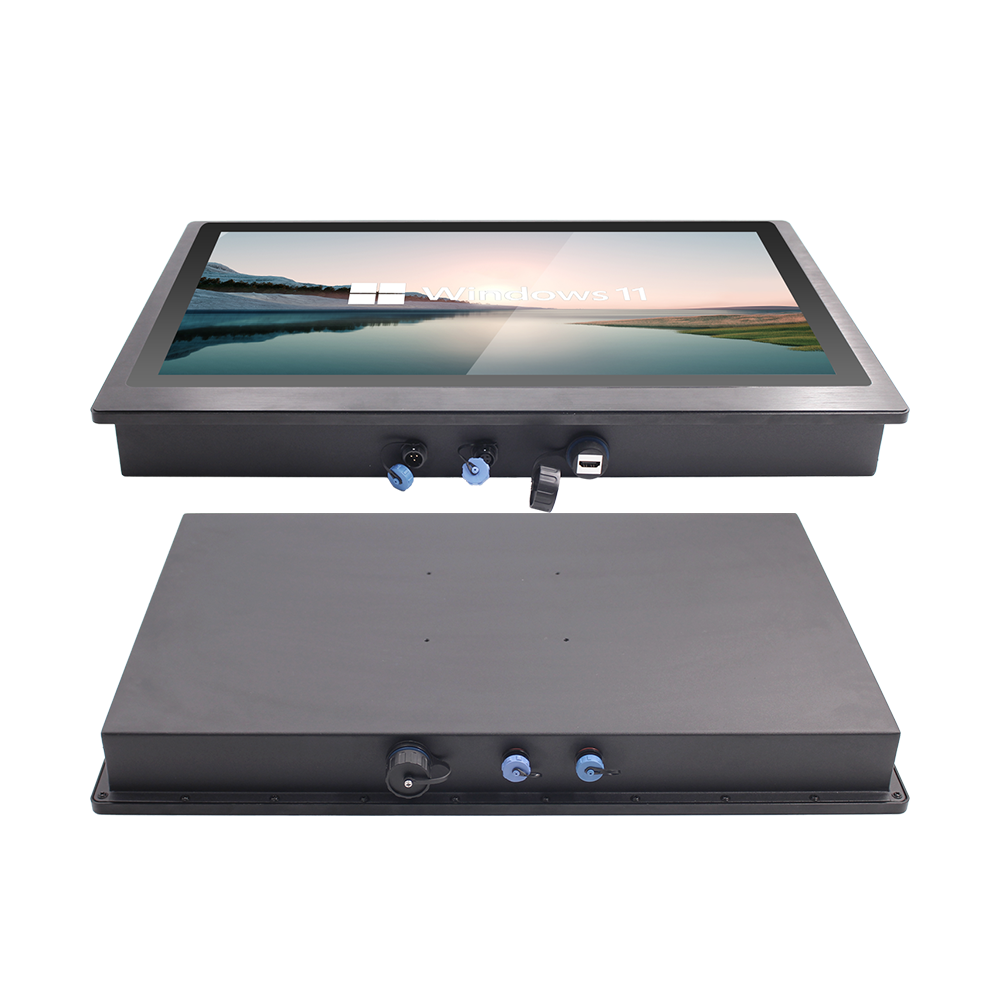

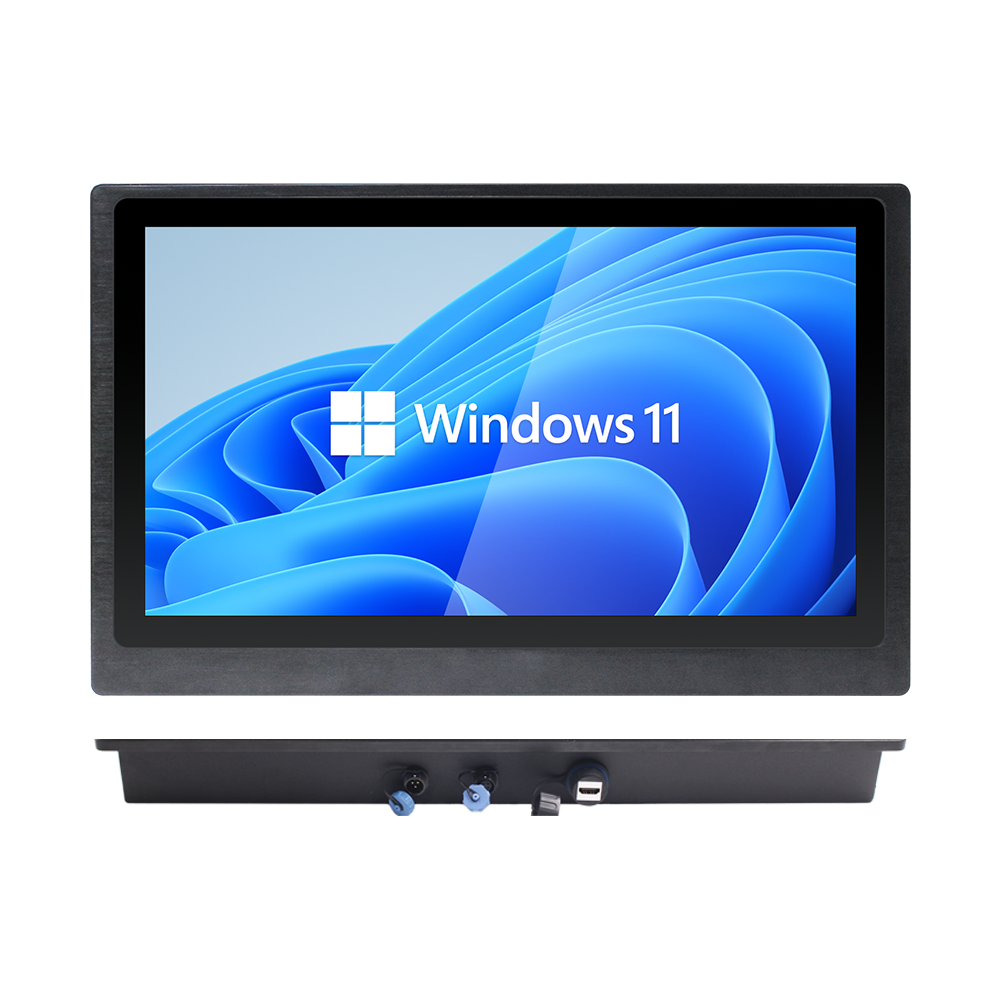

PRODUCT PICTURE

Shenzhen Innoda Technology Co., Ltd






Features:

· Product Name: Sunlight Readable LCD Monitor

· Brightness: 1000-1500Nits

· Resolution: 1920*1080

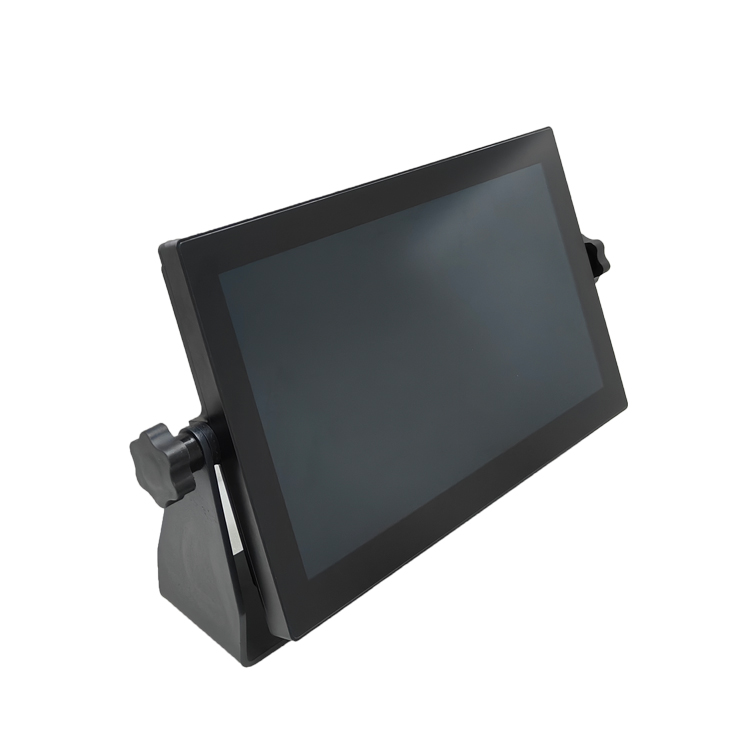

· Installation: VESA Wall Mount/Yoke

· Size: 15.6/18.5/21.5 Inch

· Touch points: 10 Points Capacitive Touch



Technical Parameters:

Size

15.6/18.5/21.5 Inch

Installation

VESA Wall Mount/Yoke

Brightness

1000-1500Nits

Resolution

1920*1080

Interface

HDMI/USB/POWER

Touch points

10 Points Capacitive Touch



Applications:

INNODA's IND156M Sunlight Readable LCD Monitor is a versatile product suitable for a wide range of Product Application Occasions and Scenarios. With its high brightness levels and durable design, this Industrial LCD Display Monitor is ideal for both indoor and outdoor use.

Manufactured in China, the IND156M is certified with CE, RoHS, FCC, IP65, IP66, and IP67 certifications, ensuring high quality and compliance with international standards. The minimum order quantity is just 1 unit, making it accessible for various applications.

Whether it's for outdoor digital signage, industrial control systems, or indoor led display screens, the IND156M is a reliable choice. The 1920x1080 resolution and sizes ranging from 15.6 to 21.5 inches provide clear and crisp visuals for any scenario.

Equipped with interfaces such as HDMI, USB, and POWER, this LCD monitor offers versatile connectivity options. The high brightness of 1000-1500 nits ensures visibility even in direct sunlight, making it perfect for outdoor installations.

With 10 Points Capacitive Touch technology, the IND156M provides a responsive and intuitive touch experience, suitable for interactive kiosks, control panels, and more. The sturdy packaging details ensure safe delivery, with each unit weighing 7kgs and dimensions of 45x35x12cm.

INNODA's IND156M Sunlight Readable LCD Monitor has a delivery time of 25 working days and a supply ability of 3000 pieces per month, making it a reliable choice for various industrial and commercial applications.



Customization:

Product Customization Services for the Sunlight Readable LCD Monitor:

- Brand Name: INNODA

- Model Number: IND156M

- Place of Origin: China

- Certification: CE, RoHS, FCC, IP65, IP66, IP67

- Minimum Order Quantity: 1

- Packaging Details: 1pc/carton weight: 7kgs/pc, packing size: 45×35×12cm

- Delivery Time: 25 working days

- Supply Ability: 3000 pieces per month

- Brightness: 1000-1500Nits

- Interface: HDMI/USB/POWER

- Resolution: 1920*1080

- Installation: VESA Wall Mount/Yoke

- Size: 15.6/18.5/21.5 Inch

Keywords: High Brightness LCD Display, High Brightness LCD Monitor, Industrial LCD Panel Display



Support and Services:

The Sunlight Readable LCD Monitor product comes with comprehensive Product Technical Support and Services to ensure the optimal performance and satisfaction of users. Our technical support team is available to assist with any product-related queries, troubleshooting, and guidance on product usage. Additionally, we offer various services such as installation support, firmware updates, and warranty coverage to provide a seamless experience for our customers.



Packing and Shipping:

Product Packaging and Shipping for Sunlight Readable LCD Monitor:

Our Sunlight Readable LCD Monitor is carefully packaged to ensure safe delivery to your doorstep. The product is packaged in a sturdy cardboard box with ample cushioning to prevent any damage during transit.

Shipping Method: We offer reliable shipping services to ensure your Sunlight Readable LCD Monitor reaches you in perfect condition. The product will be shipped using a trusted carrier with tracking information provided for your convenience.
