Stainless steel SS304, Full IP67 waterproof, M 16 metal waterproof connector
Industrial grade LCD screen, full viewing angle
10-point capacitive touch screen, cover 2mm tempered glass (chemically strengthened), the hardness reaches 7H
EETI touch control solution, can touch well with drop water
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
The touch screen and LCD screen are optical bond
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1280(H)*1024(V) |
| Aspect Ratio | 4：3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 9KG |

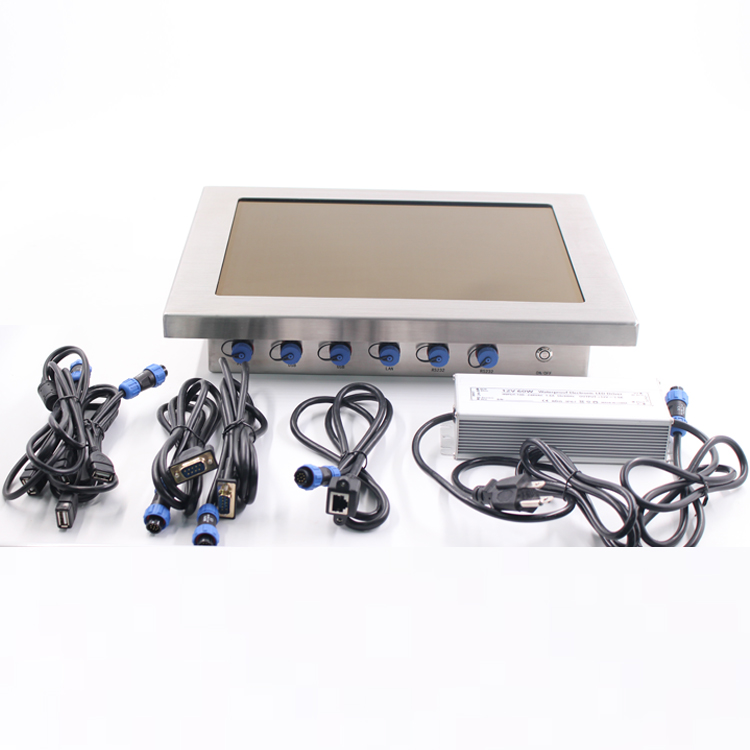

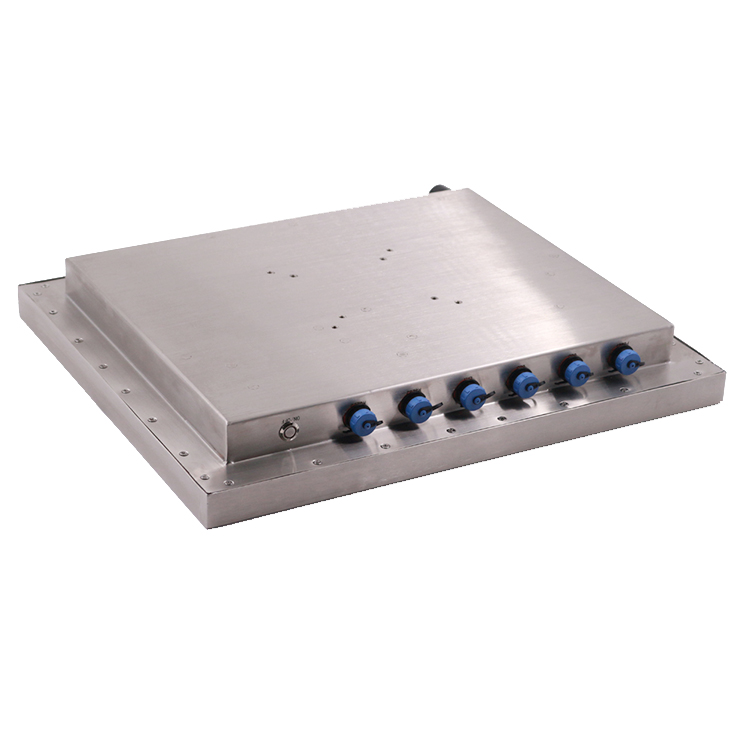

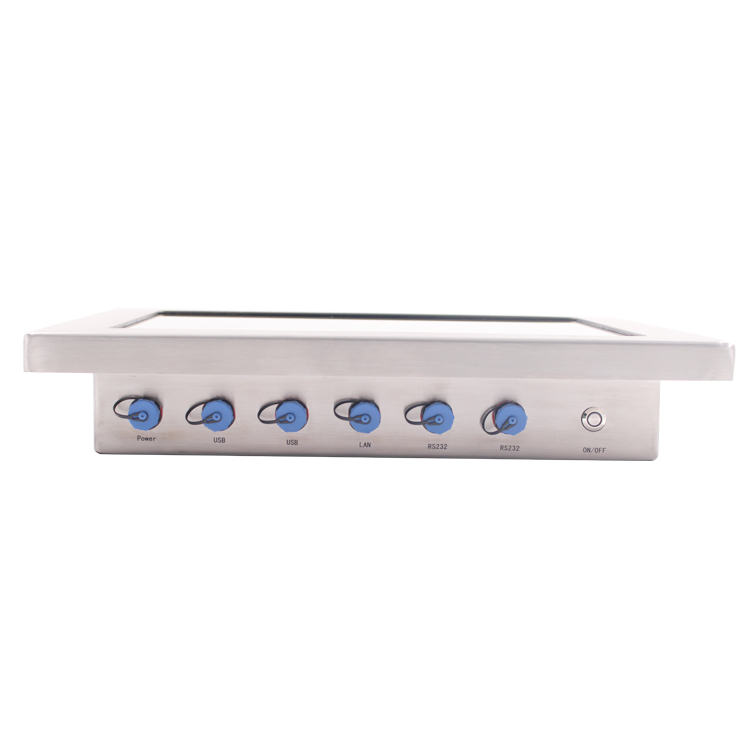

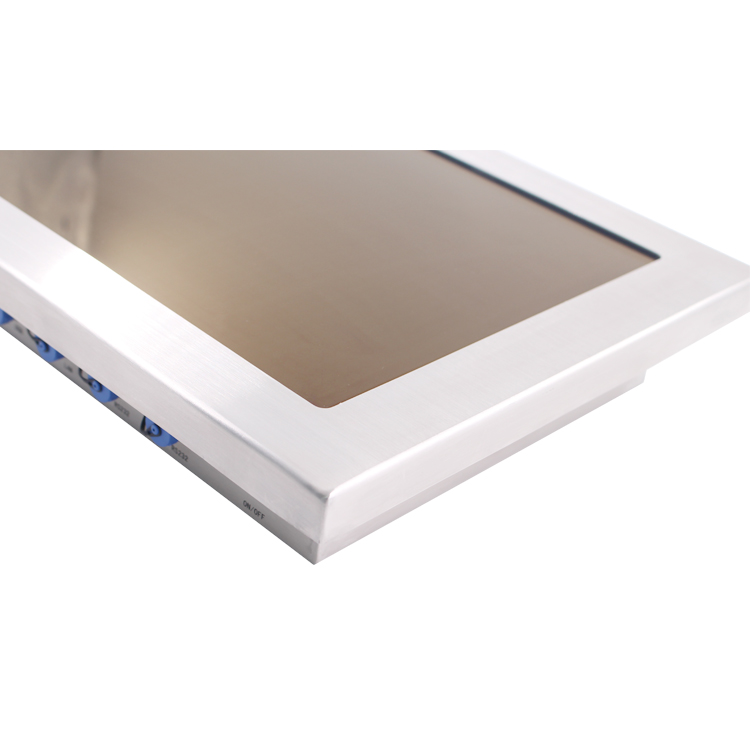

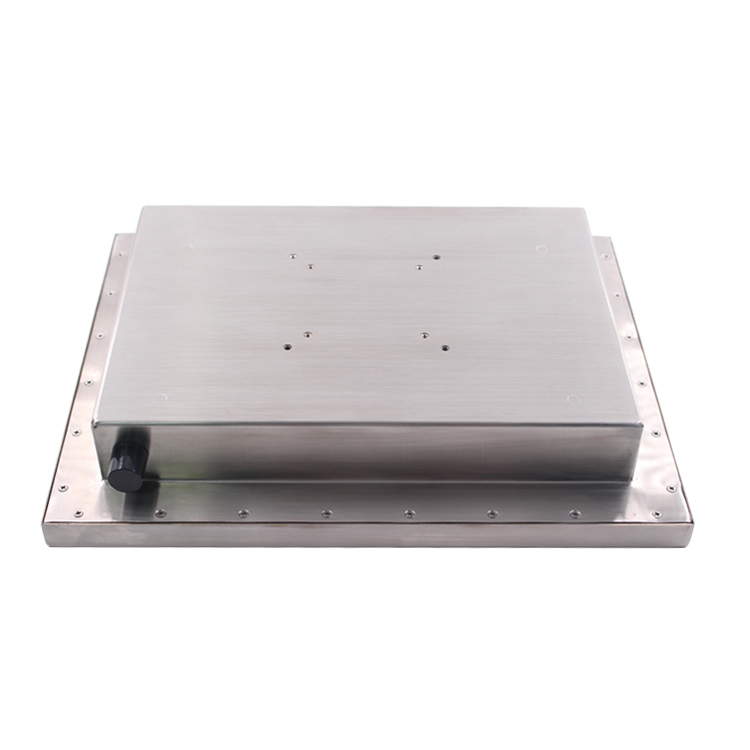

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
Introducing our innovative Steel Enclosure Industrial Computer designed to meet the demands of various industrial environments. This rugged Stainless Steel Panel PC is built to withstand tough conditions while providing reliable performance. With a high resolution of 1280*1024, this panel PC delivers crisp and clear visuals for enhanced user experience.
Equipped with a range of hard disk options including 128G, 256G, and 512G, this Steel Enclosure Industrial Computer offers ample storage capacity to meet your specific needs. Whether you require a higher storage capacity for data-intensive applications or a more compact storage solution, this panel PC provides flexibility to accommodate your requirements.
The CPU options available for this Steel Enclosure Industrial Computer include Intel J6412, J6413, I3, I5, and I7 processors. These powerful CPUs ensure smooth and efficient operation, allowing you to run multiple applications simultaneously without compromising performance.
Designed to withstand harsh environments, this Steel Enclosure Industrial Computer boasts a high IP grade rating of IP67, IP68, or IP69K. This waterproof and dustproof design ensures reliable operation even in challenging conditions, making it ideal for industries such as manufacturing, food processing, and outdoor installations.
For added connectivity options, this panel PC features optional WIFI capability. This allows for wireless networking, enabling seamless communication and data transfer in industrial settings where wired connections may not be feasible or convenient.
Whether you need a durable and reliable computing solution for your industrial applications, the Steel Enclosure Industrial Computer is the ideal choice. With its robust stainless steel construction, high-resolution display, flexible storage options, powerful CPU configurations, and waterproof design, this panel PC offers the performance and durability required to meet the demands of industrial environments.
Features:
· Product Name: Stainless Steel Panel PC
· Memory: 16G/32G/64G
· CPU: Intel J6412/6413/I3/I5/I7
· Client Logo: Acceptable
· WIFI: Optional
· IP Grade: Waterproof IP67/68/69K
Technical Parameters:
Interface | USB/RJ45/COM |
Resolution | 1280*1024 |
Size of screen | 15 Inch |
WIFI | Optional |
Touchscreen Type | Capacitive Touchscreen |
Hard disk | 128G/256G/512G/ |
Client Logo | Acceptable |
CPU | Intel J6412/6413/I3/I5/I7 |
IP Grade | Waterproof IP67/68/69K |
Memory | 16G/32G/64G |
Applications:
Stainless Steel Embedded panel pc, Rugged Stainless Steel pc, Stainless Steel All-in-One PC by INNODA, model number IND150PC, is a versatile and durable product suitable for various application occasions and scenarios.
Originating from Shenzhen, China, this panel PC is equipped with certifications such as CE, RoHS, FCC, and IP65, ensuring high quality and compliance with industry standards. With a minimum order quantity of just 1 piece and a supply ability of 2000 pieces per month, it offers flexibility for both individual and bulk purchases.
Designed for tough environments, this panel PC is ideal for use in industrial settings, outdoor locations, and areas prone to moisture and dust. Its stainless steel construction provides durability and resistance to harsh conditions, making it suitable for manufacturing plants, warehouses, and outdoor kiosks.
The touchscreen feature, with capacitive touchscreen type, enhances user interaction and ease of use. The IP grade of waterproof IP67/68/69K ensures protection against water and dust ingress, further enhancing its suitability for challenging environments.
With multiple memory options (16G/32G/64G) and hard disk capacities (128G/256G/512G), this panel PC offers flexibility to meet varying storage and performance needs. The resolution of 1280*1024 provides crisp and clear display quality for diverse applications.
When it comes to logistics, the packaging details include 1 piece per carton with a weight of 6kgs and dimensions of 45×35×12cm. The delivery time is 25 working days upon receipt of payment, with payment terms such as T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram, ensuring convenient transaction options for customers.
Customization:
Product Customization Services for Rugged Stainless Steel PC
Brand Name: INNODA
Model Number: IND150PC
Place of Origin: Shenzhen, China
Certification: CE, RoHS, FCC, IP65
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 6kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 2000 pieces per month
Resolution: 1280*1024
Memory: 16G/32G/64G
Hard disk: 128G/256G/512G
WIFI: Optional
IP Grade: Waterproof IP67/68/69K
Product Customization Services for Stainless Steel Embedded Panel PC
Product Customization Services for Stainless Steel All-in-One PC
Support and Services:
Our Stainless Steel Panel PC product comes with comprehensive technical support and services to ensure smooth operation and customer satisfaction. Our team of knowledgeable experts is available to assist with any product-related inquiries, troubleshooting, and technical issues that may arise.
Additionally, we offer a range of services to enhance the usability and functionality of our Stainless Steel Panel PC, including installation support, software updates, and maintenance assistance. Our goal is to provide a seamless experience for our customers and help maximize the performance of our products.
Packing and Shipping:
Product Packaging:
The Stainless Steel Panel PC is carefully packaged in a sturdy cardboard box to ensure safe delivery. The PC is wrapped in protective foam and includes all necessary cables and accessories.
Shipping:
We offer fast and reliable shipping for the Stainless Steel Panel PC. Orders are processed within 1-2 business days and shipped via reputable carriers to ensure timely delivery. Tracking information will be provided once the order has been dispatched.
