Stainless steel SS304, Full IP67 waterproof, M 16 metal waterproof connector
Industrial grade LCD screen, full viewing angle
10-point capacitive touch screen, cover 2mm tempered glass (chemically strengthened), the hardness reaches 7H
EETI touch control solution, can touch well with drop water
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
The touch screen and LCD screen are optical bond
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1280(H)*1024(V) |
| Aspect Ratio | 4：3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 6KG |

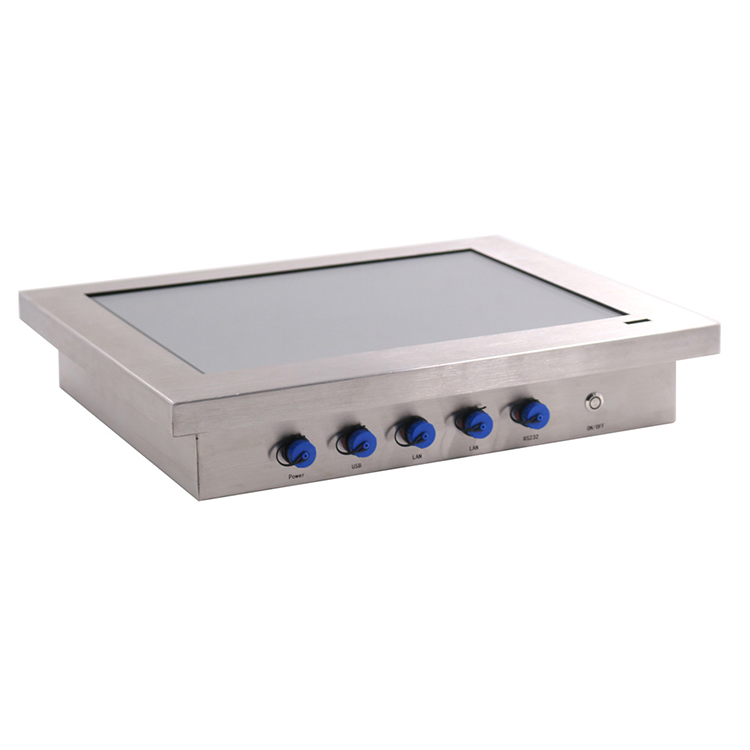

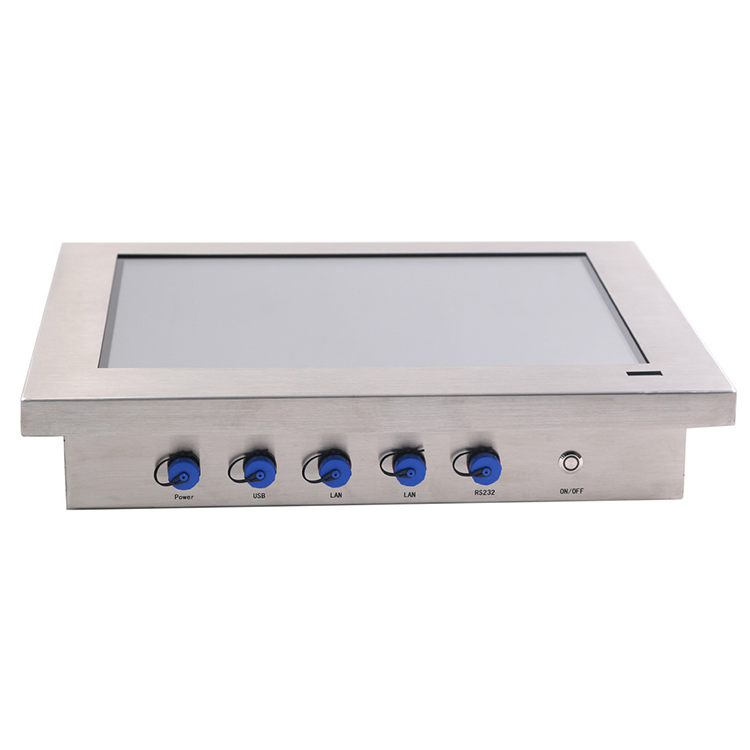

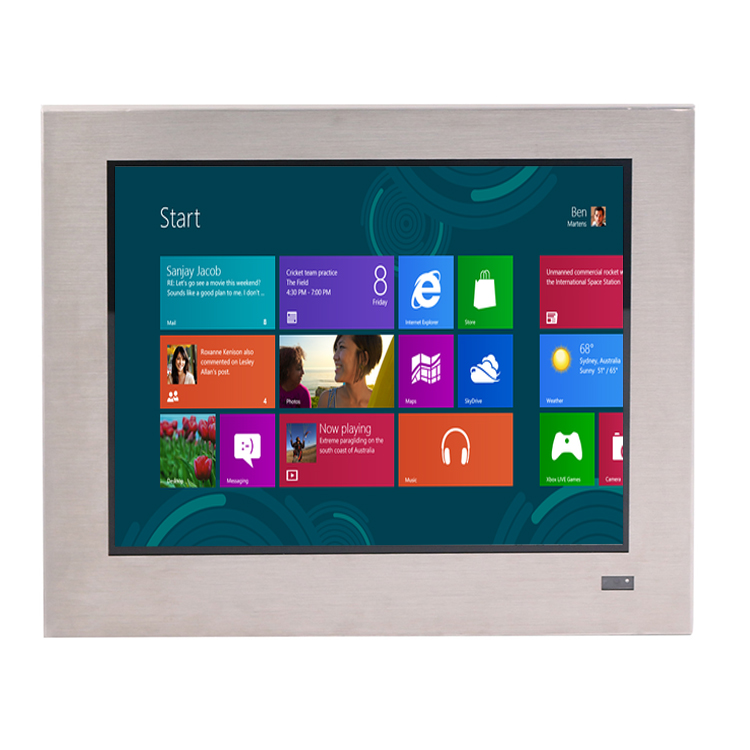

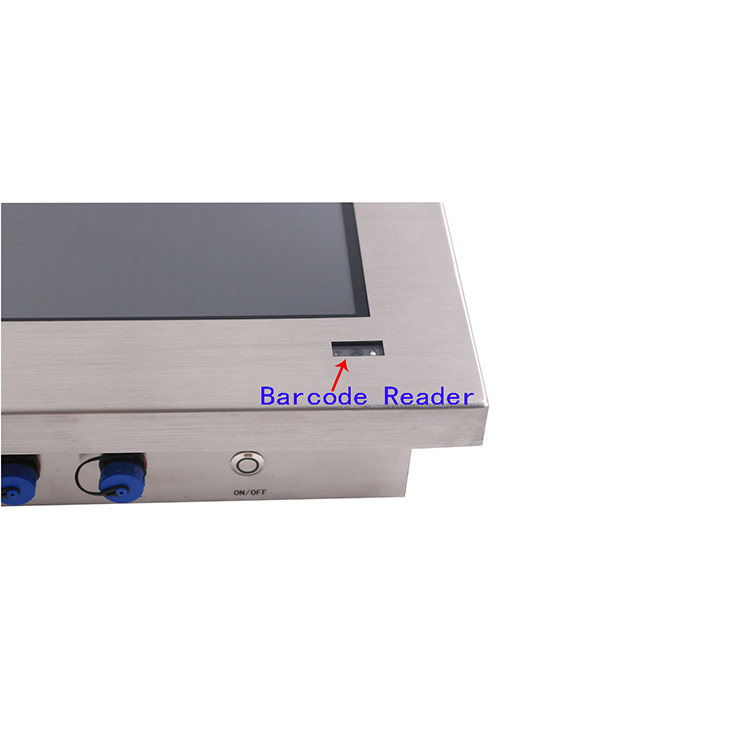

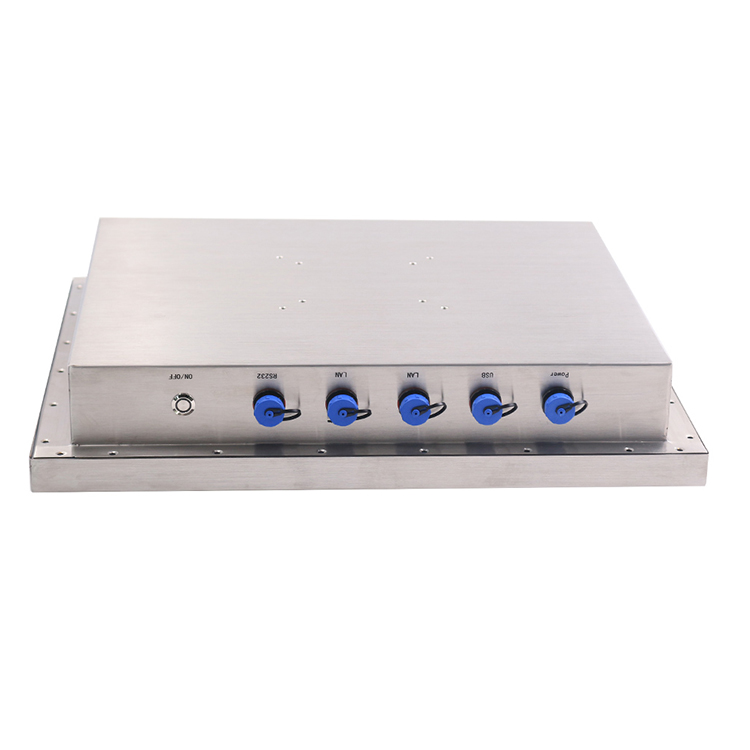

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Stainless Steel Panel PC is a reliable and durable computing solution designed for industrial and commercial applications. With a screen size of 15 inches, this Stainless Touch Screen Panel PC offers a compact yet spacious display for viewing and interacting with data.
Featuring optional WIFI connectivity, this Stainless Steel Embedded panel pc provides flexibility in networking options, allowing for seamless communication and data transfer in various environments. Whether you need to connect wirelessly or through traditional wired networks, this panel PC offers the versatility to adapt to your specific requirements.
Equipped with memory options of 16G, 32G, or 64G, this Stainless Steel Touch Panel pc ensures efficient multitasking and storage capabilities for handling complex applications and data-intensive processes. Whether you are running resource-heavy software or managing extensive databases, this panel PC can meet your performance needs with ample memory space.
The capacitive touchscreen technology of this Stainless Steel Panel PC delivers responsive and accurate touch controls, enabling intuitive interaction and smooth operation. Whether you are navigating menus, inputting data, or controlling applications, the capacitive touchscreen ensures a seamless user experience with precise touch sensitivity.
With a range of interfaces including USB, RJ45, and COM ports, this Stainless Steel Panel PC offers versatile connectivity options for integrating with various peripherals and devices. Whether you need to connect external storage, input devices, or communication devices, this panel PC provides the necessary interfaces to support your connectivity requirements.
Overall, the Stainless Steel Panel PC is a robust and versatile computing solution ideal for industrial automation, manufacturing, retail, and other demanding environments. With its durable stainless steel construction, responsive touchscreen, flexible connectivity options, and ample memory capacity, this panel PC delivers reliable performance and functionality for a wide range of applications.
Features:
· Product Name: Stainless Touch Screen Panel PC
· Touchscreen Type: Capacitive Touchscreen
· WIFI: Optional
· CPU: Intel J6412/6413/I3/I5/I7
· Resolution: 1280*1024
· Memory: 16G/32G/64G
Technical Parameters:
Touchscreen Type | Capacitive Touchscreen |
Interface | USB/RJ45/COM |
WIFI | Optional |
Memory | 16G/32G/64G |
Hard disk | 128G/256G/512G |
Resolution | 1280*1024 |
Size of screen | 15 Inch |
CPU | Intel J6412/6413/I3/I5/I7 |
IP Grade | Waterproof IP67/68/69K |
Client Logo | Acceptable |
Applications:
INNODA Stainless Touch Screen Panel PC (Model: IND150PC) is a versatile and robust industrial computing solution suitable for a wide range of applications across various industries. Its durable stainless steel construction, coupled with IP65 certification, makes it ideal for use in harsh and demanding environments where traditional computers may fail to operate effectively.
One of the key product attributes of the INNODA Stainless Touch Screen Panel PC is its versatility in terms of application occasions and scenarios. The rugged design and resistance to dust, water, and other environmental factors make it perfect for use in industrial settings such as manufacturing plants, warehouses, and production facilities where reliability and durability are paramount.
Furthermore, the Stainless Touch Screen Panel PC is well-suited for use in commercial kitchens, food processing facilities, and other environments where cleanliness and hygiene are essential. The stainless steel construction allows for easy cleaning and maintenance, making it a practical choice for applications that require strict adherence to sanitation standards.
With its 15-inch capacitive touchscreen display, the Stainless Touch Screen Panel PC offers an intuitive and user-friendly interface, making it suitable for interactive kiosks, digital signage, and other customer-facing applications. The optional WIFI connectivity further enhances its versatility, allowing for seamless integration into existing network infrastructures.
INNODA's Stainless Touch Screen Panel PC is not only durable and reliable but also highly customizable to meet the unique needs of different industries and applications. The acceptance of client logos, flexible payment terms, and a minimum order quantity of just 1 piece make it accessible to businesses of all sizes.
Whether it's for industrial automation, control systems, information kiosks, or any other application that demands a rugged and reliable computing solution, the INNODA Stainless Touch Screen Panel PC is a top choice. With a supply ability of 2000 pieces per month and a delivery time of 25 working days, businesses can rely on timely and efficient service when choosing this Stainless Steel All-in-One PC.
Customization:
Product Customization Services for the Stainless Steel Panel PC:
- Brand Name: INNODA
- Model Number: IND150PC
- Place of Origin: Shenzhen, China
- Certification: CE, RoHS, FCC, IP65
- Minimum Order Quantity: 1 piece
- Packaging Details: 1pc/carton weight: 6kgs/pc, packing size: 45×35×12cm
- Delivery Time: 25 working days upon receive the payment
- Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
- Supply Ability: 2000 pieces per month
- Size of screen: 15 Inch
- IP Grade: Waterproof IP67/68/69K
- Memory: 16G/32G/64G
- Touchscreen Type: Capacitive Touchscreen
- Client Logo: Acceptable
Packing and Shipping:
Product Packaging:
The Stainless Steel Panel PC will be carefully packaged in a sturdy cardboard box with ample protective padding to ensure safe delivery.
Shipping:
We offer fast and reliable shipping options for the Stainless Steel Panel PC. Once your order is confirmed, the product will be shipped within 1-2 business days. You can track your shipment using the provided tracking number to monitor its delivery status.
