Stainless steel SS304, Full IP67 waterproof, M 16 metal waterproof connector
Industrial grade LCD screen, full viewing angle
10-point capacitive touch screen, cover 2mm tempered glass (chemically strengthened), the hardness reaches 7H
EETI touch control solution, can touch well with drop water
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
The touch screen and LCD screen are optical bond
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| LCD Panel Charateristics | |||||
| Screen Size | 21.5'' LCD/LED Panel(7-55inch is supported) | ||||
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | ||||
| Resolution | 1920(H)*1080(V) | ||||
| Aspect Ratio | 16：9 | ||||
| Brightness | 1000-1500cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 700：1 | ||||
| Touch screen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |
| I/O Interface(optional) | |||||
| USB2.0(optional USB3.0) | 1 | ||||
| HDMI | 1 | ||||
| DC | 12V | ||||
| Audio I/O | |||||
| VGA | 1 | ||||
| Other Information | |||||
| Frame Material | Aluminum Alloy/Stainless Steel/Metal | ||||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||||
| Color | Default balck,also can choose white,silvery or other colour | ||||
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | ||||
| Weight | 7KG | ||||

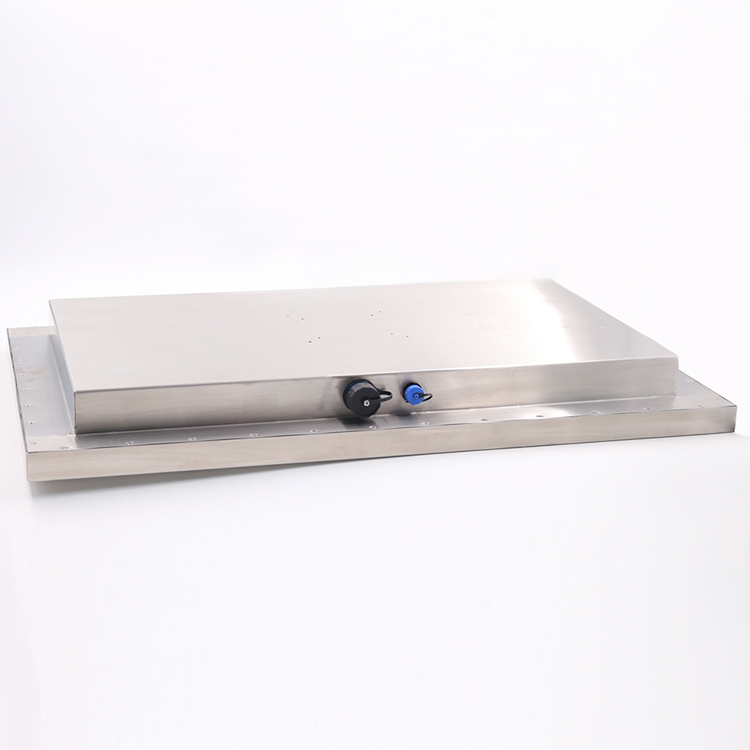

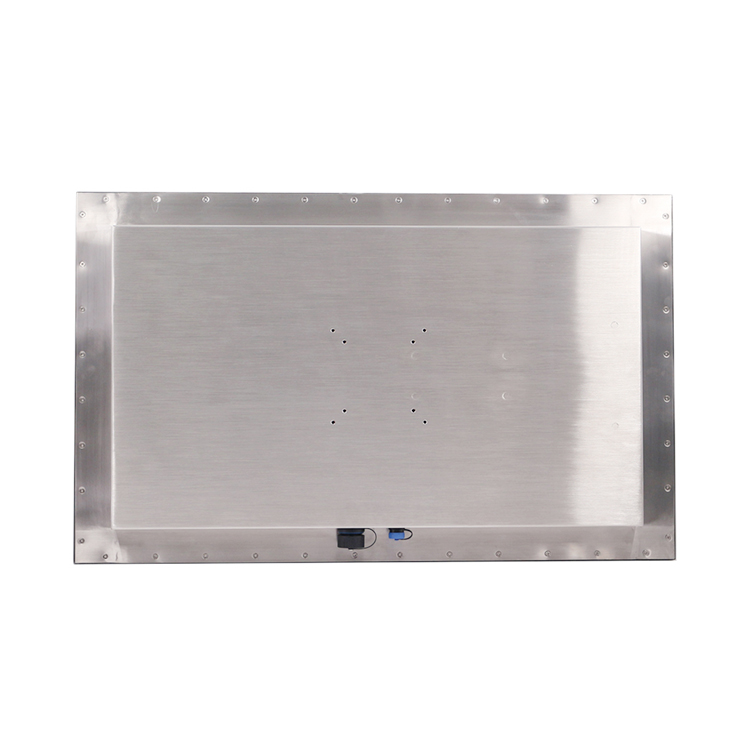

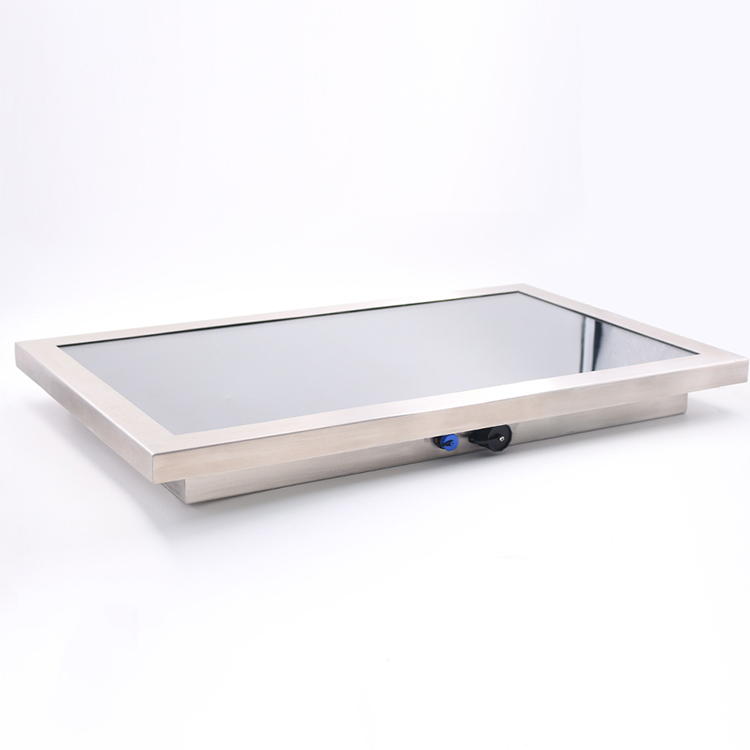

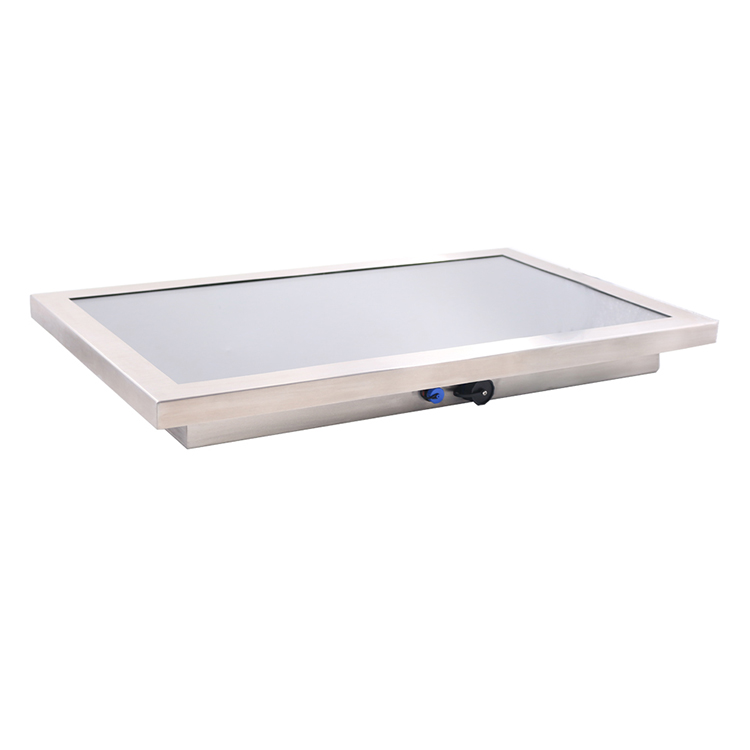

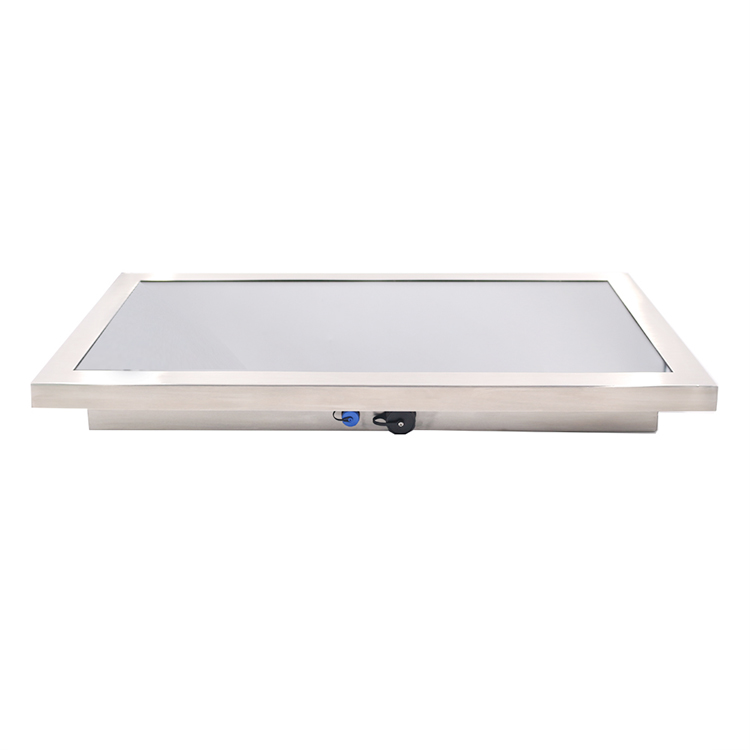

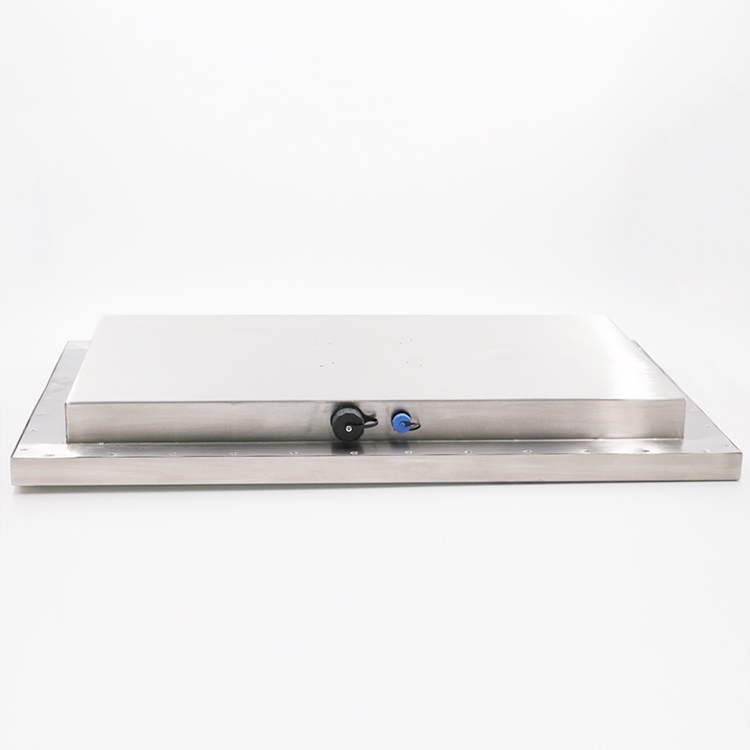

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Waterproof LCD Monitor is a top-of-the-line Industrial Monitor designed for rugged environments, making it ideal for industrial applications where durability and reliability are key. With its impressive resolution of 1920*1080, this monitor delivers sharp and clear images, ensuring that every detail is visible with precision.
Featuring a 21.5-inch size, this Waterproof LCD Monitor offers ample screen real estate for various industrial tasks, providing a comfortable viewing experience without compromising on space efficiency. The robust construction of this monitor, crafted from high-quality stainless steel, ensures longevity and resistance to harsh environmental conditions, making it a reliable choice for demanding industrial settings.
One of the standout features of this Industrial Monitor is its advanced touch screen technology. Equipped with 10 Points Capacitive Touch, this monitor allows for seamless and accurate touch interactions, enhancing user experience and productivity in industrial environments. The responsive touch functionality enables intuitive navigation and precise input, facilitating efficient operation and control in industrial applications.
Whether used in manufacturing facilities, control rooms, or other industrial settings, this Waterproof LCD Monitor excels in providing reliable visual display and touch screen capabilities. Its waterproof design adds an extra layer of protection, safeguarding the monitor from moisture, dust, and other elements commonly encountered in industrial environments.
Designed to meet the demanding requirements of industrial applications, this Industrial Monitor is a versatile and dependable solution for various industries. Its rugged construction, high-resolution display, and responsive touch screen technology make it an essential tool for enhancing productivity, efficiency, and operational effectiveness in industrial settings.
Experience the power of a high-performance Industrial Monitor with the Waterproof LCD Monitor. With its industrial-grade durability, waterproof design, and advanced touch screen functionality, this monitor is engineered to meet the challenges of industrial environments and deliver reliable performance for critical applications. Elevate your industrial operations with the exceptional display quality and intuitive touch capabilities of this robust and versatile monitor.
Features:
- Product Name: Waterproof LCD Monitor
- Application: Industrial Application
- Touch points: 10 Points Capacitive Touch
- Brightness: 350-1500Nits
- Product name: Industrial Monitor
- Material: Stainless Steel
Technical Parameters:
| Interface | RS232 POWER HDMI/Customizable Optional |
| Installation | VESA Wall Mount/Yoke |
| Resolution | 1920*1080 |
| Product name | Industrial Monitor |
| Touch points | 10 Points Capacitive Touch |
| Application | Industrial Application |
| Brightness | 350-1500Nits |
| Material | Stainless Steel |
| Size | 21.5 Inch |
Applications:
INNODA IND21.5M Waterproof LCD Monitor is a highly versatile display device designed for industrial touch screen monitor applications. This durable monitor is ideal for use in various industrial settings where a waterproof monitor with touch screen capabilities is required.
With its IP65 certification, the INNODA IND150M Waterproof LCD Monitor is built to withstand harsh environments and provide reliable performance even in challenging conditions. The rugged stainless steel construction ensures durability and longevity, making it suitable for use in demanding industrial applications.
The 15-inch display size and 1920*1080resolution of the INNODA IND150M make it perfect for viewing detailed information and carrying out precise tasks. The 10 points capacitive touch feature enhances usability, allowing for intuitive interaction with the monitor.
Whether it's in manufacturing plants, warehouses, or outdoor facilities, the INNODA IND150M Waterproof LCD Monitor excels in providing clear visibility and responsive touch screen functionality. Its versatility and robust design make it a valuable tool for improving productivity and efficiency in industrial environments.
Ordering the INNODA IND215M is convenient with a minimum order quantity of just 1 piece. The monitor is carefully packaged to ensure safe delivery, with each unit weighing 5kgs and measuring 45×35×12cm. With a supply ability of 2000 pieces per month, customers can rely on timely deliveries within 25 working days upon receipt of payment.
Certified by CE, RoHS, FCC, and IP65, the INNODA IND150M Waterproof LCD Monitor meets international standards for quality and safety. Various payment methods such as T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram are accepted, providing flexibility for customers worldwide.
Customization:
Product Customization Services for the Industrial Touch screen Waterproof Monitor:
Brand Name: INNODA
Model Number: IND215M
Place of Origin: Shenzhen, China
Certification: CE, RoHS, FCC, IP65
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 2000 pieces per month
Product Name: Industrial Monitor
Application: Industrial Application
Interface: RS232 POWER HDMI/Customizable Optional
Material: Stainless Steel
Resolution: 1920*1080
Support and Services:
The Waterproof LCD Monitor product comes with comprehensive Product Technical Support and Services to ensure a smooth user experience. Our dedicated team of experts is available to assist you with any technical issues, troubleshooting, and product inquiries you may have. Our support services include software updates, firmware upgrades, and compatibility guidance to keep your monitor functioning optimally.
