Stainless steel SS304, Full IP67 waterproof, M 16 metal waterproof connector
Industrial grade LCD screen, full viewing angle
10-point capacitive touch screen, cover 2mm tempered glass (chemically strengthened), the hardness reaches 7H
EETI touch control solution, can touch well with drop water
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
The touch screen and LCD screen are optical bond
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| LCD Panel Charateristics | |||||
| Screen Size | 21.5'' LCD/LED Panel(7-55inch is supported) | ||||
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | ||||
| Resolution | 1920(H)*1080(V) | ||||
| Aspect Ratio | 16：9 | ||||
| Brightness | 1000-1500cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 700：1 | ||||
| Touch screen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |
| I/O Interface(optional) | |||||
| USB2.0(optional USB3.0) | 1 | ||||
| HDMI | 1 | ||||
| DC | 12V | ||||
| Audio I/O | |||||
| VGA | 1 | ||||
| Other Information | |||||
| Frame Material | Aluminum Alloy/Stainless Steel/Metal | ||||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||||
| Color | Default balck,also can choose white,silvery or other colour | ||||
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | ||||
| Weight | 7KG | ||||

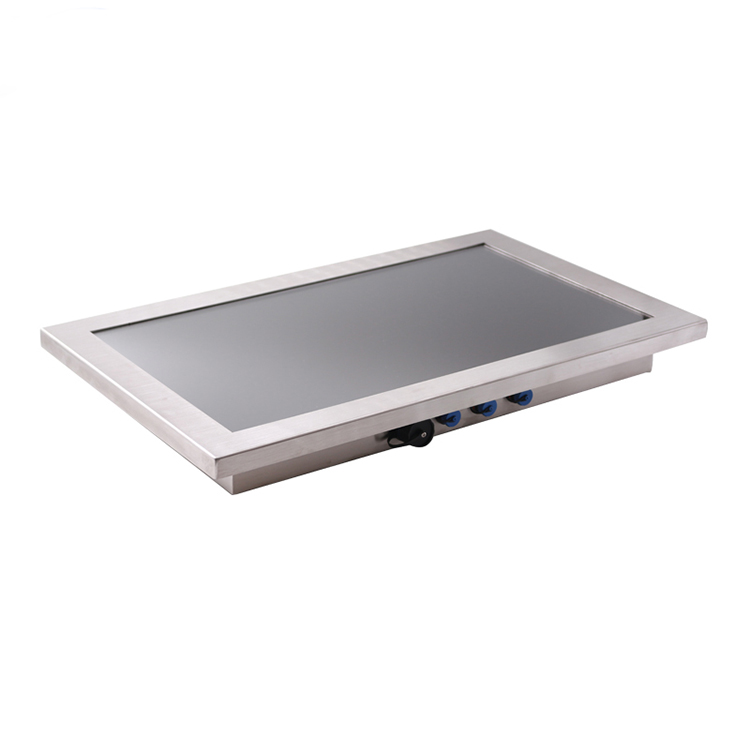

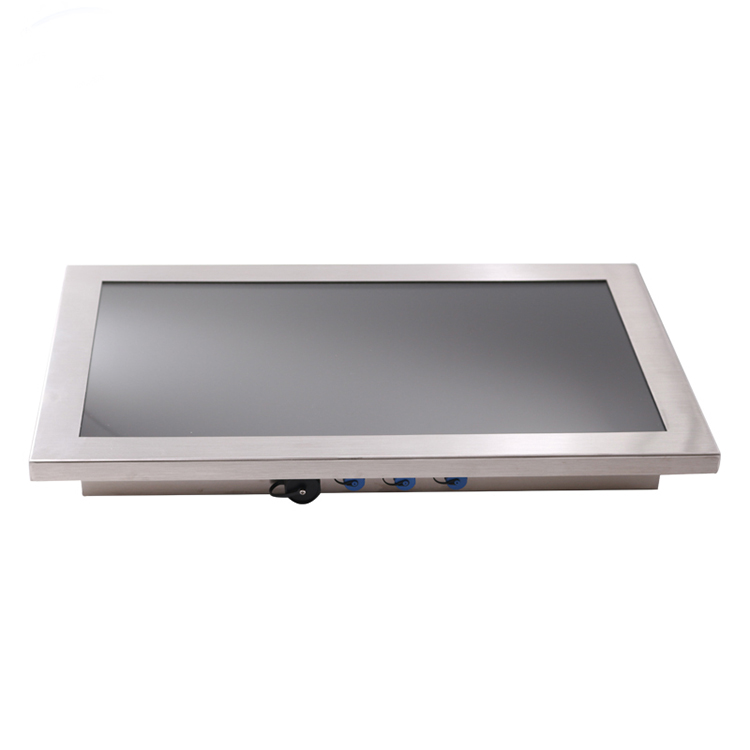

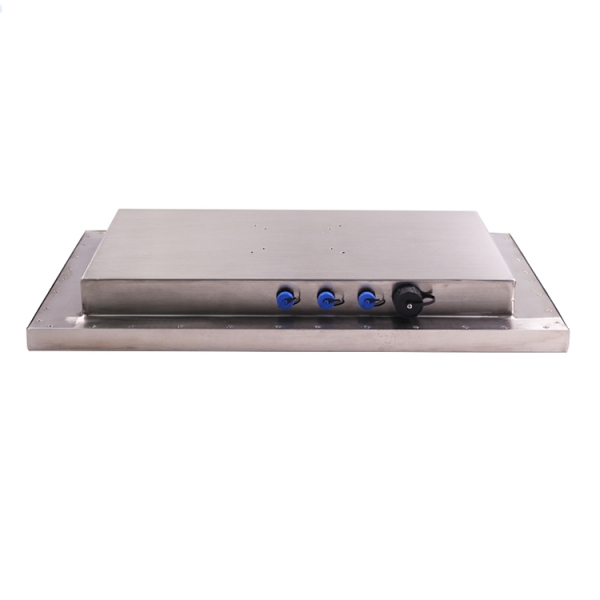

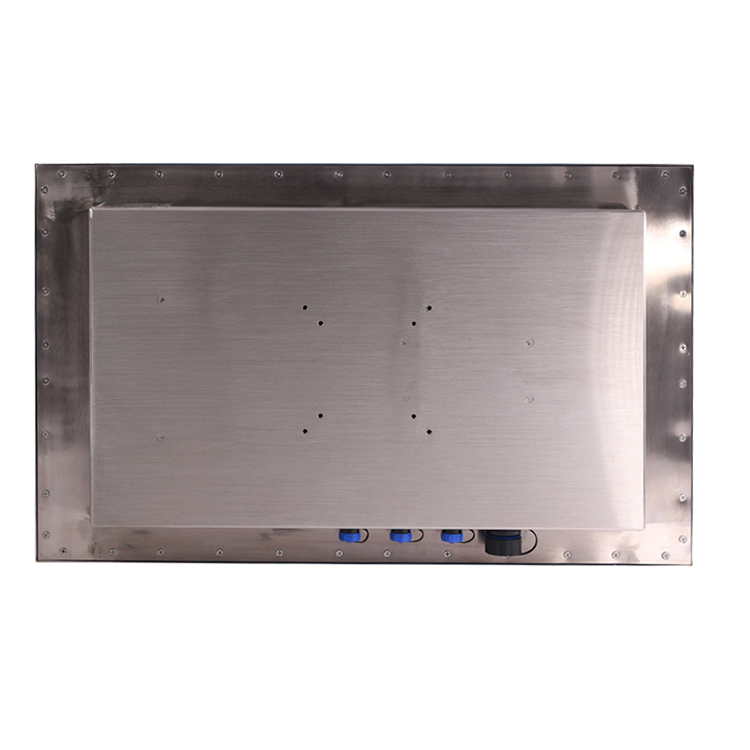

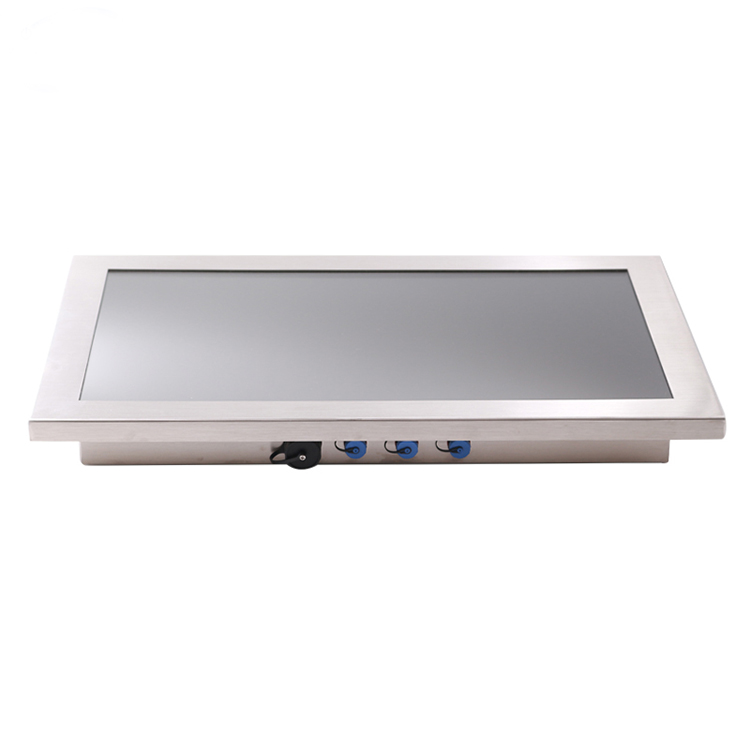

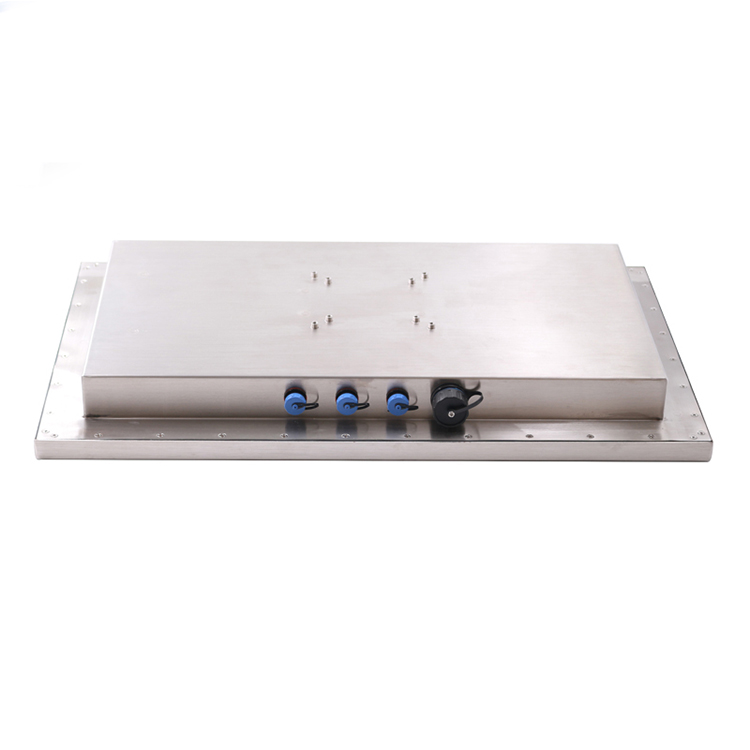

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Industrial Waterproof LCD Monitor is a high-quality display designed for use in industrial environments where durability and performance are essential. With a resolution of 1920*1080, this monitor delivers crisp and clear images, making it ideal for a wide range of applications.
One of the standout features of this Industrial Waterproof Monitor is its impressive brightness range of 350-1500Nits. This ensures that the display remains easily visible even in bright lighting conditions, making it suitable for outdoor use as well.
Equipped with multiple interfaces, including RS232, POWER HDMI, and Customizable Optional, this monitor offers versatile connectivity options to suit various industrial setups. Whether you need to connect to different devices or customize the interface according to your requirements, this monitor has you covered.
For enhanced functionality, the Industrial Waterproof LCD Monitor comes with 10 Points Capacitive Touch technology. This allows for intuitive and precise touch interactions, making it easier to navigate through menus, interact with applications, and operate the monitor with ease.
Constructed from durable stainless steel, this Industrial Waterproof Monitor is built to withstand harsh industrial environments. Its robust construction ensures longevity and reliability, making it a dependable choice for demanding applications.
Whether you need a reliable display solution for manufacturing facilities, outdoor installations, or other industrial settings, the Industrial Waterproof LCD Monitor is a versatile and resilient choice. With its high resolution, excellent brightness, multiple interfaces, touch capabilities, and durable build, this monitor is designed to meet the needs of industrial users looking for a dependable and efficient display solution.
Features:
· Product Name: Waterproof LCD Monitor
· Size: 21.5Inch
· Touch points: 10 Points Capacitive Touch
· Interface: RS232, POWER, HDMI/Customizable Optional
· Application: Industrial Application
· Resolution: 1920*1080
Technical Parameters:
Resolution | 1920*1080 |
Material | Stainless Steel |
Interface | RS232 POWER HDMI/Customizable Optional |
Product name | Industrial Monitor |
Touch points | 10 Points Capacitive Touch |
Brightness | 350-1500Nits |
Installation | VESA Wall Mount/Yoke |
Application | Industrial Application |
Size | 21.5 Inch |
Applications:
Whether you need a reliable display for factory floors, manufacturing plants, or outdoor installations, the IND150M is the ideal choice. Its IP65 certification ensures protection against dust, water, and other contaminants, making it perfect for use in demanding industrial settings.
The high-resolution 1920*1080 screen of the Industrial Monitor delivers crisp and clear images, while the 10 Points Capacitive Touch technology provides a responsive and intuitive user experience. This makes the monitor suitable for a wide range of industrial applications that require precise touch input.
When it comes to product packaging, the IND150M is carefully packed in a single carton, with each unit weighing 5kgs and measuring 45×35×12cm. This compact and secure packaging ensures that the monitor arrives safely at its destination, ready for immediate use.
With a minimum order quantity of just 1 piece and a delivery time of 25 working days upon receiving payment, the IND150M offers flexibility and quick turnaround for your industrial display needs. Supported payment terms include T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram, providing convenient options for purchasing the monitor.
Thanks to a supply ability of 2000 pieces per month, you can rely on the INNODA IND150M Waterproof LCD Monitor to meet your industrial display requirements consistently and efficiently. Its sturdy construction, high-resolution display, and responsive touch technology make it the perfect choice for a variety of industrial scenarios.
Customization:
Product Customization Services for the Stainless Steel Touch monitor Waterproof LCD Monitor - INNODA IND156M:
- Brand Name: INNODA
- Model Number: IND156M
- Place of Origin: Shenzhen, China
- Certification: CE, RoHS, FCC, IP65
- Minimum Order Quantity: 1 piece
- Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
- Delivery Time: 25 working days upon receive the payment
- Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
- Supply Ability: 2000 pieces per month
- Installation: VESA Wall Mount/Yoke
- Brightness: 350-1500Nits
- Application: Industrial Application
- Resolution: 1920*1080
- Interface: RS232, POWER, HDMI/Customizable Optional
Support and Services:
Our Product Technical Support and Services team for the Waterproof LCD Monitor is dedicated to providing assistance for any technical issues or questions you may have. We offer expert guidance on troubleshooting, setup, installation, and maintenance to ensure the optimal performance of your device.
Our services include remote assistance, on-site support, software updates, and warranty coverage to address any concerns you may encounter with the Waterproof LCD Monitor. Our goal is to assist you in maximizing the functionality and longevity of your product.
Packing and Shipping:
Product Packaging:
The Waterproof LCD Monitor is carefully packaged in a sturdy cardboard box to ensure its safety during transit. The monitor is securely wrapped in protective foam and includes all necessary cables and accessories.
Shipping:
Our shipping process is efficient and reliable. Once your order is confirmed, the Waterproof LCD Monitor will be dispatched within 1-2 business days. We partner with trusted shipping carriers to deliver your monitor safely and on time. You will receive a tracking number to monitor the progress of your shipment.
