Fully enclosed design, the whole PC is dustproof.
Seamless design flat bezel, front panel IP65 waterproof.
Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
High performance motherboard, 7x24 continuous operation.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15.6'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1920(H)*1080(V) |
| Aspect Ratio | 16：9 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 5KG |

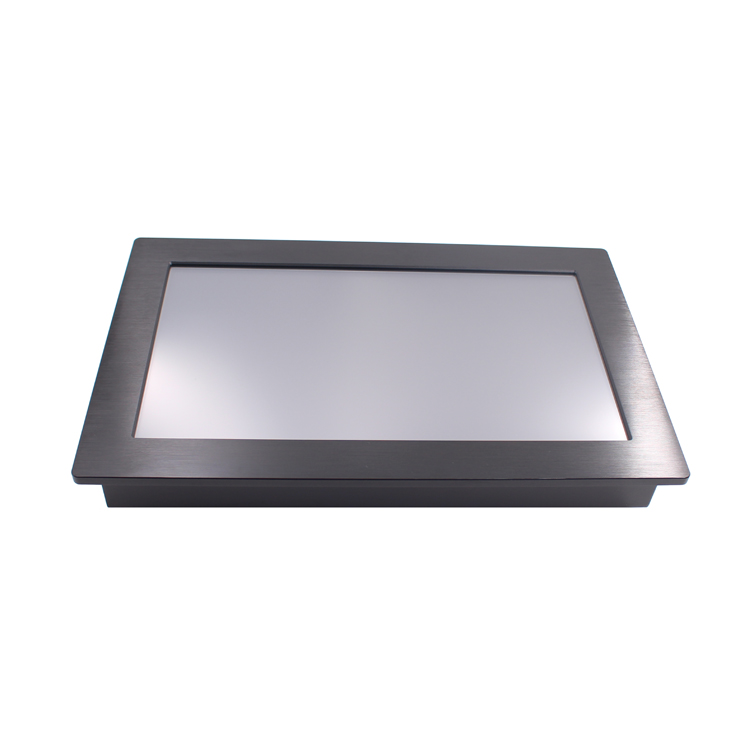

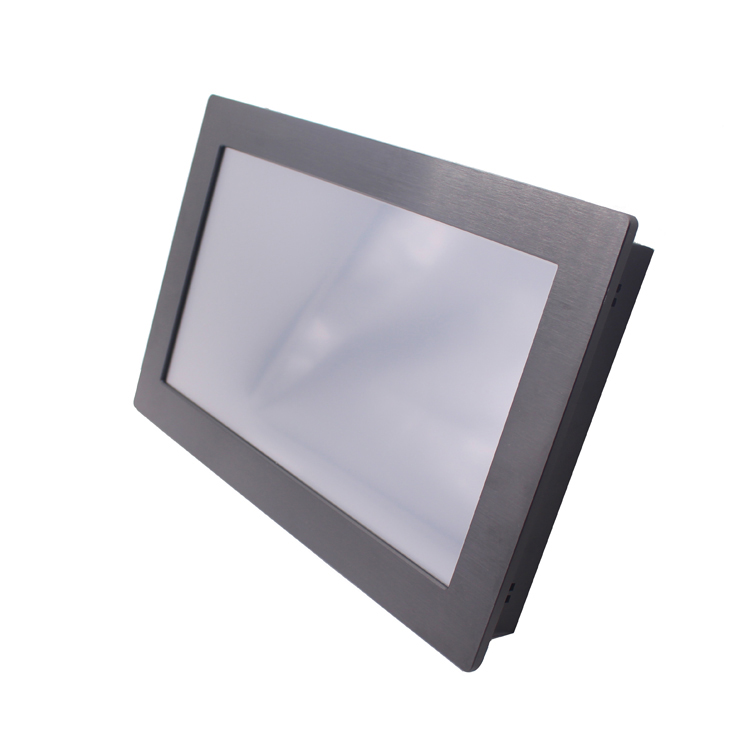

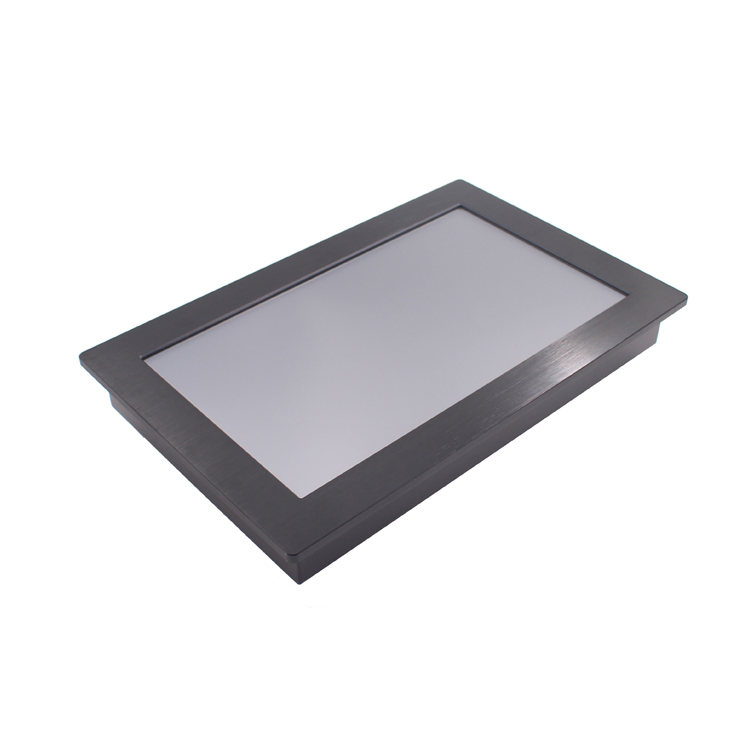

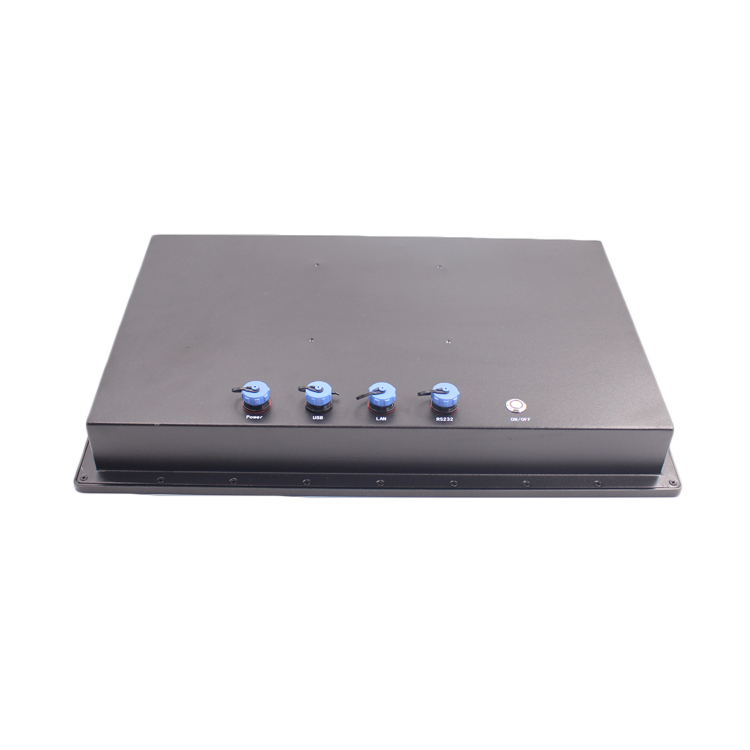

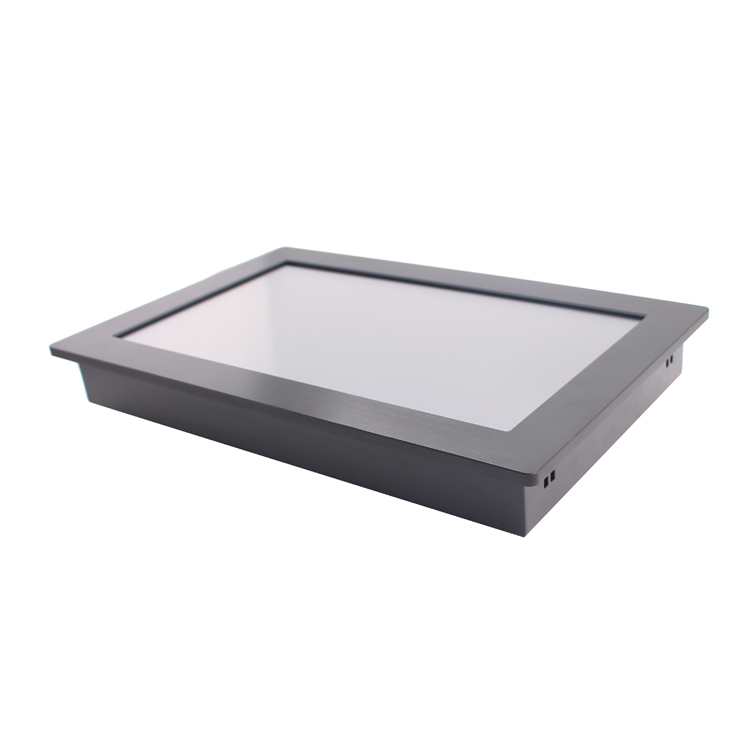

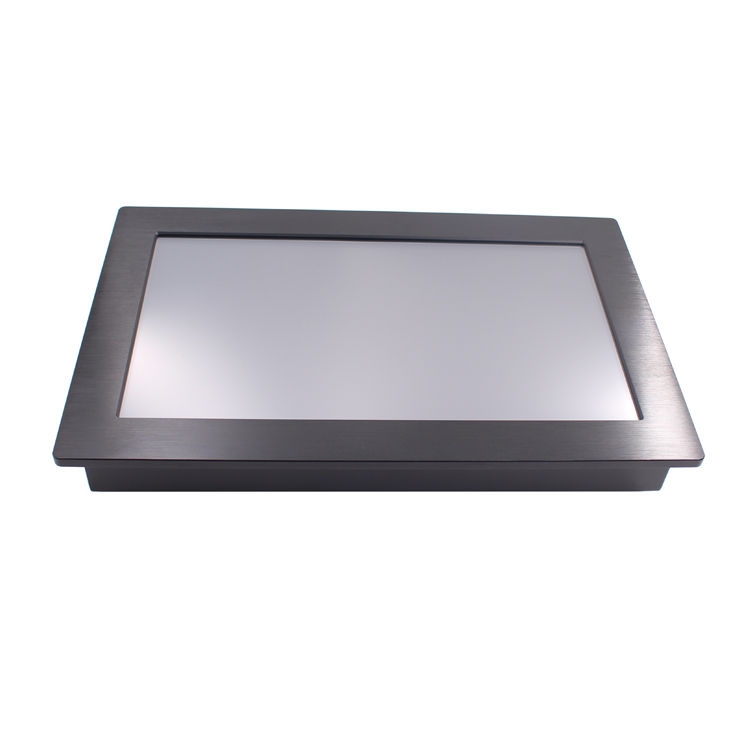

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Marine Grade Waterproof Touch Panel PC is a top-of-the-line device designed for demanding industrial environments where water resistance and durability are essential. This Shockproof Waterproof Industrial PC is equipped with a rugged construction that can withstand harsh conditions, making it ideal for use in marine, outdoor, or factory settings.
The Waterproof Panel PC operates on a reliable 12V/9-36V DC power supply, ensuring consistent performance even in fluctuating power conditions. This feature makes it suitable for various applications that require a stable power source, such as marine vessels, vehicles, or remote installations.
With 4GB DDR3 memory, this Shockproof Waterproof Industrial PC offers smooth and efficient multitasking capabilities, allowing users to run multiple applications simultaneously without compromising performance. Whether you need to monitor processes, analyze data, or control equipment, this panel PC can handle it with ease.
Featuring a VESA mount, the Waterproof Panel PC can be easily installed on walls, panels, or other surfaces, providing flexibility in deployment and placement. The VESA mount ensures a secure and stable attachment, allowing the panel PC to be positioned conveniently for optimal viewing and access.
The high-resolution display of 1920X1080 on the Waterproof Panel PC delivers crisp and clear visuals, making it easy to read data, view images, or interact with touch-based applications. Whether you are monitoring critical systems or conducting interactive tasks, the sharp display ensures precision and clarity.
Features:
· Rugged Watertight Panel PC
· All-Weather Touch Panel Computer
· Waterproof Embedded Panel PC
· Product Name: Waterproof Panel PC
· Touch Screen: Resistive/capacitance Touch
· Panel Size: 15.6 Inch
· Power Supply: 12V/9-36v DC
· Memory: 4GB DDR3
· Resolution: 1920X 1080
Technical Parameters:
IP Rating | IP65/66/67 |
Touch Screen | Resistive/Capacitive Touch |
Resolution | 1920x1080 |
Brightness | 350cd/m² |
CPU | Intel J6412/Intel J6413/I3/I5/I7 |
Memory | 4GB DDR3 |
Storage | 128GB SSD (128G/512G Optional) |
Panel Size | 15.6 Inch |
Working Temperature | -20℃ to +70℃ |
Applications:
IND156PC Waterproof Panel PC, model number INNODAPC, is a versatile and reliable All-Weather Touch Panel Computer suitable for various industries and applications. Manufactured in China, this Waterproof Industrial Panel PC is certified with CEE, FCC, IP65, and RoHS standards, ensuring high-quality performance and durability.
With a minimum order quantity of 2 units and packaging details of 1pc/carton weighing 5kgs/pc, with a packing size of 45×35×12cm, the IND150PC Waterproof Panel PC offers a compact and convenient solution for your computing needs. The delivery time is 25 working days upon receiving the payment, and payment terms include T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram.
Equipped with a resolution of 1280X1024 and storage options of 128GB SSD (128G/512G Optional), the IND156PC Waterproof Panel PC provides ample storage and clear display for various applications. The Resistive or capacitance Touch Screen allows for easy and responsive interaction, while the brightness of 350cd/m² ensures clear visibility in different lighting conditions.
With a panel size of 15.6 inches, the IND156PC Waterproof Panel PC is suitable for a wide range of scenarios, including but not limited to marine environments, outdoor installations, industrial settings, and more. Its Marine Grade Waterproof Touch Panel PC design makes it ideal for use in challenging conditions where moisture, dust, or other environmental factors may be present.
With a supply ability of 5000 pieces per month, the IND156PC Waterproof Panel PC offers a reliable and scalable solution for businesses looking to integrate rugged and durable computing technology into their operations. Whether used in manufacturing facilities, outdoor kiosks, marine vessels, or other demanding environments, the IND150PC Waterproof Panel PC delivers performance and reliability you can count on.
Customization:
Product Customization Services for Weatherproof Industrial Panel Computer - Waterproof Embedded Panel PC
Brand Name: IND156PC
Model Number: INNODAPC
Place of Origin: China
Certification: CEE, FCC, IP65, RoHS
Minimum Order Quantity: 2
Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
IP Rating: IP/65/66/67
Brightness: 350cd/m²
Working Temperature: -20℃ To +70℃
Panel Size: 15.6 Inch
Product Name: Waterproof Panel PC
Support and Services:
The Waterproof Panel PC product comes with comprehensive Product Technical Support and Services to assist customers with any inquiries or issues they may encounter. Our dedicated technical support team is available to provide expert guidance and troubleshooting assistance to ensure optimal performance of the product.
Packing and Shipping:
Product Packaging:
- The Waterproof Panel PC will be securely packaged in a sturdy cardboard box to ensure safe transportation.
- The product will be wrapped in protective foam to prevent any damage during shipping.
Shipping Information:
- The Waterproof Panel PC will be shipped via a reliable courier service to ensure timely and safe delivery.
- Shipping fees may apply based on the destination and shipping method chosen by the customer.
