Fully enclosed design, the whole PC is dustproof.
Seamless design flat bezel, front panel IP65 waterproof.
Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
High performance motherboard, 7x24 continuous operation.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 19'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1280(H)*1024(V) |
| Aspect Ratio | 4：3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 9KG |

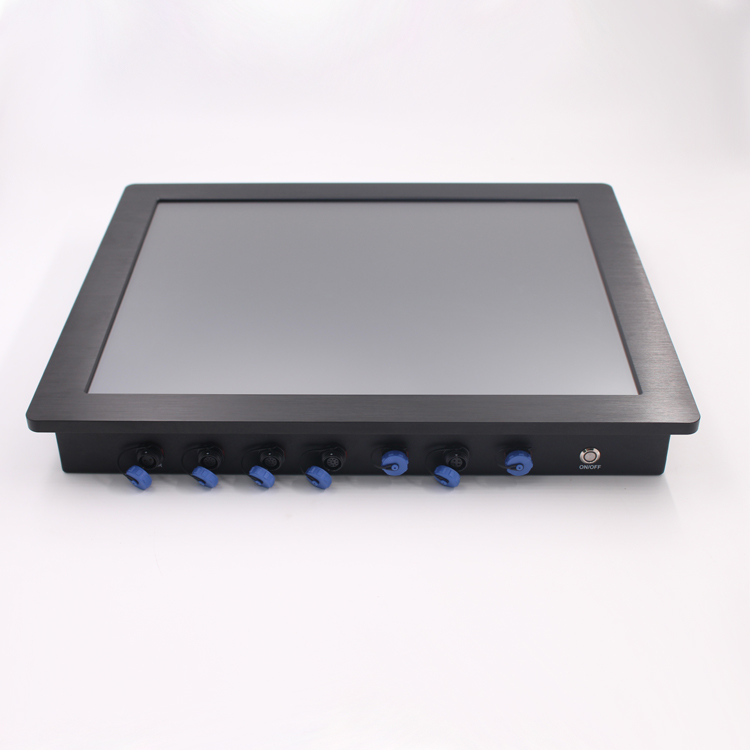

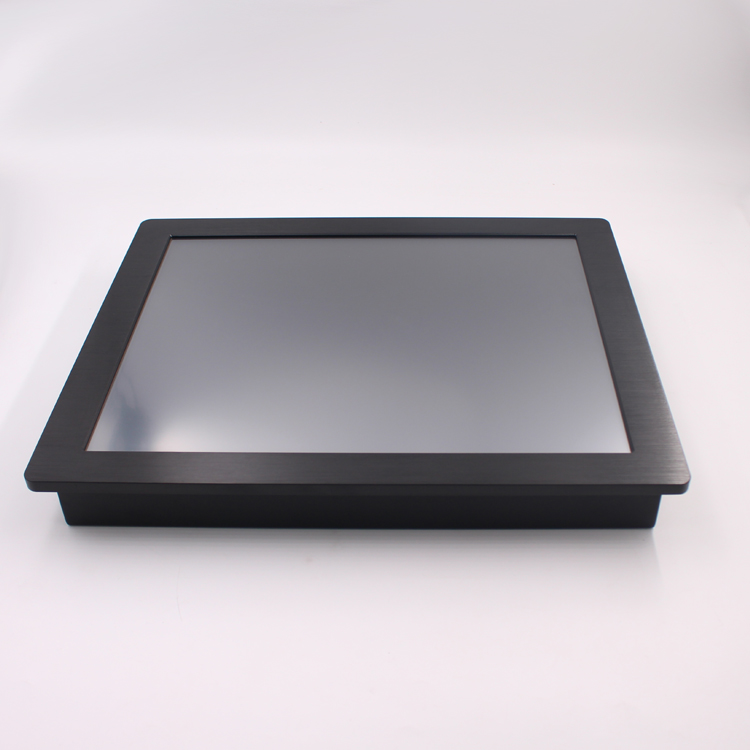

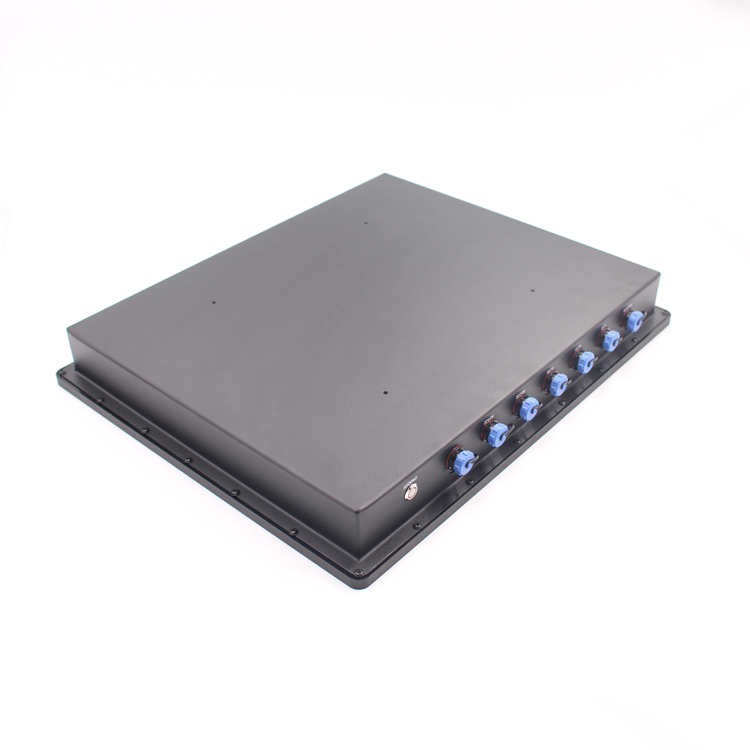

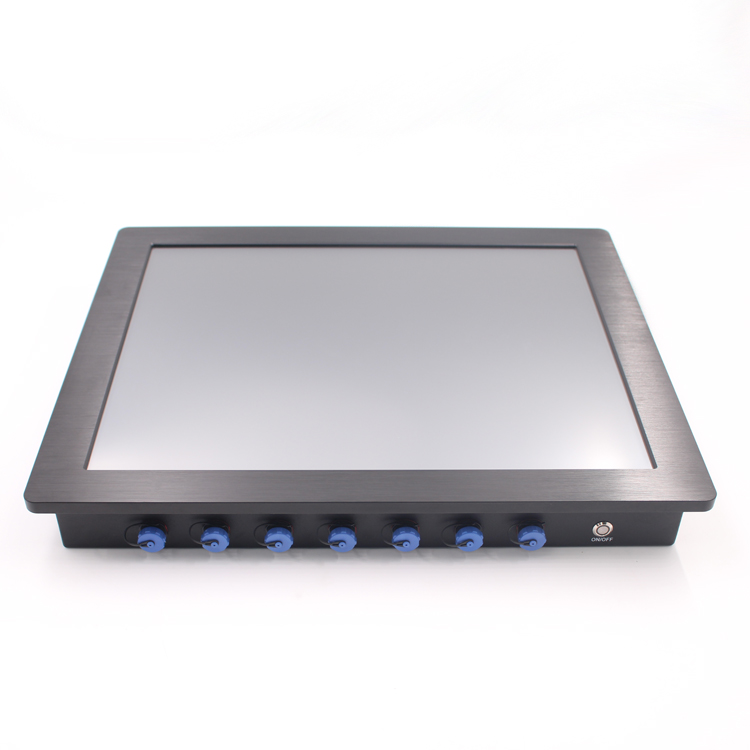

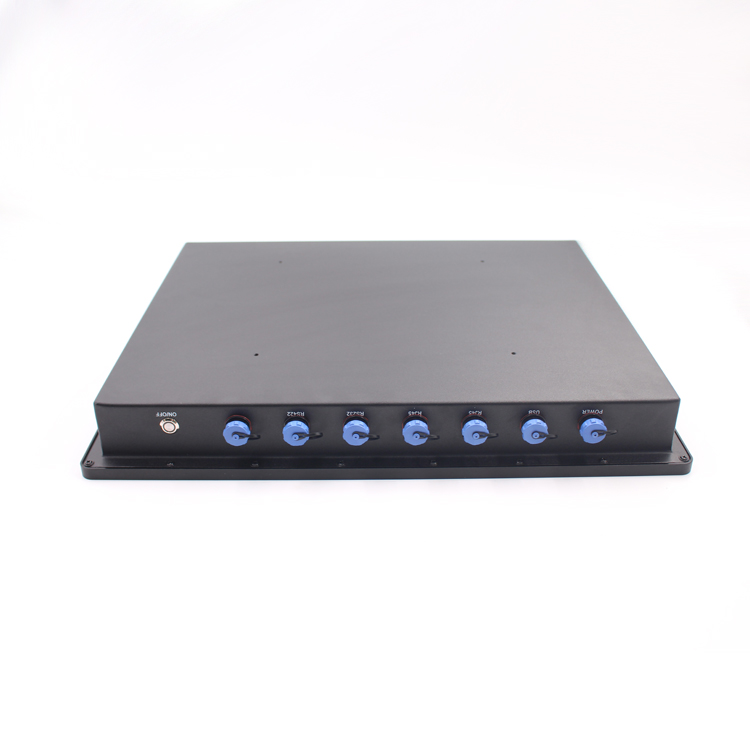

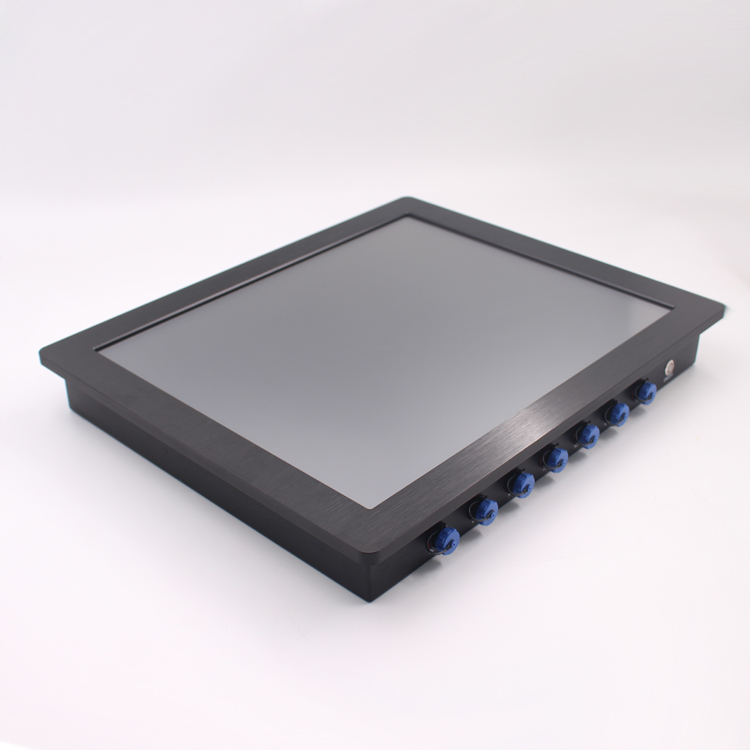

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Waterproof Panel PC is a state-of-the-art Sealed Waterproof Display Computer designed to meet the rigorous demands of industrial environments. With its robust build and impressive IP65/66/67 rating, this Waterproof Industrial Panel PC ensures reliable performance even in challenging conditions.
Equipped with a powerful 128GB SSD storage capacity (128G/512G Optional), the Waterproof Panel PC offers ample storage space for your applications and data, allowing for seamless operation and efficient data management. Whether you choose the standard 128GB SSD or opt for the expanded 512GB version, you can expect fast and responsive performance from this rugged device.
When it comes to power supply, the Waterproof Panel PC is designed to operate efficiently with a 12V/9-36v DC power source. This versatile power supply option ensures compatibility with various industrial setups and allows for flexible installation in diverse environments.
The Waterproof Panel PC runs on the latest Windows operating systems, Windows 10 or Windows 11, providing a familiar and user-friendly interface for seamless navigation and efficient workflow. Whether you are utilizing industry-specific software or standard applications, the compatibility and performance of Windows 10/11 enhance the productivity of this Sealed Waterproof Display Computer.
Designed to withstand dust, water, and other harsh elements, the Waterproof Panel PC is a reliable solution for industrial automation, manufacturing, and outdoor applications. The IP65/66/67 rating ensures that this Sealed Waterproof Display Computer can endure exposure to moisture, dirt, and debris without compromising its functionality.
With its rugged construction and advanced features, the Waterproof Panel PC is a versatile and durable computing solution for demanding industrial environments. Whether you need a reliable display computer for outdoor installations or a robust panel PC for manufacturing facilities, this Waterproof Industrial Panel PC delivers exceptional performance and durability.
Features:
· Product Name: Waterproof Panel PC
· Panel Size: 19 Inch
· Operating System: Windows 10/11
· Power Supply: 12V/9-36v DC
· Storage: 128GB SSD (128G/512G Optional)
· Resolution: 1280X1024
Technical Parameters:
Product Name | Waterproof Panel PC |
Panel Size | 19 Inch |
Operating System | Windows 10/11 |
Working Temperature | -20℃ To +70℃ |
Memory | 4GB DDR3 |
Resolution | 1280X1024 |
CPU | Intel J6412/Intel J6413/I3/I5/I7 |
Storage | 128GB SSD (128G/512G Optional) |
Mounting | VESA Mount |
IP Rating | IP65/66/67 |
Applications:
Product Application Occasions and Scenarios for the IP68 Waterproof Panel PC - Model INNODAPC by brand IND190PC:
The IP68 Waterproof Panel PC is a versatile and durable solution suitable for a wide range of environments and industries due to its robust design and waterproof features. Here are some key application occasions and scenarios where the Sealed Waterproof Display Computer can be utilized:
· Marine Industry: The Marine Grade Waterproof Touch Panel PC is ideal for use on ships, boats, and other marine vessels where exposure to water and harsh weather conditions is common.
· Industrial Settings: The rugged design and IP68 certification make the Waterproof Panel PC suitable for use in industrial environments where dust, dirt, and moisture are prevalent.
· Outdoor Applications: With its waterproof capabilities, the Panel PC is perfect for outdoor use in settings such as outdoor kiosks, information displays, and outdoor workstations.
· Food and Beverage Industry: The waterproof and sealed construction of the Display Computer makes it ideal for use in food processing facilities, commercial kitchens, and other environments where cleanliness and hygiene are essential.
· Medical and Healthcare Facilities: The Panel PC can be used in medical facilities and healthcare settings where frequent cleaning and disinfection are required.
With certifications including CEE, FCC, and RoHS, the IP68 Waterproof Panel PC ensures compliance with industry standards and regulations. The product, originating from China, offers a high-resolution display of 1280X1024, powered by a 12V/9-36V DC power supply.
Additionally, the Panel PC comes with 4GB DDR3 memory and 128GB SSD storage capacity (128G/512G optional), providing ample storage and memory for various applications.
Customers can benefit from a minimum order quantity of 2 units, with packaging details of 1pc/carton weighing 5kgs/pc and dimensions of 45×35×12cm. The delivery time is 25 working days upon receipt of payment, with flexible payment terms including T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram.
With a supply ability of 5000 pieces per month, the IP68 Waterproof Panel PC - Model INNODAPC by brand IND150PC is a reliable and practical solution for diverse application scenarios.
Customization:
Product Customization Services for the Shockproof Waterproof Industrial PC:
Brand Name: IND190PC
Model Number: INNODAPC
Place of Origin: China
Certification: CEE, FCC, IP65, RoHS
Minimum Order Quantity: 2
Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Operating System: Windows 10/11
Working Temperature: -20℃ To +70℃
IP Rating: IP/65/66/67
Mounting: VESA Mount
CPU: Intel J6412/Intel J6413/I3/I5/I7
Support and Services:
Our Waterproof Panel PC product comes with comprehensive Product Technical Support and Services to ensure smooth operation and customer satisfaction.
Our technical support team is available to address any product-related inquiries and provide assistance with troubleshooting and maintenance.
We offer a range of services, including product installation support, software updates, and warranty coverage to meet our customers' needs.
Rest assured that our team is dedicated to delivering top-notch technical support and services to ensure the optimal performance of our Waterproof Panel PC product.
Packing and Shipping:
Product Packaging:
The Waterproof Panel PC is carefully packaged in a sturdy cardboard box to ensure it arrives safely to your doorstep. The product is wrapped in protective bubble wrap and secured with foam inserts to prevent any damage during transit.
Shipping:
Our dedicated shipping team will process your order promptly. The Waterproof Panel PC will be shipped using a reputable courier service to deliver it to you in a timely manner. You will receive a tracking number so you can monitor the status of your delivery.
