Aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment, Full IP67 waterproof and dustproof.
10 points capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H.
EETI touch control solution, can touch when water dropl on the touch screen.
The PC is built with industrial-grade components, 7x24 continuous operation, wide operation temperature -20 to 70ºC.
Optical bonding between touch screen and LCD screen
The front frame and back shell are sealed with waterproof adhesive strips, which can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1280(H)*1024(V) |
| Aspect Ratio | 4：3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 6KG |

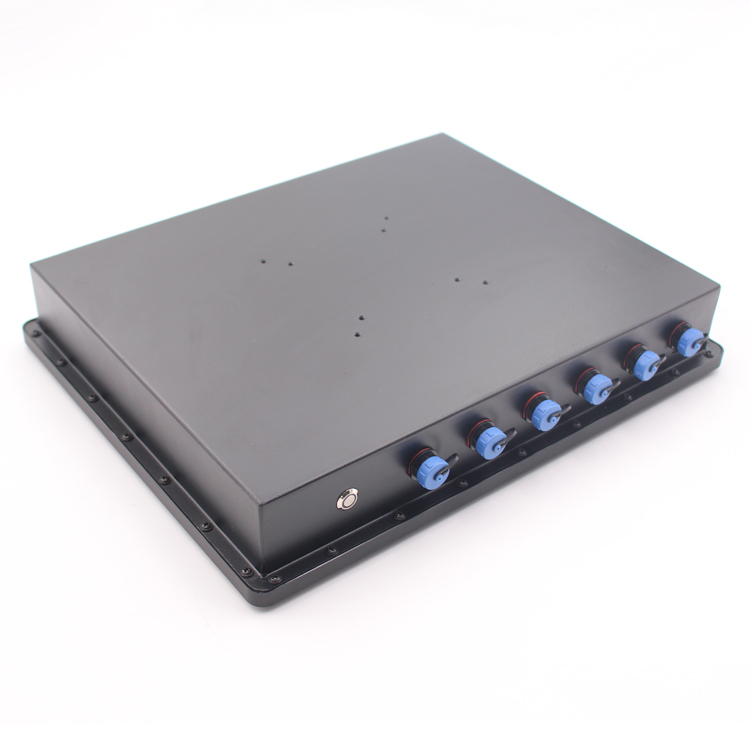

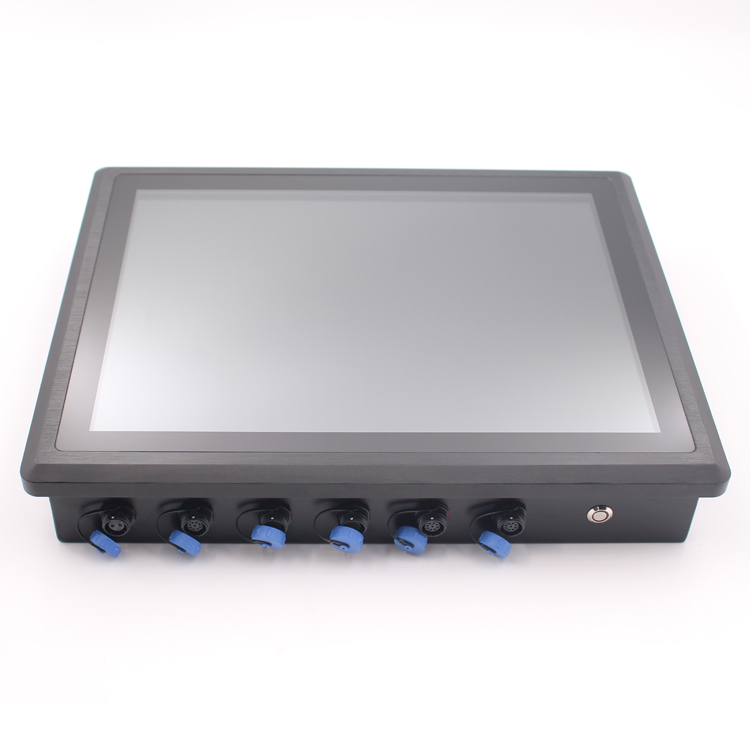

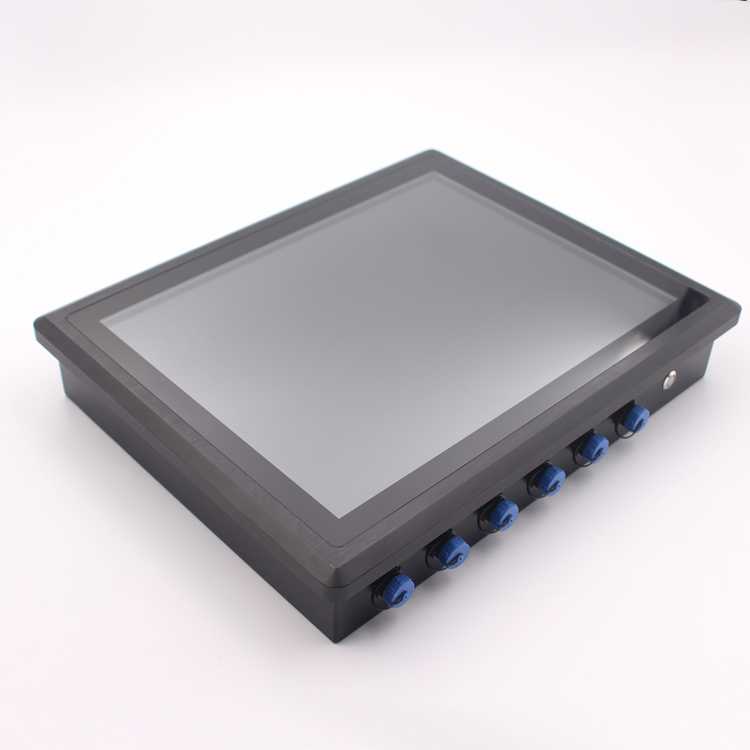

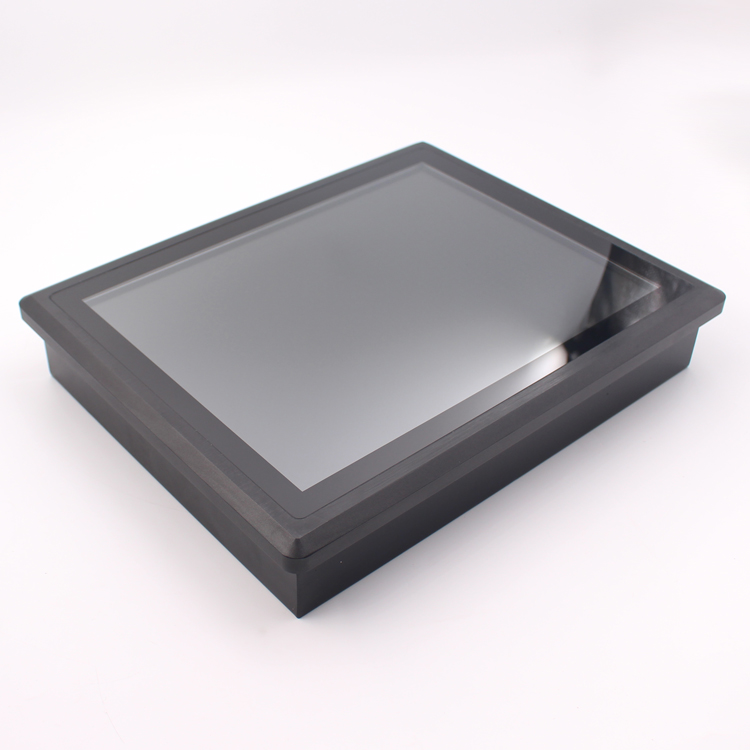

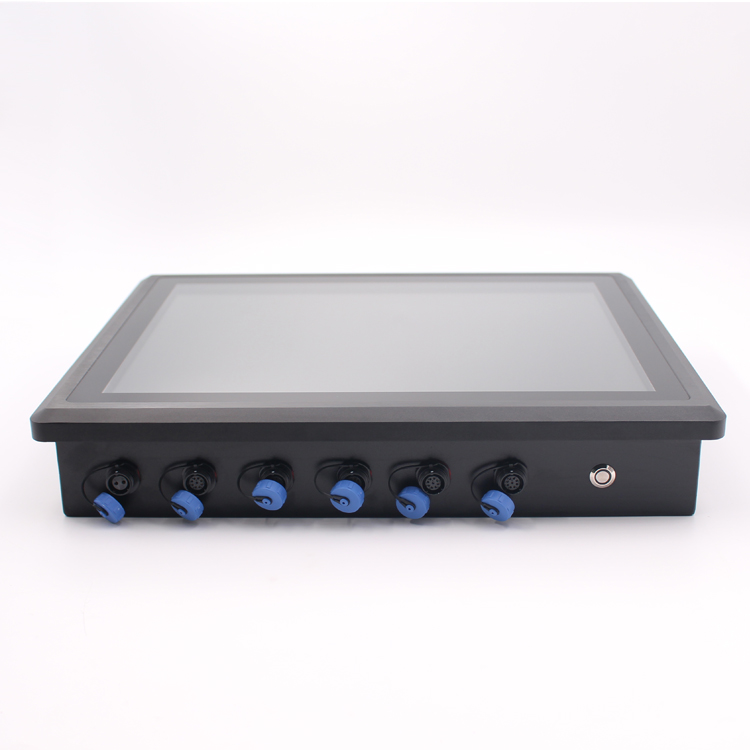

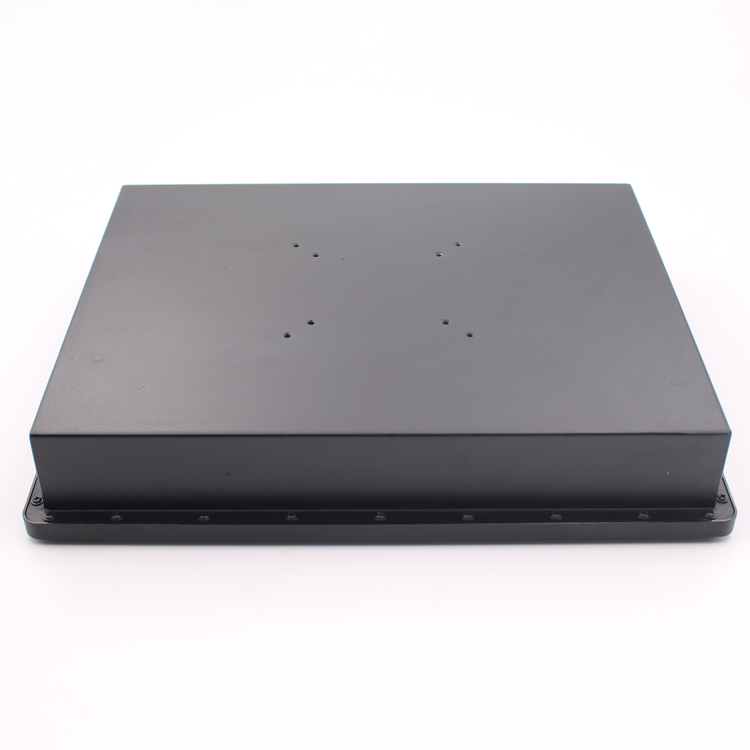

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Waterproof Panel PC is a versatile and reliable device designed for industrial applications requiring durability and resistance to harsh environments. This IP68 Waterproof Industrial Panel PC is equipped with a range of features that make it ideal for use in challenging conditions.
Featuring a storage capacity of 128GB SSD (128G/512G Optional), this Rugged Watertight Panel PC ensures ample space for storing essential data and applications securely. The optional upgrade to 512GB provides even greater storage flexibility, catering to varying needs and preferences.
With a working temperature range of -20℃ to +70℃, the Waterproof Panel PC can withstand extreme temperatures, making it suitable for operation in diverse climates and conditions. This resilience ensures consistent performance and reliability in both hot and cold environments, enhancing its usability in a wide range of industrial settings.
The VESA Mount compatibility of this IP68 Waterproof Panel PC allows for convenient and flexible mounting options, enabling users to easily integrate the device into their work environment. Whether wall-mounted, attached to a stand, or mounted on a swing arm, the VESA Mount feature provides versatile installation choices to suit specific requirements.
Equipped with 4GB DDR3 memory, the Waterproof Panel PC delivers efficient multitasking capabilities and smooth operation, ensuring optimal performance even when running multiple applications simultaneously. The reliable memory capacity enhances productivity and responsiveness, making this device a reliable asset for demanding industrial tasks.
With a brightness level of 350cd/m², this Rugged Watertight Panel PC offers clear and vibrant display quality, ensuring excellent visibility in various lighting conditions. The high brightness enhances the readability of on-screen content, making it easy for users to view critical information and operate the device effectively, even in brightly lit environments.
Overall, the Waterproof Panel PC combines robust construction, advanced features, and superior performance to deliver a durable and efficient solution for industrial applications. Its waterproof design, rugged build quality, and versatile mounting options make it an ideal choice for demanding environments where reliability and durability are paramount.
Features:
· Product Name: Waterproof Panel PC
· Panel Size: 15 Inch
· Touch Screen: Resistive/capacitance Touch
· Power Supply: 12V/9-36v DC
· Brightness: 350cd/m²
Technical Parameters:
Product Name | Waterproof Panel PC |
Resolution | 1280X1024 |
Working Temperature | -20℃ To +70℃ |
Operating System | Windows 10/11 |
Power Supply | 12V/9-36v DC |
Mounting | VESA Mount |
CPU | Intel J6412/Intel J6413/I3/I5/I7 |
Memory | 4GB DDR3 |
Touch Screen | Resistive/capacitance Touch |
Brightness | 350cd/m² |
Applications:
The IND150PC Waterproof Panel PC, model number INNODAPC, is a versatile and rugged device suitable for various product application occasions and scenarios. With its certification including CEE, FCC, IP65, and RoHS, this All-Weather Touch Panel Computer from China is designed to withstand harsh environments and demanding industrial settings.
Due to its shockproof and waterproof features, the Waterproof Panel PC is ideal for use in outdoor settings such as industrial automation, marine applications, mining operations, and outdoor kiosks. Its durable construction and IP65 certification ensure reliable performance even in challenging conditions.
Whether it's for outdoor signage, production line monitoring, or warehouse management, the IND150PC Waterproof Panel PC offers a reliable and durable solution. The device's operating system compatibility with Windows 10/11 provides a familiar and user-friendly interface for various applications.
With a storage capacity of 128GB SSD (128G/512G Optional) and a resolution of 1280X1024, the Waterproof Industrial Panel PC delivers crisp visuals and ample storage space for data-intensive tasks. The power supply of 12V/9-36V DC ensures flexibility in deployment across different settings.
Businesses looking to procure the IND150PC Waterproof Panel PC can benefit from a minimum order quantity of 2 units and a delivery time of 25 working days upon receipt of payment. The product's packaging details include 1pc per carton with a weight of 5kgs/pc and a compact packing size of 45×35×12cm.
Payment terms such as T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram offer flexibility for transactions, while the supply ability of 5000 pieces per month ensures consistent availability for larger orders.
Customization:
Product Customization Services for the Waterproof Panel PC:
- Brand Name: IND150PC
- Model Number: INNODAPC
- Place of Origin: China
- Certification: CEE, FCC, IP65, RoHS
- Minimum Order Quantity: 2
- Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
- Delivery Time: 25 working days upon receive the payment
- Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
- Supply Ability: 5000 pieces per month
- Power Supply: 12V/9-36v DC
- Resolution: 1280X 1024
- Mounting: VESA Mount
- Brightness: 350cd/m²
- Product Name: Waterproof Panel PC
Keywords: Waterproof Embedded Panel PC, Dustproof Waterproof PC Panel, Rugged Watertight Panel PC
Support and Services:
Our Product Technical Support and Services for the Waterproof Panel PC include:
- Assistance with setting up and configuring the panel PC
- Troubleshooting technical issues and providing solutions
- Warranty support and repairs
- Software updates and patches
- User training and guidance
Packing and Shipping:
Product Packaging:
The Waterproof Panel PC will be carefully packaged in a sturdy cardboard box with protective foam padding to ensure safe delivery.
Shipping:
We offer reliable shipping services to deliver the Waterproof Panel PC to your desired location. Our shipping partners will ensure that the product reaches you in a timely and secure manner.
