Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , full IP65 waterproof and dustproof.
Industrial LCD panel, full view angle, 1000nits sunlight readable, with light sensor for auto dimming.
10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment.
EETI waterproof solution, the touch function can work well with drop water on the screen.
The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation
-20 °C ~ 70°C (-4°F ~158°F).
Optical bonding, Prevent condensation and fogging inside the screen and increase transmittance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |

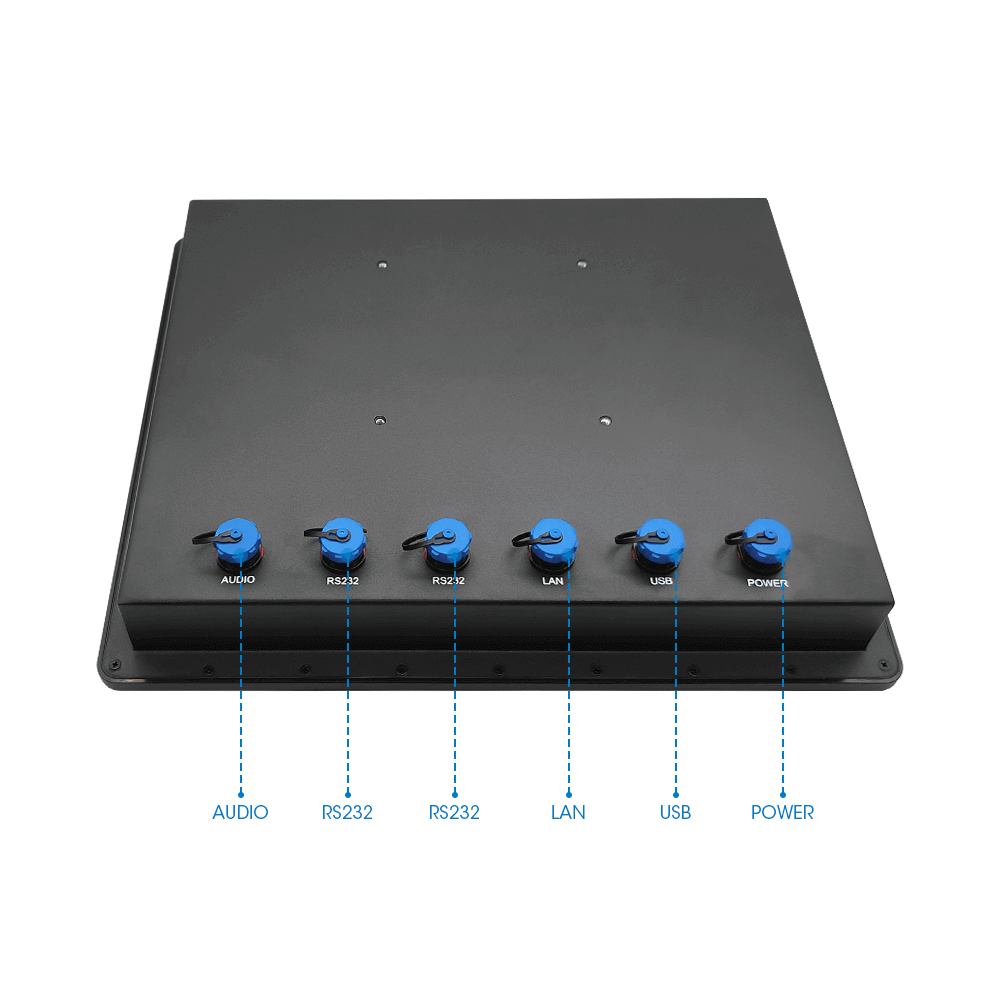

| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 12.1'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1280(H)*800(V) |
| Aspect Ratio | 16：10 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 4KG |

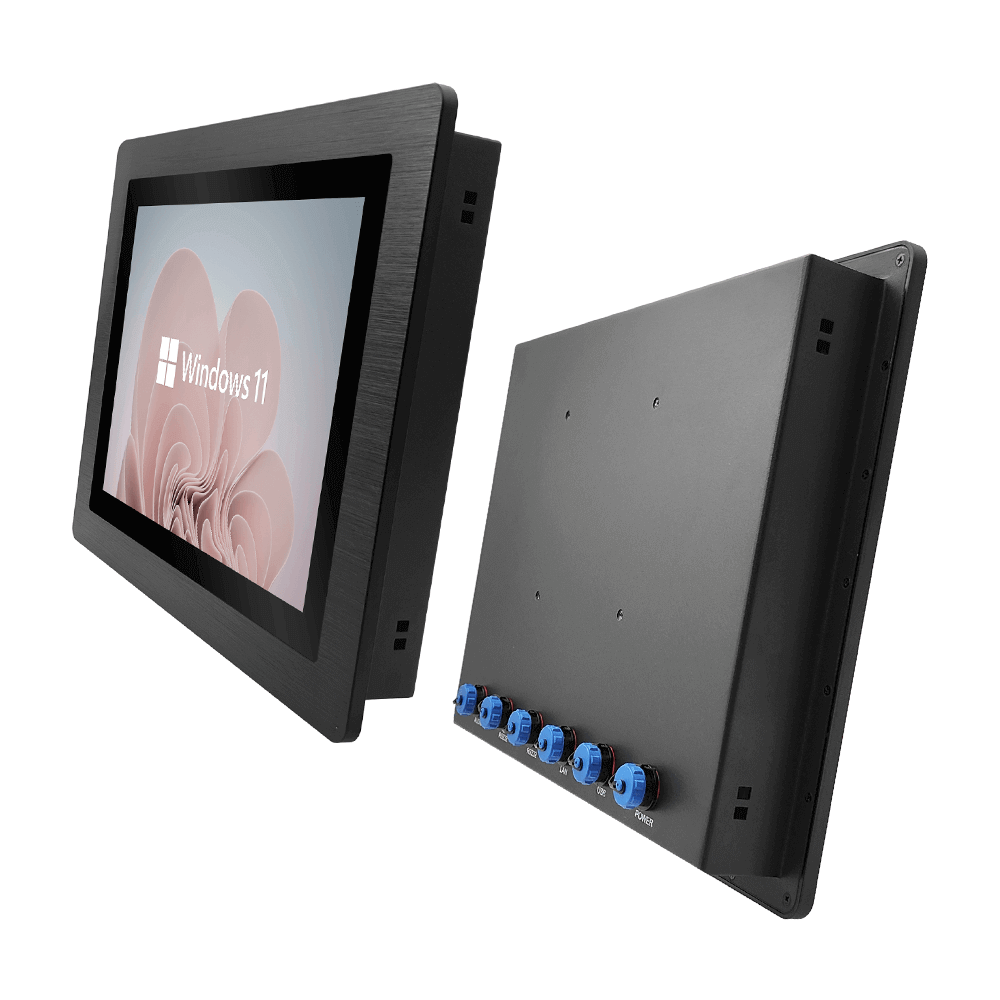

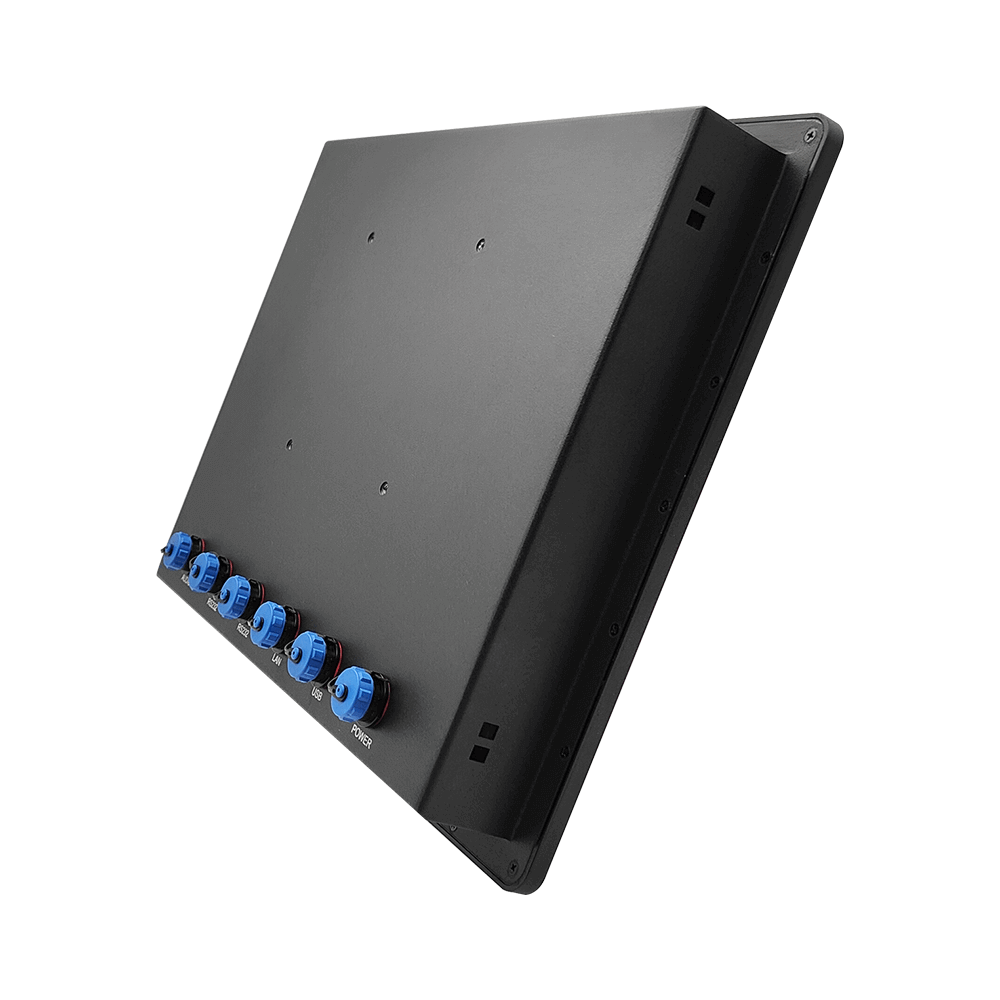

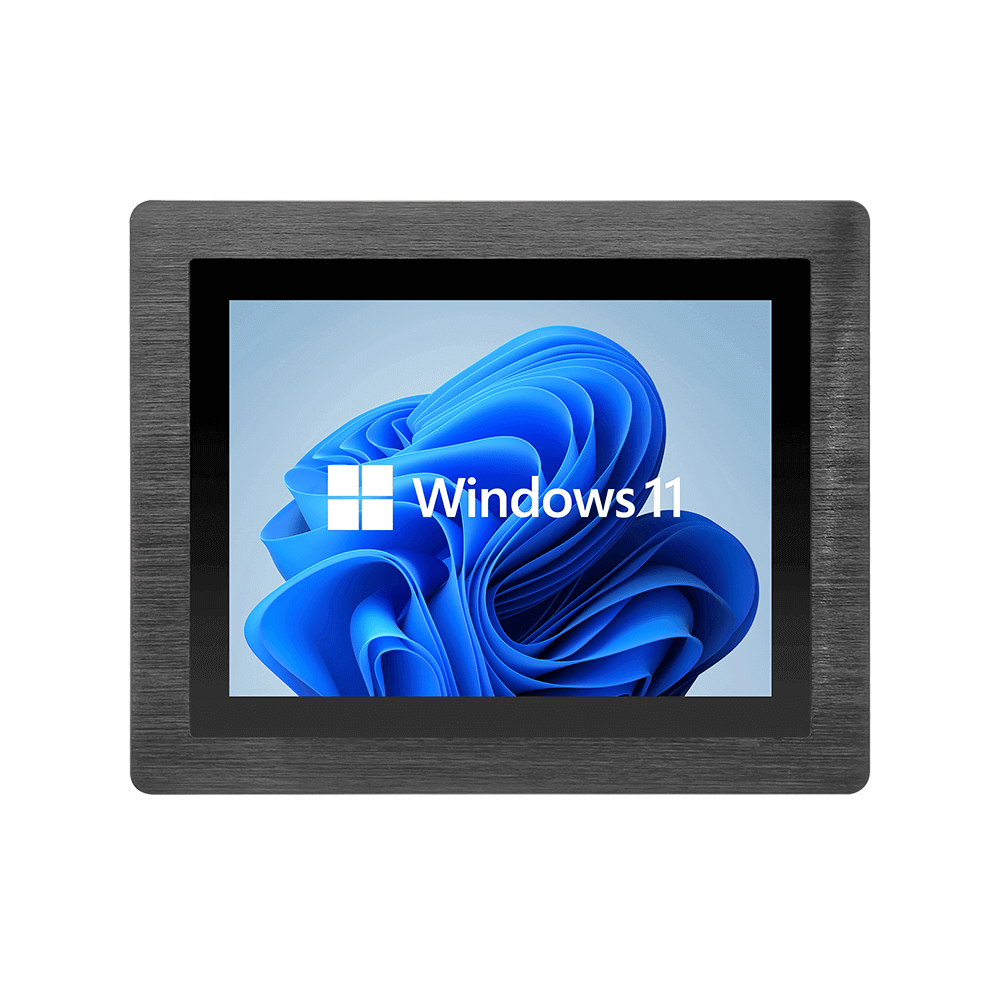

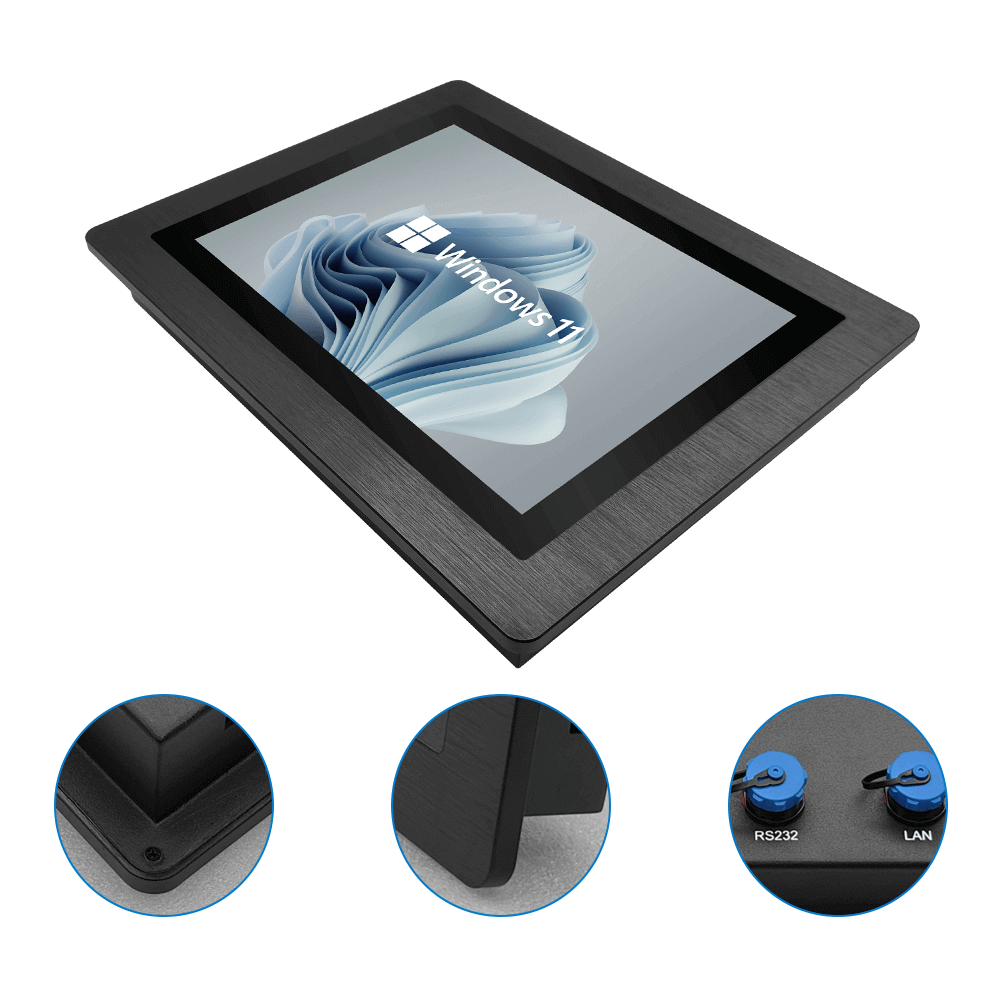

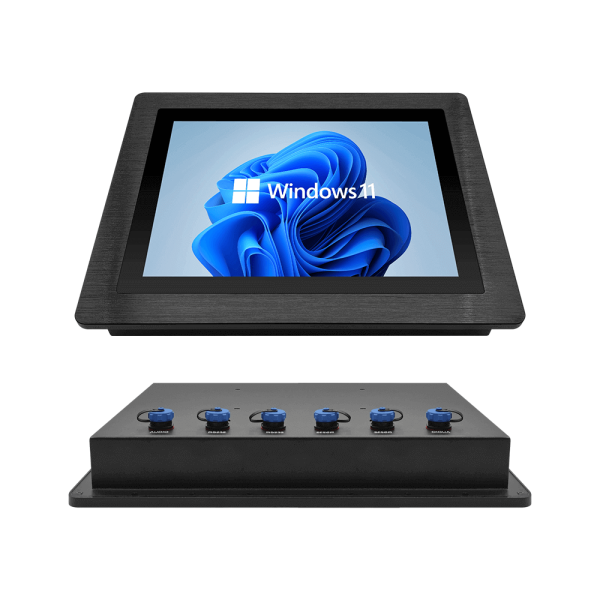

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Waterproof Panel PC is a versatile and reliable solution for various industrial applications, designed to withstand harsh environmental conditions and provide efficient performance. This Weatherproof Industrial Panel Computer is equipped with a range of features to meet the demands of rugged environments.
With a storage capacity of 128GB SSD (128G/512G Optional), the Waterproof Panel PC ensures ample storage space for your data and applications, allowing you to store and access your files with ease. Whether you choose the 128GB option or upgrade to the 512GB version, you can count on reliable and fast storage performance.
The Waterproof Panel PC runs on the Windows 10/11 operating system, providing a familiar and user-friendly interface for seamless operation. You can enjoy the benefits of Windows OS, including compatibility with a wide range of software applications and easy customization options to suit your specific needs.
Equipped with a resistive or capacitive touch screen, the Waterproof Panel PC offers intuitive and responsive touch controls for enhanced user experience. Whether you prefer the precision of resistive touch or the multi-touch capabilities of capacitive touch, this Rugged Watertight Panel PC provides flexibility to meet your requirements.
Powered by Intel processors, including the Intel J6412, Intel J6413, i3, i5, and i7 options, the Waterproof Panel PC delivers powerful performance for demanding industrial tasks. Whether you need high-speed processing capabilities or efficient multitasking performance, this All-Weather Touch Panel Computer is equipped to handle a variety of applications with ease.
Features:
· Product Name: IP68 Waterproof Panel PC
· Power Supply: 12V/9-36v DC
· Resolution: 1024X 768
· IP Rating: IP65/66/67
· Operating System: Windows 10/11
Technical Parameters:
Operating System | Windows 10/11 |
IP Rating | IP65/66/67 |
CPU | Intel J6412/Intel J6413/I3/I5/I7 |
Panel Size | 12.1 Inch |
Brightness | 350cd/m² |
Product Name | Waterproof Panel PC |
Mounting | VESA Mount |
Working Temperature | -20℃ To +70℃ |
Resolution | 1024X 768 |
Power Supply | 12V/9-36v DC |
Applications:
IND121PC Waterproof Panel PC, model number INNODAPC, is a versatile and durable device designed for a wide range of applications in various industries. With its robust construction and waterproof features, this Weatherproof Industrial Panel Computer is suitable for demanding environments where exposure to water, dust, and harsh weather conditions is a concern.
Manufactured in China, the IND121PC Waterproof Panel PC has obtained multiple certifications including CEE, FCC, IP65, and RoHS, ensuring compliance with international standards for quality and safety. The product has a minimum order quantity of 2 units and comes packaged individually in cartons with a weight of 5kgs per piece. The compact packing size of 45×35×12cm makes it convenient for shipping and storage.
With a delivery time of 25 working days upon receiving payment, customers can rely on prompt order fulfillment. Various payment options such as T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram are accepted, offering flexibility to buyers. The supply ability of 5000 pieces per month ensures a steady availability of the Waterproof Embedded Panel PC for large-scale projects or ongoing requirements.
The IND121PC Waterproof Panel PC is equipped with a range of CPU options including Intel J6412, Intel J6413, I3, I5, and I7, providing sufficient processing power for diverse computing needs. The device operates on a 12V/9-36v DC power supply and features 4GB DDR3 memory for smooth performance. The IP Rating of IP65/66/67 certifies its resistance to water and dust ingress, making it suitable for outdoor or industrial environments.
Storage options for the Waterproof Panel PC include a 128GB SSD with the choice of 128G or 512G capacity, catering to different storage requirements. Whether used in manufacturing facilities, outdoor kiosks, or marine applications, the IP68 Waterproof Panel PC offers reliability and performance in challenging conditions.
Customization:
Product Customization Services for the Waterproof Panel PC:
Brand Name: IND121PC
Model Number: INNODAPC
Place of Origin: China
Certification: CEE, FCC, IP65, RoHS
Minimum Order Quantity: 2
Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
Resolution: 1024X 768
Power Supply: 12V/9-36v DC
Product Name: Waterproof Panel PC
Memory: 4GB DDR3
Touch Screen: Resistive/capacitance Touch
Keywords: Shockproof Waterproof Industrial PC, Dustproof Waterproof PC Panel, Waterproof Embedded Panel PC
Support and Services:
Our Waterproof Panel PC product comes with comprehensive Product Technical Support and Services to ensure the optimal performance and functionality of the device. Our technical support team is available to assist with any product-related inquiries, troubleshooting, and maintenance needs. Additionally, we offer a range of services such as product training, software updates, and repair services to enhance the overall user experience and longevity of the product.
Packing and Shipping:
Product Packaging:
Our Waterproof Panel PC is carefully packaged to ensure safe delivery. Each unit is wrapped in protective packaging material to prevent any damage during transit.
Shipping:
We offer reliable shipping services to ensure your Waterproof Panel PC reaches you in a timely manner. We work with trusted carriers to deliver your order securely to your desired location.
