Robust and durable, all-metal enclosure, sealing design, full IP67 waterproof, Sealed I/O with cable set included.
Industrial LCD panel, 1000 nits. sunlight readable. Anti glare.
Adopt EETI waterproof touch solution. touch can work well with drop water on the screen.
Optical bonding technology.
Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.
High performance mainboard, 7x24 continuous operation.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| LCD Panel Charateristics | |||||
| Screen Size | 15.6 18.5 21.5'' LCD/LED Panel(7-55inch is supported) | ||||
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | ||||
| Resolution | 1920(H)*1080(V) | ||||
| Aspect Ratio | 16：9 | ||||
| Brightness | 1000-1500cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 700：1 | ||||
| Touch screen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |
| I/O Interface(optional) | |||||
| USB2.0(optional USB3.0) | 1 | ||||
| HDMI | 1 | ||||
| DC | 12V | ||||
| Audio I/O | |||||
| VGA | 1 | ||||
| Other Information | |||||
| Frame Material | Aluminum Alloy/Stainless Steel/Metal | ||||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||||
| Color | Default balck,also can choose white,silvery or other colour | ||||
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | ||||
| Weight | 7KG | ||||

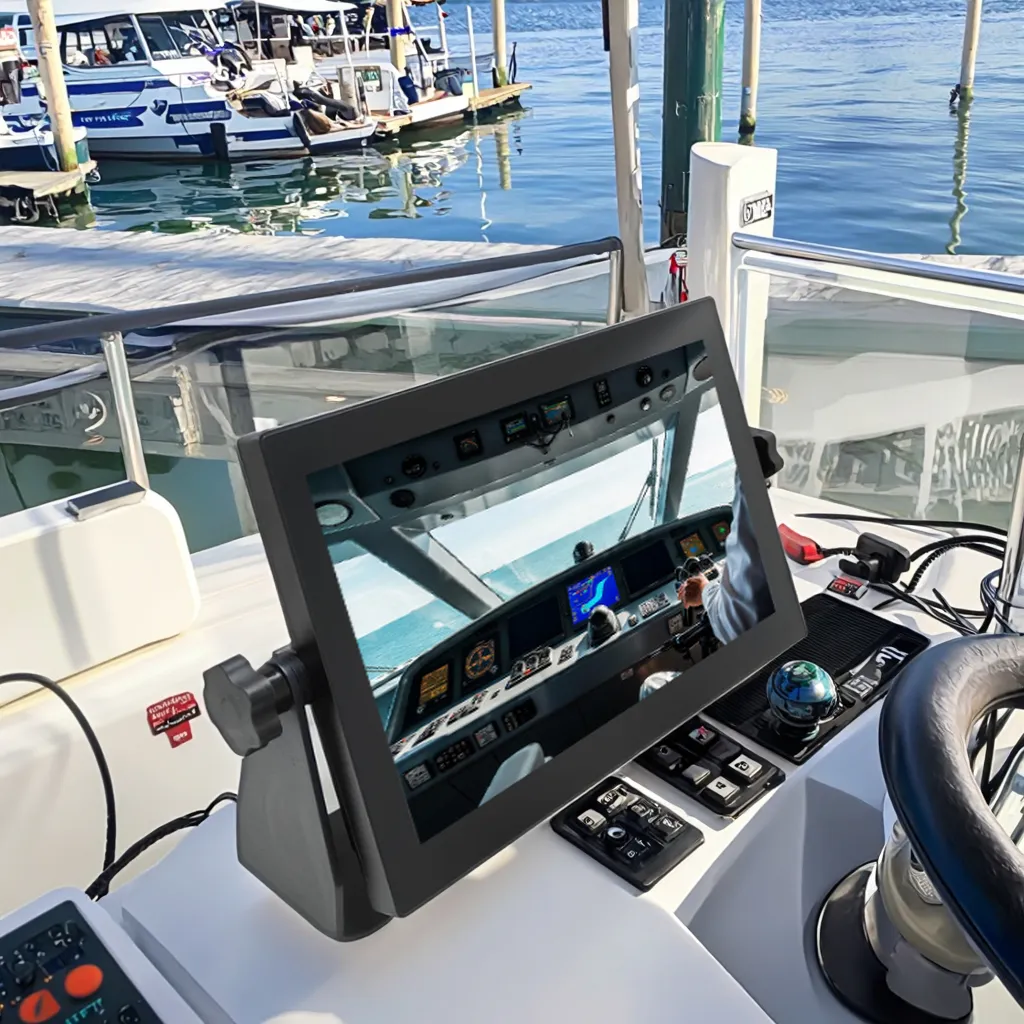

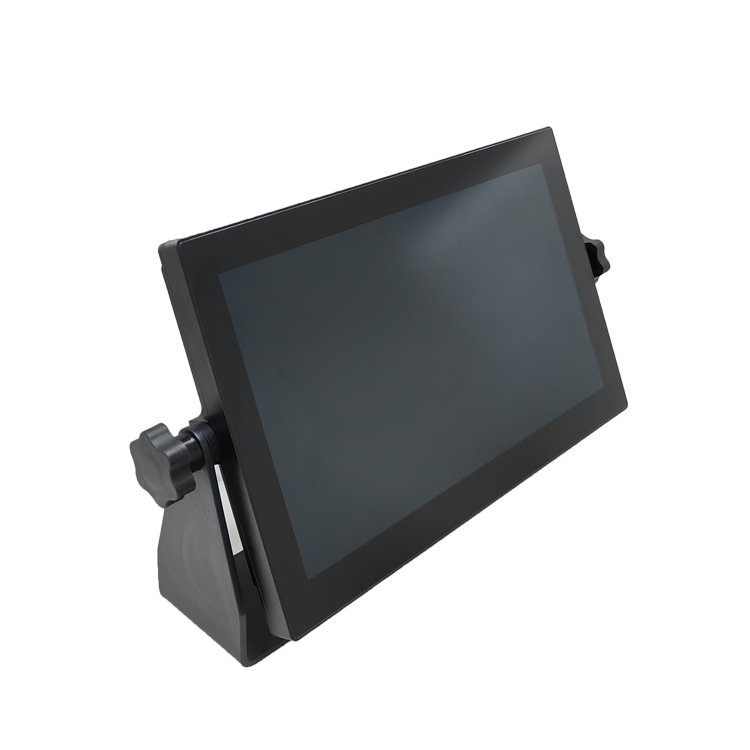

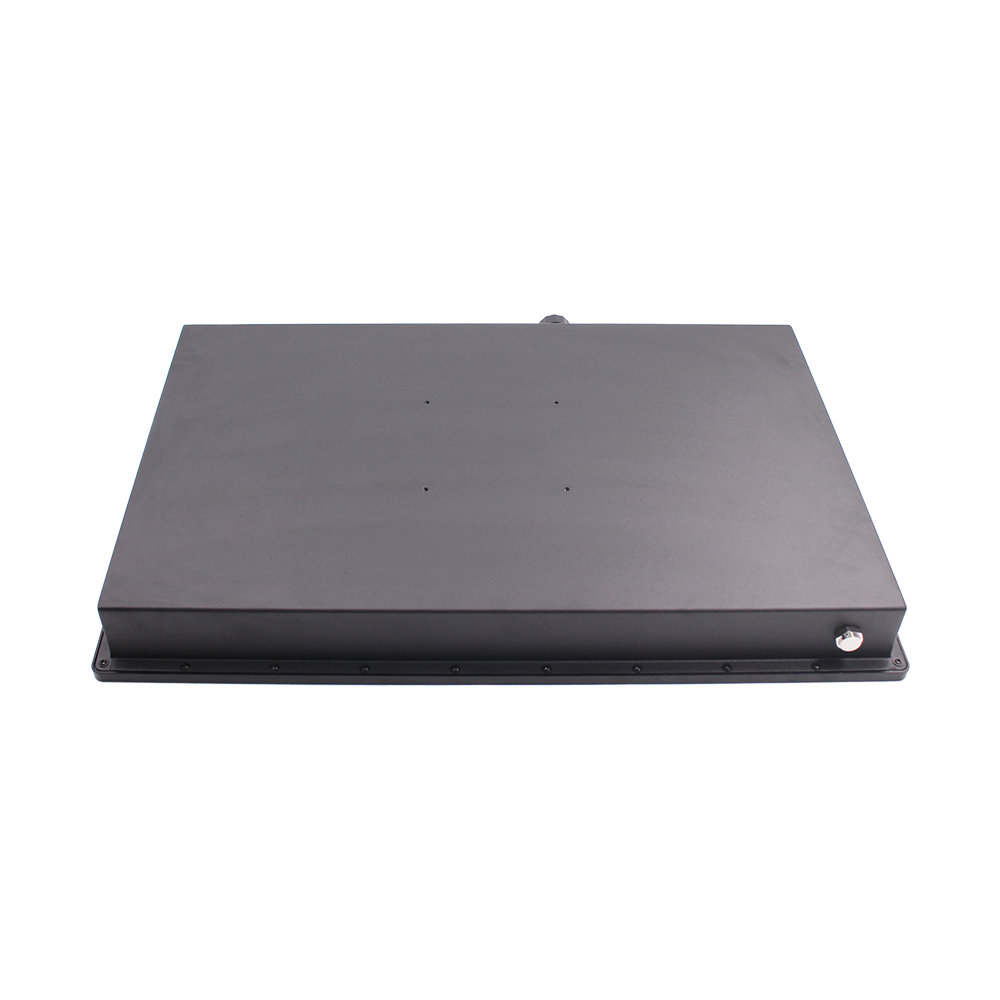

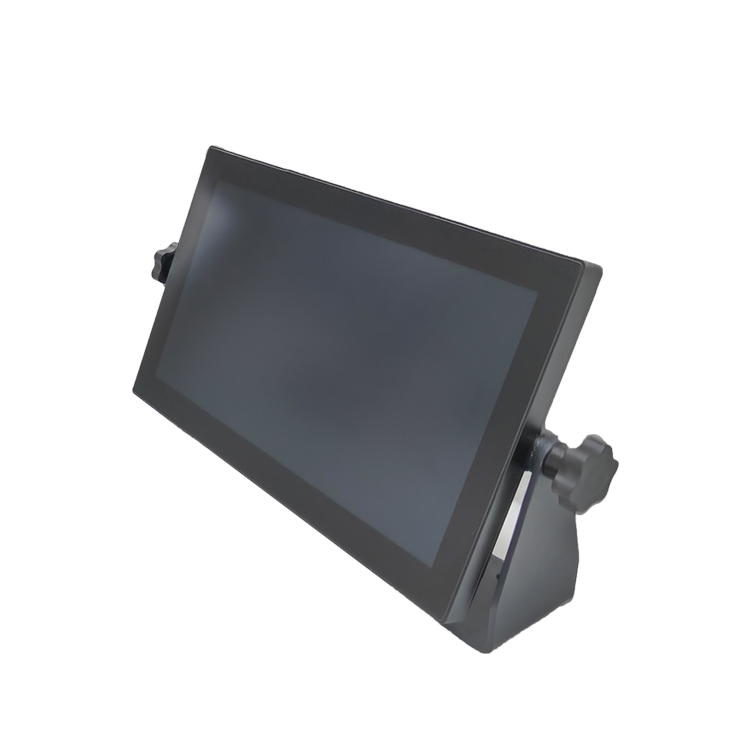

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Industrial LCD Touch Screen Monitor is a versatile display solution designed for demanding industrial environments. Available in 15.6-inch, 18.5-inch, and 21.5-inch sizes, this Industrial LCD Monitor offers a range of options to suit different application needs. With a capacitive touch technology supporting 10 touch points, users can interact with the screen effortlessly, making it ideal for interactive applications.
One of the key features of this Industrial LCD Monitor is its exceptional brightness levels ranging from 1000 to 1500 nits, ensuring optimal visibility even in bright ambient light conditions. This makes it perfect for outdoor installations or areas with high levels of ambient light where standard monitors may struggle to deliver clear images.
For ease of installation and flexibility, the Industrial LCD Monitor supports VESA wall mount and yoke mounting options. This allows for easy integration into existing setups or custom installations as per the specific requirements of the environment.

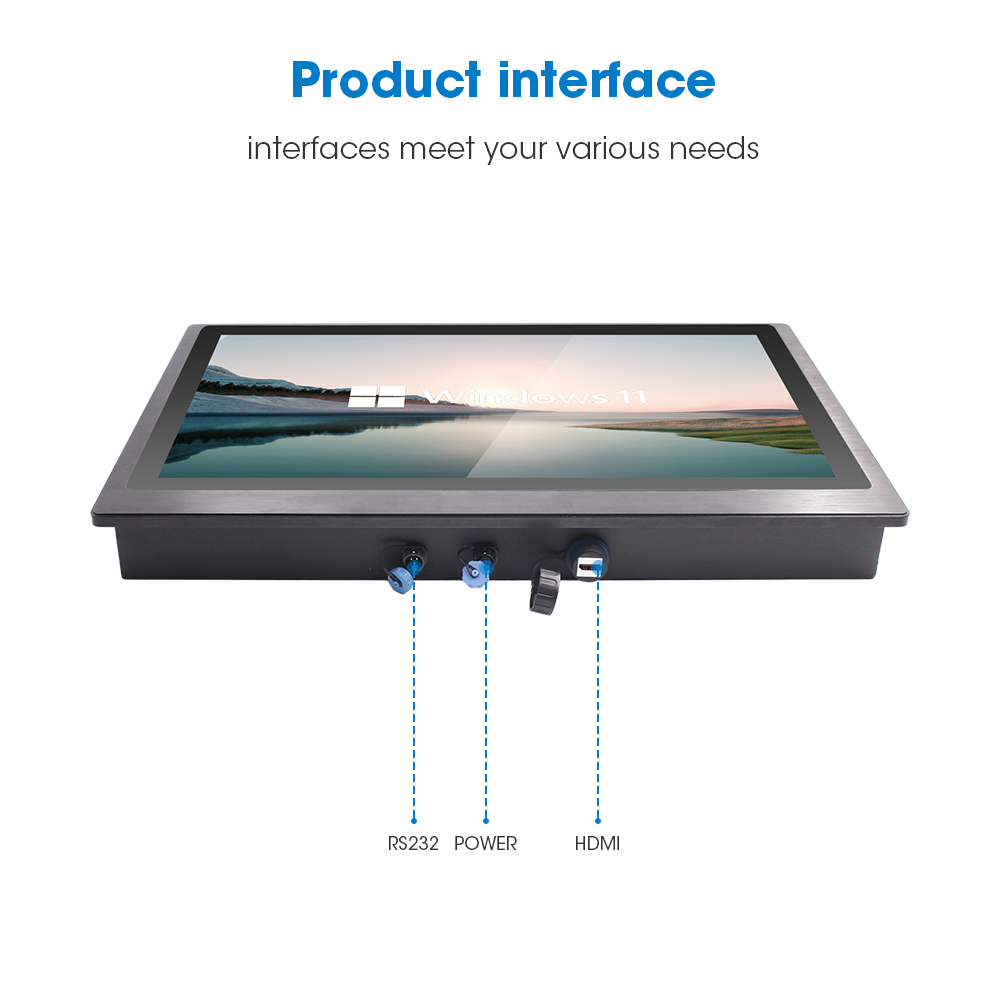

In terms of connectivity, the Industrial LCD Monitor offers a range of interfaces including HDMI, USB, and power input, providing versatile connectivity options for seamless integration with various devices and systems. Whether it's connecting to a computer, media player, or other peripherals, this Industrial LCD Monitor ensures compatibility and convenience.
The Industrial LCD Monitor is designed to meet the demanding requirements of industrial applications, offering a rugged build and reliable performance. Whether used in manufacturing facilities, control rooms, or outdoor installations, this Industrial LCD Monitor delivers high-quality images and responsive touch functionality, enhancing operational efficiency and user experience.
Industrial LCD Monitors are known for their durability and long-term reliability, making them a cost-effective display solution for industrial settings where performance and longevity are crucial. With a robust construction and advanced features, this Industrial LCD Monitor is built to withstand harsh environments and continuous use, ensuring uninterrupted operation in demanding conditions.
The Industrial LCD Panel Display excels in delivering crisp and clear visuals, thanks to its high brightness levels and advanced display technology. From detailed graphics to intricate data visualization, this Industrial LCD Monitor ensures that content is displayed accurately and vividly, enhancing productivity and decision-making in industrial applications.
Features:
· Product Name: Sunlight Readable LCD Monitor
· Resolution: 1920*1080
· Brightness: 1000-1500Nits
· Touch points: 10 Points Capacitive Touch
· Interface: HDMI/USB/POWER
· Installation: VESA Wall Mount/Yoke
Technical Parameters:
Resolution | 1920*1080 |
Brightness | 1000-1500 Nits |
Installation | VESA Wall Mount/Yoke |
Touch points | 10 Points Capacitive Touch |
Interface | HDMI/USB/POWER |
Size | 15.6/18.5/21.5 Inch |
Applications:
INNODA's Sunlight Readable LCD Monitor, model number IND156M, is a versatile display solution suitable for a wide range of industrial applications. With its high brightness of 1000-1500Nits and 10 Points Capacitive Touch technology, this Industrial LCD Monitor ensures optimal visibility and user interaction even in bright outdoor environments.
Manufactured in China, this Industrial LCD Panel Display is certified with CE, RoHS, FCC, IP65, IP66, and IP67 ratings, guaranteeing quality and reliability for various industrial settings. The rugged design of the monitor makes it ideal for use in harsh conditions where dust, water, or extreme temperatures are present.
The Sunlight Readable LCD Monitor from INNODA comes in sizes of 15.6, 18.5, and 21.5 inches, providing flexibility to fit different application scenarios. Its resolution of 1920*1080 ensures crisp and clear image reproduction for detailed visual content.
With installation options such as VESA Wall Mount or Yoke, this Industrial LCD Monitor can be easily integrated into existing setups or custom installations. The minimum order quantity of 1 unit and a supply ability of 3000 pieces per month make it convenient for both small-scale and large-scale industrial projects.
Whether used in outdoor kiosks, manufacturing plants, transportation hubs, or control rooms, the Sunlight Readable LCD Monitor excels in providing reliable performance and enhanced visibility in demanding industrial environments. The packaging details of 1 piece per carton with a weight of 7kgs and dimensions of 45×35×12cm ensure safe and secure delivery.
Experience the durability, functionality, and performance of the INNODA Sunlight Readable LCD Monitor for your industrial LCD display needs. Order now and receive your shipment in 25 working days to elevate your industrial visualization experience.
Customization:
Enhance your viewing experience with our Product Customization Services for the High Brightness LCD Display - Sunlight Readable LCD Monitor.
Brand Name: INNODA
Model Number: IND156M
Place of Origin: China
Certification: CE, RoHS, FCC, IP65, IP66, IP67
Minimum Order Quantity: 1
Packaging Details: 1pc/carton weight: 7kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days
Supply Ability: 3000 pieces per month
Interface: HDMI/USB/POWER
Size: 15.6/18.5/21.5 Inch
Touch points: 10 Points Capacitive Touch
Installation: VESA Wall Mount/Yoke
Brightness: 1000-1500Nits
Support and Services:
The Sunlight Readable LCD Monitor offers comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our team of experts is dedicated to assisting you with any product-related inquiries, troubleshooting, and technical assistance.
Our services include:
· 24/7 Technical Support Hotline
· Online Knowledge Base and FAQs
· Product Updates and Downloads
· On-site Repair and Maintenance Services
· Extended Warranty Options
Packing and Shipping:
Product Packaging and Shipping:
Our Sunlight Readable LCD Monitor is carefully packaged to ensure safe delivery to our customers. The monitor is protected with foam padding and securely placed in a sturdy cardboard box to prevent any damage during shipping.
For shipping, we partner with reliable carriers to ensure timely delivery to your doorstep. The package is marked with 'Fragile' stickers to alert handlers to handle with care.
