Stainless steel SS304, Full IP67 waterproof, M 16 metal waterproof connector
Industrial grade LCD screen, full viewing angle
10-point capacitive touch screen, cover 2mm tempered glass (chemically strengthened), the hardness reaches 7H
EETI touch control solution, can touch well with drop water
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
The touch screen and LCD screen are optical bond
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| LCD Panel Charateristics | |||||
| Screen Size | 21.5'' LCD/LED Panel(7-55inch is supported) | ||||
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | ||||
| Resolution | 1920(H)*1080(V) | ||||
| Aspect Ratio | 16：9 | ||||
| Brightness | 1000-1500cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 700：1 | ||||
| Touch screen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |
| I/O Interface(optional) | |||||
| USB2.0(optional USB3.0) | 1 | ||||
| HDMI | 1 | ||||
| DC | 12V | ||||
| Audio I/O | |||||
| VGA | 1 | ||||
| Other Information | |||||
| Frame Material | Aluminum Alloy/Stainless Steel/Metal | ||||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||||
| Color | Default balck,also can choose white,silvery or other colour | ||||
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | ||||
| Weight | 7KG | ||||

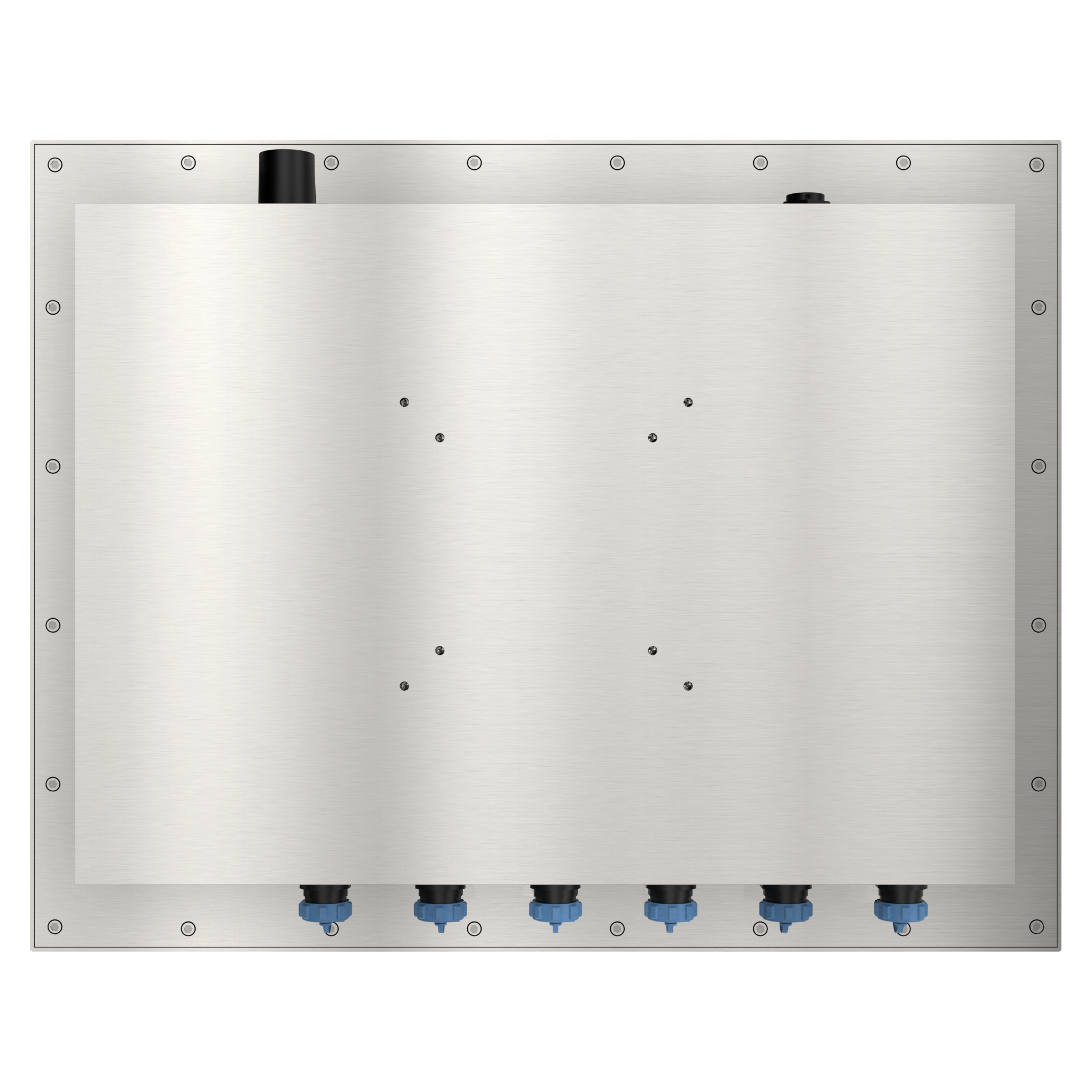

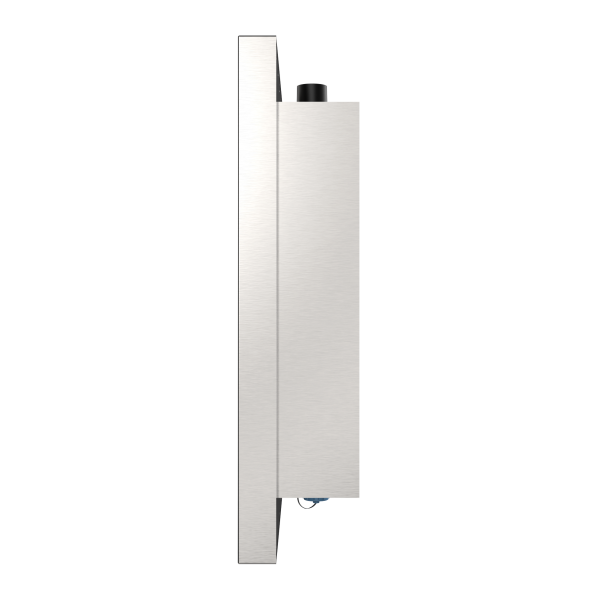

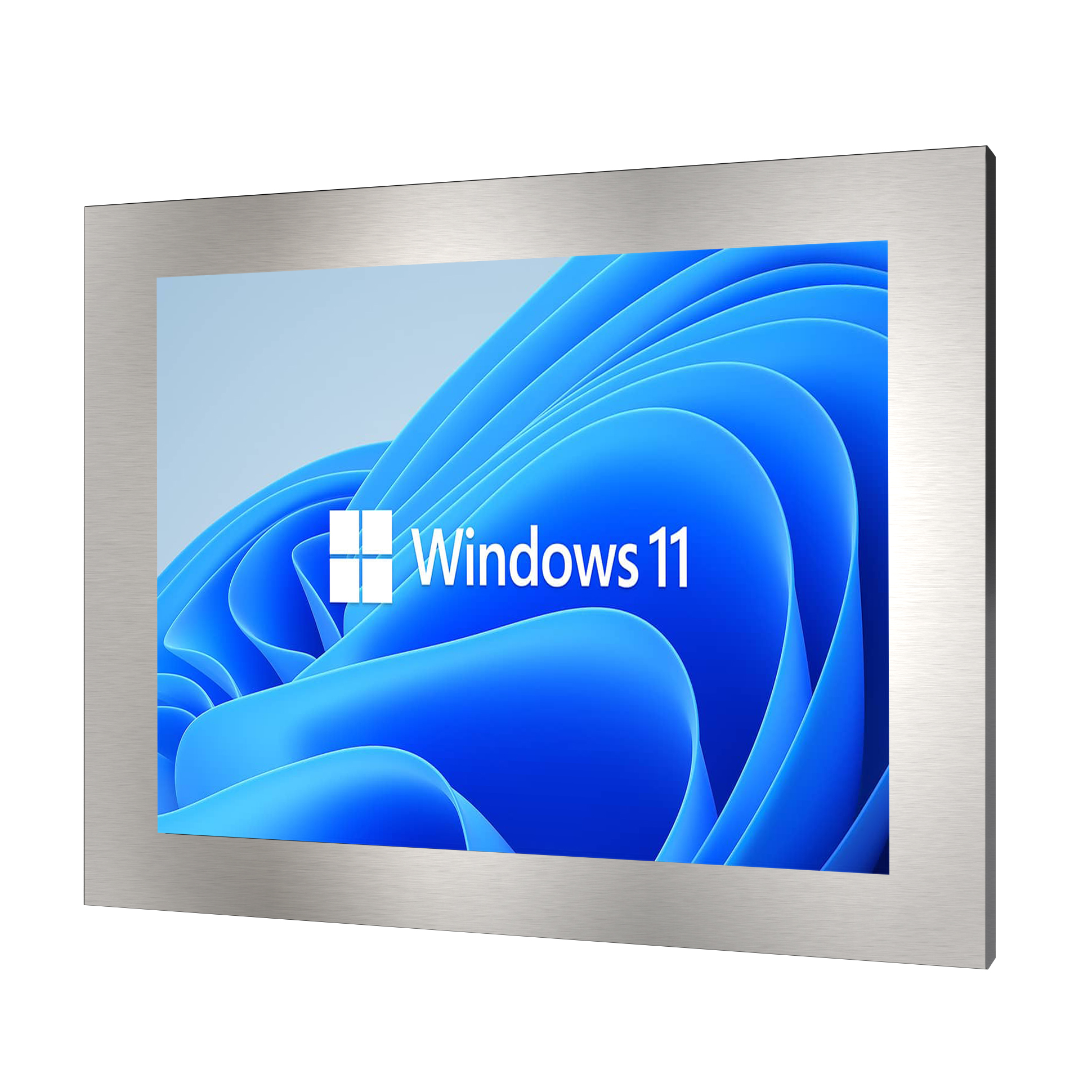

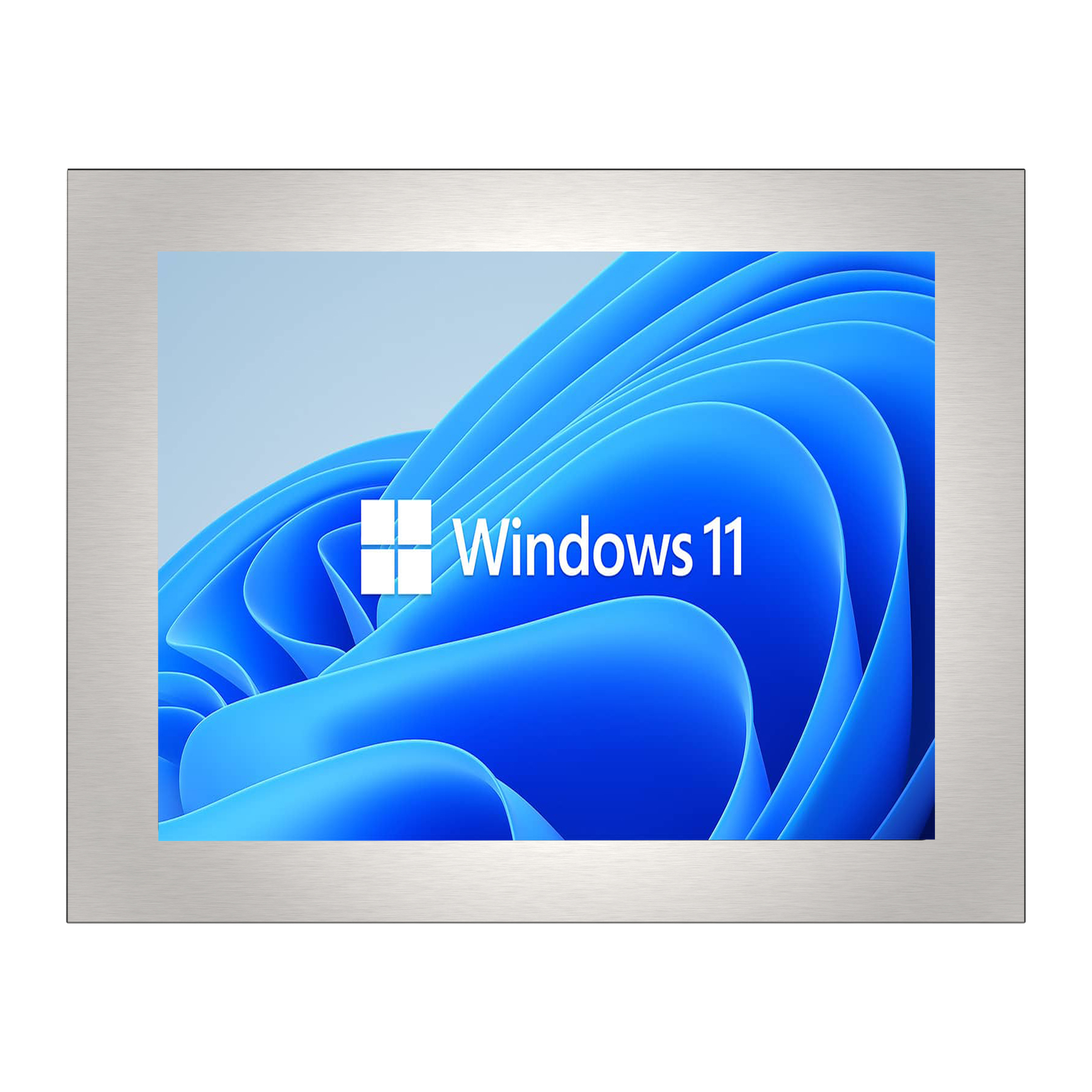

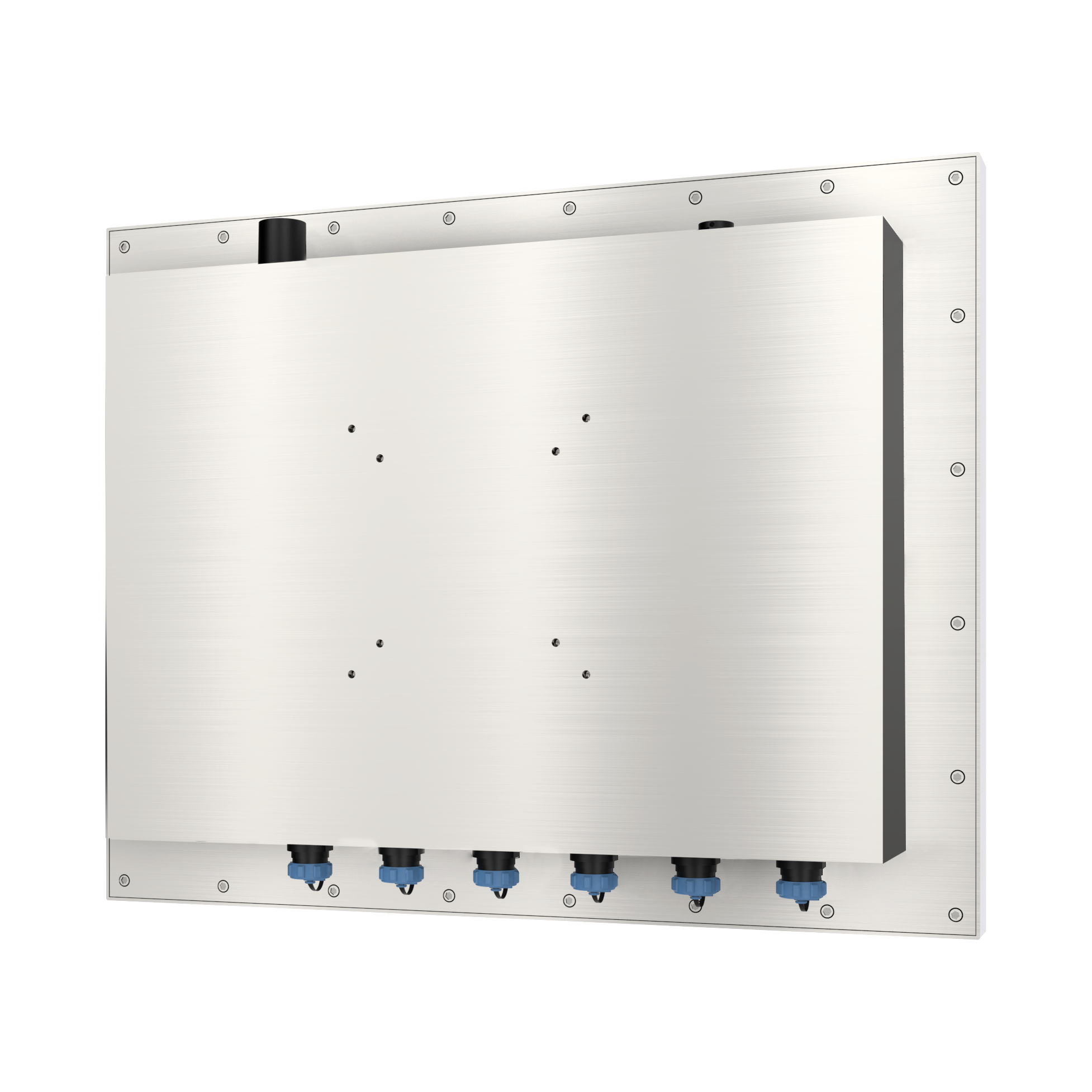

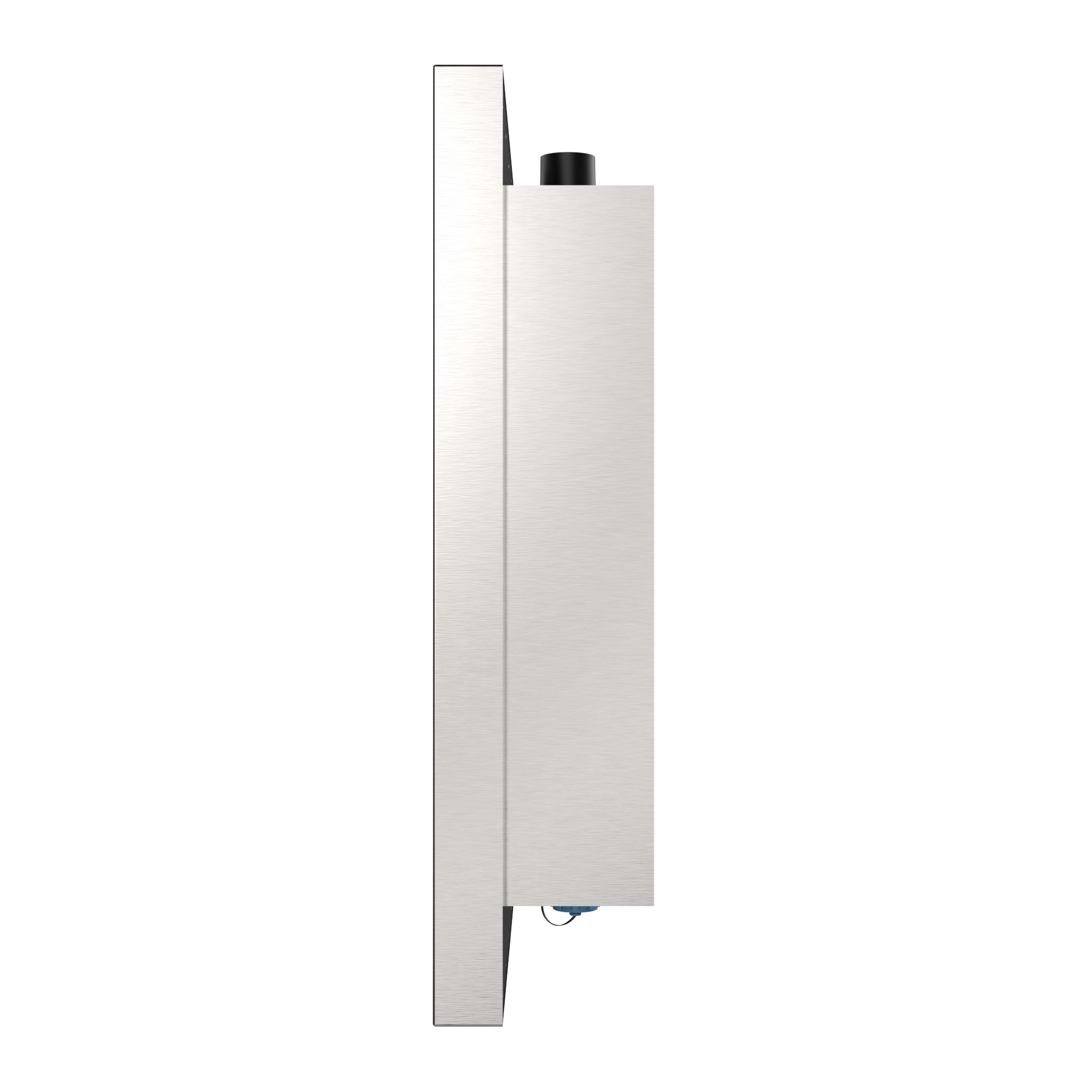

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
Introducing our Stainless Steel Panel PC, a reliable and durable solution for various industrial applications. This Stainless Steel Embedded panel pc is designed to withstand harsh environments and deliver high-performance computing capabilities.
Equipped with a rugged stainless steel casing, this Stainless Touch Screen Panel PC is built to last and provide optimal protection for the internal components. The sturdy construction ensures that the panel PC can withstand dust, water, and other contaminants commonly found in industrial settings.
The interface options of this panel PC include USB, RJ45, and COM ports, allowing for seamless connectivity with other devices and systems. Whether you need to transfer data, connect to a network, or communicate with external devices, the versatile interface of this panel PC has you covered.
Enhancing the user experience, this panel PC features a capacitive touchscreen that offers precise and responsive touch control. The capacitive touchscreen technology provides a smooth and accurate touch experience, making it easy to interact with the display for various applications.
Powered by Intel processors such as J6412, J6413, i3, i5, and i7, this Stainless Steel Panel PC delivers reliable performance and efficiency for demanding industrial tasks. With multiple CPU options available, you can choose the processing power that best suits your specific application requirements.
With memory options of 8GB and 16GB, this panel PC ensures smooth multitasking and efficient operation, allowing you to run multiple applications simultaneously without compromising performance. The ample memory capacity enables seamless data processing and storage for enhanced productivity.
Designed to withstand challenging environments, this panel PC boasts an IP rating of IP65, IP67, or IP68, providing waterproof protection against water and dust ingress. The IP grade certification ensures that the panel PC can operate reliably in demanding conditions without compromising performance.
Whether you need a rugged stainless steel PC for industrial automation, manufacturing, or outdoor applications, our Stainless Steel Panel PC is the ideal solution. Combining durability, performance, and versatility, this panel PC is built to meet the demands of diverse industrial environments.
Applications:
INNODA Stainless Steel Panel PC (Model: IND215PC) is a versatile and durable industrial computing solution suitable for a wide range of application occasions and scenarios. With its robust stainless steel construction, this panel PC is designed to withstand harsh environments and demanding conditions, making it ideal for industries such as manufacturing, food processing, pharmaceuticals, and more.
Manufactured in Shenzhen, China, the INNODA Stainless Steel Panel PC is equipped with various certifications including CE, RoHS, FCC, and IP65, ensuring compliance with international quality and safety standards. This makes it a reliable choice for businesses looking for a high-performance and secure computing solution.
Whether it's for controlling production processes on the factory floor, managing inventory in warehouses, or monitoring operations in clean rooms, the INNODA Stainless Steel Panel PC offers the durability and performance required for demanding industrial applications. Its capacitive touchscreen provides intuitive and responsive interaction, enhancing user experience and productivity.
Businesses can customize the INNODA Stainless Steel Panel PC with their logo, creating a personalized and professional touch to their computing hardware. The panel PC also offers flexibility in terms of storage capacity, with options ranging from 128GB to 512GB hard disk space, catering to varying data storage needs.
Featuring a high-resolution display of 1920x1080, powered by Intel processors such as J6412, J6413, i3, i5, or i7, the INNODA Stainless Steel Panel PC delivers exceptional performance for multitasking and running resource-intensive applications.
With a minimum order quantity of just 1 piece and a supply ability of 5000 pieces per month, businesses can easily procure the INNODA Stainless Steel Panel PC to meet their industrial computing needs. The product is packaged securely for shipping, with each unit weighing 6kgs and measuring 45×35×12cm.
Businesses can enjoy flexible payment terms including T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram, while benefiting from a delivery time of 25 working days upon receipt of payment. Invest in the INNODA Stainless Steel Panel PC for a reliable, durable, and high-performance industrial computing solution.
Customization:
Product Customization Services for the Stainless Steel Panel PC:
Brand Name: INNODA
Model Number: IND215PC
Place of Origin: Shenzhen, China
Certification: CE, RoHS, FCC, IP65
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 6kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receiving payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
IP Grade: Waterproof IP65/67/68
Touchscreen Type: Capacitive Touchscreen
Hard disk: 128G/256G/512G
Size of Screen: 21.5 Inch
Interface: USB/RJ45/COM
Support and Services:
Our Stainless Steel Panel PC product comes with comprehensive Product Technical Support and Services to assist you with any issues or queries you may have. Our dedicated support team is available to provide technical assistance, troubleshooting guidance, and product information to ensure optimal performance and customer satisfaction. Additionally, we offer services such as warranty support, software updates, and maintenance to keep your Stainless Steel Panel PC running smoothly. Trust in our expertise and commitment to delivering top-notch support for your product needs.
FAQ:
Q: What is the brand name of this Stainless Steel Panel PC?
A: The brand name is INNODA.
Q: What is the model number of this Stainless Steel Panel PC?
A: The model number is IND215PC.
Q: Where is this Stainless Steel Panel PC manufactured?
A: It is manufactured in Shenzhen, China.
Q: What certifications does this Stainless Steel Panel PC have?
A: It is certified with CE, RoHS, FCC, and IP65.
Q: What are the accepted payment terms for purchasing this Stainless Steel Panel PC?
A: The accepted payment terms are T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram.
