Stainless steel S304/S316, Full IP67 waterproof, M 16 metal waterproof connector
Industrial grade LCD screen, full viewing angle
10-point capacitive touch screen, cover 2mm tempered glass (chemically strengthened), the hardness reaches 7H
EETI touch control solution, can touch well with ｄｒｏｐ water
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
The touch screen and LCD screen are optical bond
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
This Waterproof Head Industrial Panel PC features S304/S316 stainless steel. It is ideal for harsh and hygienic environments.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |

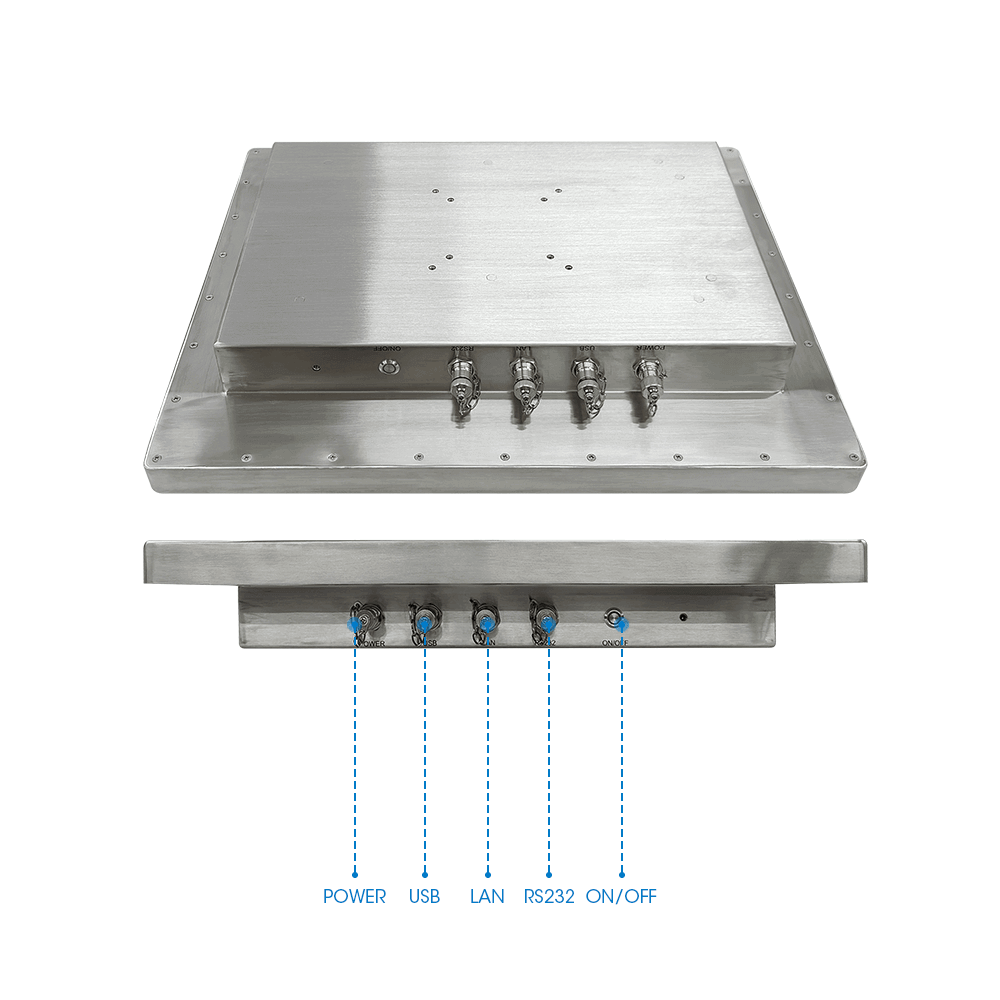

| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 19'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1280(H)*1024(V) |
| Aspect Ratio | 4：3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 6KG |

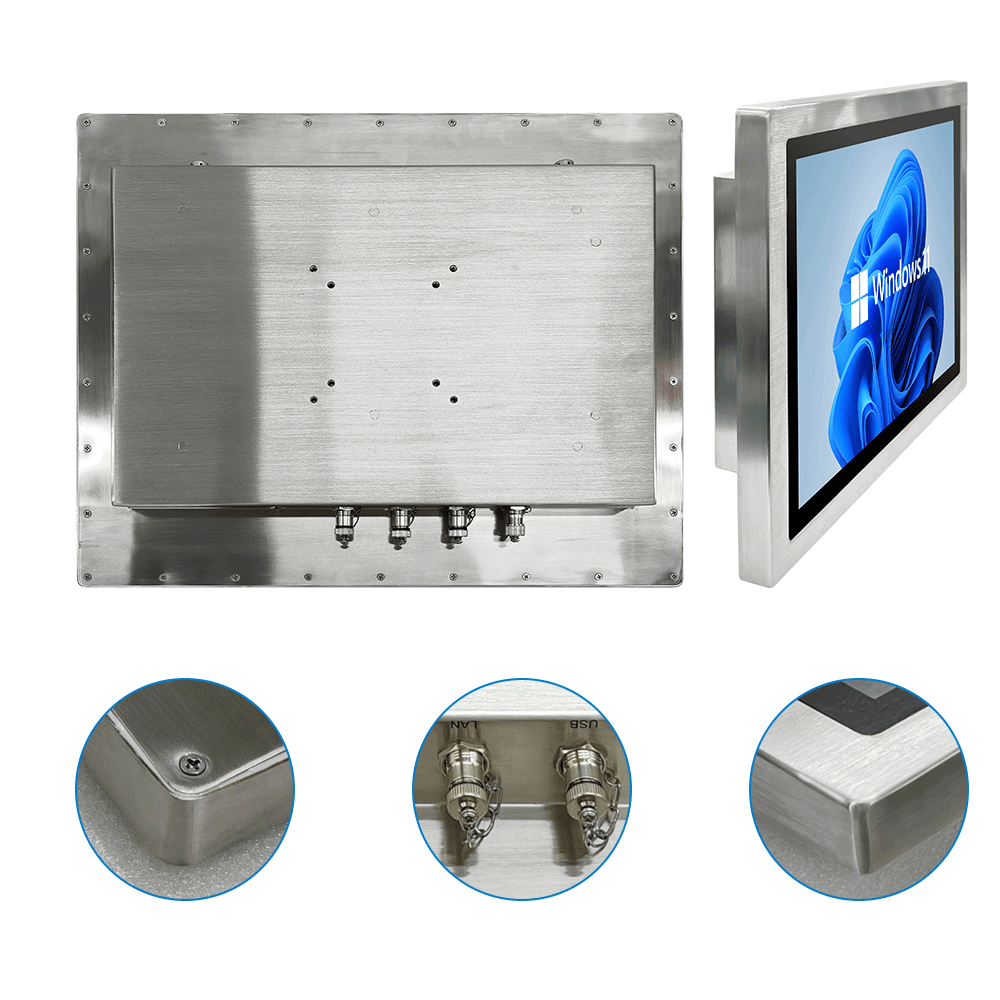

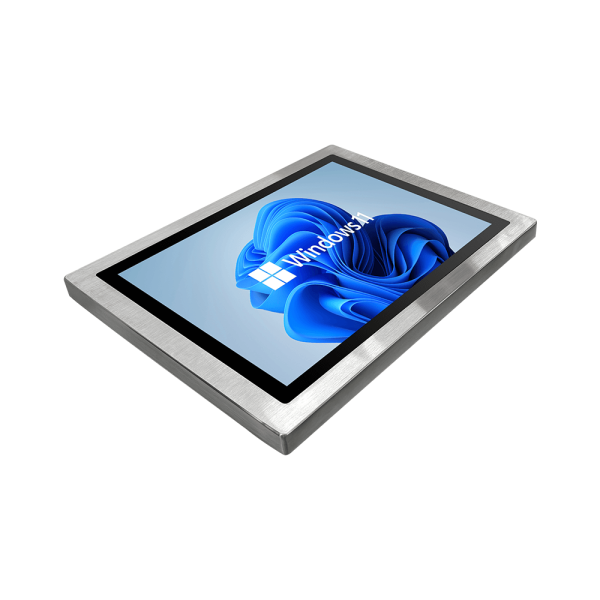

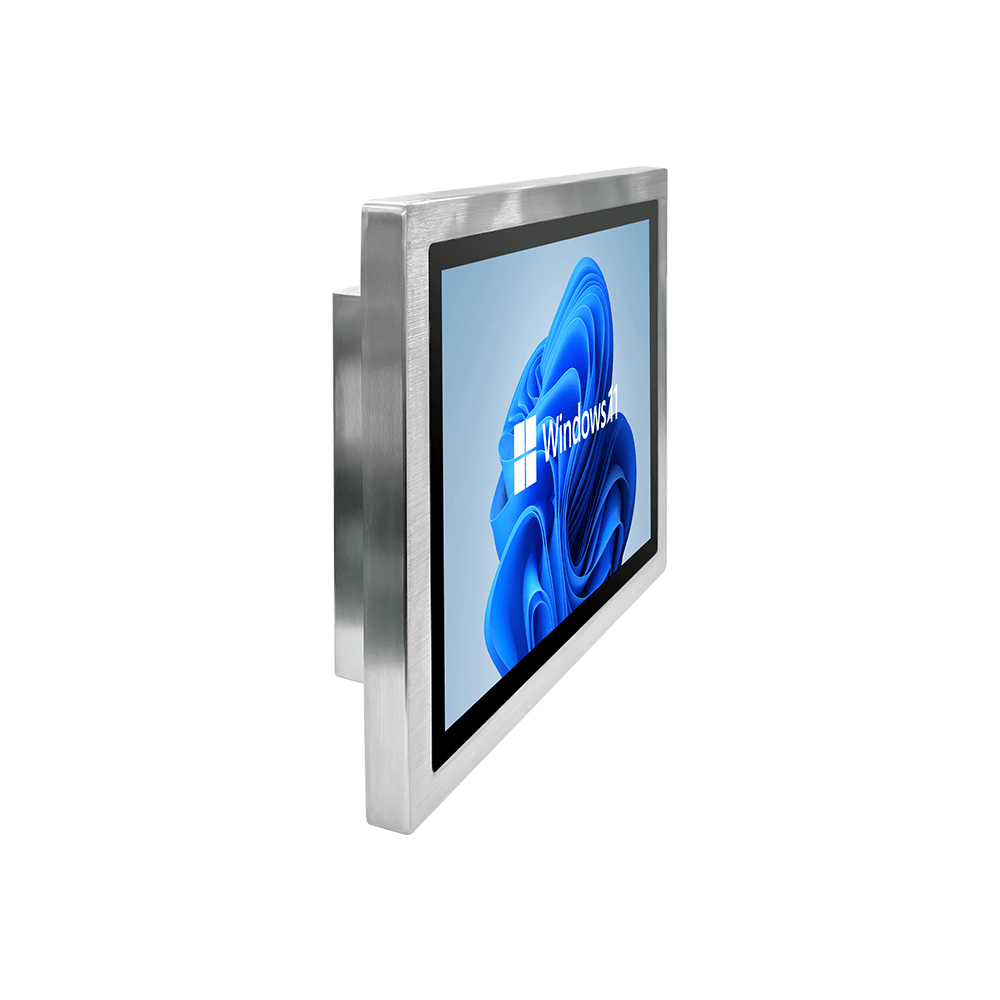

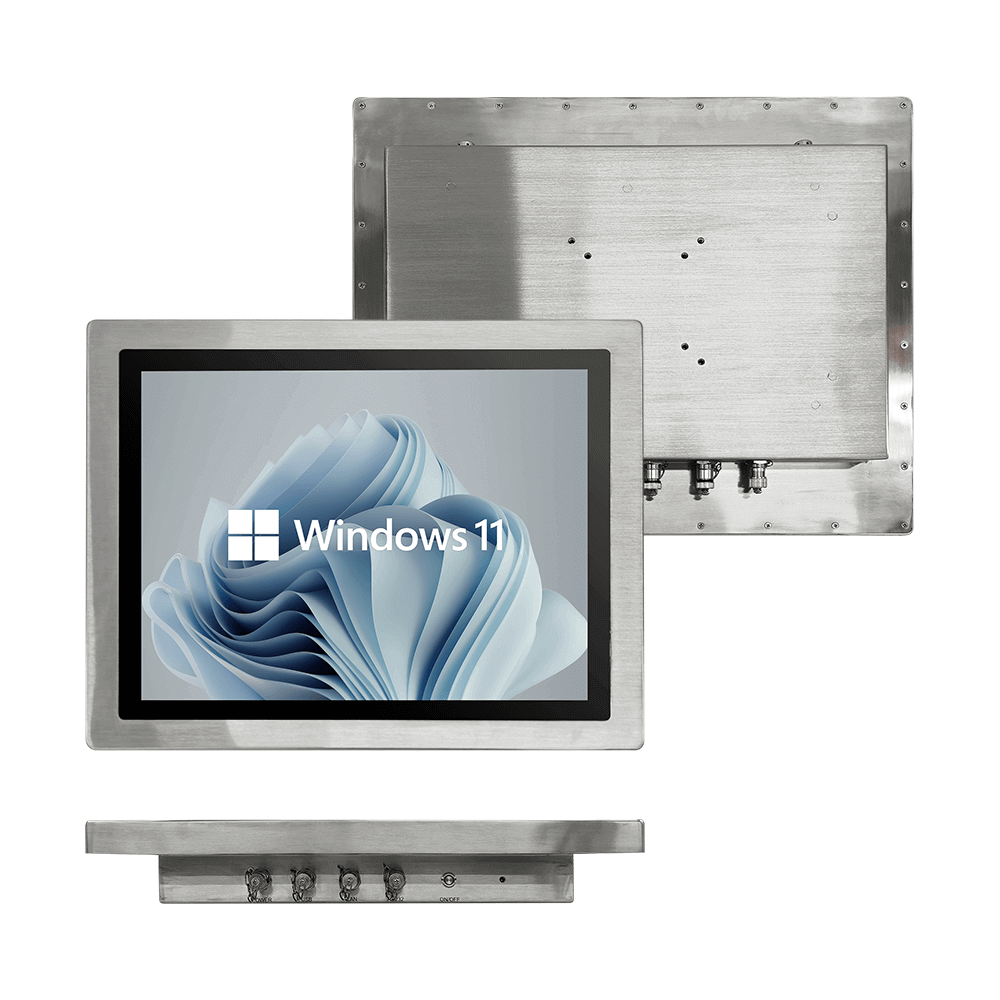

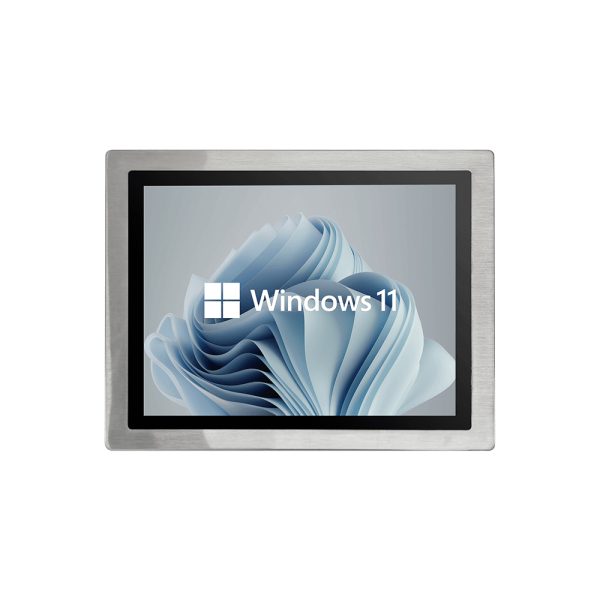

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
Introducing our cutting-edge Stainless Steel Panel PC, the ultimate solution for industrial applications that demand durability, performance, and reliability. This rugged Industrial Panel PC is engineered to withstand the harshest environments while delivering top-notch computing power.
At the core of this Stainless Steel All-in-One PC is a range of high-performance CPUs including Intel J6412, J6413, I3, I5, and I7 processors, ensuring seamless multitasking and efficient operation for your industrial needs.
The Stainless Steel Panel PC boasts a spacious hard disk capacity of 128G, 256G, or 512G, providing ample storage space for your data-intensive applications. Whether you require a larger storage capacity or optimized performance, this Industrial Panel PC offers flexibility to meet your specific requirements.
Featuring a generous 21.5-inch screen size, this Stainless Steel All-in-One PC offers a large display area for enhanced visibility and user experience. The capacitive touchscreen type ensures intuitive and responsive touch interactions, making navigation effortless and efficient.
Customization is key, and our Stainless Steel Panel PC is designed to accommodate your branding needs. With the option to include your client logo, you can personalize this Industrial Panel PC to align with your brand identity and enhance brand recognition.
Designed for rugged industrial environments, the Stainless Steel Panel PC is constructed with durable materials that can withstand harsh conditions, ensuring long-term reliability and performance stability. The stainless steel casing not only provides a sleek and modern look but also offers protection against external elements, making it an ideal choice for demanding industrial settings.
Whether you are in manufacturing, automation, logistics, or any other industrial sector, the Stainless Steel Panel PC is a versatile and robust solution that can streamline your operations and improve productivity. With its powerful CPU options, ample storage capacity, responsive touchscreen, and customizable branding features, this Industrial Panel PC is a comprehensive solution for your industrial computing needs.
Applications:
Stainless Steel Panel PC by INNODA, model number IND215PC, is a versatile and robust industrial computing solution suitable for a wide range of application occasions and scenarios. With its durable steel enclosure, this Stainless Steel Embedded panel pc is designed to withstand harsh industrial environments, making it ideal for use in manufacturing facilities, warehouses, outdoor locations, and other demanding settings. Manufactured in Shenzhen, China, this Stainless Steel Touch Panel pc is certified with CE, RoHS, FCC, and IP65 ratings, ensuring compliance with international quality and safety standards. The minimum order quantity for this product is 1 piece, and it comes in secure packaging with dimensions of 45×35×12cm and a weight of 6kgs per unit. The delivery time for the Stainless Steel Panel PC is 25 working days upon receipt of payment, and various payment terms are accepted, including T/T, Western Union, L/C, Paypal/D/P, D/A, and MoneyGram. With a supply ability of 5000 pieces per month, customers can rely on timely availability of this Steel Enclosure Industrial Computer for their industrial computing needs. Equipped with 8G or 16G of memory, USB/RJ45/COM interfaces, and hard disk options ranging from 128G to 512G, this Stainless Steel Panel PC offers flexibility and performance for diverse applications. The 21.5-inch screen size provides ample display area, while optional WIFI connectivity adds further convenience for wireless operations. In summary, the Stainless Steel Panel PC from INNODA is a reliable and durable computing solution suitable for various industrial settings, thanks to its rugged construction, certifications, and versatile features. Whether used in manufacturing, logistics, or outdoor environments, this Steel Enclosure Industrial Computer delivers the performance and durability required for demanding application scenarios.
Customization:
Product Customization Services for the Stainless Steel Panel PC:
Brand Name: INNODA
Model Number: IND190PC
Place of Origin: Shenzhen, China
Certification: CE, RoHS, FCC, IP65
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 6kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receiving the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 5000 pieces per month
WIFI: Optional
CPU: Intel J6412/6413/I3/I5/I7
Client Logo: Acceptable
Resolution: 1280*1024
Touchscreen Type: Capacitive Touchscreen
Keywords: Industrial Panel PC, Steel Enclosure Industrial Computer, Stainless Steel Panel pc
Support and Services:
Our Stainless Steel Panel PC product comes with comprehensive technical support and services to ensure smooth operation and customer satisfaction. Our dedicated technical support team is available to assist with any product-related inquiries, troubleshooting, and custom solutions. Additionally, we offer installation services, product training, and maintenance support to help maximize the performance and longevity of your Stainless Steel Panel PC.
