Stainless steel SS304, Full IP67 waterproof, M 16 metal waterproof connector
Industrial grade LCD screen, full viewing angle
10-point capacitive touch screen, cover 2mm tempered glass (chemically strengthened), the hardness reaches 7H
EETI touch control solution, can touch well with drop water
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
The touch screen and LCD screen are optical bond
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| LCD Panel Charateristics | |||||
| Screen Size | 12'' LCD/LED Panel(7-55inch is supported) | ||||
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | ||||
| Resolution | 1024(H)*768(V) | ||||
| Aspect Ratio | 4：3 | ||||
| Brightness | 1000-1500cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 700：1 | ||||
| Touch screen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |
| I/O Interface(optional) | |||||
| USB2.0(optional USB3.0) | 1 | ||||
| HDMI | 1 | ||||
| DC | 12V | ||||
| Audio I/O | |||||
| VGA | 1 | ||||
| Other Information | |||||
| Frame Material | Aluminum Alloy/Stainless Steel/Metal | ||||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||||
| Color | Default balck,also can choose white,silvery or other colour | ||||
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | ||||
| Weight | 5KG | ||||

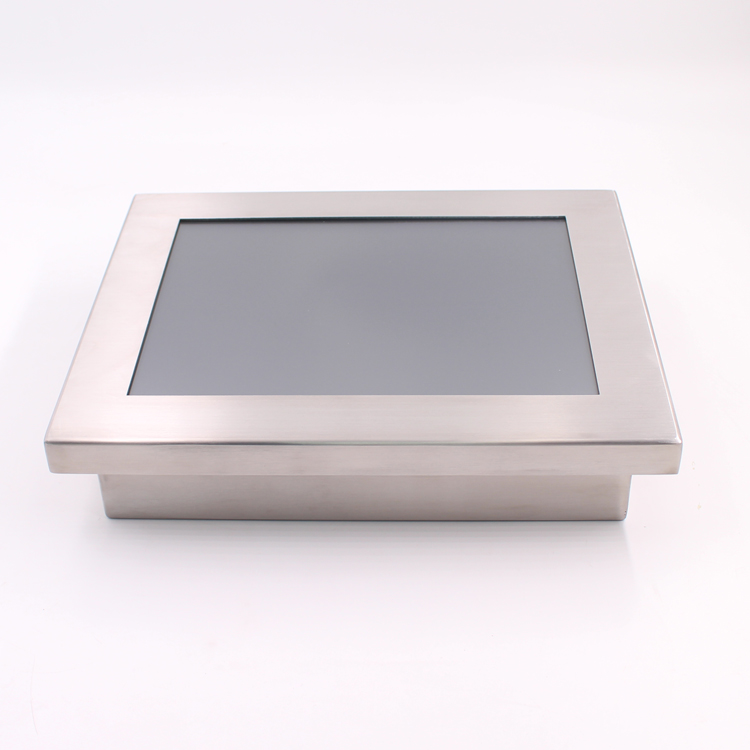

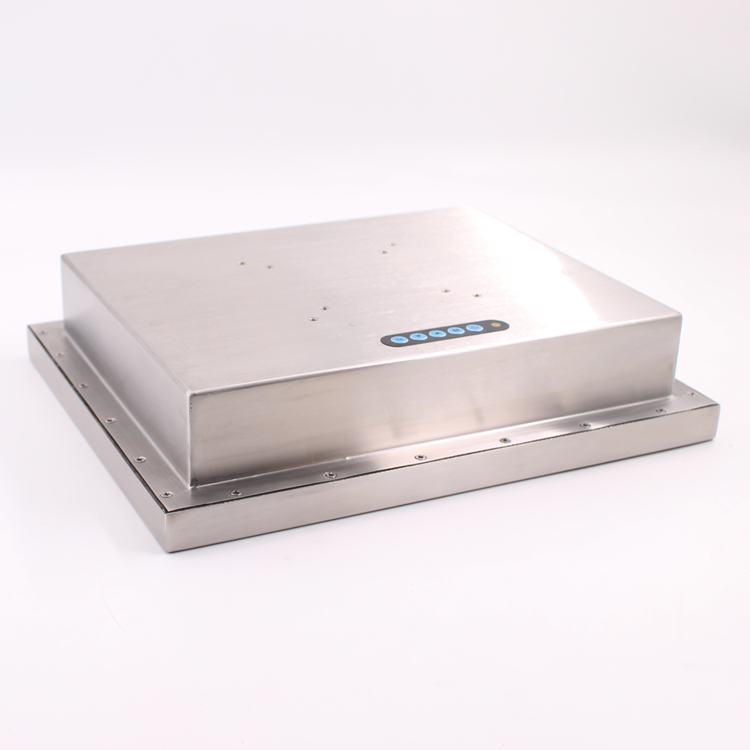

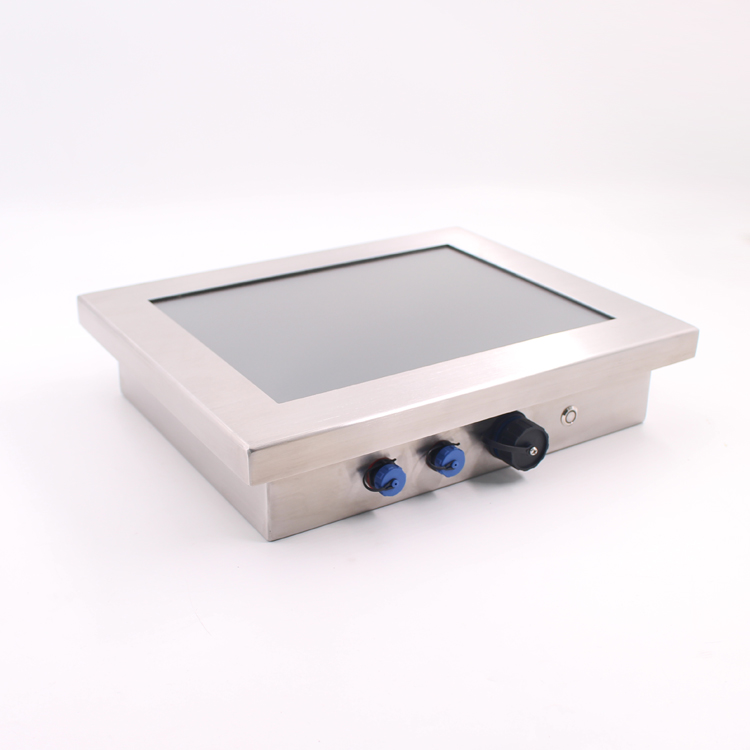

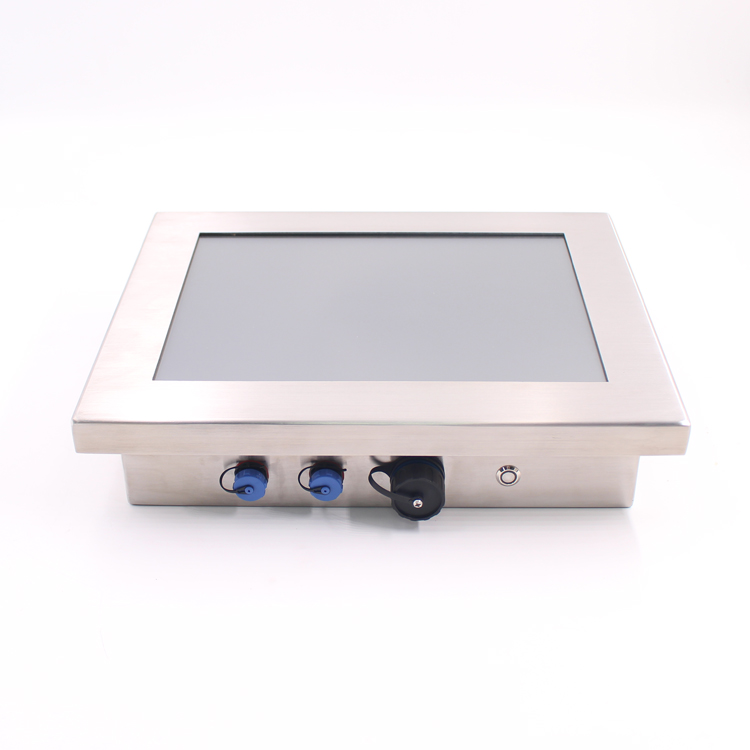

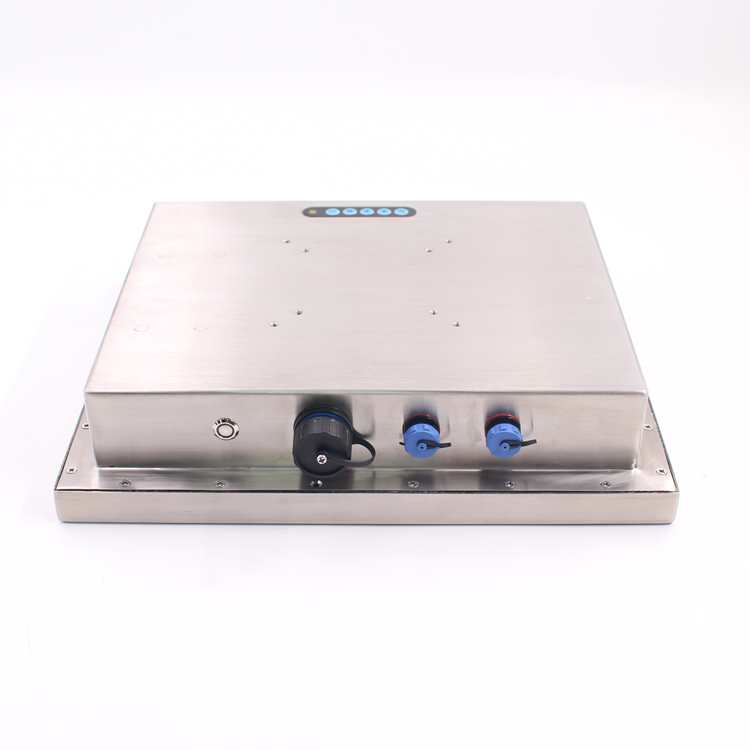

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
Equipped with a 10 Points Capacitive Touch interface, the Industrial Waterproof Monitor offers users a responsive and intuitive touch experience. Whether you need to input data, navigate menus, or interact with applications, the touch screen functionality provides seamless operation for enhanced productivity.
Constructed from high-quality Stainless Steel, this monitor is built to last and can withstand tough industrial settings. The durable material ensures long-term performance and resistance to damage, making it a reliable choice for demanding applications.
For versatile installation options, the Industrial Waterproof Monitor supports VESA Wall Mount and Yoke mounting configurations. This flexibility allows you to easily integrate the monitor into your workspace, whether you prefer wall mounting or a more customized setup.
With a range of connectivity options including RS232, POWER, HDMI, and customizable interfaces, the Industrial Waterproof Monitor offers compatibility with a variety of devices and systems. This versatility makes it easy to integrate the monitor into your existing setup or customize it to meet your specific requirements.
Whether you need a rugged monitor for industrial control rooms, manufacturing facilities, or outdoor installations, the Industrial Waterproof Monitor delivers exceptional performance and durability. Its reliable touch screen technology, sturdy construction, and flexible installation options make it the perfect choice for demanding industrial environments.
Features:
· Product Name: Waterproof LCD Monitor
· Resolution: 1024*768
· Touch points: 10 Points Capacitive Touch
· Product name: Industrial Monitor
· Application: Industrial Application
· Interface: RS232 POWER HDMI/Customizable Optional
Technical Parameters:
Touch points | 10 Points Capacitive Touch |
Product name | Industrial Waterproof Monitor |
Application | Industrial Application |
Brightness | 350-1500 Nits |
Installation | VESA Wall Mount/Yoke |
Interface | RS232 POWER HDMI/Customizable Optional |
Resolution | 1024*768 |
Size | 12 Inch |
Material | Stainless Steel |
Applications:
With a brightness range of 350-1500Nits and a resolution of 1024*768, this Industrial Touch screen Waterproof Monitor delivers clear and vibrant visuals, ensuring optimal viewing experience even in bright or harsh conditions.
Thanks to its certification including CE, RoHS, FCC, and IP65, you can trust the quality and reliability of this monitor. Hailing from Shenzhen, China, the INNODA monitor is built to meet high industry standards.
Whether you need a rugged display for a factory floor, a control room, or an outdoor setting, the INNODA Waterproof LCD Monitor is up to the task. Its durable Stainless Steel construction ensures longevity and resistance to corrosion, making it a dependable choice for industrial settings.
The monitor comes with various interface options including RS232, POWER HDMI, and customizable choices. This flexibility allows for seamless integration into your existing systems, enhancing productivity and efficiency.
With a minimum order quantity of just 1 piece and a supply ability of 2000 pieces per month, acquiring this high-quality Waterproof Monitor is convenient and hassle-free. The packaging details ensure safe delivery, with each unit weighing 5kgs and packaged in a compact size of 45×35×12cm.
Ordering is simple with payment terms such as T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram accepted. Additionally, the quick 25 working days delivery time ensures that you receive your monitor promptly after payment.
Customization:
Product Customization Services for the Waterproof LCD Monitor:
Brand Name: INNODA
Model Number: IND120M
Place of Origin: Shenzhen, China
Certification: CE, RoHS, FCC, IP65
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 5kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receive the payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 2000 pieces per month
Material: Stainless Steel
Brightness: 350-1500Nits
Application: Industrial Application
Size: 12 Inch
Touch Points: 10 Points Capacitive Touch
Support and Services:
Our Product Technical Support team is dedicated to assisting you with any questions or issues you may have regarding our Waterproof LCD Monitor. Whether you need help with installation, troubleshooting, or general product information, our team is here to provide you with the support you need.
In addition to technical support, we also offer a range of services to ensure that your Waterproof LCD Monitor continues to perform at its best. These services may include product maintenance, repair, and warranty support to help you get the most out of your investment.
Packing and Shipping:
Product Packaging for Waterproof LCD Monitor:
- The waterproof LCD monitor will be carefully wrapped in bubble wrap to ensure protection during shipping.
- It will be placed in a sturdy cardboard box with foam padding to prevent any damage from occurring during transit.
Shipping Information:
- The waterproof LCD monitor will be shipped using a reputable courier service to ensure timely and safe delivery.
- A tracking number will be provided so you can easily monitor the status of your shipment.
