Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , front IP65 waterproof and dustproof.
Industrial LCD panel, full view angle, 1000nits sunlight readable, with light sensor for auto dimming.
10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment.
EETI waterproof solution, the touch function can work well with drop water on the screen.
The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation
-20 °C ~ 70°C (-4°F ~158°F).
Optical bonding, Prevent condensation and fogging inside the screen and increase transmittance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15.6'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1920(H)*1080(V) |
| Aspect Ratio | 16：9 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 7KG |

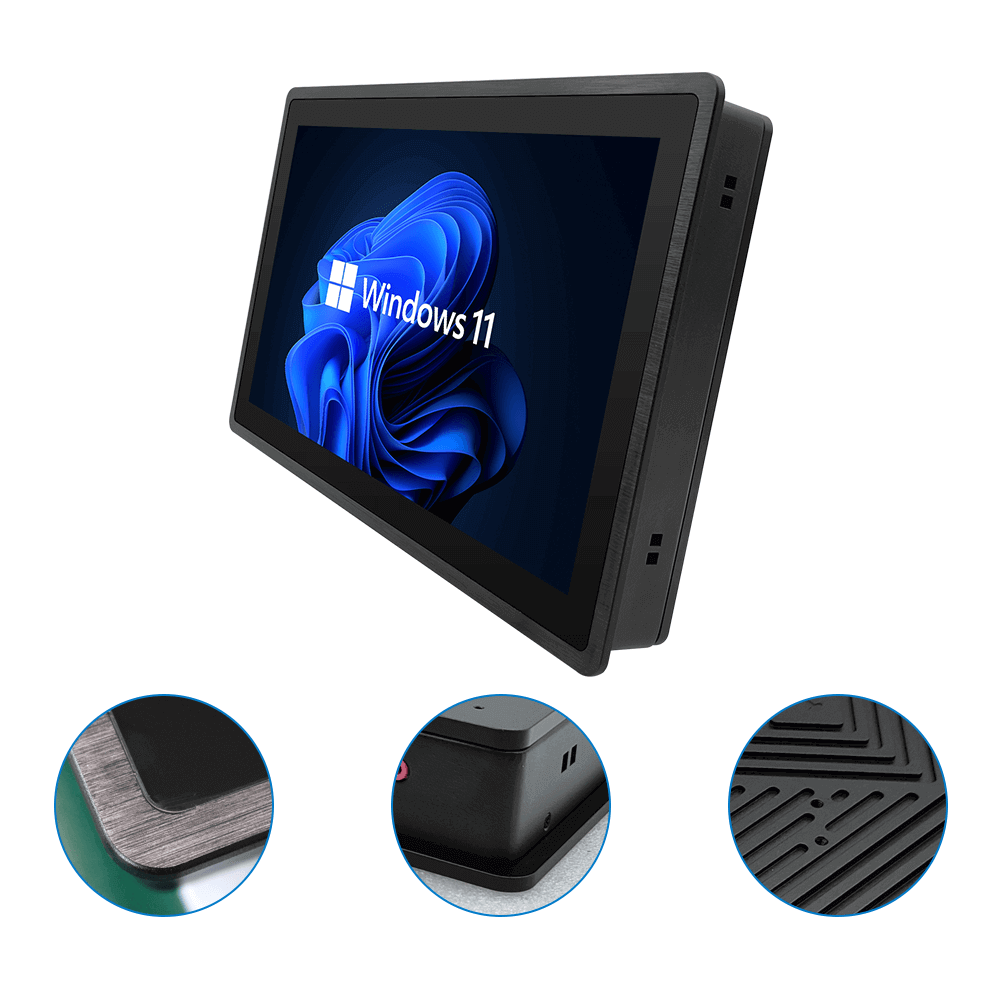

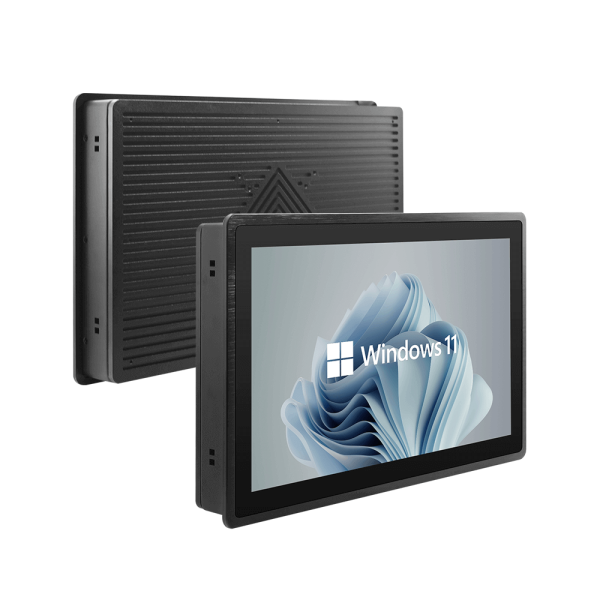

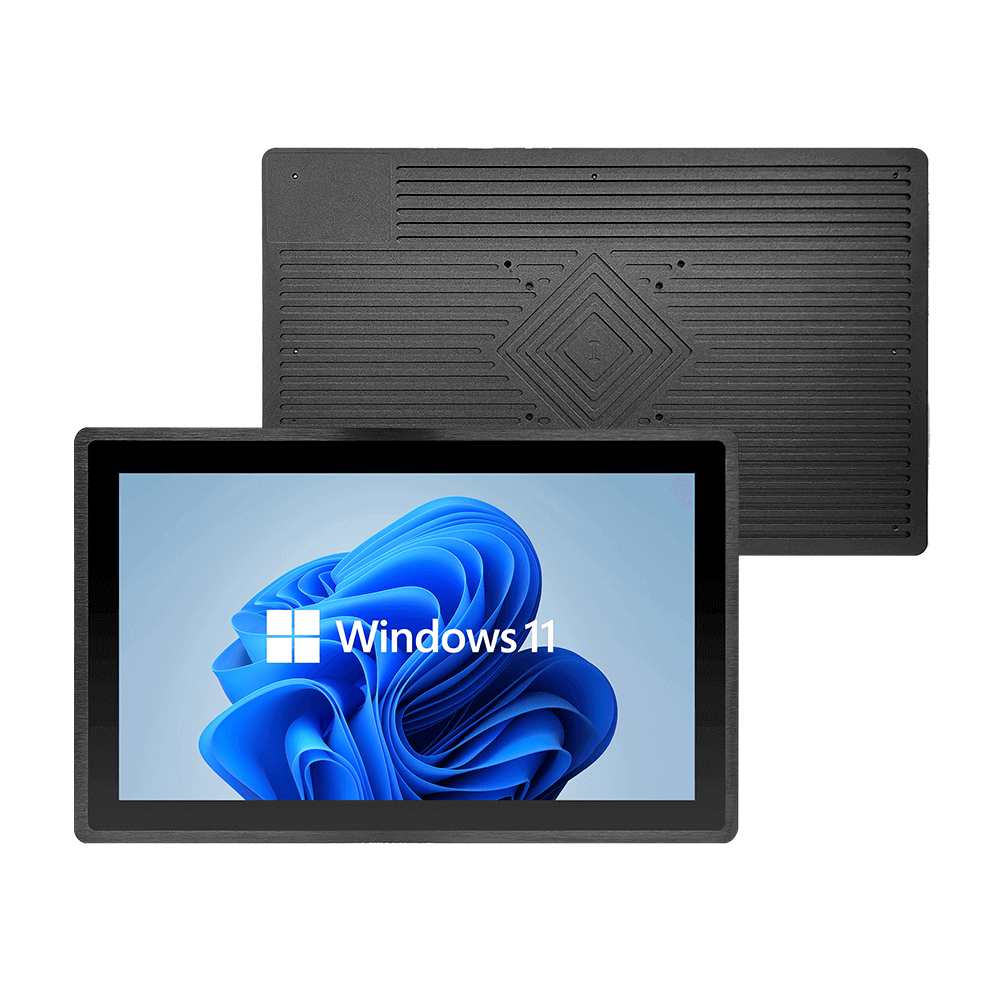

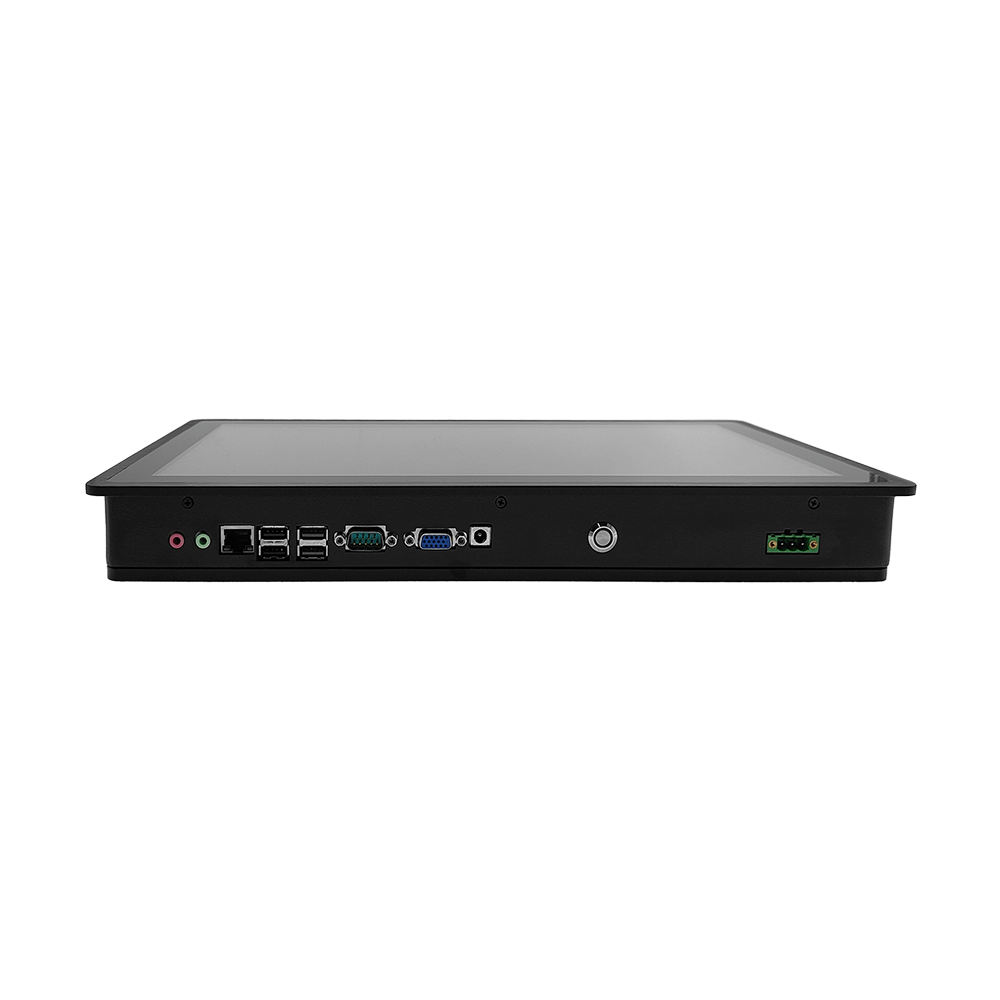

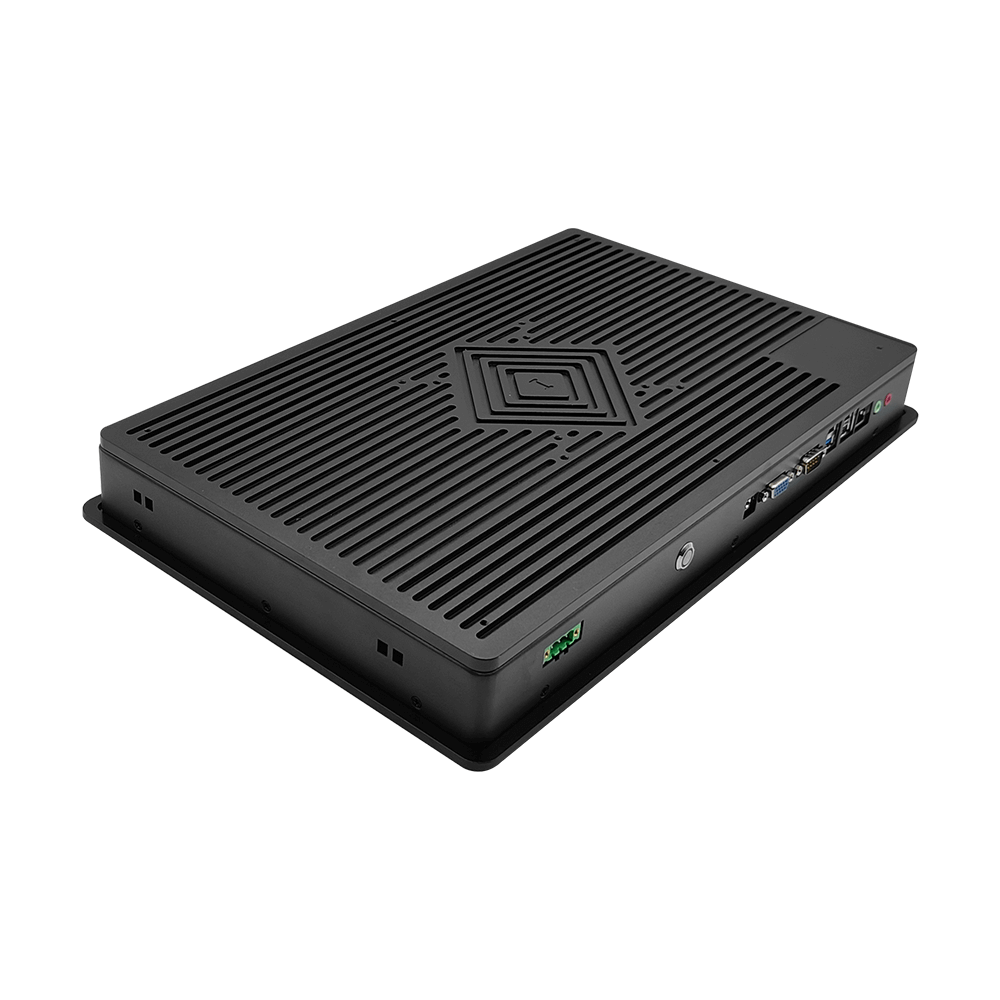

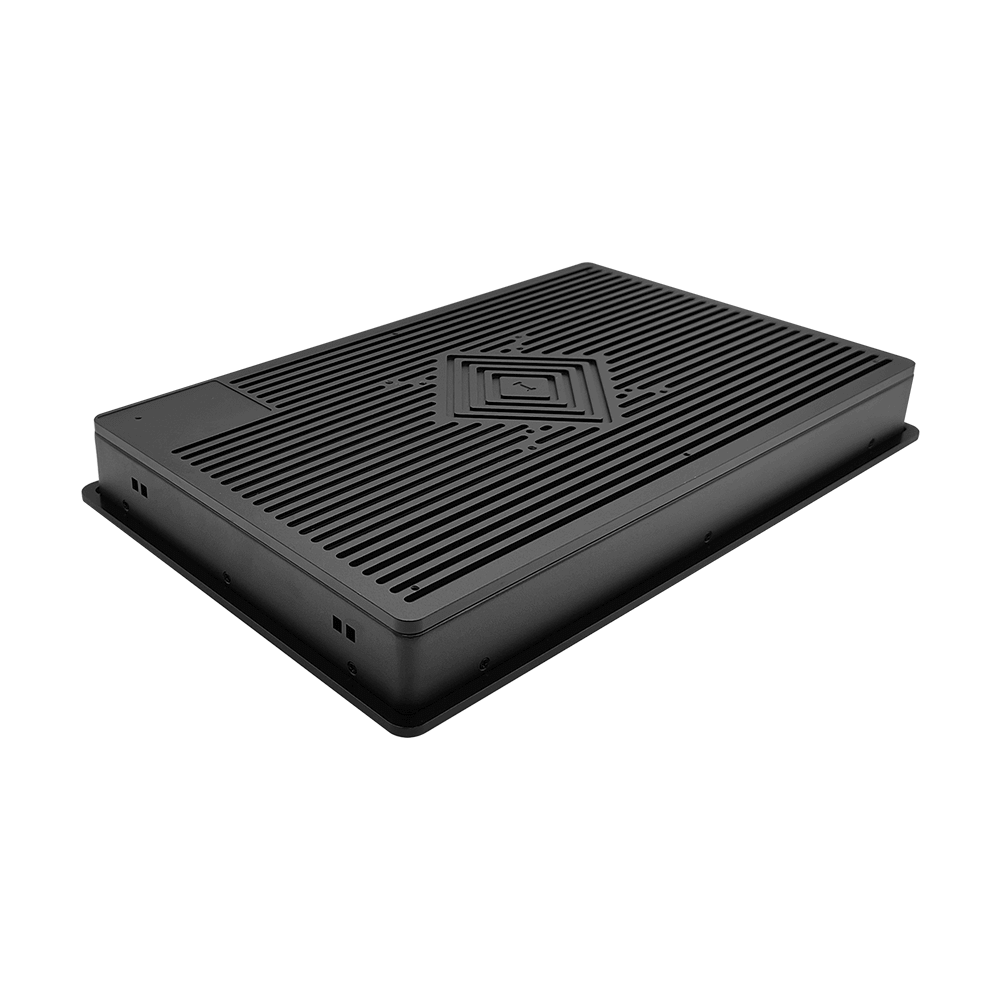

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Industry Touch Display PC is a powerful and versatile solution designed for industrial environments that require reliable and efficient computing. With its robust design and high-performance capabilities, the Industrial Touchscreen Panel PC is ideal for various applications in industries such as manufacturing, automation, transportation, and more.
Featuring a range of storage options including 128G, 256G, 512G, and 1TB SSD, this Industrial Touchscreen Panel PC provides ample space for storing critical data and applications. Whether you need to store large files or run complex programs, this PC has the storage capacity to meet your needs.
Equipped with multiple interface types including HDMI, COM, USB, RJ45, Audio JACK, and DP, this Industrial Touchscreen Panel PC offers seamless connectivity with a wide range of devices and peripherals. Whether you need to connect to external displays, input devices, or network equipment, this PC has the interface options to support your connectivity requirements.
The Industrial Touchscreen Panel PC features a high-resolution display with a crisp and clear 1920x1080 resolution. Whether you are viewing detailed schematics, monitoring production processes, or analyzing data, this PC's high-resolution display ensures that you can see every detail with precision.
With a brightness range of 350-1500 Nits, the Industrial Touchscreen Panel PC offers excellent visibility even in bright or outdoor environments. Whether you are working in a well-lit factory floor or a sunny outdoor setting, this PC's high brightness display ensures that you can view the screen clearly without any glare or reflection.
Enhanced with a capacitive touch screen, the Industrial Touchscreen Panel PC provides a responsive and intuitive user interface for interacting with applications and data. Whether you need to navigate menus, input data, or control processes, this PC's touch screen technology offers a seamless and user-friendly experience.
In conclusion, the Industrial Touchscreen Panel PC is a reliable and efficient computing solution designed for industrial environments. With its versatile storage options, multiple interface types, high-resolution display, excellent brightness range, and capacitive touch screen technology, this PC offers the performance and functionality needed to support a wide range of industrial applications.
Features:
· Product Name: Industrial Touch Panel PC
· Screen Size: 15.6 Inch
· Warranty: 1 Year
· Memory: 8GB/16GB/32GB

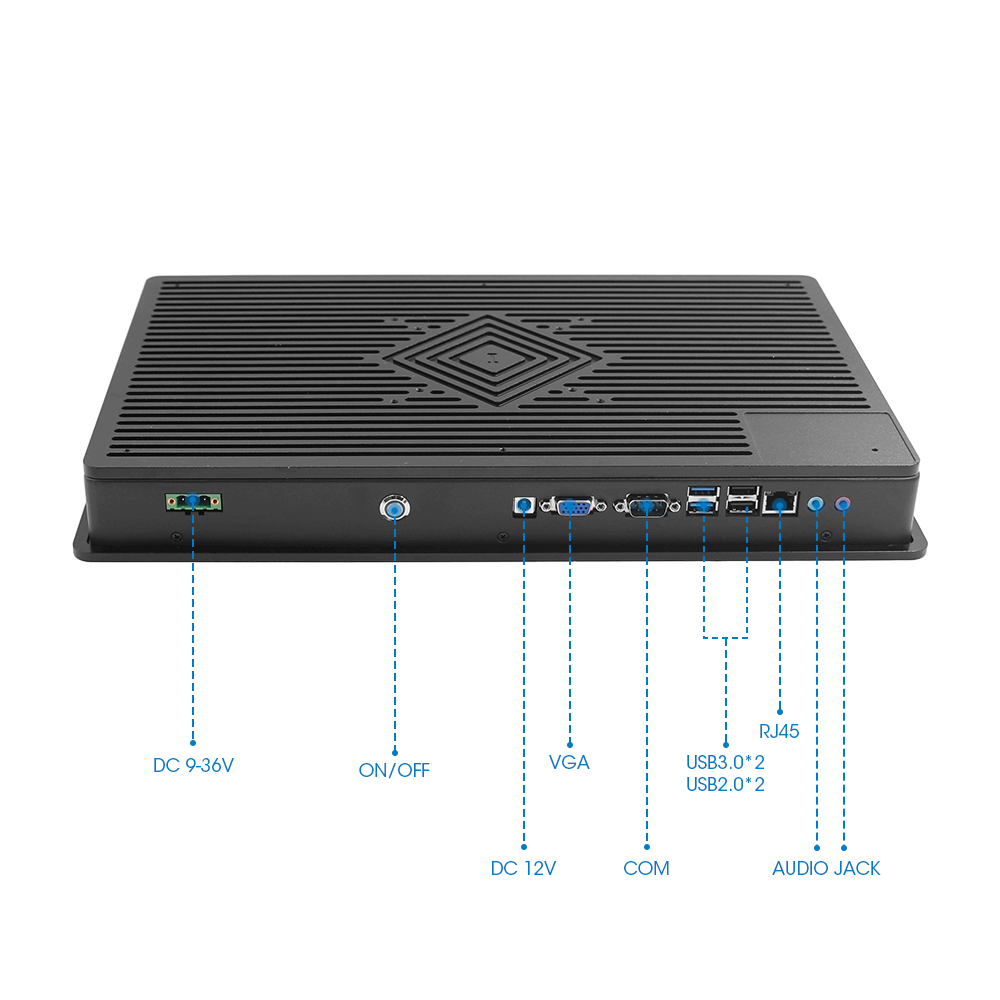

· Interface Type: HDMI/COM/USB/RJ45/Audio JACK/DP
Technical Parameters:
Interface Type | HDMI/COM/USB/RJ45/Audio JACK/DP |
Resolution | 1920*1080 |
Brightness | 350-1500 Nits |
Warranty | 1 Year |
Memory | 8GB/16GB/32GB |
Touch screen | Capacitive Touch Screen |
Screen Size | 15.6 Inch |
Product Name | Industrial Touch Panel PC |
Storage | 128G/256G/512GB/1TB SSD |
Operating System | Win 10/11/Linux |
Applications:
The INNODA IND156PC Industrial Touch Panel PC is a versatile and robust product designed to meet the demanding requirements of various industries. With its durable construction and advanced features, this industrial touch panel PC is suitable for a wide range of application occasions and scenarios.
Designed and manufactured in Shenzhen, China, the IND156PC is a high-quality product that meets international standards. It has certifications including CE, RoHS, FCC, IP65, IP66, and IP67, ensuring its reliability and safety in industrial environments.
With a minimum order quantity of just 1 piece and a supply ability of 3000 pieces per month, the IND156PC offers flexibility for both small-scale and large-scale industrial projects. The product comes with a warranty of 1 year, providing peace of mind to customers.
The Industrial Touch Panel PC is equipped with a range of interface types including HDMI, COM, USB, RJ45, Audio JACK, and DP, making it compatible with various devices and systems. Its storage options range from 128G to 1TB SSD, offering ample space for data storage and processing.
Whether used in manufacturing facilities, control rooms, or outdoor environments, the Industrial Touch Panel PC delivers reliable performance and seamless operation. Its operating system options of Windows 10/11 and Linux cater to different software requirements in industrial settings.
The product packaging details include 1pc/carton with a weight of 7kgs/pc and a packing size of 45×35×12cm, ensuring safe and secure delivery. The delivery time of 25 working days upon receiving the payment allows for timely deployment of the product in industrial settings.
In summary, the INNODA IND156PC Industrial Touch Panel PC is a cutting-edge solution for Industry Touch Display PC, Industrial Touchscreen Panel PC, and Industrial Touch Screen Panel PC applications. Its reliability, performance, and versatility make it an ideal choice for a wide range of industrial application occasions and scenarios.
Customization:
Product Customization Services for the Industrial Touch Panel PC
Brand Name: INNODA
Model Number: IND156PC
Place of Origin: Shenzhen, China
Certification: CE, RoHS, FCC, IP65, IP66, IP67
Minimum Order Quantity: 1 piece
Packaging Details: 1pc/carton weight: 7kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days upon receipt of payment
Payment Terms: T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram
Supply Ability: 3000 pieces per month
Memory: 8GB/16GB/32GB
Warranty: 1 Year
Operating System: Win 10/11/Linux
Storage: 128GB/256GB/512GB/1TB SSD
Screen Size: 15.6 Inch
Support and Services:
The Industrial Touch Panel PC product comes with comprehensive Product Technical Support and Services to ensure smooth operation and customer satisfaction. Our dedicated team of technical experts is available to provide assistance with any product-related queries or issues that may arise. From initial setup and configuration to troubleshooting and maintenance, our support services are designed to meet the needs of our customers and help them maximize the performance of their Industrial Touch Panel PC.
Packing and Shipping:
Product Packaging and Shipping:
Our Industrial Touch Panel PC is carefully packaged to ensure safe delivery to our customers. Each unit is wrapped in protective foam and placed in a sturdy cardboard box to prevent damage during transportation.
For shipping, we partner with trusted courier services to deliver your order quickly and securely. You will receive a tracking number once your package is on its way so you can monitor its progress.
