7 Inch Customization embedded Dual Port Android 11 Panel Pc IP65 Waterproof Industrial Touch Panel Pc
Front aluminum alloy bezel, sandblasting + hard anodizing, anti-UV and anti-discoloration treatment, front IP67 waterproof and dustproof.
Industrial LCD panel, 300nits sunlight readable, PWM to adjust brightness.
10-point PCAP touch panel, covered with 2mm tempered glass (chemically strengthened), surface hardness 7h. Anti-glare surface treatment.
The display adopts industrial-grade components, continuous operation 7x24, wide temperature operation -20°C~70°C (-4°F~158°F).
Download Specs:
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | RK3288/3399/3566/3568 |
| Memory | 2GB/4/8/16 DDR3/DDR4 |
| Storage | 8G/16G/32G/64G |
| Operation System | Android6.0/7.1/8.1/9.0/11.0 |
| I/O Ports | 1*USB,1*HDMI,1*RJ45 |
| Function | WIFI&BT integrated (3/4G,GPIO,Canbus,Webcam,NFC,RFID is supported ) |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 7'' LCD Panel Screen |
| Touchscreen Type | 10 Points Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1024(H)*(RGB)*600(V) |
| Aspect Ratio | 16：9 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Information | |
| Frame Material | Metal Case/Aluminum Alloy/Stainless Steel |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 mm or 100*100 mm(optional) |
| Weight | 2KG |

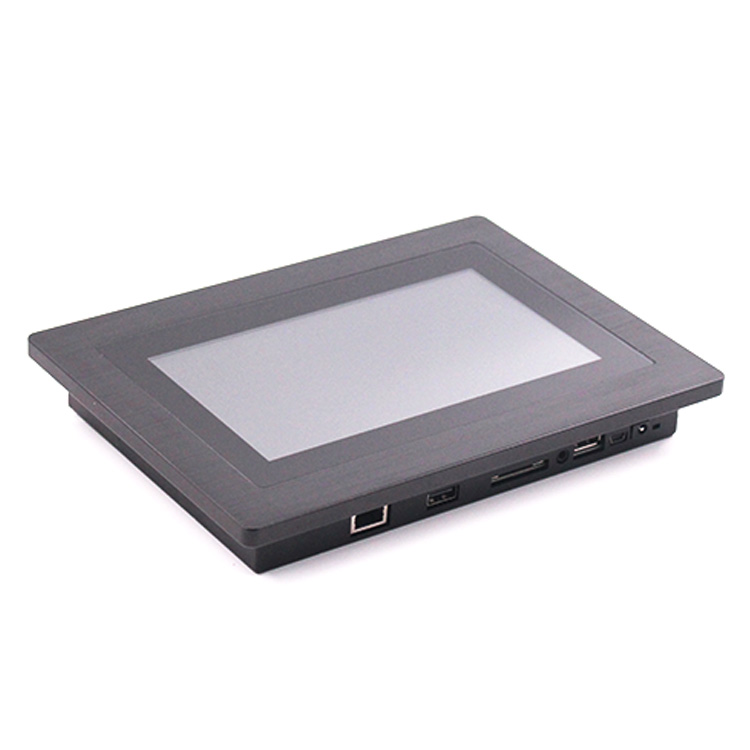

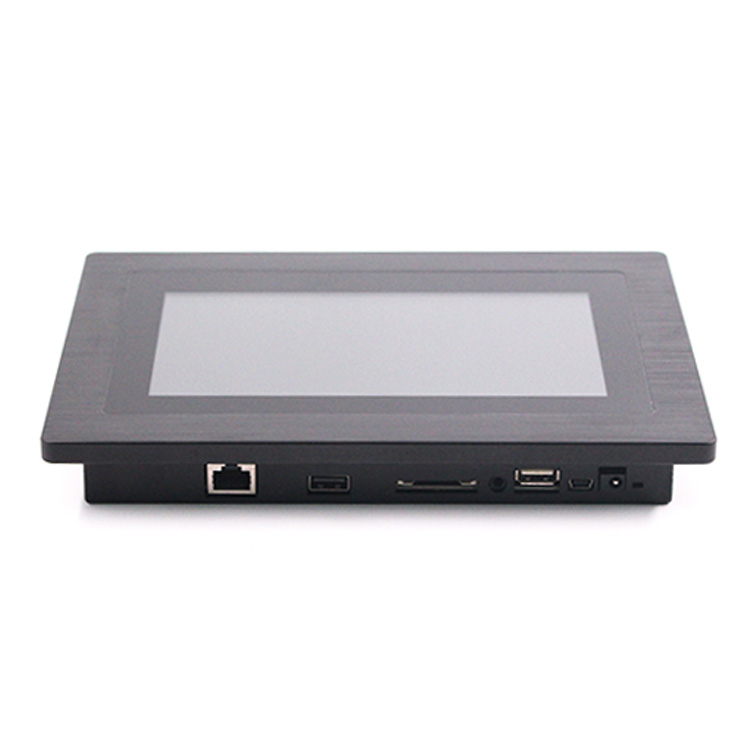

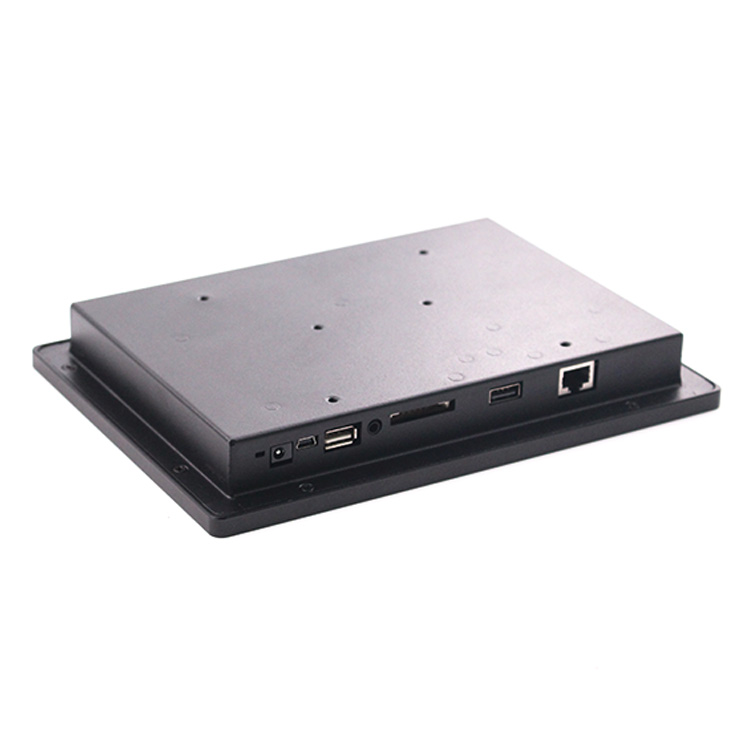

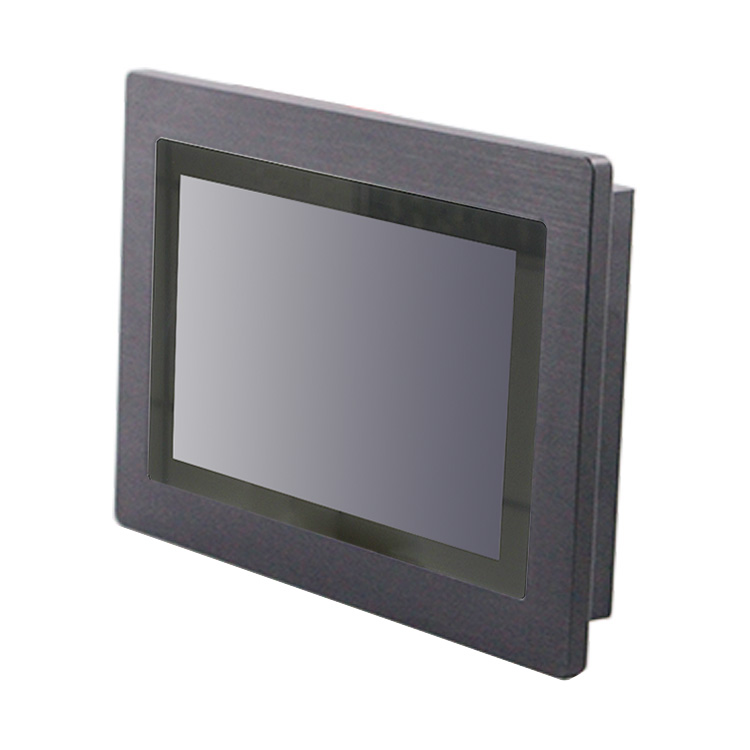

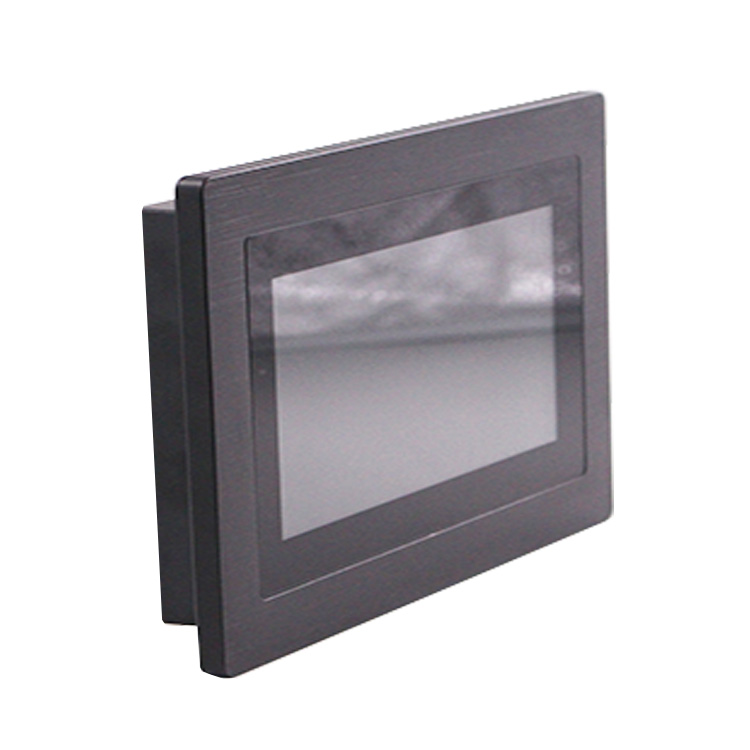

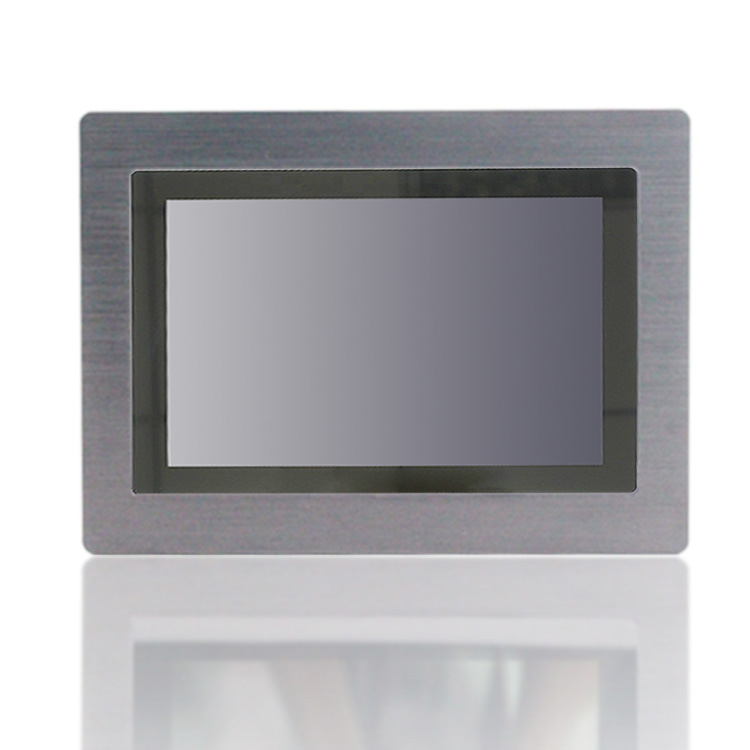

PRODUCT PICTURE
