Aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment, Full IP67 waterproof and dustproof.
10 points capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H.
EETI touch control solution, can touch when water dropl on the touch screen.
The PC is built with industrial-grade components, 7x24 continuous operation, wide operation temperature -20 to 70ºC.
Optical bonding between touch screen and LCD screen
The front frame and back shell are sealed with waterproof adhesive strips, which can be disassembled for inspection and maintenance without affecting the waterproof performance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| LCD Panel Charateristics | |||||
| Screen Size | 15'' LCD/LED Panel(7-55inch is supported) | ||||
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | ||||
| Resolution | 1280(H)*1024(V) | ||||
| Aspect Ratio | 4：3 | ||||
| Brightness | 1000-1500cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 700：1 | ||||
| Touch screen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |
| I/O Interface(optional) | |||||
| USB2.0(optional USB3.0) | 1 | ||||
| HDMI | 1 | ||||
| DC | 12V | ||||
| Audio I/O | |||||
| VGA | 1 | ||||
| Other Information | |||||
| Frame Material | Aluminum Alloy/Stainless Steel/Metal | ||||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||||
| Color | Default balck,also can choose white,silvery or other colour | ||||
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | ||||
| Weight | 5KG | ||||

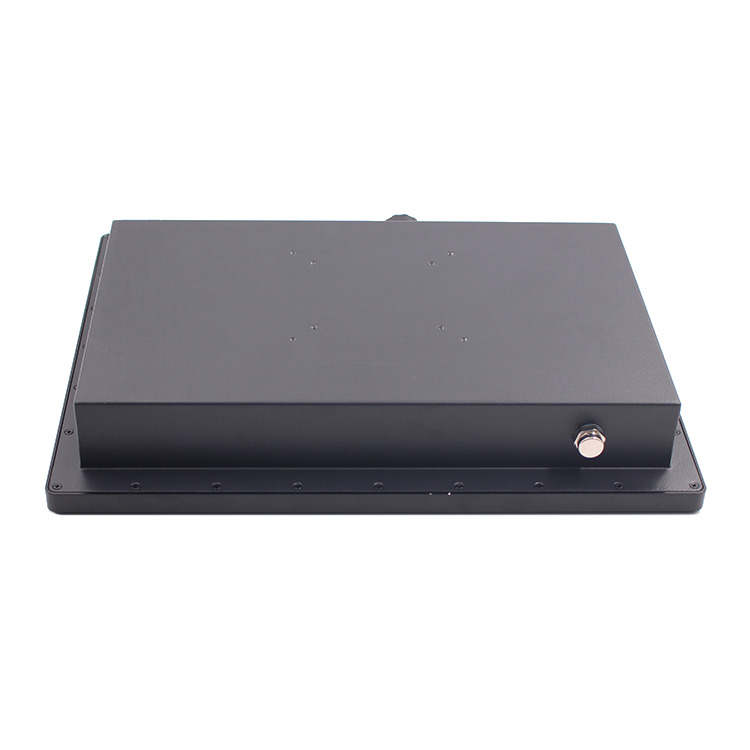

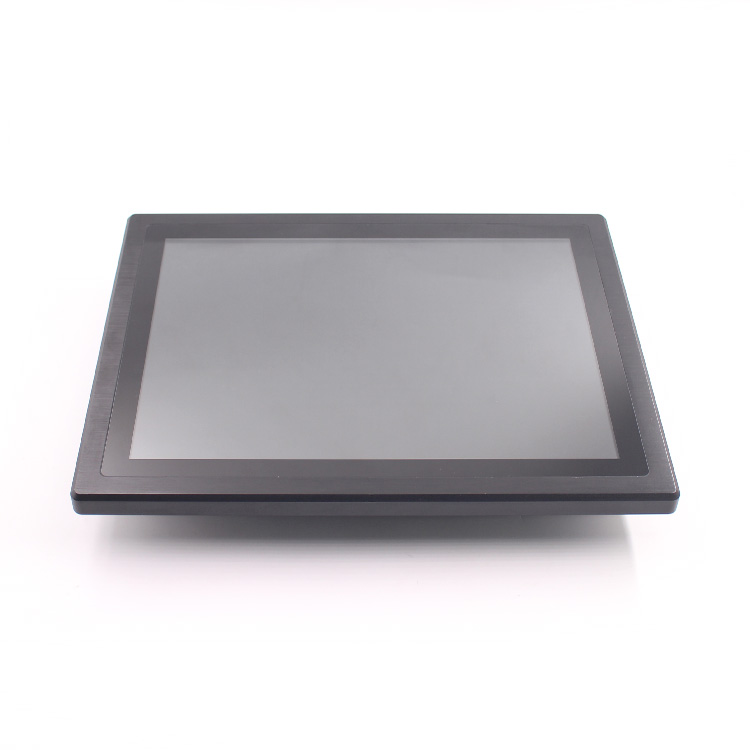

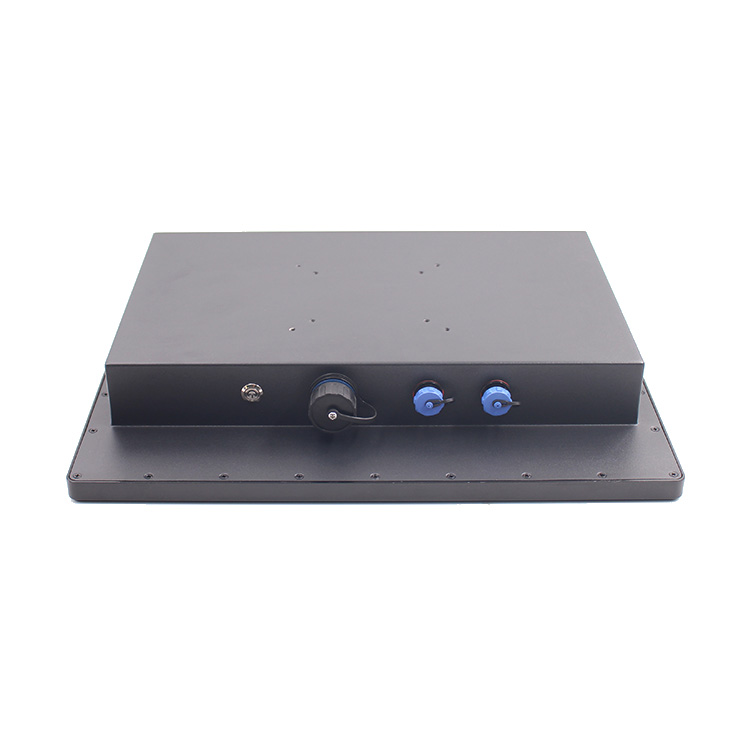

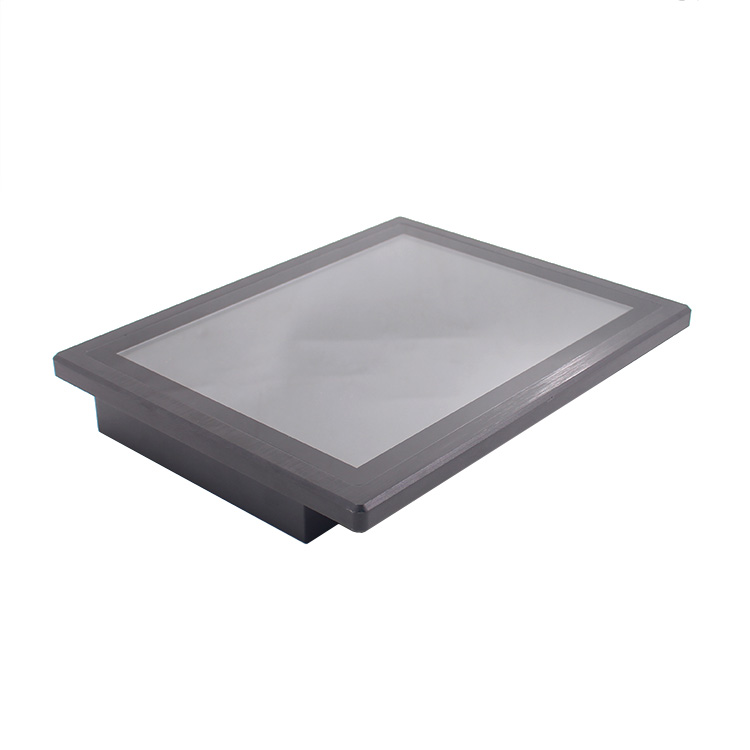

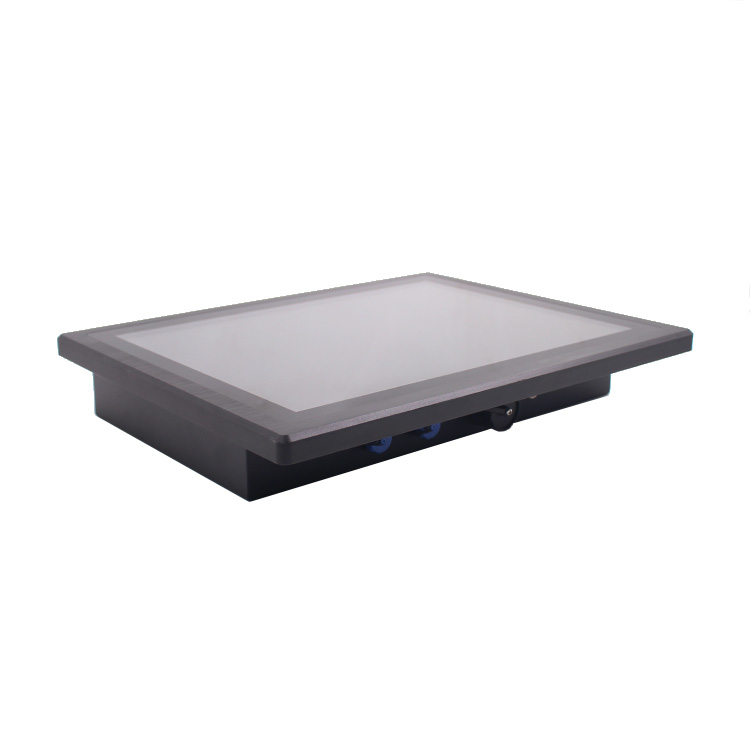

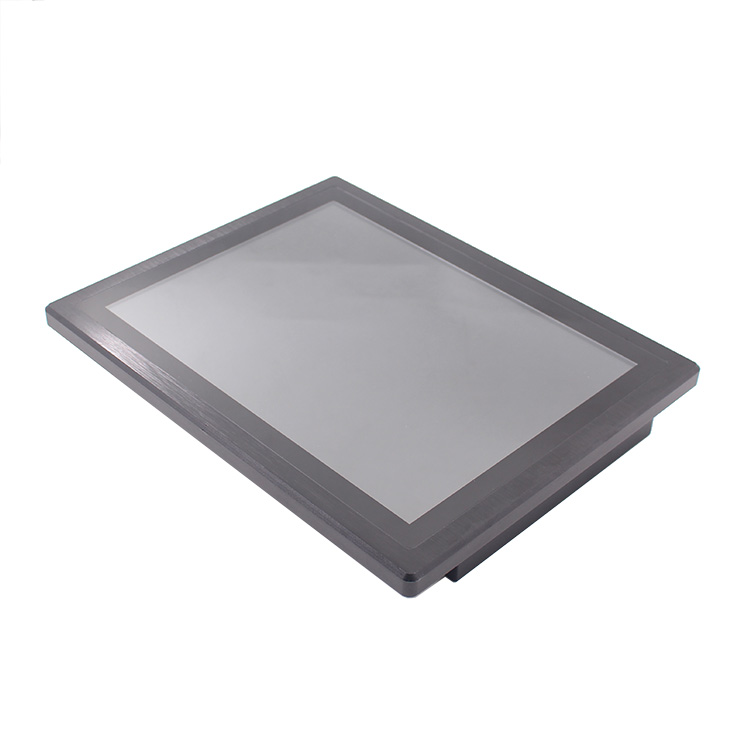

PRODUCT PICTURE
