7 Inch USB Powered Monitor Low Power Consumption Touch Monitor
Aluminum alloy housing, IP65 waterproof and dustproof on the front.
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-point PCAP touch panel, high sensitivity and fast response speed.
High-performance motherboard, 7x24 continuous operation.
Wide temperature range: working: -20 to 70 °C, storage: -30 to 80 °C.
Support wall mounting, embedded mounting, desktop bracket mounting, etc.
Download Specs:
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| LCD Panel Charateristics | |||||
| Screen Size | 7'' LCD/LED Panel(7-55inch is supported) | ||||
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | ||||
| Resolution | 1024(H)*600(V) | ||||
| Aspect Ratio | 16：9 | ||||
| Brightness | 1000-1500cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 700：1 | ||||
| Touch screen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |
| I/O Interface(optional) | |||||
| USB2.0(optional USB3.0) | 1 | ||||
| HDMI | 1 | ||||
| DC | 12V | ||||
| Audio I/O | |||||
| VGA | 1 | ||||
| Other Information | |||||
| Frame Material | Aluminum Alloy/Stainless Steel/Metal | ||||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||||
| Color | Default balck,also can choose white,silvery or other colour | ||||
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | ||||
| Weight | 1KG | ||||

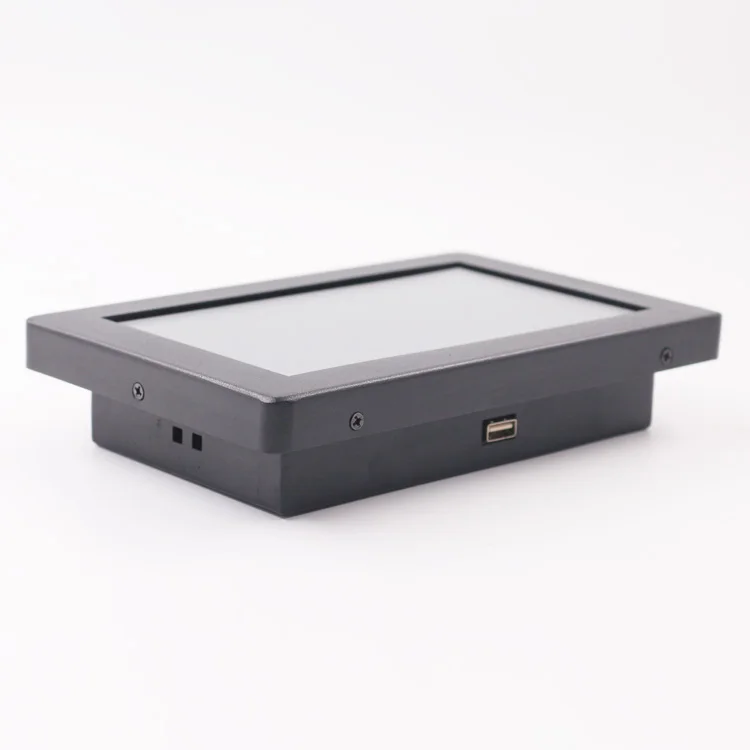

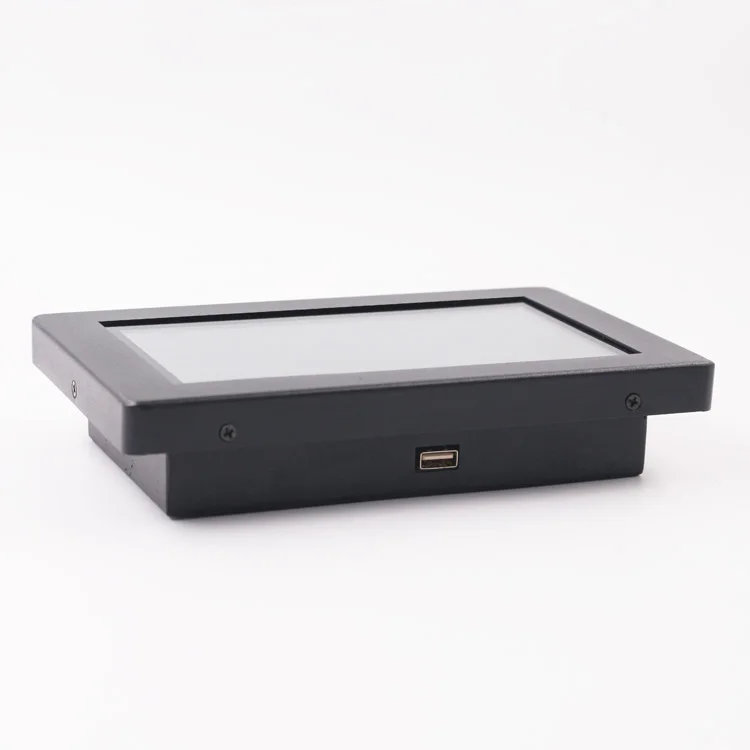

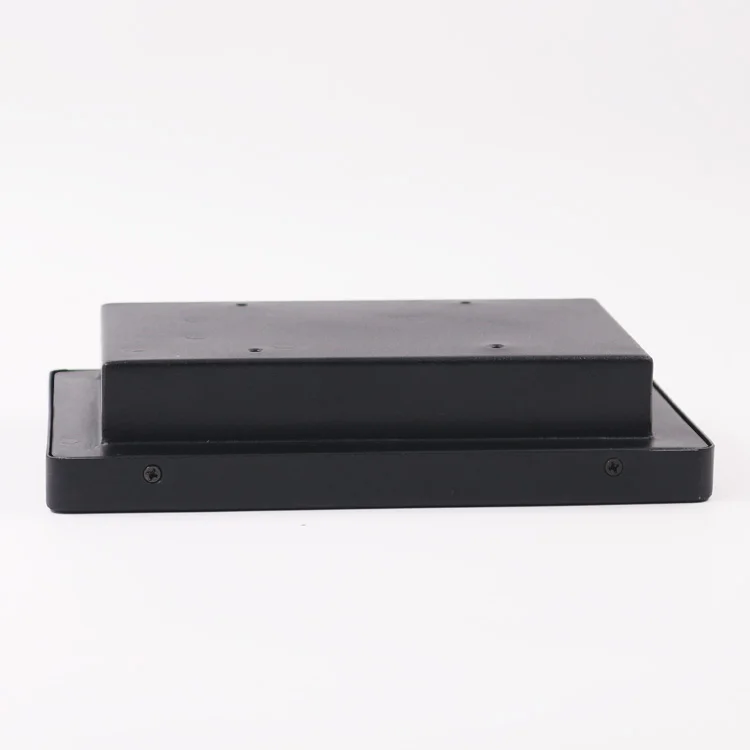

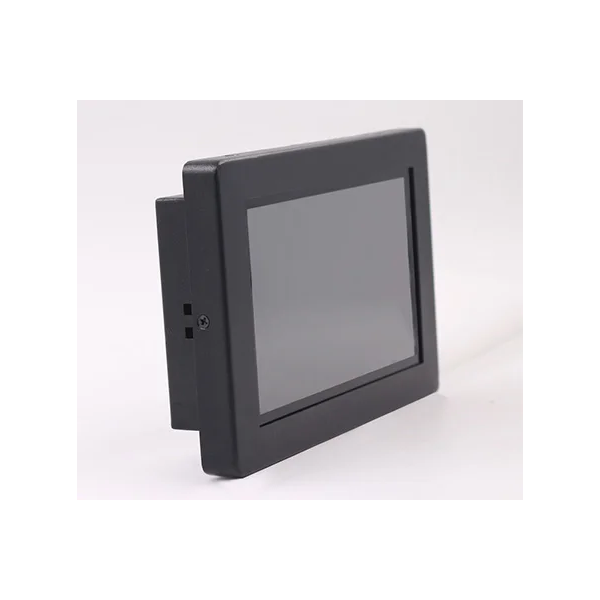

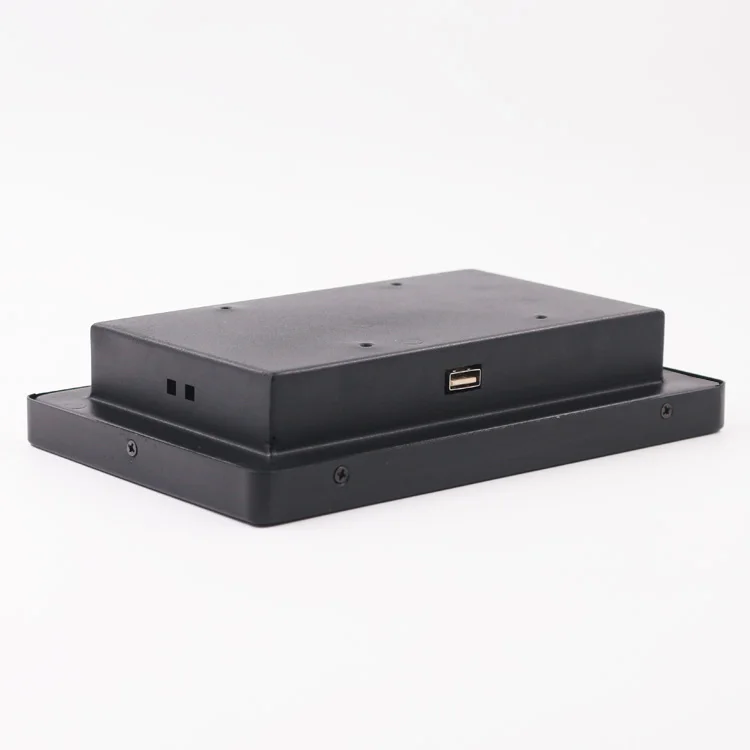

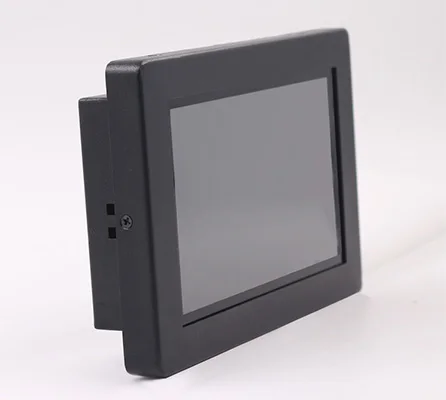

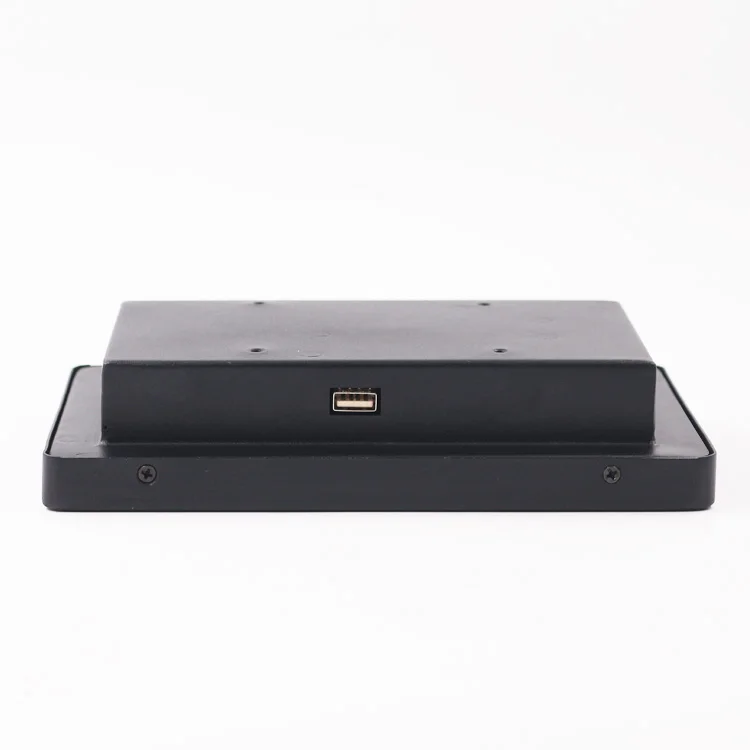

PRODUCT PICTURE
