Robust and durable full metal case, shockproof, excellent heat dissipation
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-points PCAP touch panel , high sensitive and fast-response.
High performance mainboard, 7x24 continuous operation.
Support wall mounting,embedded mounting,desk stand mouting etc.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| LCD Panel Charateristics | |||||
| Screen Size | 8'' LCD/LED Panel(7-55inch is supported) | ||||
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | ||||
| Resolution | 1024(H)*768(V) | ||||
| Aspect Ratio | 4：3 | ||||
| Brightness | 1000-1500cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 700：1 | ||||
| Touch screen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |
| I/O Interface(optional) | |||||
| USB2.0(optional USB3.0) | 1 | ||||
| HDMI | 1 | ||||
| DC | 12V | ||||
| Audio I/O | |||||
| VGA | 1 | ||||
| Other Information | |||||
| Frame Material | Aluminum Alloy/Stainless Steel/Metal | ||||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||||
| Color | Default balck,also can choose white,silvery or other colour | ||||
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | ||||
| Weight | 2KG | ||||

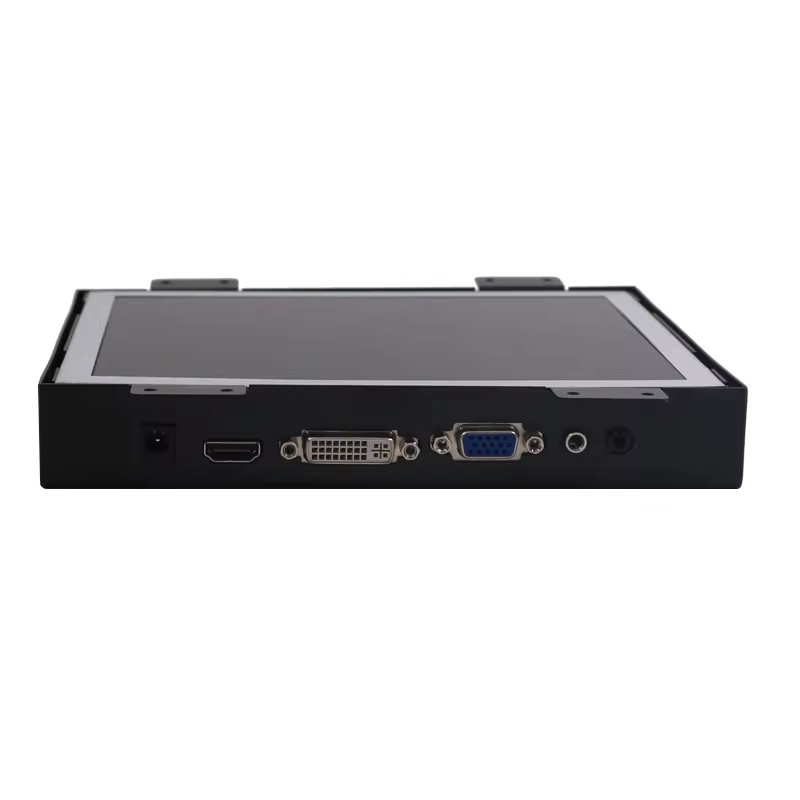

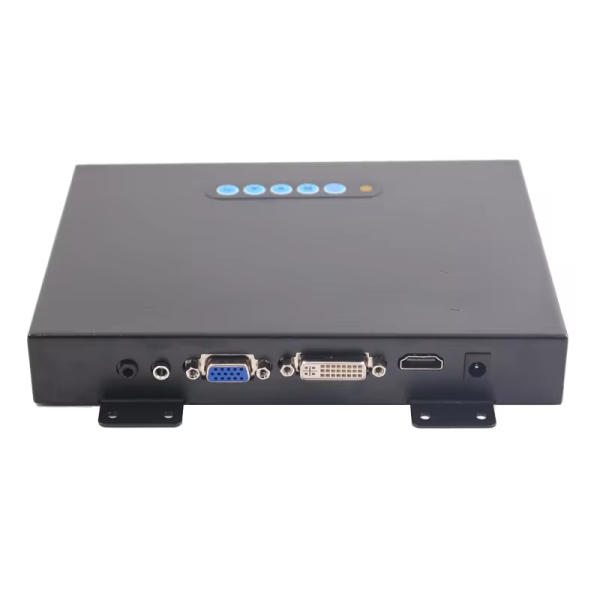

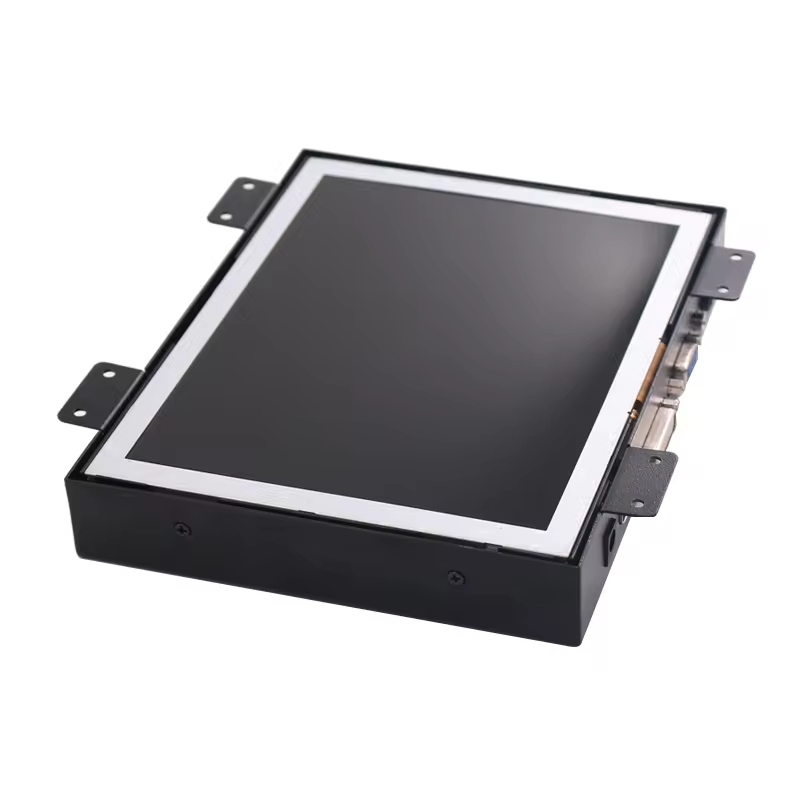

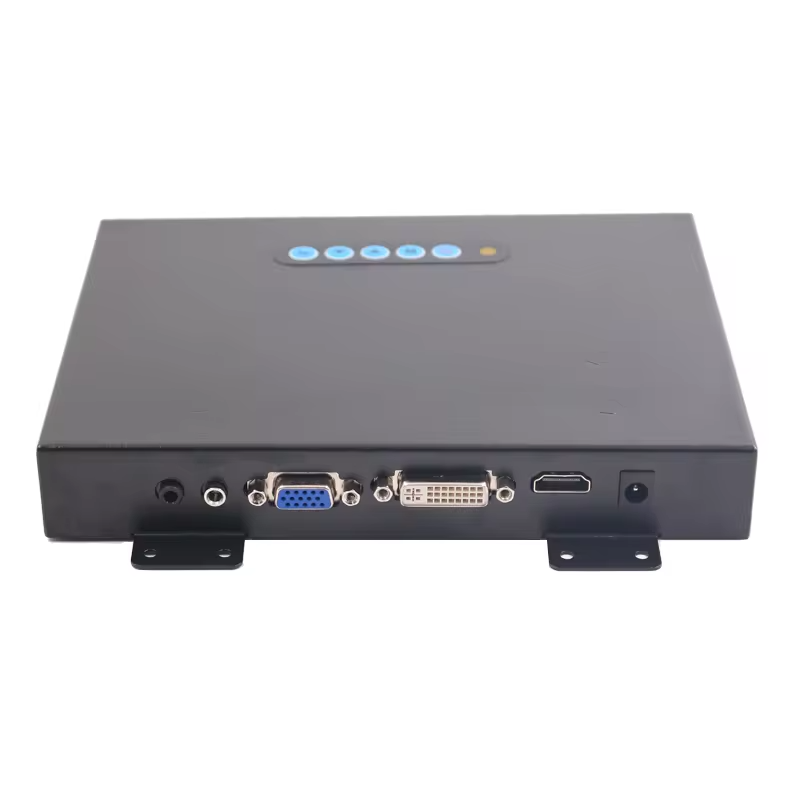

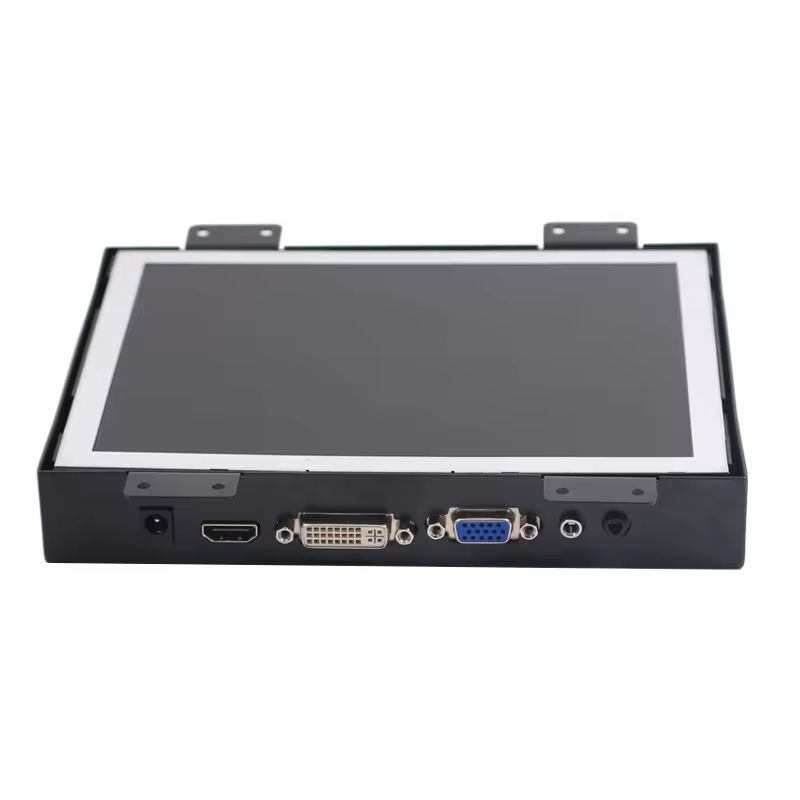

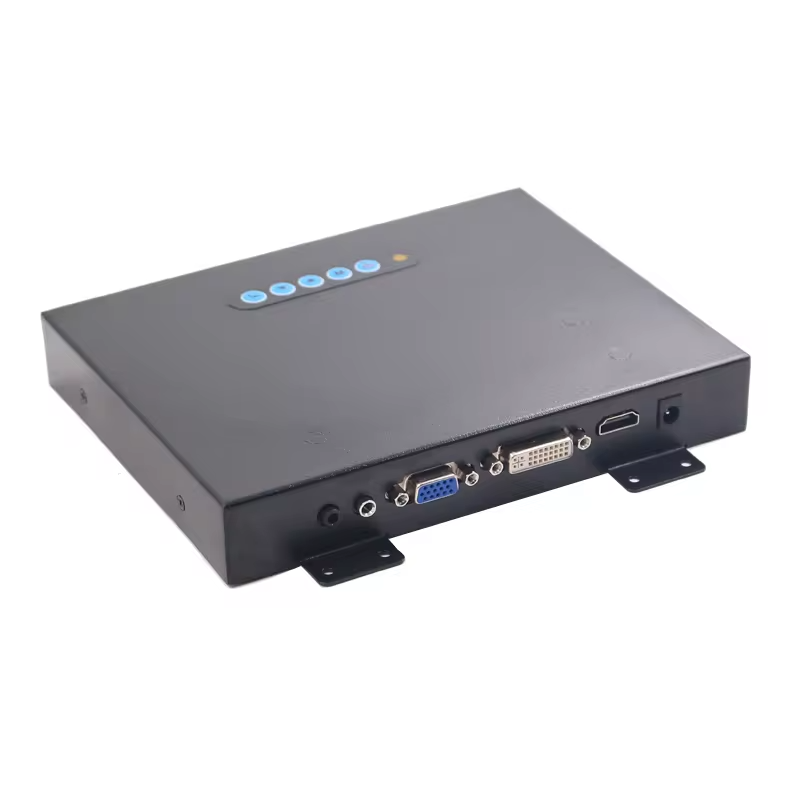

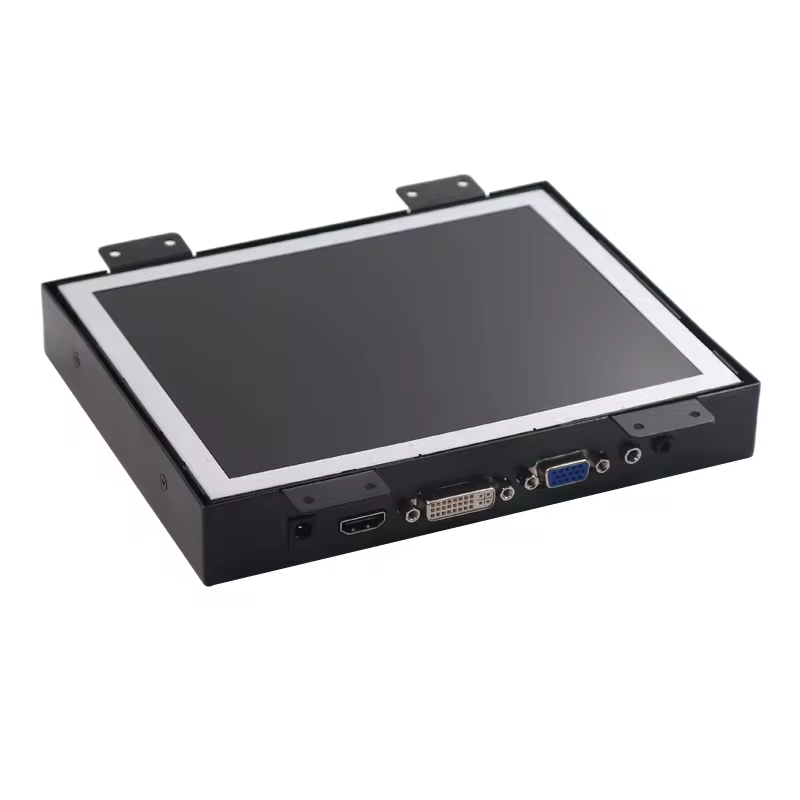

PRODUCT PICTURE
Shenzhen Innoda Technology Co., Ltd
Product Description:
The Open Frame LCD Monitor is a high-quality display solution designed for a wide range of industrial and commercial applications. With a resolution of 1024*768, this 18-inch open frame monitor delivers crisp and clear images, making it ideal for use in digital signage, kiosks, gaming machines, and other interactive displays.
Constructed with a durable metal frame, this open frame monitor is built to withstand the rigors of continuous use in demanding environments. The metal monitor design ensures robustness and reliability, making it suitable for industrial automation, control systems, and outdoor applications.
Equipped with 10 points capacitive touch technology, the open frame monitor provides a highly responsive and intuitive user interface. Users can interact with the display effortlessly, whether it's for navigating menus, entering data, or playing interactive games. The multi-touch capability enhances the user experience and enables versatile applications.
For easy installation and mounting options, the open frame monitor supports VESA Wall Mount and Yoke mounting configurations. This flexibility allows for seamless integration into various setups, whether it's wall-mounted for space-saving purposes or mounted on a stand for optimal viewing angles.
In terms of certifications, the open frame monitor meets stringent quality and safety standards, including CE, FCC, RoHS, IP65, and IP67 certifications. These certifications ensure compliance with industry regulations and guarantee the monitor's performance and durability in challenging environments.
Overall, the Open Frame LCD Monitor is a versatile and reliable display solution that offers high resolution, robust construction, responsive touch technology, and flexible installation options. Whether used in retail environments, industrial settings, or public spaces, this metal monitor delivers exceptional performance and functionality for a wide range of applications.
Features:
· Product Name: Open Frame LCD Monitor
· Size: 8 Inch
· Installation: VESA Wall Mount/Yoke
· Resolution: 1024*768
· Touch points: 10 Points Capacitive Touch
· Certification: CE FCC ROHS IP65 IP67
Technical Parameters:
Application | Industrial Application |
Certification | CE FCC ROHS IP65 IP67 |
Installation | VESA Wall Mount/Yoke |
Size | 8 Inch |
Resolution | 1024*768 |
Touch points | 10 Points Capacitive Touch |
Applications:
The INNODAPC IND 080M Open Frame LCD Monitor is a versatile display solution designed for industrial applications. With its durable metal monitor construction, this 15.6-inch monitor is built to withstand tough industrial environments in various scenarios.
Featuring a high resolution of 1024*768, the IND 080M delivers crisp and clear images, making it ideal for applications that require detailed visual information. Its open frame design allows for easy integration into different systems and equipment.
Certified with CE, FCC, ROHS, IP65, and IP67, this metal monitor complies with international quality and safety standards, ensuring reliable performance and peace of mind for users.
The IND080M is suitable for a wide range of product application occasions, including but not limited to: - Industrial automation - Manufacturing processes - Control room displays - Outdoor kiosks - Digital signage in harsh environments
Thanks to its VESA Wall Mount/Yoke installation options, the IND080M can be easily mounted in various settings to meet specific application requirements. The minimum order quantity of 1 unit and a supply ability of 2000 pieces per month make it a flexible choice for different project scales.
Manufactured in China, the INNODAPC IND080M Open Frame LCD Monitor comes with efficient packaging details for safe transportation: 1pc/carton, weight: 6kgs/pc, packing size: 45×35×12cm. The delivery time of 25 working days ensures timely availability for project deadlines.
Customization:
Product Customization Services for the Open Frame LCD Monitor:
Brand Name: INNODAPC
Model Number: IND080M
Place of Origin: China
Certification: CE FCC ROHS IP65 IP67
Minimum Order Quantity: 1
Packaging Details: 1pc/carton weight: 6kgs/pc, packing size: 45×35×12cm
Delivery Time: 25 working days
Supply Ability: 2000 pieces per month
Application: Industrial Application
Resolution: 1024*768
Size: 8 Inch
Touch points: 10 Points Capacitive Touch
Support and Services:
The Product Technical Support and Services for the Open Frame LCD Monitor include:
- Assistance with initial setup and installation of the monitor
- Troubleshooting technical issues such as display problems or connectivity issues
- Providing software updates and firmware upgrades for optimal performance
- Offering guidance on maintenance and care instructions to prolong the lifespan of the monitor
- Providing warranty support and repair services for any hardware malfunctions
Packing and Shipping:
Product Packaging:
The Open Frame LCD Monitor is securely packaged in a sturdy cardboard box to prevent any damage during transportation. The monitor is wrapped in protective bubble wrap to ensure it reaches you in perfect condition.
Shipping:
Once your order is confirmed, the Open Frame LCD Monitor will be carefully packed and shipped within 1-2 business days. We use reliable shipping services to deliver your monitor safely and efficiently to your doorstep. You will receive a tracking number to monitor the shipping progress of your order.
