Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , front IP65 waterproof and dustproof.
Industrial LCD panel, full view angle, 1000nits sunlight readable, with light sensor for auto dimming.
10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment.
EETI waterproof solution, the touch function can work well with ｄｒｏｐ water on the screen.
The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation
-20 °C ~ 70°C (-4°F ~158°F).
Optical bonding, Prevent condensation and fogging inside the screen and increase transmittance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | RK3288/3399/3566/3568 |
| Memory | 2GB/4/8/16 DDR3/DDR4 |
| Storage | 8G/16G/32G/64G |
| Operation System | Android6.0/7.1/8.1/9.0/11.0 |

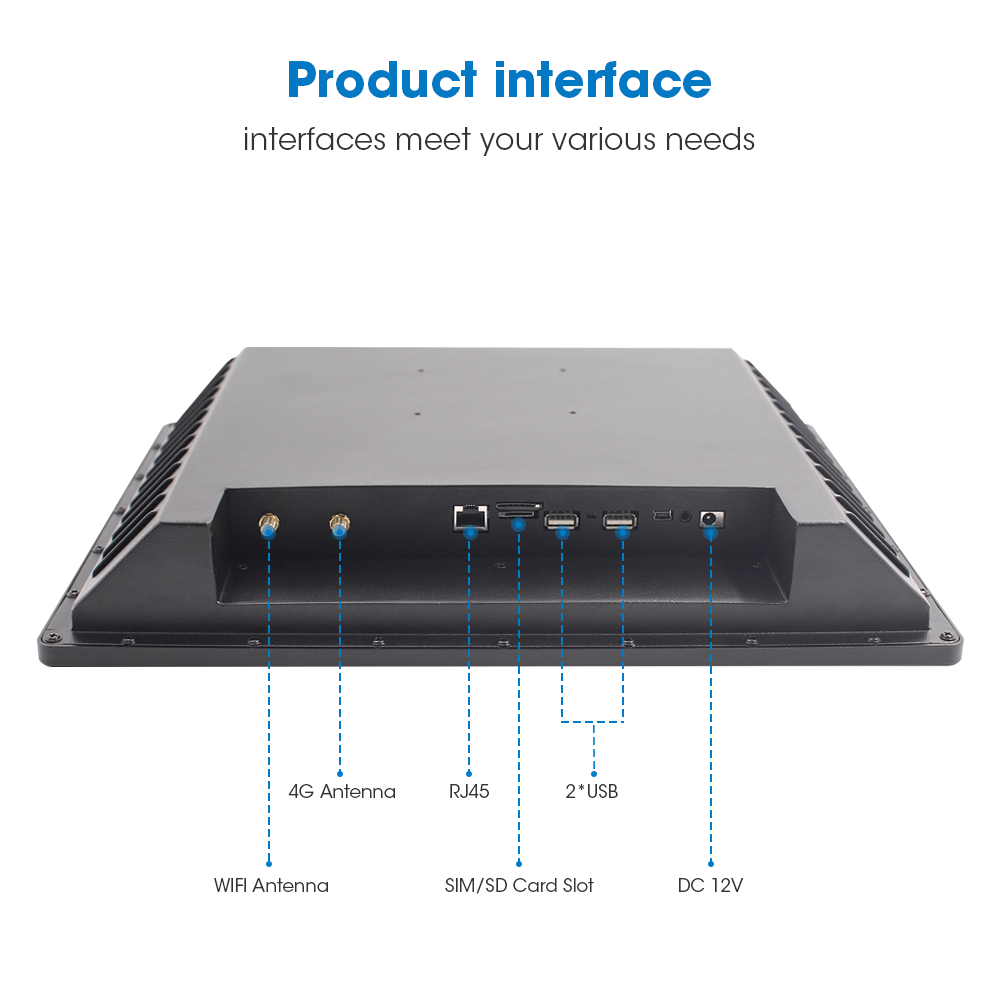

| I/O Ports | 1*USB,1*HDMI,1*RJ45 |
| Function | WIFI&BT integrated (3/4G,GPIO,Canbus,Webcam,NFC,RFID is supported ) |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 15'' LCD Panel Screen |
| Touchscreen Type | 10 Points Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1024(H)*(RGB)*768(V) |
| Aspect Ratio | 4：3 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Information | |
| Frame Material | Metal Case/Aluminum Alloy/Stainless Steel |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 mm or 100*100 mm(optional) |
| Weight | 6KG |
