Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , front IP65 waterproof and dustproof.
Industrial LCD panel, full view angle, 1000nits sunlight readable, with light sensor for auto dimming.
10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment.
EETI waterproof solution, the touch function can work well with ｄｒｏｐ water on the screen.
The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation
-20 °C ~ 70°C (-4°F ~158°F).
Optical bonding, Prevent condensation and fogging inside the screen and increase transmittance.
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 13.3'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1920(H)*1080(V) |
| Aspect Ratio | 16：9 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 4KG |

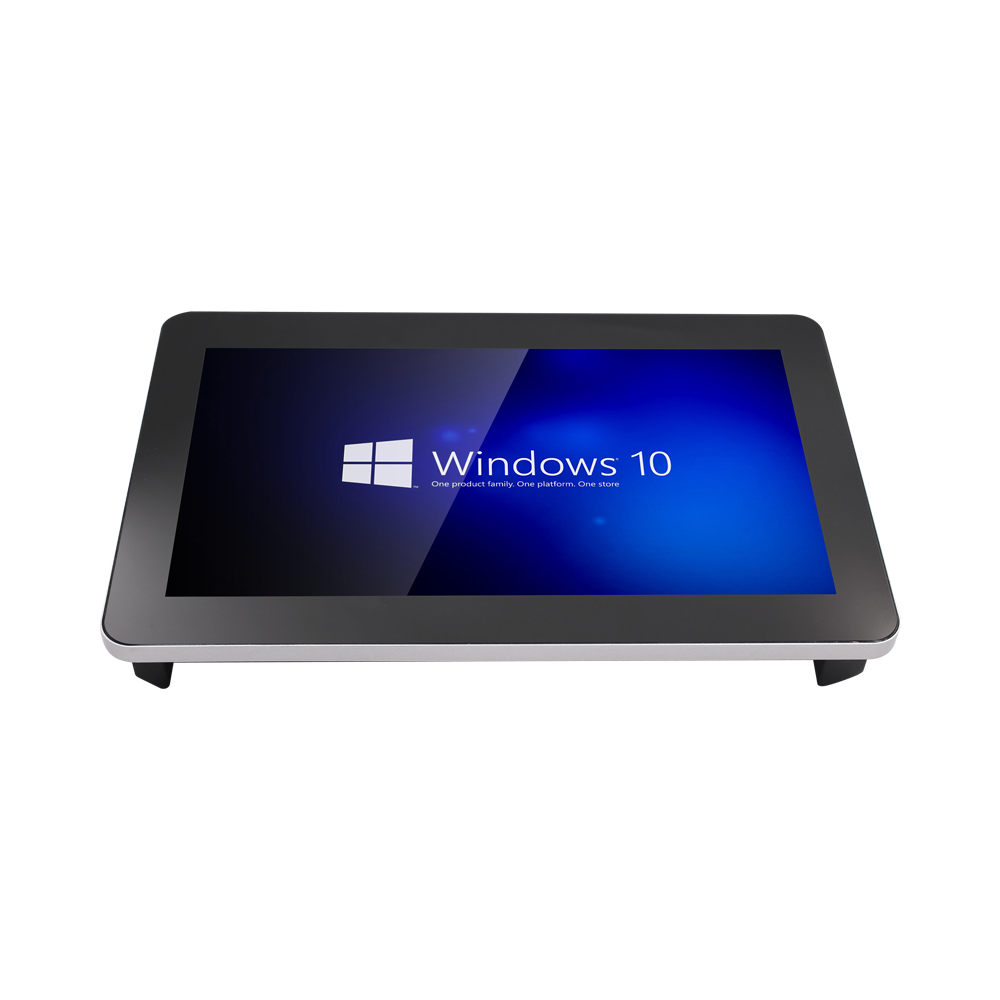

PRODUCT PICTURE
