21.5 Inch Stainless Steel IP65/66/67 Fanless Highly Integrated Embedded Industrial Waterproof Panel PC
Stainless steel SS304, Full IP67 waterproof, M 16 metal waterproof connector
Industrial grade LCD screen, full viewing angle
10-point capacitive touch screen, cover 2mm tempered glass (chemically strengthened), the hardness reaches 7H
EETI touch control solution, can touch well with ｄｒｏｐ water
Front build in 12MP pixel camera
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
The touch screen and LCD screen are optical bond
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
Download Specs:
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 27'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1920(H)*1080(V) |
| Aspect Ratio | 16：9 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 9KG |

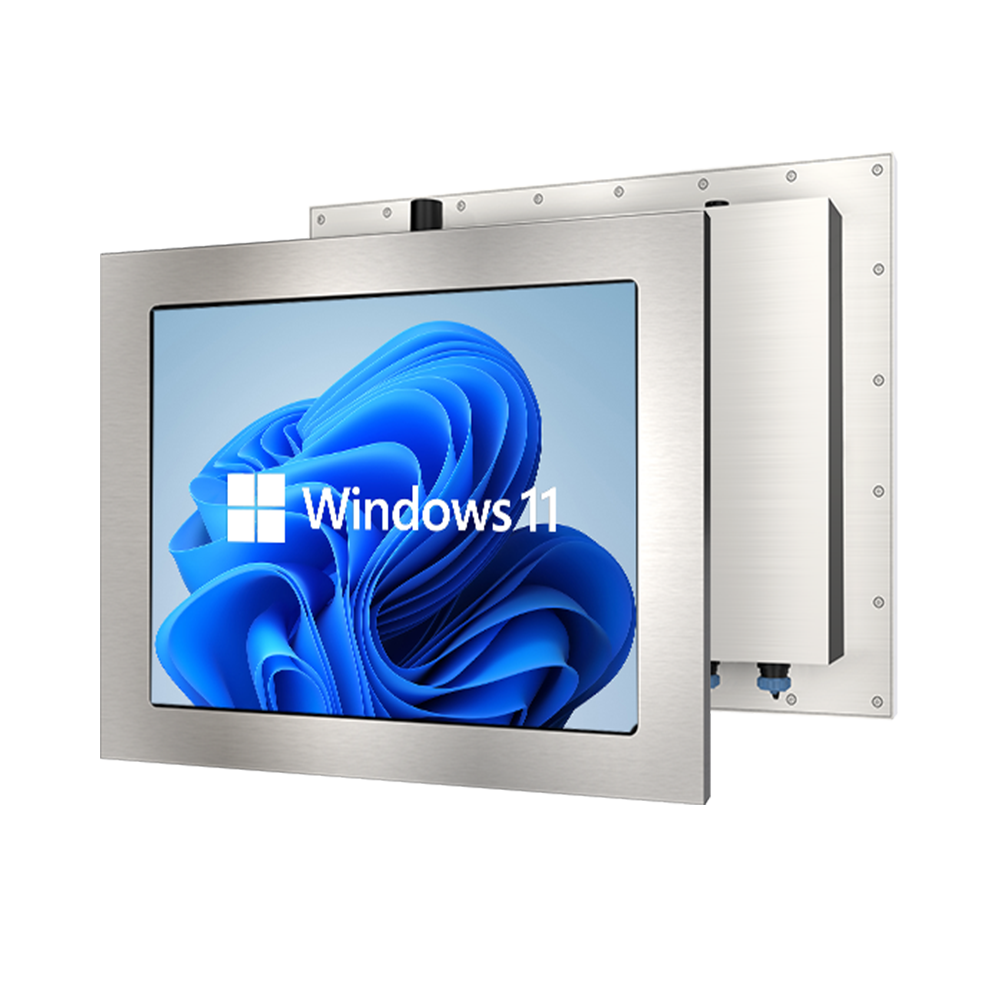

PRODUCT PICTURE
