19 Inch Rack Mount Waterproof Front Ip65 1000 Nits 1500 Nits Capacitance Industrial Touch Screen Monitor
Robust and durable full metal case, shockproof, excellent heat dissipation
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-points PCAP touch panel , high sensitive and fast-response.
High performance mainboard, 7x24 continuous operation.
Support wall mounting,embedded mounting,desk stand mouting etc.
Download Specs:
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| LCD Panel Charateristics | |||||
| Screen Size | 19'' LCD/LED Panel(7-55inch is supported) | ||||
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | ||||
| Resolution | 1280(H)*1024(V) | ||||
| Aspect Ratio | 4：3 | ||||
| Brightness | 1000-1500cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 700：1 | ||||
| Touch screen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |
| I/O Interface(optional) | |||||
| USB2.0(optional USB3.0) | 1 | ||||
| HDMI | 1 | ||||
| DC | 12V | ||||
| Audio I/O | |||||
| VGA | 1 | ||||
| Other Information | |||||
| Frame Material | Aluminum Alloy/Stainless Steel/Metal | ||||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||||
| Color | Default balck,also can choose white,silvery or other colour | ||||
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | ||||
| Weight | 5KG | ||||

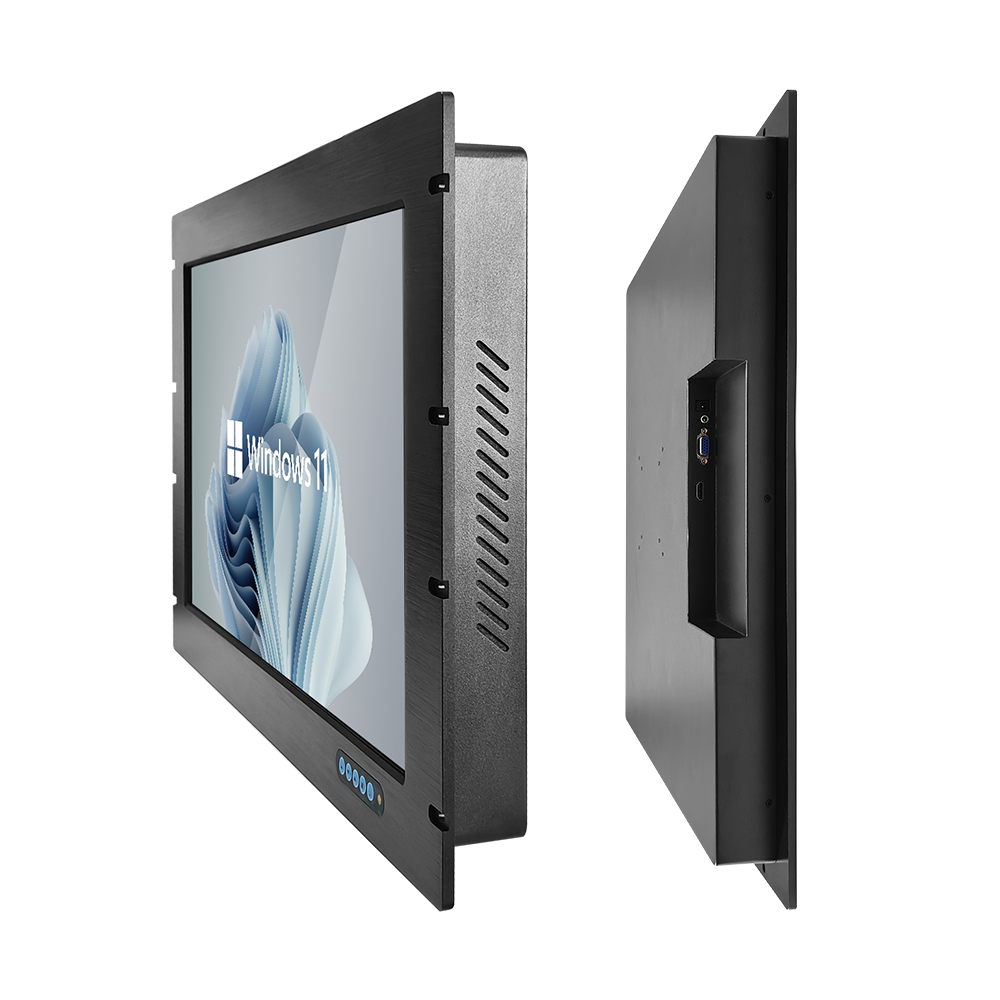

PRODUCT PICTURE
