10.1 Inch Die-cast case Ip65 Surface Waterproof Capacitive Touch J6413 I3 I5 I7 All in One Computer Industrial Panel Pc
Fully enclosed design, the whole PC is dustproof.
Seamless design flat bezel, front panel IP65 waterproof.
Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
High performance motherboard, 7x24 continuous operation.
Download Specs:
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| Computer Configurations | |
| CPU | Intel Celeron® Processor J1900/J4105/J4125/J6412/J6413 Quad Core 2.0GHz(Optional) Intel core i3/i5/i7/(Optional) |
| Memory | 4GB DDR3/DDR4( 4/8/16/32GB Optional) |
| Storage | 64G SSD(320GB to 1TB, 32GB to 128GB SSD option) |
| Operation System | Linux/Ubuntu 14.04 LTS/Win 7/8/10/11 |
| I/O Ports | 2~4*USB,1*HDMI,1~2*RJ45,1*VGA,1~4*RS232 |
| Power Supply | DC 12V or 110-240V, AC Input |
| Operating Temperature | -20~60° C (-4~140° F) |
| LCD Panel Charateristics | |
| Screen Size | 27'' LCD/LED Panel(7-55inch is supported) |
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) |
| Resolution | 1920(H)*1080(V) |
| Aspect Ratio | 16：9 |
| Brightness | 350cd/m2 |
| View Angle | 80x80(H),80x80(V) |
| Contrast Ratio | 500：1 |
| Other Function(Optional) | |
| RFID | 3G/4G Module |
| GPIO Connector | 8-36V wide range voltage |
| CanBus | Webcam |
| Brightness Control in Manual and Auto | NFC/RFID Reader |
| Other Information | |
| Frame Material | Aluminum Alloy/Stainless Steel/Metal |
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft |
| Color | Default balck,also can choose white,silvery or other colour |
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) |
| Weight | 9KG |

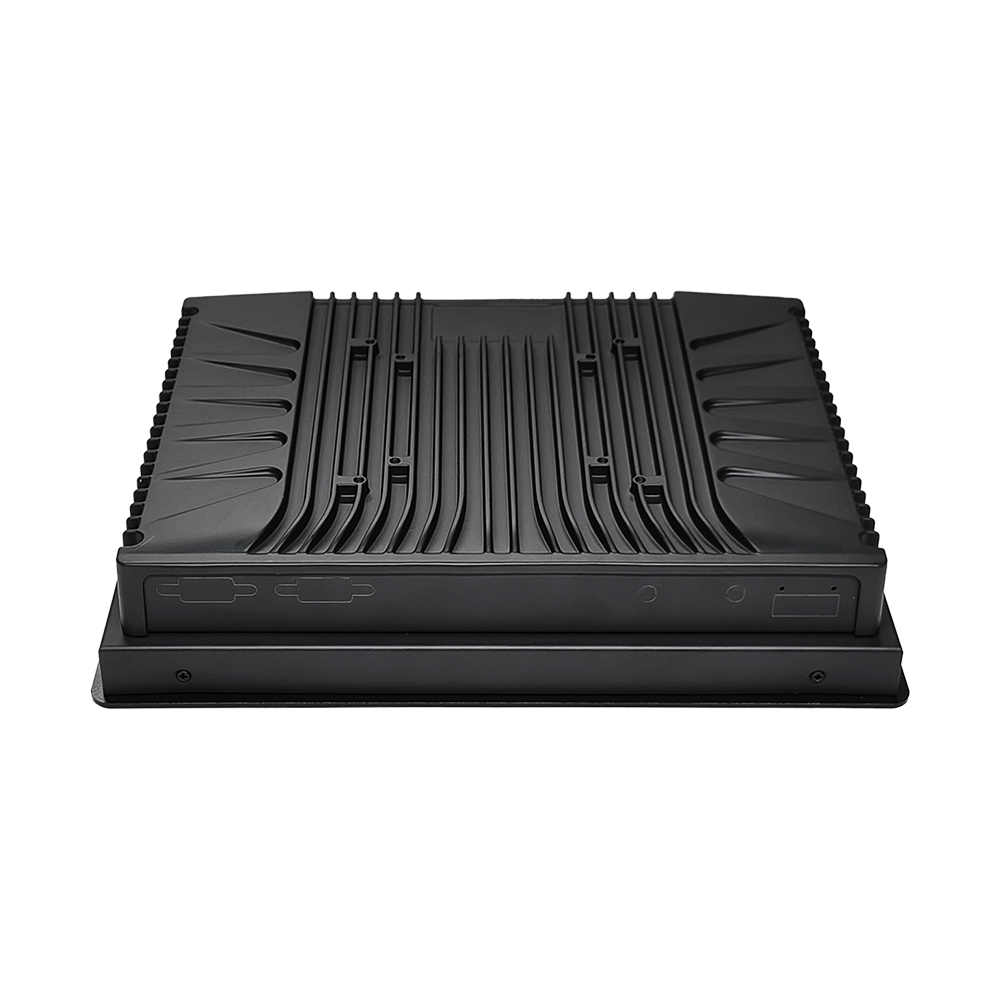

PRODUCT PICTURE
