10.1 12 15.6 17 18.5 19 21.5 23.8 Inch Fanless Embedded Industrial Panel PC I3 I5 I7 Capacitive Touch Screen Industrial Monitor
Stainless steel SS304, Full IP67 waterproof, M 16 metal waterproof connector
Industrial grade LCD screen, full viewing angle
10-point capacitive touch screen, cover 2mm tempered glass (chemically strengthened), the hardness reaches 7H
EETI touch control solution, can touch well with ｄｒｏｐ water
Front build in 12MP pixel camera
Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
The touch screen and LCD screen are optical bond
The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
Download Specs:
SPECIFICATIONS
Shenzhen Innoda Technology Co., Ltd
| LCD Panel Charateristics | |||||
| Screen Size | 21.5'' LCD/LED Panel(7-55inch is supported) | ||||
| Touchscreen Type | Capacitive Touch(4/5Resistive/IR/SAW option) | ||||
| Resolution | 1920(H)*1080(V) | ||||
| Aspect Ratio | 16：9 | ||||
| Brightness | 1000-1500cd/m2 | ||||
| View Angle | 80x80(H),80x80(V) | ||||
| Contrast Ratio | 700：1 | ||||
| Touch screen Characteristics (Optional) | |||||
| Touchscreen Type | 4-Wire Resistive | 5-Wire Resistive | Projected Capacitive | Saw Touch | IR Touch |
| Surface Hardness | 3H | 4H | 7H | 7H | 7H |
| Working Life | 10 millions times | 10 millions times | 10 millions times | 10 millions times | 10 millions times |
| Transparency | 82%(±3%) | 88%(±3%) | 95%(±3%) | 95%(±3%) | 95%(±3%) |
| I/O Interface(optional) | |||||
| USB2.0(optional USB3.0) | 1 | ||||
| HDMI | 1 | ||||
| DC | 12V | ||||
| Audio I/O | |||||
| VGA | 1 | ||||
| Other Information | |||||
| Frame Material | Aluminum Alloy/Stainless Steel/Metal | ||||
| Sheel Process Technic | Powder coated/Wire Drawing/CNC craft | ||||
| Color | Default balck,also can choose white,silvery or other colour | ||||
| VASA Mounting | 75*75 / 100*100 mm. Wall Mount/Desktop/Embedded/Rack-Mount(optional) | ||||
| Weight | 7KG | ||||

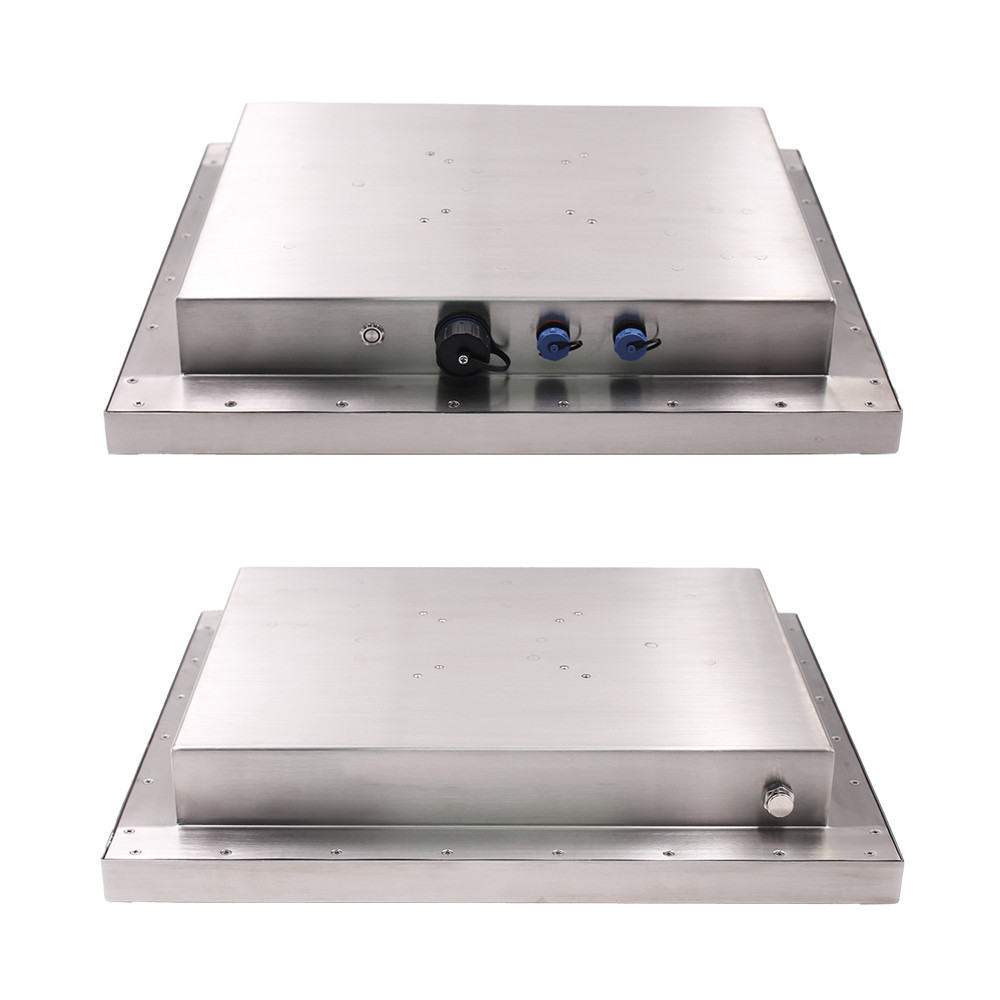

PRODUCT PICTURE
